TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1ROTOR; ASSEMBLY - threshing, without spiked bars, Includes: Ref. 1 - 28
-
1ROTOR; ASSEMBLY - threshing, with spiked bars, rice, Includes: Ref. 1 - 28
-
1ROTOR; ASSEMBLY - threshing, without spiked bars, corn and edible bean, no longer available, order rotor assembly 1347121C2 and change out rasp bars, Includes: Ref. 1 - 28
-
11NOT SOLD SEPARAT; ROTOR - threshing, order rotor assembly
-
21SHAFT; - rotor, front
-
31IMPELLER; - rotor, front
-
41HEADED PIN 3/4'' x 4 1/2'', G5; PIN - headed, 3/4 x 4-1/2 inch
-
51COTTER PIN 1/4'' x 1 1/4''; Pin, Split (Cotter), 1/4'' x 1 1/4''
-
1SET OF BLADES; KIT - rotor blade, set of 3, Includes: Ref. 6 - 12
-
63NOT SOLD SEPARAT; BLADE - rotor, order kit 1957446C3
-
79HEX SOC SCREW 1/2'' - 13 x 1-1/2''; BOLT - hex socket, 1/2 NC x 1-1/2 inch
-
89BOLT Hex, 1/2'' - 13 x 1-3/4'', Gr 8;
-
9UARWASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; - flat, 17/32 x 1-1/4 x 3/16 inch, hardened
-
1024NUT; - hex, self-locking, 1/2 inch NC, grade 8
-
113BOLT Hex, 1/2'' - 13 x 2-3/4'', Gr 8;
-
123BOLT Hex, 1/2'' - 13 x 3'', Gr 8;
-
133ANGLE; - kicker
-
133BAR; ANGLE - kicker, chrome
-
146BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 8; - hex flange, 1/2 NC x 1-1/4 inch, grade 8
-
156FLANGE NUT Hex, 1/2''-13, Lock; - hex flange, self-locking, special, 1/2 inch NC, grade 8
-
1633BAR; - rasp, without spike, rice
-
1621BAR; - rasp, with spike, rice
-
1648BAR; - rasp, without spike, edible bean
-
1648BAR; - rasp, without spike, chrome, edible bean
-
1642BAR; - rasp, without spike, corn and edible bean
-
1642RASP BAR; BAR - rasp, without spike, corn
-
1633BAR; - rasp, without spike, chrome
-
17UARBOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 8; - hex flange, 1/2 NC x 1-1/4 inch, grade 8
-
18UARFLANGE NUT Hex, 1/2''-13, Lock; - hex flange, self-locking, special, 1/2 inch NC, grade 8
-
191COUPLING 17 SPLINE; - rotor drive
-
206BOLT Hex, 1/2'' - 13 x 3-1/4'', Gr 8;
-
216WASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; - flat, 17/32 x 1-1/4 x 3/16 inch, hardened
-
226WASHER 13.49mm ID x 38.1mm OD x 3.05mm Thk; - flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch
-
233BAR; PLATE - wear, chrome
-
243-6BAR Straight Separator; - separator
-
243BAR; - separator, chrome
-
251BOLT Hex, 3/4'' - 10 x 1-3/4'', Gr 2; - hex, 3/4 NC x 1-3/4 inch, grade 2
-
261LOCK WASHER 3/4''; 3/4''
-
27UARWASHER 51.59mm ID x 69.85mm OD x 2.29mm Thk; - flat, 2-1/32 x 2-3/4 x 1/16 inch
-
281SPACER; PLATE - rotor load ring, rear drive
-
1RUBBER INSULATOR; INSULATOR - rotor drive coupling, not used, not shown
-
1KIT; KIT - rotor drive hub update
-
291BEARING ASSY 50.8 mm ID x 100 mm OD x 55.5 mm; BEARING - rotor front
-
301BEARING HOUSING; - rotor front bearing
-
312SERRATED SCREW Truss HD, 3/8'' - 16 x 1-1/4''; BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch
-
322FLANGE NUT 3/8''-16;
-
332SERRATED SCREW Truss HD, 5/16'' - 18 x 1''; BOLT - serrated slotted truss head, 5/16 NC x 1 inch
-
342SERRATED NUT Flg, USR, 5/16''-18; NUT - hex serrated flange, 5/16 inch NC
-
353BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5;
-
363LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
373NUT 1/2'' - 13, Gr 5; NUT, , Hex 1/2''-13, G5
-
381WASHER 51.56mm ID x 69.85mm OD x 0.76mm Thk; WASHER - flat, special
-
391LUBE NIPPLE 1/4'' - 28 NPTF; NIPPLE, LUBE, 1/4''-28 x .56'' lg, Self-Tap
-
401ROTOR; - multi-position tachometer
-
411BRACKET; - rotor tachometer
-
421SUPPORT; - front bearing, if used
-
434BOLT Hex Flg, 1/2'' - 13 x 1'', Spcl; - hex serrated flange, 1/2 NC x 1 inch
-
443BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 8; - hex flange, 1/2 NC x 1-1/4 inch, grade 8
-
457FLANGE NUT Flg, USR, 1/2''-13;
-
461BAR; - front door hold-down, if used
-
46A1BAR; - rotor front, if used
-
47UARSERRATED SCREW Truss HD, 5/16'' - 18 x 1''; BOLT - serrated slotted truss head, 5/16 NC x 1 inch, four used with bar 1308967C1, Ref. 46, five used with retainer 231850A1, Ref. 46A
-
47AUARDOOR SEAL 828mm L; - rotor, adhesive-backed, used with retainer 231850A1, Ref. 46A
-
48UARSERRATED NUT Flg, USR, 5/16''-18; NUT - hex serrated flange, 5/16 inch NC, Four used with bar 1308967C1, Ref. 46, five used with retainer 231850A1, Ref. 46A
-
491SHIELD; - sensor
-
503BOLT 3/8''-16 x 1.09'' OAL;
-

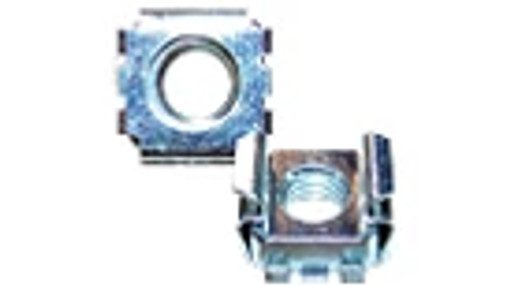

513SPRING NUT Ret, 3/8''-16; - hex, 3/8 inch NC
-
521WASHER 19.84mm ID x 63.5mm OD x 6.35mm Thk; - flat, special, 25/32 x 2-1/2 x 1/4 inch, rotor front shaft
Select All
Select
Ref.
Qty
1Availability
Part #
1347121C2Description
ROTOR; ASSEMBLY - threshing, without spiked bars, Includes: Ref. 1 - 28Img
Alts
Select
Ref.
Qty
1Availability
Part #
1317405C92Description
ROTOR; ASSEMBLY - threshing, with spiked bars, rice, Includes: Ref. 1 - 28Img
Alts
Select
Ref.
Qty
1Availability
Part #
104347A1Description
ROTOR; ASSEMBLY - threshing, without spiked bars, corn and edible bean, no longer available, order rotor assembly 1347121C2 and change out rasp bars, Includes: Ref. 1 - 28Img
Alts
Select
Ref.
1Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; ROTOR - threshing, order rotor assemblyImg
Alts
Select
Ref.
4Qty
1Availability
Part #
439-51272Description
HEADED PIN 3/4'' x 4 1/2'', G5; PIN - headed, 3/4 x 4-1/2 inchImg
Alts
Select
Ref.
5Qty
1Availability
Part #
432-1620Description
COTTER PIN 1/4'' x 1 1/4''; Pin, Split (Cotter), 1/4'' x 1 1/4''Img
Alts
Select
Ref.
Qty
1Availability
Part #
1957446C3Description
SET OF BLADES; KIT - rotor blade, set of 3, Includes: Ref. 6 - 12Img
Alts
Select
Ref.
6Qty
3Availability
Part #
NSSDescription
NOT SOLD SEPARAT; BLADE - rotor, order kit 1957446C3Img
Alts
Select
Ref.
7Qty
9Availability
Part #
361-45024Description
HEX SOC SCREW 1/2'' - 13 x 1-1/2''; BOLT - hex socket, 1/2 NC x 1-1/2 inchImg
Alts
Select
Ref.
8Qty
9Availability
Part #
326-828Description
BOLT Hex, 1/2'' - 13 x 1-3/4'', Gr 8;Img
Alts
Select
Ref.
9Qty
UARAvailability
Part #
396-41053Description
WASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; - flat, 17/32 x 1-1/4 x 3/16 inch, hardenedImg
Alts
Select
Ref.
10Qty
24Availability
Part #
199528A1Description
NUT; - hex, self-locking, 1/2 inch NC, grade 8Img
Alts
Select
Ref.
11Qty
3Availability
Part #

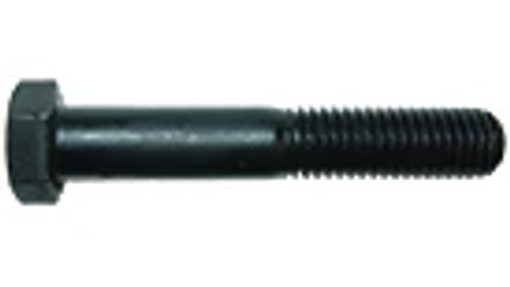

326-844Description
BOLT Hex, 1/2'' - 13 x 2-3/4'', Gr 8;Img
Alts
Select
Ref.
12Qty
3Availability
Part #
326-848Description
BOLT Hex, 1/2'' - 13 x 3'', Gr 8;Img
Alts
Select
Ref.
14Qty
6Availability
Part #
360-820Description
BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 8; - hex flange, 1/2 NC x 1-1/4 inch, grade 8Img
Alts
Select
Ref.
15Qty
6Availability
Part #
186852C1Description
FLANGE NUT Hex, 1/2''-13, Lock; - hex flange, self-locking, special, 1/2 inch NC, grade 8Img
Alts
Select
Ref.
16Qty
33Availability
Part #
1309336C1Description
BAR; - rasp, without spike, riceImg
Alts
Select
Ref.
16Qty
21Availability
Part #
1309175C1Description
BAR; - rasp, with spike, riceImg
Alts
Select
Ref.
16Qty
48Availability
Part #
1309336C1Description
BAR; - rasp, without spike, edible beanImg
Alts
Select
Ref.
16Qty
48Availability
Part #
1968743C2Description
BAR; - rasp, without spike, chrome, edible beanImg
Alts
Select
Ref.
16Qty
42Availability
Part #
1309336C1Description
BAR; - rasp, without spike, corn and edible beanImg
Alts
Select
Ref.
16Qty
42Availability
Part #
111709A1Description
RASP BAR; BAR - rasp, without spike, cornImg
Alts
Select
Ref.
16Qty
33Availability
Part #
1968743C2Description
BAR; - rasp, without spike, chromeImg
Alts
Select
Ref.
17Qty
UARAvailability
Part #
360-820Description
BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 8; - hex flange, 1/2 NC x 1-1/4 inch, grade 8Img
Alts
Select
Ref.
18Qty
UARAvailability
Part #
186852C1Description
FLANGE NUT Hex, 1/2''-13, Lock; - hex flange, self-locking, special, 1/2 inch NC, grade 8Img
Alts
Select
Ref.
19Qty
1Availability
Part #
1345307C1Description
COUPLING 17 SPLINE; - rotor driveImg
Alts
Select
Ref.
20Qty
6Availability
Part #
326-852Description
BOLT Hex, 1/2'' - 13 x 3-1/4'', Gr 8;Img
Alts
Select
Ref.
21Qty
6Availability
Part #
396-41053Description
WASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; - flat, 17/32 x 1-1/4 x 3/16 inch, hardenedImg
Alts
Select
Ref.
22Qty
6Availability
Part #
540468R1Description
WASHER 13.49mm ID x 38.1mm OD x 3.05mm Thk; - flat, hardened, special, 17/32 x 1-1/2 x 1/8 inchImg
Alts
Select
Ref.
24Qty
3-6Availability
Part #
1318976C2Description
BAR Straight Separator; - separatorImg
Alts
Select
Ref.
25Qty
1Availability
Part #
424-1228Description
BOLT Hex, 3/4'' - 10 x 1-3/4'', Gr 2; - hex, 3/4 NC x 1-3/4 inch, grade 2Img
Alts
Select
Ref.
27Qty
UARAvailability
Part #
495-81097Description
WASHER 51.59mm ID x 69.85mm OD x 2.29mm Thk; - flat, 2-1/32 x 2-3/4 x 1/16 inchImg
Alts
Select
Ref.
28Qty
1Availability
Part #
221189A1Description
SPACER; PLATE - rotor load ring, rear driveImg
Alts
Select
Ref.
Qty
1Availability
Part #
1345453C1Description
RUBBER INSULATOR; INSULATOR - rotor drive coupling, not used, not shownImg
Alts
Select
Ref.
Qty
1Availability
Part #
140500A1Description
KIT; KIT - rotor drive hub updateImg
Alts
Select
Ref.
29Qty
1Availability
Part #
193282C91Description
BEARING ASSY 50.8 mm ID x 100 mm OD x 55.5 mm; BEARING - rotor frontImg
Alts
Select
Ref.
30Qty
1Availability
Part #
1309076C1Description
BEARING HOUSING; - rotor front bearingImg
Alts
Select
Ref.
31Qty
2Availability
Part #
477-73820Description
SERRATED SCREW Truss HD, 3/8'' - 16 x 1-1/4''; BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inchImg
Alts
Select
Ref.
33Qty
2Availability
Part #
477-73116Description
SERRATED SCREW Truss HD, 5/16'' - 18 x 1''; BOLT - serrated slotted truss head, 5/16 NC x 1 inchImg
Alts
Select
Ref.
34Qty
2Availability
Part #
231-5145Description
SERRATED NUT Flg, USR, 5/16''-18; NUT - hex serrated flange, 5/16 inch NCImg
Alts
Select
Ref.
35Qty
3Availability
Part #
413-824Description
BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5;Img
Alts
Select
Ref.
36Qty
3Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
37Qty
3Availability
Part #
425-108Description
NUT 1/2'' - 13, Gr 5; NUT, , Hex 1/2''-13, G5Img
Alts
Select
Ref.
38Qty
1Availability
Part #
183449C1Description
WASHER 51.56mm ID x 69.85mm OD x 0.76mm Thk; WASHER - flat, specialImg
Alts
Select
Ref.
39Qty
1Availability
Part #
219-87Description
LUBE NIPPLE 1/4'' - 28 NPTF; NIPPLE, LUBE, 1/4''-28 x .56'' lg, Self-TapImg
Alts
Select
Ref.
40Qty
1Availability
Part #

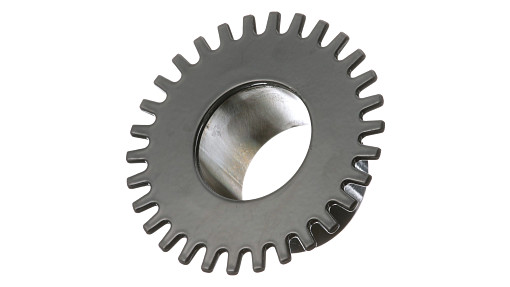

1979965C1Description
ROTOR; - multi-position tachometerImg
Alts
Select
Ref.
42Qty
1Availability
Part #

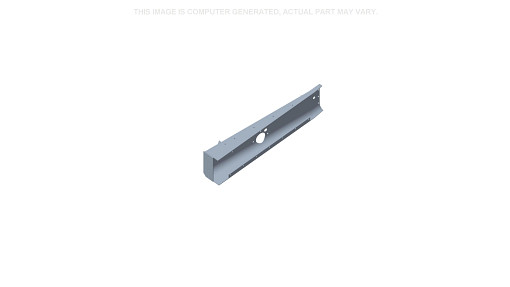

193163C8Description
SUPPORT; - front bearing, if usedImg
Alts
Select
Ref.
43Qty
4Availability
Part #
409-7816Description
BOLT Hex Flg, 1/2'' - 13 x 1'', Spcl; - hex serrated flange, 1/2 NC x 1 inchImg
Alts
Select
Ref.
44Qty
3Availability
Part #
360-820Description
BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 8; - hex flange, 1/2 NC x 1-1/4 inch, grade 8Img
Alts
Select
Ref.
45Qty
7Availability
Part #
231-5148Description
FLANGE NUT Flg, USR, 1/2''-13;Img
Alts
Select
Ref.
46Qty
1Availability
Part #
1308967C1Description
BAR; - front door hold-down, if usedImg
Alts
Select
Ref.
47Qty
UARAvailability
Part #
477-73116Description
SERRATED SCREW Truss HD, 5/16'' - 18 x 1''; BOLT - serrated slotted truss head, 5/16 NC x 1 inch, four used with bar 1308967C1, Ref. 46, five used with retainer 231850A1, Ref. 46AImg
Alts
Select
Ref.
47AQty
UARAvailability
Part #
231851A1Description
DOOR SEAL 828mm L; - rotor, adhesive-backed, used with retainer 231850A1, Ref. 46AImg
Alts
Select
Ref.
48Qty
UARAvailability
Part #
231-5145Description
SERRATED NUT Flg, USR, 5/16''-18; NUT - hex serrated flange, 5/16 inch NC, Four used with bar 1308967C1, Ref. 46, five used with retainer 231850A1, Ref. 46AImg
Alts
Select
Ref.
51Qty
3Availability
Part #
131-872Description
SPRING NUT Ret, 3/8''-16; - hex, 3/8 inch NCImg
Alts
Select
Ref.
52Qty
1Availability
Part #
70330C1Description
WASHER 19.84mm ID x 63.5mm OD x 6.35mm Thk; - flat, special, 25/32 x 2-1/2 x 1/4 inch, rotor front shaftImg
Alts
