05.100.03 - FILTER & CAPACITIES, 2188
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    J100304
    FILTER; Coolant
  • *
    -
    CNH XHD COOLANT
    ANTIGEL; Coolant, BSN JJC0191483, 40-QT (37.8L)
  • *
    -
    CNH XHD COOLANT
    ANTIGEL; Coolant, SN JJC0191483 & ASN, 42-QT (39.7L)
  • 2
    1
    J919562
    FILTRE A HUILE MOTEU;
  • *
    -
    NO. 1 SAE 15W40
    OIL; Crankcase, W/O Filter, 20-QT (18.9L)
  • *
    -
    NO. 1 SAE 15W40
    OIL; Crankcase, W/ Filter, 22-QT (20.8L)
  • 3
    1
    132151A1
    AIR FILTER; Primary
  • 4
    1
    132149A1
    AIR FILTER; Secondary
  • 5
    1
    120486A2
    CAB FILTER; Cab Recirculation
  • 6
    1
    A177605
    HYDRAULIC OIL FILTER Spin-on, 128mm OD x 270.7mm L, 1 1/2IN - 16 UN; Spin On
  • *
    -
    HY-TRAN ULTRA
    HUILE; Hydraulic System, Hy-Tran Ultra, 10-Gal (37.9L)
  • *
    -
    HY-TRAN ULTRA
    OIL; Transmission, Rear Frame or Differential, Hy-Tran Ultra, 4.3-Gal (16.2L)
  • 7
    1
    84557099
    FUEL FILTER; User Friendly Version
  • 8
    1

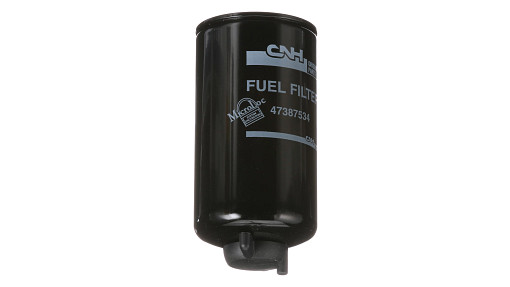

    47387534
    FUEL FILTER; BSN JJC0191483, Tank
  • 9
    1
    90-3941T1
    SEPARATEUR; Water Separator Spin On
  • *
    -
    HY-TRAN ULTRA
    HUILE; Power Take-Off, Hy-Tran Ultra PTO, Drive Housing, 14-QT (13.3L)
  • *
    -
    HY-TRAN ULTRA
    HUILE; Wheel Ends, Sprocket or Final Drive, Hy-Tran Ultra, Each, 13-QT (12.3L)
  • *
    -
    HY-TRAN ULTRA
    HUILE; Wheel Ends, Sprocket or Final Drive, Rotor Gear Case, 4-QT (3.8L)
  • *
    -
    HY-TRAN ULTRA
    HUILE; Wheel Ends, Sprocket or Final Drive, Chopper Gear Case, 3.3-QT (3.1L)
  • *
    -
    135H EP 85W140
    HUILE; Wheel Ends, Sprocket or Final Drive, 135H EP, 85W140, Lower Unloader Gear Case, 0.97-QT (0.89L)
  • *
    -
    135H EP 85W140
    HUILE; Gear Box, 135H EP, 85W140, Cleaning Fan & Feeder Gear Case, 2.75-QT (2.6L)
