10.254.01 - MANIFOLD - INTAKE (504114394 - 504165154)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

2854534

Description

INLET MANIFOLD;


Alts

Select

Ref.

2

Qty

3

Availability

Part #

4895432

Description

SCREW M8 x 1.25 x 70mm;


Alts

Select

Ref.

3

Qty

7

Availability

Part #

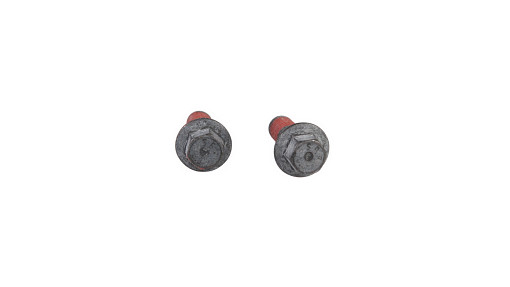

4899039

Description

SCREW Flng, M8 x 1.25 x 25mm, Cl 10.9;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

4895424

Description

INLET MANIFOLD;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

4899921

Description

GASKET 1.2mm Thk;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

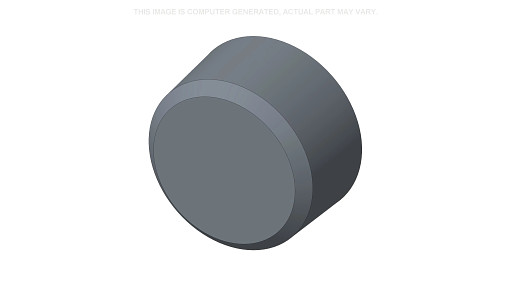

4895079

Description

PIPE PLUG 3/4''-14;


Alts

Select

Ref.

7

Qty

4

Availability

Part #

2852212

Description

FLANGE BOLT Hex, M8 x 1.25 x 25mm;


Alts
