5-060 - FUEL INJECTION PUMP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    735129C91
    REMAN-INJECTION PUMP; PUMP ASSEMBLY - fuel injection, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available
  • 1
    1934017C1
    CORE-INJECTION PUMP; RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly
  • 1
    3144531R91
    PUMP; ASSEMBLY - fuel injection, new, used with 616, 622 cotton pickers, 95 cotton harvesters and 782 cotton pickers, model number EP/VA6/100H 1350CR49-1, no longer available, Includes: Ref. 1 - 94;To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.
  • 1
    1934019C1
    CORE-INJECTION PUMP; RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly
  • 1
    3218337R91
    PUMP, FUEL INJECTION; PUMP ASSEMBLY - fuel injection, new, used with 715 combines, model number EP/VA6/100H 1200CR191, no longer available, Includes: Ref. 1 - 94;To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.
  • 1
    735132C91
    REMAN-INJECTION PUMP; PUMP ASSEMBLY - fuel injection, remanufactured (North America only), component parts do not apply to the remanufactured assembly
  • 1
    1934023C1
    CORE-INJECTION PUMP; RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly
  • 1
    3218725R91
    PUMP, FUEL INJECTION; PUMP ASSEMBLY - fuel injection, new, used with 686 tractors model number EP/VA6/100H 1000CRV3616-1, no longer available, Includes: Ref. 1 - 94 & Timing Advance Unit Plate Assembly;To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.
  • 1
    1934021C1
    CORE-INJECTION PUMP; RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly
  • 1
    3218726R91
    PUMP, FUEL INJECTION; PUMP ASSEMBLY - fuel injection, new, used with hydro 86 tractors, model number EP/VA6/100H 1200CRV3615-1, no longer available, Includes: Ref. 1 - 94;To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.
  • 1
    933981R1
    NUT M12 x 1.75, Cl 5; Hex M12 x 1.75, Cl 5
  • 1
    825-1408
    NUT M8, Cl 8; WASHER - hex, 8 mm - 1.25 (Replaces washer 933984R1)
  • 1
    1
    3078474R1
    RING; - retaining
  • 2
    1
    3078475R91
    PUMP; - charge
  • 3
    1
    3078476R1
    RING; - charge pump support
  • 4
    2
    3078477R1
    BOLT CSK; SCREW - retaining support ring
  • 5
    1
    3078479R1
    THRUST WASHER; - roller retaining thrust
  • 6
    1
    3078371R1
    WOODRUFF KEY; KEY - Woodruff, drive shaft, used with pump assembly 3144531R91, no longer available
  • 6
    1
    3079101R1
    WOODRUFF KEY; KEY - Woodruff, drive shaft, used with pump assemblies 3218337R91, 3218725R91 and 3218726R91
  • 7
    1
    3078473R1
    SHAFT; - drive
  • 8
    1
    3132395R1
    KEY; - Woodruff, charging pump
  • 9
    1
    3132598R1
    INDICATOR; POINTER - timing
  • 10
    1
    933982R1
    WAVE WASHER M4.3 ID x 9 OD x .5 Thk; WASHER - lock, 4 mm
  • 11
    1
    931326R1
    SCREW Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8; - pan head
  • 12
    1
    3078550R91
    PUMP; RING - roller retainer, no longer available
  • 13
    1
    3059007R1
    DISC; - cross type cam face
  • 14
    1
    3078551R1
    CAM; - face
  • 15
    2
    931330R1
    SCREW M6 x 1 x 12mm, Cl 8.8; - machine, window cover, used with pump assemblies 3144531R91 and 3218337R91
  • 15
    2
    628-6012
    BOLT Hex, M6 x 12mm, Cl 10.9, Full Thd; - hex, full threads, 6 - 1.0 x 12 mm, class 10.9, Window cover, Used with pump assemblies 3218725R91 and 3218726C91
  • 16
    1
    3078486R1
    COVER; - timing window
  • 17
    1
    3078485R1
    RING; O-RING - window cover
  • 18
    1
    3078607R91
    HOUSING; - pump, used with pump assembly 3144531R91, no longer available
  • 18
    1
    3078472R91
    HOUSING; - pump, used with pump assembly 3218337R91
  • 18
    1
    3079192R91
    CASE; HOUSING - pump, used with pump assembly 3218725R91
  • 18
    1
    3078580R91
    COVER; - pump, used with pump assembly 3218726R91
  • 19
    1
    3078355R2
    OIL SEAL; - oil, drive shaft
  • 20
    1
    3078481R1
    PIN; - automatic advance connecting
  • 21
    1
    3078482R1
    SLIDE; R - advance piston
  • 22
    1
    3078565R1
    COMPRESSION SPRING; - advance piston, used with pump assembly 3144531R91
  • 22
    1
    3078560R1
    SPRING; - advance piston, used with pump assemblies 3218337R91 and 3218726R91
  • 22
    1
    3079106R1
    VALVE SPRING; SPRING - advance piston, used with pump assembly 3218725R91
  • 23
    UAR
    3078528R1
    THRUST WASHER; - thrust, 0.6 mm
  • 23
    UAR
    3078529R1
    THRUST WASHER; - thrust, 0.8 mm
  • 23
    UAR
    3078530R1
    THRUST WASHER; - thrust, 1.0 mm
  • 23
    UAR
    3078531R1
    THRUST WASHER; - thrust, 1.2 mm
  • 23
    UAR
    3078532R1
    THRUST WASHER; - thrust, 1.4 mm
  • 23
    UAR
    3078533R1
    THRUST WASHER; - thrust, 3.0 mm

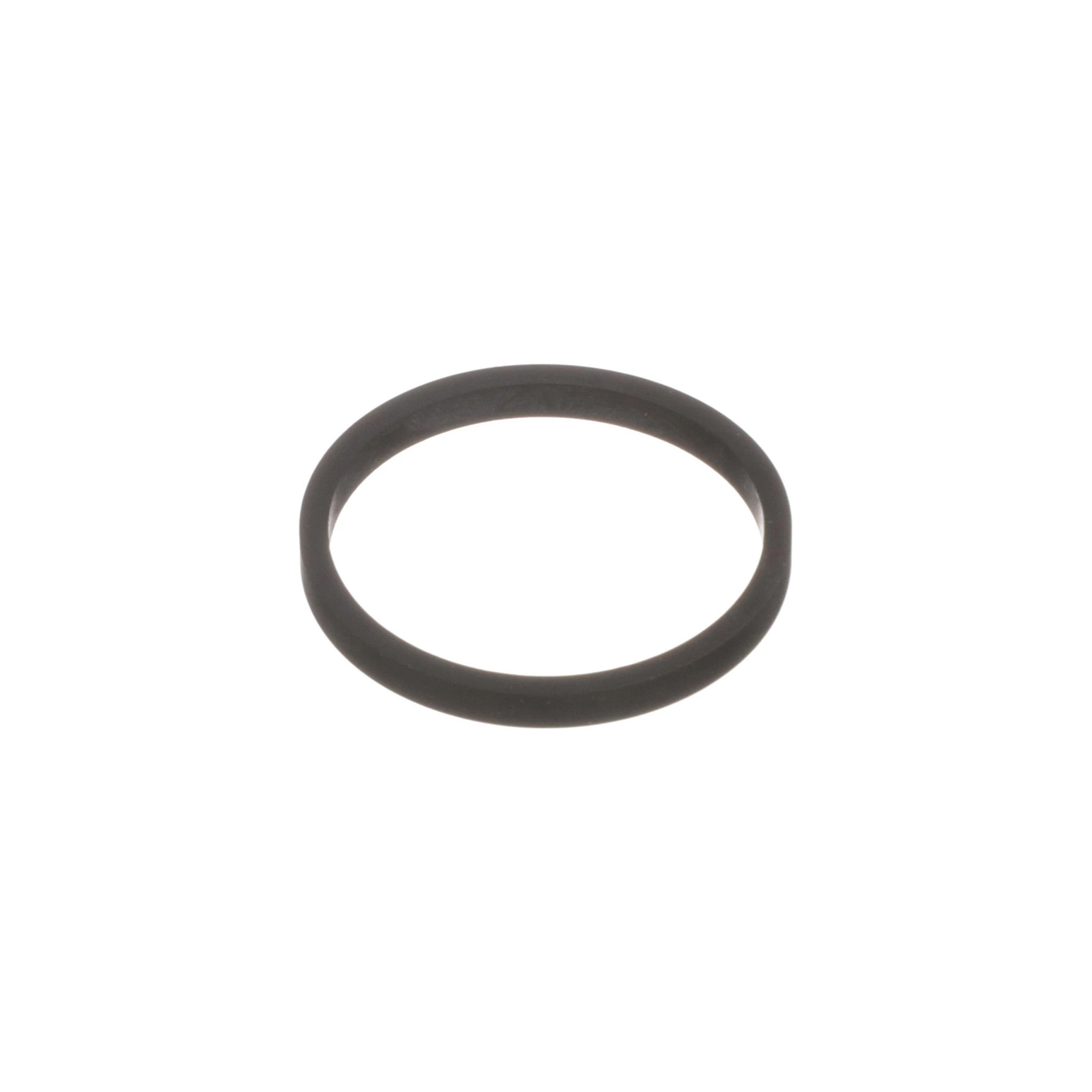

  • 24
    2
    3078488R1
    RING; O-RING - advance housing
  • 25
    1
    3078489R1
    COVER; PLATE - advance housing
  • 26
    4
    627-6016
    BOLT Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd; - hex, full threads, 6 - 1.0 x 16 mm, class 10.9, Advance housing plate, Used with pump 3144531R91 (Replaces screws 934271R1 and 931585R1)
  • 26
    2
    439189C1
    SCREW; - advance housing plate, right-hand, pan head 6 mm x 15 mm, used with pumps 3218337R91 and 3218726R91
  • 26
    2
    3079353R1
    SCREW; - advance housing plate, right-hand, used with pump 3218725R91
  • 26
    2
    627-6016
    BOLT Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd; - hex, full threads, 6 - 1.0 x 16 mm, class 10.9, Advance housing plate, LH, Used with pumps 3218337R91, 3218725R91 and 3218726R91 (Replaces screw 931585R1)
  • 27
    1
    3078535R1
    O-RING; - regulator valve
  • 28
    1
    3078358R1
    O-RING; - regulator valve
  • 29
    1
    3078614R91
    VALVE; - regulator, used with pumps 3218337R91 and 3218725R91 (Replaces valve 3078534R91)
  • 1
    3079096R1
    WASHER, LOCK; WASHER - spring, no longer available
  • 30
    1
    3059086R1
    BANJO BOLT; SCREW - hollow, inlet union pump housing
  • 31
    1
    3078484R1
    VALVE; - overflow
  • 32
    1
    3078483R1
    O-RING 2.5mm Thk x 15mm ID; - overflow valve, union adapter advance housing
  • 33
    1
    3078486R1
    COVER; - timing window, advance housing left-hand
  • 34
    1
    3078487R1
    O-RING; PACKING - ring
  • 35
    UAR
    3078761R2
    WASHER; - plunger, 1.80 mm
  • 35
    UAR
    3078763R2
    WASHER; - plunger, 1.84 mm
  • 35
    UAR
    3078765R2
    WASHER; - plunger, 1.88 mm
  • 35
    UAR
    3078767R2
    WASHER; - plunger, 1.92 mm
  • 35
    UAR
    3078769R2
    WASHER; - plunger, 1.96 mm
  • 35
    UAR
    3078771R2
    WASHER; - plunger, 2.00 mm
  • 35
    UAR
    3078773R2
    WASHER; - plunger, 2.04 mm
  • 35
    UAR
    3078775R2
    WASHER; - plunger, 2.08 mm
  • 35
    UAR
    3078777R2
    WASHER; - plunger, 2.12 mm
  • 35
    UAR
    3078779R2
    WASHER; - plunger, 2.16 mm
  • 35
    UAR
    3078781R2
    WASHER; - plunger, 2.20 mm
  • 35
    UAR
    3078783R2
    WASHER; - plunger, 2.24 mm
  • 35
    UAR
    3078785R2
    WASHER; - plunger, 2.28 mm
  • 35
    UAR
    3078787R2
    WASHER; - plunger, 2.32 mm
  • 35
    UAR
    3078789R2
    WASHER; - plunger, 2.36 mm
  • 35
    UAR
    3078791R2
    WASHER; - plunger, 2.40 mm
  • 35
    UAR
    3078793R2
    WASHER; - plunger, 2.44 mm
  • 35
    UAR
    3078795R2
    WASHER; - plunger, 2.48 mm
  • 35
    UAR
    3078797R2
    WASHER; - plunger, 2.52 mm, no longer available
  • 35
    UAR
    3078799R2
    WASHER; - plunger, 2.56 mm
  • 35
    UAR
    3078801R2
    WASHER; - plunger, 2.60 mm
  • 35
    UAR
    3078803R2
    WASHER; - plunger, 2.64 mm, no longer available
  • 35
    UAR
    3078805R2
    WASHER; - plunger, 2.68 mm
  • 35
    UAR
    3078807R2
    WASHER; - plunger, 2.72 mm
  • 35
    UAR
    3078809R2
    WASHER; - plunger, 2.76 mm
  • 35
    UAR
    3078811R2
    WASHER; - plunger, 2.80 mm
  • 35
    UAR
    3078813R2
    WASHER; - plunger, 2.84 mm
  • 35
    UAR
    3078815R2
    WASHER; - plunger, 2.88 mm
  • 1
    3078849R91
    VALVE; HEAD ASSEMBLY - distributor, used with pump assembly 3144531R91, Includes: Ref. 36 - 47
  • 1
    3079116R91
    DISTRIBUTOR HEAD; HEAD ASSEMBLY - distributor, used with pump assembly 3218337R91, no longer available, Includes: Ref. 36 - 47
  • 1
    3079187R91
    DISTRIBUTOR HEAD; HEAD ASSEMBLY - distributor, used with pump assembly 3218725R91, Includes: Ref. 36 - 47
  • 1
    3079197R91
    DISTRIBUTOR HEAD; HEAD ASSEMBLY - distributor, used with pump assembly 3218726R91, no longer available, Includes: Ref. 36 - 47
  • 36
    1
    NSS
    NOT SOLD SEPARAT; VALVE - order head assembly
  • 37
    UAR
    3078540R1
    WASHER; - plunger, 1.35 mm
  • 37
    UAR
    3078541R1
    WASHER; - plunger, 1.60 mm
  • 37
    UAR
    3078542R1
    WASHER; - plunger, 1.85 mm
  • 38
    UAR
    3078537R1
    WASHER; - plunger, 1.65 mm
  • 38
    UAR
    3078571R1
    WASHER; - plunger, 2.85 mm
  • 39
    1
    3078516R1
    SEAT; - plunger spring
  • 40
    1
    3078515R1
    SPRING; - plunger
  • 42
    1
    3078576R1
    SPRING WASHER; - spring
  • 43
    1
    3078578R1
    FILTER, FUEL; FILTER - fuel
  • 44
    1
    3078366R1
    O-RING; - distributor head
  • 45
    1
    NSS
    NOT SOLD SEPARAT; HEAD - distributor, order head assembly
  • 46
    1
    NSS
    NOT SOLD SEPARAT; VALVE - order head assembly
  • 47
    1
    NSS
    NOT SOLD SEPARAT; VALVE - order head assembly
  • 48
    UAR
    825-1406
    NUT M6, Cl 8; WASHER - hex, 6 mm - 1, throttle and control, one used with pumps 3218337R91, 3218725R91 and 3218726R91, two used with pump 3144531R91 (Replaces washer 933988R1)
  • 49
    4
    3078600R1
    SCREW; - pump to distributor head
  • 50
    2
    492-11006
    LOCK WASHER #6; Washer, Lock, , Throttle and control, (Replaces washer 933987R1) #6
  • 51
    1
    3078570R1
    BRACKET; - injection pump, used with pump 3144531R91 only
  • 52
    1
    3078514R1
    PLUG; - distributor head
  • 53
    1
    3132407R1
    O-RING; O-RING - plug, packing, distributor head
  • 55
    UAR
    3059067R2
    HYD CONNECTOR; HOLDER - delivery valve, four used with pump 3218337R91, six used with pumps 3144531R91, 3218725R91 and 3218726R91
  • 56
    UAR
    3059066R1
    WASHER 2.5mm ID x 7.3mm OD x 1.5mm Thk; - special, delivery valve, four used with pump 3218337R91, six used with pumps 3144531R91, 3218725R91 and 3218726R91
  • 57
    6
    3132408R1
    COMPRESSION SPRING; - delivery valve, used with pump 3144531R91
  • 57
    6
    3132382R1
    SPRING; - delivery valve, used with pumps 3218337R91 and 3218725R91
  • 57
    1
    3079189R1
    SPRING; - delivery valve, used with pump 3218726R91
  • 58
    6
    3079477R1
    VALVE; - delivery, used with pump 3144531R91 (Replaces valve 3136104R1)
  • 58
    6
    3132240R1
    VALVE; - delivery, used with pump 3218337R91
  • 58
    6
    3078798R1
    VALVE; - delivery, used with pump 3218725R91
  • 58
    6
    3079198R1
    VALVE; - delivery, used with pump 3218726R91
  • 59
    UAR
    3079378R1
    WASHER; - delivery valve, four used with pump 3218337R91, six used with pumps 3144531R91, 3218725R91 and 3218726R91 (Replaces washer 3078337R1)
  • 60
    1
    3136270R1
    LEVER; - throttle, used with pump 3144531R91, no longer used, order lever 3136271 below
  • 60
    1
    3136271R1
    LEVER; - throttle, used with pump 3144531R91 (Replaces lever 3136270R1)
  • 60
    1
    3136399R1
    LEVER; - throttle, used with pumps 3218337R91, 3218725R91 and 3218726R91
  • 61
    1
    3078555R1
    SPRING; - throttle, used with pumps 3144531R91, 3218725R91 and 3218726R91
  • 61
    1
    3079095R1
    SPRING; - throttle, used with pump 3218337R91
  • 62
    1
    3078517R1
    SHAFT; - throttle, used with pump 3144531R91
  • 62
    1
    3078605R1
    SHAFT; - throttle, used with pumps 3218337R91, 31218725R91 and 3218726R91
  • 63
    1
    3078519R1
    WASHER; - throttle shaft
  • 64
    1
    3078354R1
    O-RING 2mm Thk x 6.5mm ID; - throttle shaft
  • 65
    2
    785602R1
    O-RING; - control plunger and throttle
  • 66
    1
    3078556R1
    BUSHING; - throttle shaft
  • 67
    1
    3078772R91
    PACKAGE; KIT - control plunger, used with pump 3144531R91
  • 67
    1
    3078610R91
    KIT; - control plunger, used with pump 3218337R91
  • 67
    1
    3078563R91
    KIT; - control plunger spring, used with pumps 3218726R91 and 3218725R91
  • 68
    1
    3078521R1
    SHAFT; - control plunger
  • 69
    1
    3078523R1
    WASHER; - control plunger shaft
  • 70
    1
    3078363R1
    O-RING; - control plunger shaft
  • 71
    1
    3078524R1
    BUSHING; - control plunger shaft
  • 72
    1
    3078557R1
    PLATE; - stop, used with pump 3144531R91
  • 72
    1
    3078525R1
    PLATE; - stop, used with pump 3218337R91, no longer available
  • 72
    1
    3079183R1
    PLATE; - stop, used with pumps 3218725R91 and 3218726R91
  • 73
    1
    3132885R1
    BOLT; - stop
  • 74
    1
    3136136R1
    SCREW; - stop
  • 75
    1
    3059074R1
    SCREW; - stop
  • 76
    3
    825-1406
    NUT M6, Cl 8; WASHER - hex, 6 mm - 1, stop screw (Replaces washer 933988R1)
  • 77
    1
    3079141R1
    NUT; - hex, used with pumps 3144531R91 and 3218337R91 (Replaces nuts 3059096R1 and 3079120R1)
  • 77
    1
    3079144R91
    KIT; NUT - hex, used with pumps 3218725R91 and 3218726R91
  • 78
    1
    3132251R1
    STOP LOCK; SCREW - stop
  • 79
    1
    3059076R1
    WASHER; - plunger shaft control
  • 80
    4
    931320R1
    SCREW M6 x 12mm, Cl 8.8; - stop plate, countersunk
  • 81
    1
    3132588R1
    SPRING; - throttle shaft torsion
  • 82
    1
    3132589R1
    SPRING; - control plunger torsion
  • 83
    1
    3059077R1
    LEVER; - control plunger
  • 83
    1
    3059078R1
    LEVER; - control plunger
  • 84
    1
    3136143R1
    SLEEVE; - throttle shaft
  • 85
    1
    3136142R1
    O-RING; SEAL - ring
  • 86
    1
    3136134R1
    LEVER; - used with pumps 3218337R91, 3218725R91 and 3218726R91, no longer available
  • 86
    1
    3136135R1
    LEVER; - used with pumps 3218337R91, 3218725R91 and 3218726R91, no longer available
  • 87
    1
    3136262R1
    THRUST WASHER; WASHER - distance, used with pumps 3218337R91, 3218725R91 and 3218736R91
  • 88
    1
    3136260R1
    SPRING; - torsion, used with pumps 3218337R91, 3218725R91 and 3218726R91
  • 89
    1
    3136261R1
    NUT; - used with pumps 3218337R91, 3218725R91 and 3218726R91
  • 90
    4
    3079097R2
    CAP; - protection, used with pumps 3218337R91, 3218725R91 and 3218726R91
  • 91
    1
    3078942R1
    PLATE; CLOSING - used with pumps 3218337R91, 3218725R91 and 3218726R91
  • 92
    1
    3078527R1
    IGNITION SWITCH; SOLENOID - fuel, used with pump 3218337R91 only
  • 93
    1
    3078559R1
    RING; - seal, used with pump 3218337R91 only, no longer available
  • 94
    4
    684858C1
    SCREW; - pan head, 6 mm x 10 mm (Replaces screw 931327R1)
  • 4
    934160R1
    WASHER; - flat, used with pump 3218337R91 only, no longer available
  • 1
    3079351R1
    COVER; PLATE ASSEMBLY - timing advance unit, used with pump 3218725R91 only, Includes: Spacer Listed Below
  • 1
    199024A1
    GASKET KIT; KIT - fuel injection pump gasket (Replaces kit 3078526R91), Includes: Parts Listed Below
  • 2
    785602R1
    O-RING; - control plunger
  • 1
    3078354R1
    O-RING 2mm Thk x 6.5mm ID; - throttle shaft
  • 1
    3078358R1
    O-RING; - regulator valve
  • 1
    3078363R1
    O-RING; - fuel injection pump
  • 1
    3078366R1
    O-RING; - distributor head
  • 1
    3078483R1
    O-RING 2.5mm Thk x 15mm ID; - overflow valve
  • 1
    3078485R1
    RING; O-RING - window cover
  • 1
    3078487R1
    O-RING; - packing
  • 2
    3078488R1
    RING; O-RING - advance housing
  • 1
    3078535R1
    O-RING; - regulator valve
Select All

Select

Ref.

Qty

1

Availability

Part #

735129C91

Description

REMAN-INJECTION PUMP; PUMP ASSEMBLY - fuel injection, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available


Alts

Select

Ref.

Qty

1

Availability

Part #

1934017C1

Description

CORE-INJECTION PUMP; RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

3144531R91

Description

PUMP; ASSEMBLY - fuel injection, new, used with 616, 622 cotton pickers, 95 cotton harvesters and 782 cotton pickers, model number EP/VA6/100H 1350CR49-1, no longer available, Includes: Ref. 1 - 94;To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.


Alts

Select

Ref.

Qty

1

Availability

Part #

1934019C1

Description

CORE-INJECTION PUMP; RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

3218337R91

Description

PUMP, FUEL INJECTION; PUMP ASSEMBLY - fuel injection, new, used with 715 combines, model number EP/VA6/100H 1200CR191, no longer available, Includes: Ref. 1 - 94;To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.


Alts

Select

Ref.

Qty

1

Availability

Part #

735132C91

Description

REMAN-INJECTION PUMP; PUMP ASSEMBLY - fuel injection, remanufactured (North America only), component parts do not apply to the remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

1934023C1

Description

CORE-INJECTION PUMP; RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

3218725R91

Description

PUMP, FUEL INJECTION; PUMP ASSEMBLY - fuel injection, new, used with 686 tractors model number EP/VA6/100H 1000CRV3616-1, no longer available, Includes: Ref. 1 - 94 & Timing Advance Unit Plate Assembly;To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.


Alts

Select

Ref.

Qty

1

Availability

Part #

1934021C1

Description

CORE-INJECTION PUMP; RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly


Alts

Select

Ref.

Qty

1

Availability

Part #

3218726R91

Description

PUMP, FUEL INJECTION; PUMP ASSEMBLY - fuel injection, new, used with hydro 86 tractors, model number EP/VA6/100H 1200CRV3615-1, no longer available, Includes: Ref. 1 - 94;To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.


Alts

Select

Ref.

Qty

1

Availability

Part #

933981R1

Description

NUT M12 x 1.75, Cl 5; Hex M12 x 1.75, Cl 5


Alts

Select

Ref.

Qty

1

Availability

Part #

825-1408

Description

NUT M8, Cl 8; WASHER - hex, 8 mm - 1.25 (Replaces washer 933984R1)


Alts

Select

Ref.

1

Qty

1

Availability

Part #

3078474R1

Description

RING; - retaining


Alts

Select

Ref.

2

Qty

1

Availability

Part #

3078475R91

Description

PUMP; - charge


Alts

Select

Ref.

3

Qty

1

Availability

Part #

3078476R1

Description

RING; - charge pump support


Alts

Select

Ref.

4

Qty

2

Availability

Part #

3078477R1

Description

BOLT CSK; SCREW - retaining support ring


Alts

Select

Ref.

5

Qty

1

Availability

Part #

3078479R1

Description

THRUST WASHER; - roller retaining thrust


Alts

Select

Ref.

6

Qty

1

Availability

Part #

3078371R1

Description

WOODRUFF KEY; KEY - Woodruff, drive shaft, used with pump assembly 3144531R91, no longer available


Alts

Select

Ref.

6

Qty

1

Availability

Part #

3079101R1

Description

WOODRUFF KEY; KEY - Woodruff, drive shaft, used with pump assemblies 3218337R91, 3218725R91 and 3218726R91


Alts

Select

Ref.

7

Qty

1

Availability

Part #

3078473R1

Description

SHAFT; - drive


Alts

Select

Ref.

8

Qty

1

Availability

Part #

3132395R1

Description

KEY; - Woodruff, charging pump


Alts

Select

Ref.

9

Qty

1

Availability

Part #

3132598R1

Description

INDICATOR; POINTER - timing


Alts

Select

Ref.

10

Qty

1

Availability

Part #

933982R1

Description

WAVE WASHER M4.3 ID x 9 OD x .5 Thk; WASHER - lock, 4 mm


Alts

Select

Ref.

11

Qty

1

Availability

Part #

931326R1

Description

SCREW Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8; - pan head


Alts

Select

Ref.

12

Qty

1

Availability

Part #

3078550R91

Description

PUMP; RING - roller retainer, no longer available


Alts

Select

Ref.

13

Qty

1

Availability

Part #

3059007R1

Description

DISC; - cross type cam face


Alts

Select

Ref.

14

Qty

1

Availability

Part #

3078551R1

Description

CAM; - face


Alts

Select

Ref.

15

Qty

2

Availability

Part #

931330R1

Description

SCREW M6 x 1 x 12mm, Cl 8.8; - machine, window cover, used with pump assemblies 3144531R91 and 3218337R91


Alts

Select

Ref.

15

Qty

2

Availability

Part #

628-6012

Description

BOLT Hex, M6 x 12mm, Cl 10.9, Full Thd; - hex, full threads, 6 - 1.0 x 12 mm, class 10.9, Window cover, Used with pump assemblies 3218725R91 and 3218726C91


Alts

Select

Ref.

16

Qty

1

Availability

Part #

3078486R1

Description

COVER; - timing window


Alts

Select

Ref.

17

Qty

1

Availability

Part #

3078485R1

Description

RING; O-RING - window cover


Alts

Select

Ref.

18

Qty

1

Availability

Part #

3078607R91

Description

HOUSING; - pump, used with pump assembly 3144531R91, no longer available


Alts

Select

Ref.

18

Qty

1

Availability

Part #

3078472R91

Description

HOUSING; - pump, used with pump assembly 3218337R91


Alts

Select

Ref.

18

Qty

1

Availability

Part #

3079192R91

Description

CASE; HOUSING - pump, used with pump assembly 3218725R91


Alts

Select

Ref.

18

Qty

1

Availability

Part #

3078580R91

Description

COVER; - pump, used with pump assembly 3218726R91


Alts

Select

Ref.

19

Qty

1

Availability

Part #

3078355R2

Description

OIL SEAL; - oil, drive shaft


Alts

Select

Ref.

20

Qty

1

Availability

Part #

3078481R1

Description

PIN; - automatic advance connecting


Alts

Select

Ref.

21

Qty

1

Availability

Part #

3078482R1

Description

SLIDE; R - advance piston


Alts

Select

Ref.

22

Qty

1

Availability

Part #

3078565R1

Description

COMPRESSION SPRING; - advance piston, used with pump assembly 3144531R91


Alts

Select

Ref.

22

Qty

1

Availability

Part #

3078560R1

Description

SPRING; - advance piston, used with pump assemblies 3218337R91 and 3218726R91


Alts

Select

Ref.

22

Qty

1

Availability

Part #

3079106R1

Description

VALVE SPRING; SPRING - advance piston, used with pump assembly 3218725R91


Alts

Select

Ref.

23

Qty

UAR

Availability

Part #

3078528R1

Description

THRUST WASHER; - thrust, 0.6 mm


Alts

Select

Ref.

23

Qty

UAR

Availability

Part #

3078529R1

Description

THRUST WASHER; - thrust, 0.8 mm


Alts

Select

Ref.

23

Qty

UAR

Availability

Part #

3078530R1

Description

THRUST WASHER; - thrust, 1.0 mm


Alts

Select

Ref.

23

Qty

UAR

Availability

Part #

3078531R1

Description

THRUST WASHER; - thrust, 1.2 mm


Alts

Select

Ref.

23

Qty

UAR

Availability

Part #

3078532R1

Description

THRUST WASHER; - thrust, 1.4 mm


Alts

Select

Ref.

23

Qty

UAR

Availability

Part #

3078533R1

Description

THRUST WASHER; - thrust, 3.0 mm


Alts

Select

Ref.

24

Qty

2

Availability

Part #

3078488R1

Description

RING; O-RING - advance housing


Alts

Select

Ref.

25

Qty

1

Availability

Part #

3078489R1

Description

COVER; PLATE - advance housing


Alts

Select

Ref.

26

Qty

4

Availability

Part #

627-6016

Description

BOLT Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd; - hex, full threads, 6 - 1.0 x 16 mm, class 10.9, Advance housing plate, Used with pump 3144531R91 (Replaces screws 934271R1 and 931585R1)


Alts

Select

Ref.

26

Qty

2

Availability

Part #

439189C1

Description

SCREW; - advance housing plate, right-hand, pan head 6 mm x 15 mm, used with pumps 3218337R91 and 3218726R91


Alts

Select

Ref.

26

Qty

2

Availability

Part #

3079353R1

Description

SCREW; - advance housing plate, right-hand, used with pump 3218725R91


Alts

Select

Ref.

26

Qty

2

Availability

Part #

627-6016

Description

BOLT Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd; - hex, full threads, 6 - 1.0 x 16 mm, class 10.9, Advance housing plate, LH, Used with pumps 3218337R91, 3218725R91 and 3218726R91 (Replaces screw 931585R1)


Alts

Select

Ref.

27

Qty

1

Availability

Part #

3078535R1

Description

O-RING; - regulator valve


Alts

Select

Ref.

28

Qty

1

Availability

Part #

3078358R1

Description

O-RING; - regulator valve


Alts

Select

Ref.

29

Qty

1

Availability

Part #

3078614R91

Description

VALVE; - regulator, used with pumps 3218337R91 and 3218725R91 (Replaces valve 3078534R91)


Alts

Select

Ref.

Qty

1

Availability

Part #

3079096R1

Description

WASHER, LOCK; WASHER - spring, no longer available


Alts

Select

Ref.

30

Qty

1

Availability

Part #

3059086R1

Description

BANJO BOLT; SCREW - hollow, inlet union pump housing


Alts

Select

Ref.

31

Qty

1

Availability

Part #

3078484R1

Description

VALVE; - overflow


Alts

Select

Ref.

32

Qty

1

Availability

Part #

3078483R1

Description

O-RING 2.5mm Thk x 15mm ID; - overflow valve, union adapter advance housing


Alts

Select

Ref.

33

Qty

1

Availability

Part #

3078486R1

Description

COVER; - timing window, advance housing left-hand


Alts

Select

Ref.

34

Qty

1

Availability

Part #

3078487R1

Description

O-RING; PACKING - ring


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078761R2

Description

WASHER; - plunger, 1.80 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078763R2

Description

WASHER; - plunger, 1.84 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078765R2

Description

WASHER; - plunger, 1.88 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078767R2

Description

WASHER; - plunger, 1.92 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078769R2

Description

WASHER; - plunger, 1.96 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078771R2

Description

WASHER; - plunger, 2.00 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078773R2

Description

WASHER; - plunger, 2.04 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078775R2

Description

WASHER; - plunger, 2.08 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078777R2

Description

WASHER; - plunger, 2.12 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078779R2

Description

WASHER; - plunger, 2.16 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078781R2

Description

WASHER; - plunger, 2.20 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078783R2

Description

WASHER; - plunger, 2.24 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078785R2

Description

WASHER; - plunger, 2.28 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078787R2

Description

WASHER; - plunger, 2.32 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078789R2

Description

WASHER; - plunger, 2.36 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078791R2

Description

WASHER; - plunger, 2.40 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078793R2

Description

WASHER; - plunger, 2.44 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078795R2

Description

WASHER; - plunger, 2.48 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078797R2

Description

WASHER; - plunger, 2.52 mm, no longer available


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078799R2

Description

WASHER; - plunger, 2.56 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078801R2

Description

WASHER; - plunger, 2.60 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078803R2

Description

WASHER; - plunger, 2.64 mm, no longer available


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078805R2

Description

WASHER; - plunger, 2.68 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078807R2

Description

WASHER; - plunger, 2.72 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078809R2

Description

WASHER; - plunger, 2.76 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078811R2

Description

WASHER; - plunger, 2.80 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078813R2

Description

WASHER; - plunger, 2.84 mm


Alts

Select

Ref.

35

Qty

UAR

Availability

Part #

3078815R2

Description

WASHER; - plunger, 2.88 mm


Alts

Select

Ref.

Qty

1

Availability

Part #

3078849R91

Description

VALVE; HEAD ASSEMBLY - distributor, used with pump assembly 3144531R91, Includes: Ref. 36 - 47


Alts

Select

Ref.

Qty

1

Availability

Part #

3079116R91

Description

DISTRIBUTOR HEAD; HEAD ASSEMBLY - distributor, used with pump assembly 3218337R91, no longer available, Includes: Ref. 36 - 47


Alts

Select

Ref.

Qty

1

Availability

Part #

3079187R91

Description

DISTRIBUTOR HEAD; HEAD ASSEMBLY - distributor, used with pump assembly 3218725R91, Includes: Ref. 36 - 47


Alts

Select

Ref.

Qty

1

Availability

Part #

3079197R91

Description

DISTRIBUTOR HEAD; HEAD ASSEMBLY - distributor, used with pump assembly 3218726R91, no longer available, Includes: Ref. 36 - 47


Alts

Select

Ref.

36

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; VALVE - order head assembly


Alts

Select

Ref.

37

Qty

UAR

Availability

Part #

3078540R1

Description

WASHER; - plunger, 1.35 mm


Alts

Select

Ref.

37

Qty

UAR

Availability

Part #

3078541R1

Description

WASHER; - plunger, 1.60 mm


Alts

Select

Ref.

37

Qty

UAR

Availability

Part #

3078542R1

Description

WASHER; - plunger, 1.85 mm


Alts

Select

Ref.

38

Qty

UAR

Availability

Part #

3078537R1

Description

WASHER; - plunger, 1.65 mm


Alts

Select

Ref.

38

Qty

UAR

Availability

Part #

3078571R1

Description

WASHER; - plunger, 2.85 mm


Alts

Select

Ref.

39

Qty

1

Availability

Part #

3078516R1

Description

SEAT; - plunger spring


Alts

Select

Ref.

40

Qty

1

Availability

Part #

3078515R1

Description

SPRING; - plunger


Alts

Select

Ref.

42

Qty

1

Availability

Part #

3078576R1

Description

SPRING WASHER; - spring


Alts

Select

Ref.

43

Qty

1

Availability

Part #

3078578R1

Description

FILTER, FUEL; FILTER - fuel


Alts

Select

Ref.

44

Qty

1

Availability

Part #

3078366R1

Description

O-RING; - distributor head


Alts

Select

Ref.

45

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; HEAD - distributor, order head assembly


Alts

Select

Ref.

46

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; VALVE - order head assembly


Alts

Select

Ref.

47

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; VALVE - order head assembly


Alts

Select

Ref.

48

Qty

UAR

Availability

Part #

825-1406

Description

NUT M6, Cl 8; WASHER - hex, 6 mm - 1, throttle and control, one used with pumps 3218337R91, 3218725R91 and 3218726R91, two used with pump 3144531R91 (Replaces washer 933988R1)


Alts

Select

Ref.

49

Qty

4

Availability

Part #

3078600R1

Description

SCREW; - pump to distributor head


Alts

Select

Ref.

50

Qty

2

Availability

Part #

492-11006

Description

LOCK WASHER #6; Washer, Lock, , Throttle and control, (Replaces washer 933987R1) #6


Alts

Select

Ref.

51

Qty

1

Availability

Part #

3078570R1

Description

BRACKET; - injection pump, used with pump 3144531R91 only


Alts

Select

Ref.

52

Qty

1

Availability

Part #

3078514R1

Description

PLUG; - distributor head


Alts

Select

Ref.

53

Qty

1

Availability

Part #

3132407R1

Description

O-RING; O-RING - plug, packing, distributor head


Alts

Select

Ref.

55

Qty

UAR

Availability

Part #

3059067R2

Description

HYD CONNECTOR; HOLDER - delivery valve, four used with pump 3218337R91, six used with pumps 3144531R91, 3218725R91 and 3218726R91


Alts

Select

Ref.

56

Qty

UAR

Availability

Part #

3059066R1

Description

WASHER 2.5mm ID x 7.3mm OD x 1.5mm Thk; - special, delivery valve, four used with pump 3218337R91, six used with pumps 3144531R91, 3218725R91 and 3218726R91


Alts

Select

Ref.

57

Qty

6

Availability

Part #

3132408R1

Description

COMPRESSION SPRING; - delivery valve, used with pump 3144531R91


Alts

Select

Ref.

57

Qty

6

Availability

Part #

3132382R1

Description

SPRING; - delivery valve, used with pumps 3218337R91 and 3218725R91


Alts

Select

Ref.

57

Qty

1

Availability

Part #

3079189R1

Description

SPRING; - delivery valve, used with pump 3218726R91


Alts

Select

Ref.

58

Qty

6

Availability

Part #

3079477R1

Description

VALVE; - delivery, used with pump 3144531R91 (Replaces valve 3136104R1)


Alts

Select

Ref.

58

Qty

6

Availability

Part #

3132240R1

Description

VALVE; - delivery, used with pump 3218337R91


Alts

Select

Ref.

58

Qty

6

Availability

Part #

3078798R1

Description

VALVE; - delivery, used with pump 3218725R91


Alts

Select

Ref.

58

Qty

6

Availability

Part #

3079198R1

Description

VALVE; - delivery, used with pump 3218726R91


Alts

Select

Ref.

59

Qty

UAR

Availability

Part #

3079378R1

Description

WASHER; - delivery valve, four used with pump 3218337R91, six used with pumps 3144531R91, 3218725R91 and 3218726R91 (Replaces washer 3078337R1)


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3136270R1

Description

LEVER; - throttle, used with pump 3144531R91, no longer used, order lever 3136271 below


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3136271R1

Description

LEVER; - throttle, used with pump 3144531R91 (Replaces lever 3136270R1)


Alts

Select

Ref.

60

Qty

1

Availability

Part #

3136399R1

Description

LEVER; - throttle, used with pumps 3218337R91, 3218725R91 and 3218726R91


Alts

Select

Ref.

61

Qty

1

Availability

Part #

3078555R1

Description

SPRING; - throttle, used with pumps 3144531R91, 3218725R91 and 3218726R91


Alts

Select

Ref.

61

Qty

1

Availability

Part #

3079095R1

Description

SPRING; - throttle, used with pump 3218337R91


Alts

Select

Ref.

62

Qty

1

Availability

Part #

3078517R1

Description

SHAFT; - throttle, used with pump 3144531R91


Alts

Select

Ref.

62

Qty

1

Availability

Part #

3078605R1

Description

SHAFT; - throttle, used with pumps 3218337R91, 31218725R91 and 3218726R91


Alts

Select

Ref.

63

Qty

1

Availability

Part #

3078519R1

Description

WASHER; - throttle shaft


Alts

Select

Ref.

64

Qty

1

Availability

Part #

3078354R1

Description

O-RING 2mm Thk x 6.5mm ID; - throttle shaft


Alts

Select

Ref.

65

Qty

2

Availability

Part #

785602R1

Description

O-RING; - control plunger and throttle


Alts

Select

Ref.

66

Qty

1

Availability

Part #

3078556R1

Description

BUSHING; - throttle shaft


Alts

Select

Ref.

67

Qty

1

Availability

Part #

3078772R91

Description

PACKAGE; KIT - control plunger, used with pump 3144531R91


Alts

Select

Ref.

67

Qty

1

Availability

Part #

3078610R91

Description

KIT; - control plunger, used with pump 3218337R91


Alts

Select

Ref.

67

Qty

1

Availability

Part #

3078563R91

Description

KIT; - control plunger spring, used with pumps 3218726R91 and 3218725R91


Alts

Select

Ref.

68

Qty

1

Availability

Part #

3078521R1

Description

SHAFT; - control plunger


Alts

Select

Ref.

69

Qty

1

Availability

Part #

3078523R1

Description

WASHER; - control plunger shaft


Alts

Select

Ref.

70

Qty

1

Availability

Part #

3078363R1

Description

O-RING; - control plunger shaft


Alts

Select

Ref.

71

Qty

1

Availability

Part #

3078524R1

Description

BUSHING; - control plunger shaft


Alts

Select

Ref.

72

Qty

1

Availability

Part #

3078557R1

Description

PLATE; - stop, used with pump 3144531R91


Alts

Select

Ref.

72

Qty

1

Availability

Part #

3078525R1

Description

PLATE; - stop, used with pump 3218337R91, no longer available


Alts

Select

Ref.

72

Qty

1

Availability

Part #

3079183R1

Description

PLATE; - stop, used with pumps 3218725R91 and 3218726R91


Alts

Select

Ref.

73

Qty

1

Availability

Part #

3132885R1

Description

BOLT; - stop


Alts

Select

Ref.

74

Qty

1

Availability

Part #

3136136R1

Description

SCREW; - stop


Alts

Select

Ref.

75

Qty

1

Availability

Part #

3059074R1

Description

SCREW; - stop


Alts

Select

Ref.

76

Qty

3

Availability

Part #

825-1406

Description

NUT M6, Cl 8; WASHER - hex, 6 mm - 1, stop screw (Replaces washer 933988R1)


Alts

Select

Ref.

77

Qty

1

Availability

Part #

3079141R1

Description

NUT; - hex, used with pumps 3144531R91 and 3218337R91 (Replaces nuts 3059096R1 and 3079120R1)


Alts

Select

Ref.

77

Qty

1

Availability

Part #

3079144R91

Description

KIT; NUT - hex, used with pumps 3218725R91 and 3218726R91


Alts

Select

Ref.

78

Qty

1

Availability

Part #

3132251R1

Description

STOP LOCK; SCREW - stop


Alts

Select

Ref.

79

Qty

1

Availability

Part #

3059076R1

Description

WASHER; - plunger shaft control


Alts

Select

Ref.

80

Qty

4

Availability

Part #

931320R1

Description

SCREW M6 x 12mm, Cl 8.8; - stop plate, countersunk


Alts

Select

Ref.

81

Qty

1

Availability

Part #

3132588R1

Description

SPRING; - throttle shaft torsion


Alts

Select

Ref.

82

Qty

1

Availability

Part #

3132589R1

Description

SPRING; - control plunger torsion


Alts

Select

Ref.

83

Qty

1

Availability

Part #

3059077R1

Description

LEVER; - control plunger


Alts

Select

Ref.

83

Qty

1

Availability

Part #

3059078R1

Description

LEVER; - control plunger


Alts

Select

Ref.

84

Qty

1

Availability

Part #

3136143R1

Description

SLEEVE; - throttle shaft


Alts

Select

Ref.

85

Qty

1

Availability

Part #

3136142R1

Description

O-RING; SEAL - ring


Alts

Select

Ref.

86

Qty

1

Availability

Part #

3136134R1

Description

LEVER; - used with pumps 3218337R91, 3218725R91 and 3218726R91, no longer available


Alts

Select

Ref.

86

Qty

1

Availability

Part #

3136135R1

Description

LEVER; - used with pumps 3218337R91, 3218725R91 and 3218726R91, no longer available


Alts

Select

Ref.

87

Qty

1

Availability

Part #

3136262R1

Description

THRUST WASHER; WASHER - distance, used with pumps 3218337R91, 3218725R91 and 3218736R91


Alts

Select

Ref.

88

Qty

1

Availability

Part #

3136260R1

Description

SPRING; - torsion, used with pumps 3218337R91, 3218725R91 and 3218726R91


Alts

Select

Ref.

89

Qty

1

Availability

Part #

3136261R1

Description

NUT; - used with pumps 3218337R91, 3218725R91 and 3218726R91


Alts

Select

Ref.

90

Qty

4

Availability

Part #

3079097R2

Description

CAP; - protection, used with pumps 3218337R91, 3218725R91 and 3218726R91


Alts

Select

Ref.

91

Qty

1

Availability

Part #

3078942R1

Description

PLATE; CLOSING - used with pumps 3218337R91, 3218725R91 and 3218726R91


Alts

Select

Ref.

92

Qty

1

Availability

Part #

3078527R1

Description

IGNITION SWITCH; SOLENOID - fuel, used with pump 3218337R91 only


Alts

Select

Ref.

93

Qty

1

Availability

Part #

3078559R1

Description

RING; - seal, used with pump 3218337R91 only, no longer available


Alts

Select

Ref.

94

Qty

4

Availability

Part #

684858C1

Description

SCREW; - pan head, 6 mm x 10 mm (Replaces screw 931327R1)


Alts

Select

Ref.

Qty

4

Availability

Part #

934160R1

Description

WASHER; - flat, used with pump 3218337R91 only, no longer available


Alts

Select

Ref.

Qty

1

Availability

Part #

3079351R1

Description

COVER; PLATE ASSEMBLY - timing advance unit, used with pump 3218725R91 only, Includes: Spacer Listed Below


Alts

Select

Ref.

Qty

1

Availability

Part #

199024A1

Description

GASKET KIT; KIT - fuel injection pump gasket (Replaces kit 3078526R91), Includes: Parts Listed Below


Alts

Select

Ref.

Qty

2

Availability

Part #

785602R1

Description

O-RING; - control plunger


Alts

Select

Ref.

Qty

1

Availability

Part #

3078354R1

Description

O-RING 2mm Thk x 6.5mm ID; - throttle shaft


Alts

Select

Ref.

Qty

1

Availability

Part #

3078358R1

Description

O-RING; - regulator valve


Alts

Select

Ref.

Qty

1

Availability

Part #

3078363R1

Description

O-RING; - fuel injection pump


Alts

Select

Ref.

Qty

1

Availability

Part #

3078366R1

Description

O-RING; - distributor head


Alts

Select

Ref.

Qty

1

Availability

Part #

3078483R1

Description

O-RING 2.5mm Thk x 15mm ID; - overflow valve


Alts

Select

Ref.

Qty

1

Availability

Part #

3078485R1

Description

RING; O-RING - window cover


Alts

Select

Ref.

Qty

1

Availability

Part #

3078487R1

Description

O-RING; - packing


Alts

Select

Ref.

Qty

2

Availability

Part #

3078488R1

Description

RING; O-RING - advance housing


Alts

Select

Ref.

Qty

1

Availability

Part #

3078535R1

Description

O-RING; - regulator valve


Alts
