2.050.1 - 4'' X 32'' HYDRAULIC CYLINDER - MONARCH
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 0
    1
    87437292
    HYDRAULIC CYLINDER Double Acting, 44.45mm Rod, 812.8mm Stroke; 4'' x 32'' mon 3000 psi without pins
  • 1
    87437292R
    REMAN-HYD CYLINDER Double Acting, 44.45mm Rod, 812.8mm Stroke; PTX600 BSN Y9S003001 (12/01-7/08)
  • -
    87437292C
    CORE-HYD CYLINDER Double Acting, 44.45mm Rod, 812.8mm Stroke; Return Number
  • 1
    1
    8945
    CHAPE; cyl rod, Monarch 1 pin (#492658)
  • 2
    1
    87314803
    SET SCREW Hex Skt, 3/8'' - 16 x 1/2'';
  • 3
    1
    8961
    SHAFT; cylinder, 4'' x 32'' Monarch 1 3/4'' dia (#494775)
  • 2A
    1
    1029632

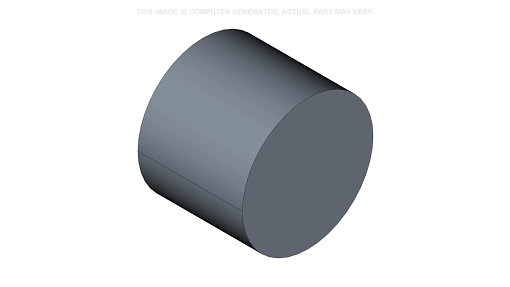

    PLUG; nylon 5/16'' od x 1/4'' pln solid
  • 4
    1
    NSS
    NOT SOLD SEPARAT; ROD WIPER;Included in repair kit 9791V2
  • 5
    1
    NSS
    NOT SOLD SEPARAT; U-CUP ROD SEAL;Included in repair kit 9791V2
  • 6
    1
    87409410
    HEAD; cylinder front 4'' bore x 1 3/4'' rod
  • 7
    2
    NSS
    NOT SOLD SEPARAT; O-RING PISTON;Included in repair kit 9791V2
  • 8
    1
    9673
    PISTON; 4'' Monarch psp seal psi (#494735)
  • 9
    1
    NSS
    NOT SOLD SEPARAT; O-RING ROD;Included in repair kit 9791V2
  • 10
    1
    232-46318
    LOCK NUT 1 1/8''-12, GC;
  • 11
    2
    NSS
    NOT SOLD SEPARAT; O-RING BACKUP;Included in repair kit 9791V2
  • 12
    2
    NSS
    NOT SOLD SEPARAT; O-RING;Included in repair kit 9791V2
  • 13
    1
    8958
    TUBE 4.00'' DIA x 32.00'' L; cylinder, 4'' x 32'' Monarch 3000 psi (#467332)
  • 14
    8
    86643107

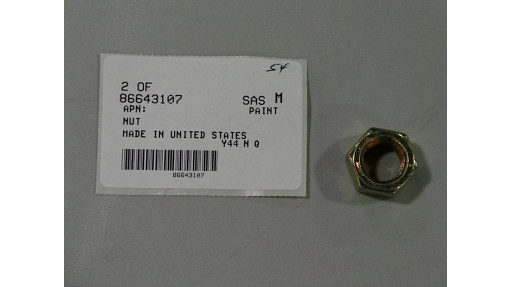

    NUT 5/8'' - 18, Gr 8; 5/8''-18, G8
  • 15
    4
    8959
    TIE-ROD; cylinder 32 Monarch 5/8'' di 3000 psi (#492362)
  • 16
    1
    87409432
    HEAD; cylinder base 4'' bore, 2, 3/4''-16 orb
  • 17
    1
    9791V2
    SEAL KIT; 4 Monarch 1 3/4'' rod psp seal (#643184)
  • 100
    1
    3326
    PIN; cylinder 1'' x 2 7/8'' ul hardened with snap rings;Not Shown
  • 100
    1
    8972
    PIN; cylinder, 1'' x 3 3/8'' ul with snap ring groove (#437324)mo;Not Shown
  • 100
    4
    87019495

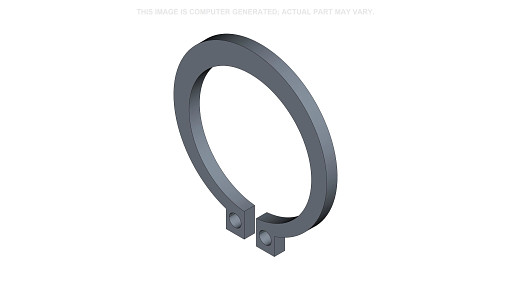

    SNAP RING #98, Ext; Not Shown
