88.100.90[32A] - KIT, CAB SIDE WINDOWS (UNTIL MARCH 4, 2018)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    48148733
    KIT; Cab Side Windows, Incl 2 - 28
  • 2
    1
    48148736
    INSTRUCTION; Sheet
  • 3
    1
    47965424
    WINDOW; LH Side, Incl 4 - 11
  • 4
    1
    51412658
    SLIDER; Service, LH Slider
  • 5
    1
    51412662
    WINDOW KIT, SERVICE, LOWER GLASS; Service, Lower Glass
  • 6
    1
    51412663
    KIT; Service, LH Fixed Glass
  • 7
    1
    51412666
    KIT; Service, Screen tracks
  • 8
    1
    51412667
    KIT; Service, LH Lower Glazing
  • 9
    1
    51412669
    KIT; Service, LH Uper Glass Seals
  • 10
    1
    51412670
    HANDLE KIT, SERVICE, SLIDER HANDLE; Service, Slider Handle
  • 11
    3
    51437461
    COVER; Drain
  • 12
    1
    47965423
    WINDOW; RH Side, Incl 13 - 20
  • 13
    1
    51412660
    SLIDER; Service, RH Side
  • 14
    1
    51412662
    WINDOW KIT, SERVICE, LOWER GLASS; Service, Lower Glass
  • 15
    1
    51412664

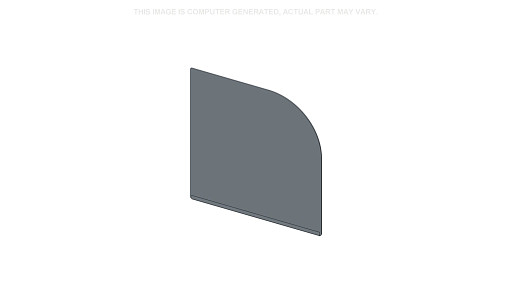

    WINDOW KIT, SERVICE, RH FIXED GLASS; Service, RH Fixed Glass
  • 16
    1
    51412666
    KIT; Service, Screen Tracks
  • 17
    1
    51412668

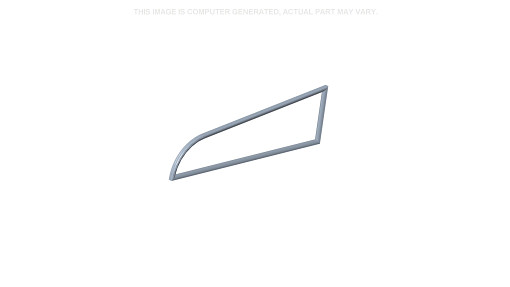

    SEAL, GLASS KIT, SERVICE, RH GLASS SEAL; Service, RH Lower Glazing
  • 18
    1
    51412670

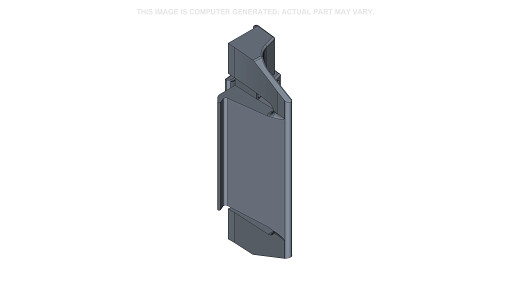

    HANDLE KIT, SERVICE, SLIDER HANDLE; Service, Slider Handle
  • 19
    1
    51415660
    KIT; Service, RH Uper Glass Seals
  • 20
    3
    51437461
    COVER; Drain
  • 21
    1
    48127892
    SCREEN; LH Sde ROPS, Gray
  • 22
    1
    48128366
    SCREEN; RH Sde ROPS, Gray
  • 23
    12
    48140231
    MOUNTING PLATE; Side Window, Gray
  • 24
    2
    48132161
    SCREW M6 x 30mm, CL 10.9; Tamper
  • 25
    2
    86624182

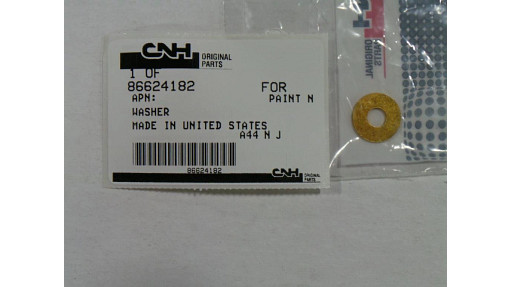

    WASHER 6.6mm ID x 18mm OD x 1.6mm Thk, CST, ZND;
  • 26
    10
    84305556
    SCREW Round HD, M6 x 1 x 25mm, Cl 10.9;
  • 27
    8
    48128483
    BUSHING;
  • 28
    12
    84272827

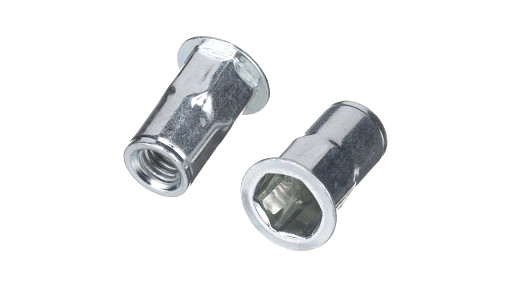

    RIVET Flat Flg Head, 12.7mm OD x 17.4mm L;
