36 - PTO CIRCUIT - T-70 TRENCHER ATTACHMENT, SPEC. # 7055-3067 & UP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    3
    86509028
    HYD CONNECTOR 3/4'' - 16 JIC x 9/16'' - 18 ORB; ADAPTER - straight
  • 4
    1
    H741991
    PIN; ROLL PIN (3/16'' x 1'')
  • 6
    1
    H174771
    CLEVIS PIN; (1/4 x 1)
  • 6A
    1
    H739771
    HARDWARE; COTTER PIN (3/32 x 3/4)
  • 7
    1
    H35279
    AXLE PIN 4.72mm OD x 23.76mm L; CLEVIS PIN (3/16'' x 57/64'')
  • 7A
    1
    H739623
    PIN; COTTER PIN (1/16 x 1/2)
  • 9
    1
    H275255
    CRANK LEVER; LEVER CASTING
  • 10
    1
    H242701
    HANDLE; LEVER
  • 11
    1
    H223560
    LOCK; SAFETY LOCK - PTO lever
  • 12
    1
    H182121
    KNOB;
  • 13
    1
    H165068
    ADAPTER; - 90 degrees
  • 14
    4
    H745158
    O-RING; O RING
  • 15
    1
    H227256
    HOSE; (3/4 x 68) 3/4 MP x 1-1/16 JIC Fm Swv ends
  • 16
    1
    H202168
    HOSE ASSY.; HOSE (3/8 x 26) 3/4 JIC male ends
  • 17
    1
    H218818
    FLEXIBLE HOSE; HOSE (1/4 x 26) 1/4 MP & 9/16 JIC Fm Swv ends
  • 18
    1
    578384

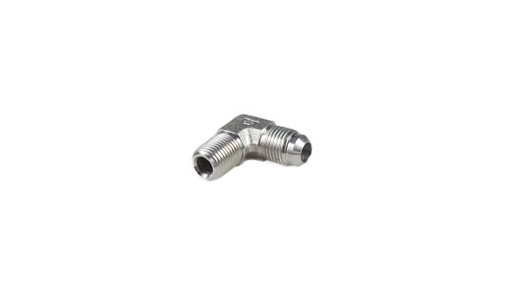

    90 ELBOW 90 Degree, 9/16''-18, 37 Degree x 1/4''-18, NPTF; 90?, 9/16''-18, 37? x 1/4''-18, NPTF
  • 19
    1
    H568717
    TUBE 0.5'' OD x 12.5'' L; ASSEMBLY
  • 20
    1
    H172965
    HYDRAULIC HOSE 6.35 mm ID x 939.60 mm, SAE 100R1; 6.35 mm ID x 939.60 mm, SAE 100R1
  • 21
    1
    578384
    90 ELBOW 90 Degree, 9/16''-18, 37 Degree x 1/4''-18, NPTF; 90?, 9/16''-18, 37? x 1/4''-18, NPTF
  • 22
    1
    218-1046
    ELBOW 90 Degree, 1 1/16''-12, 37 Degree x 1''-11 1/2, NPTF; ADAPTER - 90 degrees
  • 23
    1
    H709485
    BOLT; HHCS (5/16 x 1-3/4 NC)
  • 24
    1
    H45468
    CLAMP; TUBE CLAMP
  • 26
    2
    230-4215
    ECROU 5/16''-18, GA; NUT (5/16 NC - lock)
  • 27
    1
    H51763
    CLAMP; TUBE CLAMP
  • 28
    1
    H709436
    BOLT; HHCS (5/16 x 3/4 NC)
  • 29
    1
    H571968
    VALVE; PTO CONTROL VALVE (serial no. 3067 & up)
  • 30
    AR
    H77990
    SHIM; (.015)
  • 31
    AR
    H746180
    SHIM; (.010)
  • 32
    AR
    H220798
    SHIM .035'' Thk;
  • 33
    1
    H78006
    VALVE SPRING; SPRING
  • 34
    1
    H220962
    SPOOL; POPPET
  • 39
    1
    H220764
    SPRING;
  • 43
    2
    H755306
    BALL; DETENT BALL
  • 44
    1
    H580035
    CYLINDER END CAP; DETENT CAP
  • 45
    1
    H228742
    BUSHING, LARGE; SEAL REPAIR KIT
  • 46
    1
    H60525
    PLUG; ASM
  • 47
    1
    H229195
    PLUG; ASM
  • 48
    1
    H567750
    VALVE; STEERING CONTROL VALVE - See figure 30 for parts list
  • 49
    1
    H196964
    ADAPTER; - 90 degree (3/4'' ORB - 3/4'' Fe pipe)
