TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11PLUG; Quick Disconnect, JAF0098608 -
-
21FLEXIBLE COUPLING; Quick Disconnect, Male
-
31CAP; Quick Disconnect
-
41QUICK FEMALE COUPLING; Quick Disconnect, Female, Incl. 5
-
51O-RING 18.6mm ID x 3.53mm Thk, NBR;
-
62FITTING;
-
71TUBE ASSY. 15.88 mm OD x 1102.6, 200 mm L; Lower, To Quick Disconnect
-
81TUBE ASSY. 15.88 mm OD; Upper, To Quick Disconnect
-
92HOSE 12.7mm ID x 850mm L, SAE 100R2; 850 mm (33-1/2 in)
-
9A2TUBE; Used On REF 9, European Models
-
103-4BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5;
-
113LOCK WASHER 3/8'';
-
123WASHER 0.406'' ID x 0.812'' OD x 0.065'' W; (13/32 x 13/16 x 1/16'')
-
133-5CLAMP 20mm ID;
-
142SQUARE NUT Sq, 3/8''-16, G2;
-
151BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5; If Used
-
161HYD TUBE 360786 mm Length; Crossover To Intermediate Hose, Return, To Port A of Auxiliary Control Valve
-
171HYD TUBE; Crossover To Intermediate Hose, Supply, To Port B of Auxiliary Control Valve
-
182HOSE; 1750 mm (68-7/8 in), From Tube At Auxiliary Control Valve
-
191CABLE TIE 9.95''-12.1'' lg; CABLE STRAP 15 in
-
202HOSE; 600 mm (23-5/8 in), Crossover Tubes To Control Valve, Models With Foot Controls And Self-Leveling Only, Models With Dual Seat Bars
-
211HYD CONNECTOR 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; O-Ring boss, For Models With Single Seat Bar, Incl. 22
-
221O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
-
232HYD CONNECTOR 7/8'' - 14 Male JIC x 3/4'' - 16 Male ORB; Incl. 24
-
241O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro;
-
251INSTRUCTION; Valve Assy, Auxiliary Control, See Figure 08-24
-
261HOSE 15.88mm ID x 2150mm L; 2150 mm (84-5/8 in), To In Port of Auxiliary Control Valve, If Used
-
26A1HOSE 15.88mm ID x 2150mm L; 2150 mm (84-5/8 in) Supply, To In Port of Auxiliary Control Valve, If Used, Not Illustrated
-
271HOSE 19.05mm ID x 1950mm L, SAE 100R1; 1950 mm (76-3/4 in), Return, To Out Port of Auxiliary Control Valve, Without Emissions Certified Engine, With Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-08
-
27A1HOSE; 1700 mm (67 in), Return, To Out Port of Auxiliary Control Valve, Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-07, Replaces A141004, No Longer used, Order REF 27, Not Illustrated
-
281HYD CONNECTOR 7/8''-14, 37 Degree x 7/8''-14, O-Ring; 7/8-14 in flare x O-ring boss, Models With Dual Seat Bars, Incl. 29
-
291O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
-
30190 ELBOW 90 Degree Elbow, 7/8'' - 14 Male JIC x 7/8'' - 14 Male ORB; Adj O-ring boss, Incl. 31, Models with Single Seat Bar, Used with Ref 26, If Used
-
311O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
-
1FITTING 7/8'' - 14; Incl. 32 - 35, Power Beyond, Models With Dual Seat Bars
-
1FITTING; Incl. 32 - 35, Power Beyond, Models With Single Seat Bar
-
321NOT SOLD SEPARAT; Sleeve, Power Beyond
-
331O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro;
-
341O-RING 0.07'' Thk x 0.739'' ID, -18, Cl 6, 90 Duro;
-
351BACK-UP RING;
-
361HYD CONNECTOR 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; O-Ring boss, Incl. 37
-
371O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
-
381TEE 37 Degree, 1 1/16''-12 x 1 1/16''-12, Fem Sw Br; 1-1/16-12 in swivel branch x flare x flare
-
392ELBOW 90 Degree, 7/8''-14, 37 Degree x 7/8''-14, 37 Degree Fem Sw; Models with Single Seat Bar
-
401ELBOW 90 Degree Elbow, 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; 90 degree, 1-1/16-12 flare x 7/8-14 in adj O-ring boss, Incl. 41, Models With Single Seat Bar
-
411O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; If used
-
422BHD LOCK NUT Blkhd, 7/8''-14; If Used
-
431CLAMP; If Used
Select All
Ref.
2Qty
1Availability
Part #
122180A1Description
FLEXIBLE COUPLING; Quick Disconnect, MaleImg
Alts
Ref.
4Qty
1Availability
Part #
143431A1Description
QUICK FEMALE COUPLING; Quick Disconnect, Female, Incl. 5Img
Alts
Ref.
7Qty
1Availability
Part #
H673489Description
TUBE ASSY. 15.88 mm OD x 1102.6, 200 mm L; Lower, To Quick DisconnectImg
Alts
Ref.
8Qty
1Availability
Part #
H673490Description
TUBE ASSY. 15.88 mm OD; Upper, To Quick DisconnectImg
Alts
Ref.
9Qty
2Availability
Part #
D126740Description
HOSE 12.7mm ID x 850mm L, SAE 100R2; 850 mm (33-1/2 in)Img
Alts
Ref.
9AQty
2Availability
Part #
135246A1Description
TUBE; Used On REF 9, European ModelsImg
Alts
Ref.
10Qty
3-4Availability
Part #
413-624Description
BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5;Img
Alts
Ref.
12Qty
3Availability
Part #
495-11041Description
WASHER 0.406'' ID x 0.812'' OD x 0.065'' W; (13/32 x 13/16 x 1/16'')Img
Alts
Ref.
15Qty
1Availability
Part #
413-640Description
BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5; If UsedImg
Alts
Ref.
16Qty
1Availability
Part #
104014A1Description
HYD TUBE 360786 mm Length; Crossover To Intermediate Hose, Return, To Port A of Auxiliary Control ValveImg
Alts
Ref.
17Qty
1Availability
Part #
104012A1Description
HYD TUBE; Crossover To Intermediate Hose, Supply, To Port B of Auxiliary Control ValveImg
Alts
Ref.
18Qty
2Availability
Part #
D134508Description
HOSE; 1750 mm (68-7/8 in), From Tube At Auxiliary Control ValveImg
Alts
Ref.
19Qty
1Availability
Part #
L18337Description
CABLE TIE 9.95''-12.1'' lg; CABLE STRAP 15 inImg
Alts
Ref.
20Qty
2Availability
Part #
H436880Description
HOSE; 600 mm (23-5/8 in), Crossover Tubes To Control Valve, Models With Foot Controls And Self-Leveling Only, Models With Dual Seat BarsImg
Alts
Ref.
21Qty
1Availability
Part #
218-5065Description
HYD CONNECTOR 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; O-Ring boss, For Models With Single Seat Bar, Incl. 22Img
Alts
Ref.
22Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;Img
Alts
Ref.
23Qty
2Availability
Part #
218-5066Description
HYD CONNECTOR 7/8'' - 14 Male JIC x 3/4'' - 16 Male ORB; Incl. 24Img
Alts
Ref.
24Qty
1Availability
Part #
237-6008Description
O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro;Img
Alts
Ref.
25Qty
1Availability
Part #
REFDescription
INSTRUCTION; Valve Assy, Auxiliary Control, See Figure 08-24Img
Alts
Ref.
26Qty
1Availability
Part #
H435865Description

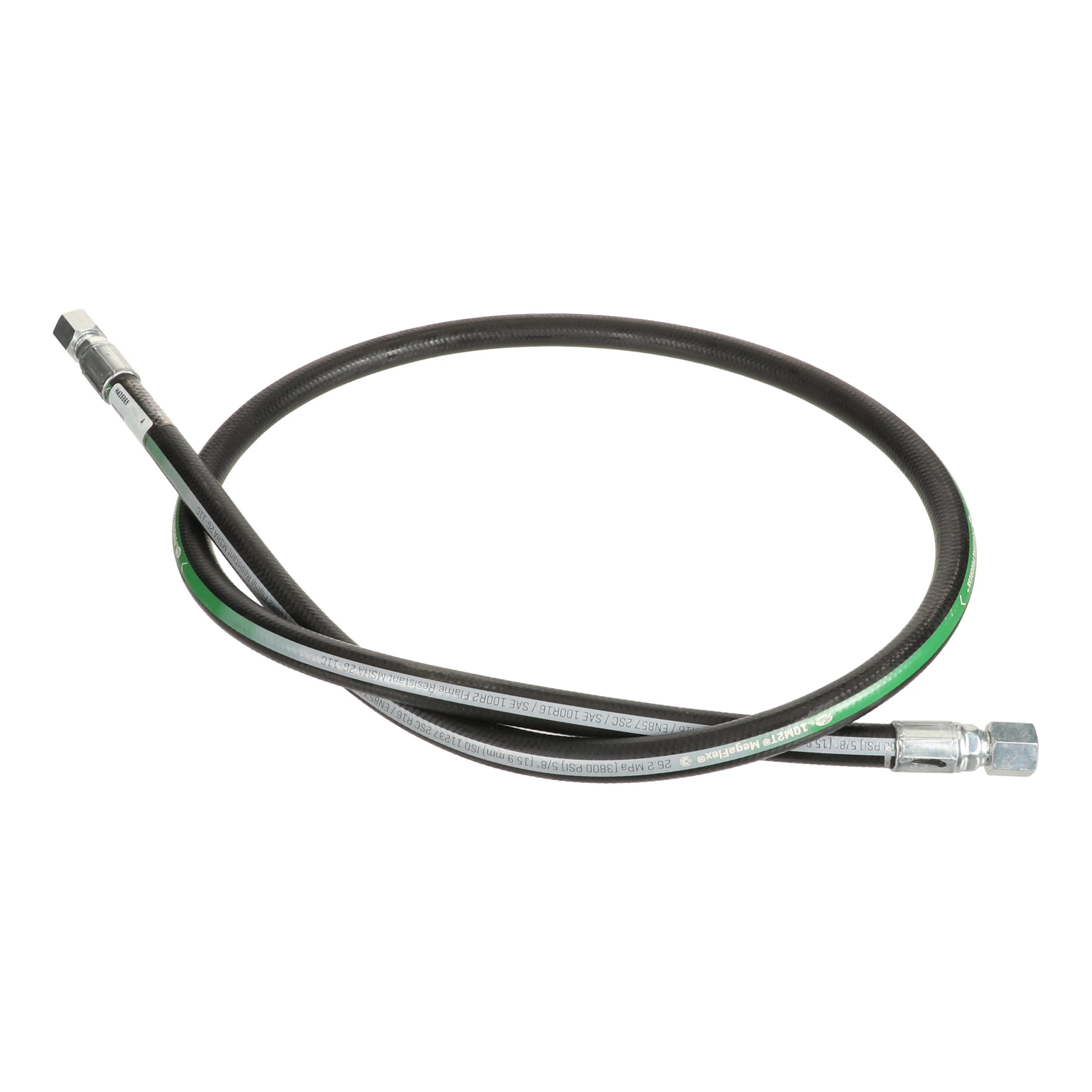

HOSE 15.88mm ID x 2150mm L; 2150 mm (84-5/8 in), To In Port of Auxiliary Control Valve, If UsedImg
Alts
Ref.
26AQty
1Availability
Part #
130470A1Description
HOSE 15.88mm ID x 2150mm L; 2150 mm (84-5/8 in) Supply, To In Port of Auxiliary Control Valve, If Used, Not IllustratedImg
Alts
Ref.
27Qty
1Availability
Part #
H436149Description

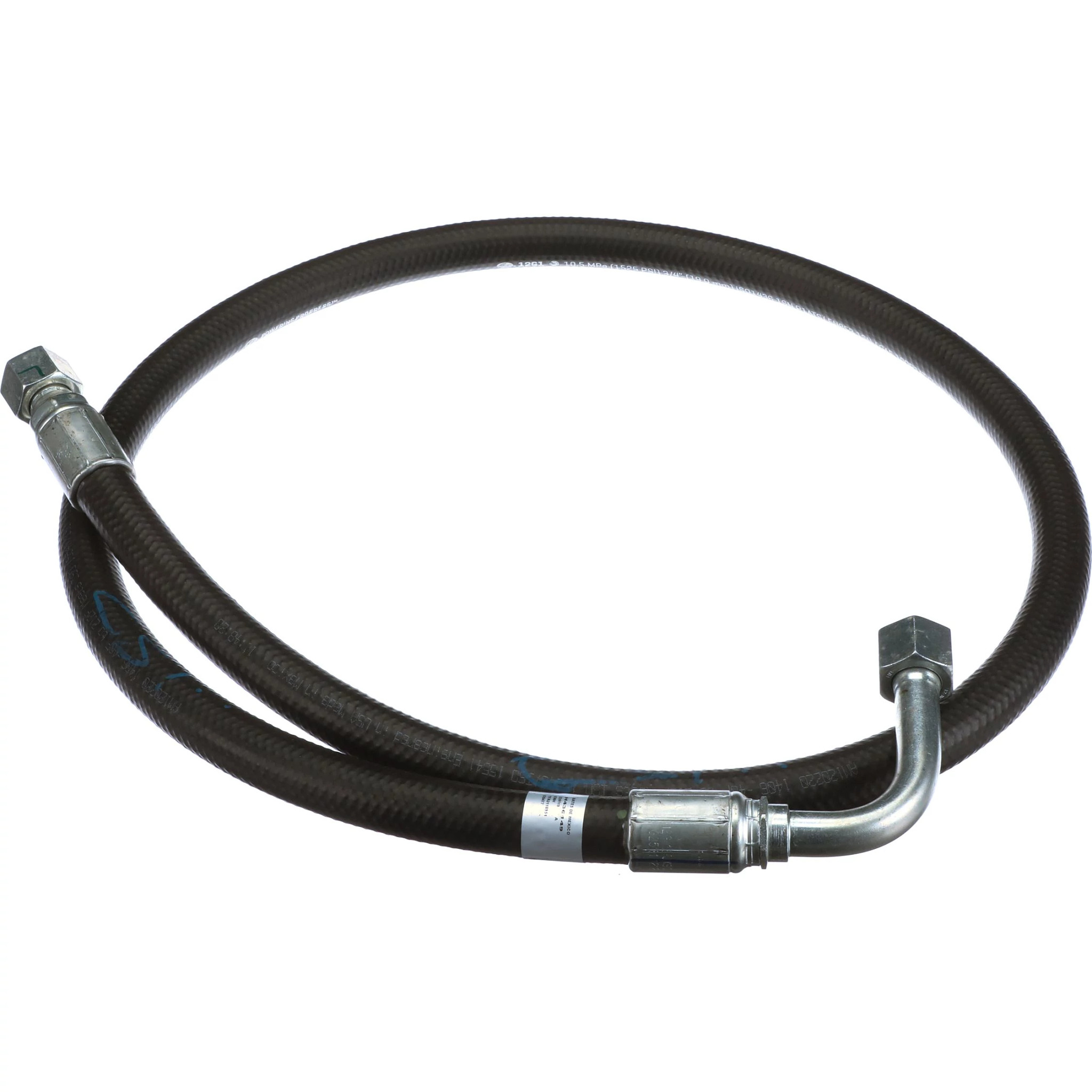

HOSE 19.05mm ID x 1950mm L, SAE 100R1; 1950 mm (76-3/4 in), Return, To Out Port of Auxiliary Control Valve, Without Emissions Certified Engine, With Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-08Img
Alts
Ref.
27AQty
1Availability
Part #
309041A1Description
HOSE; 1700 mm (67 in), Return, To Out Port of Auxiliary Control Valve, Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-07, Replaces A141004, No Longer used, Order REF 27, Not IllustratedImg
Alts
Ref.
28Qty
1Availability
Part #
218-5062Description
HYD CONNECTOR 7/8''-14, 37 Degree x 7/8''-14, O-Ring; 7/8-14 in flare x O-ring boss, Models With Dual Seat Bars, Incl. 29Img
Alts
Ref.
29Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;Img
Alts
Ref.
30Qty
1Availability
Part #
218-5107Description
90 ELBOW 90 Degree Elbow, 7/8'' - 14 Male JIC x 7/8'' - 14 Male ORB; Adj O-ring boss, Incl. 31, Models with Single Seat Bar, Used with Ref 26, If UsedImg
Alts
Ref.
31Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;Img
Alts
Ref.
Qty
1Availability
Part #
H436154Description
FITTING 7/8'' - 14; Incl. 32 - 35, Power Beyond, Models With Dual Seat BarsImg
Alts
Ref.
Qty
1Availability
Part #
129878A1Description
FITTING; Incl. 32 - 35, Power Beyond, Models With Single Seat BarImg
Alts
Ref.
33Qty
1Availability
Part #
237-6012Description
O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro;Img
Alts
Ref.
34Qty
1Availability
Part #
238-6018Description

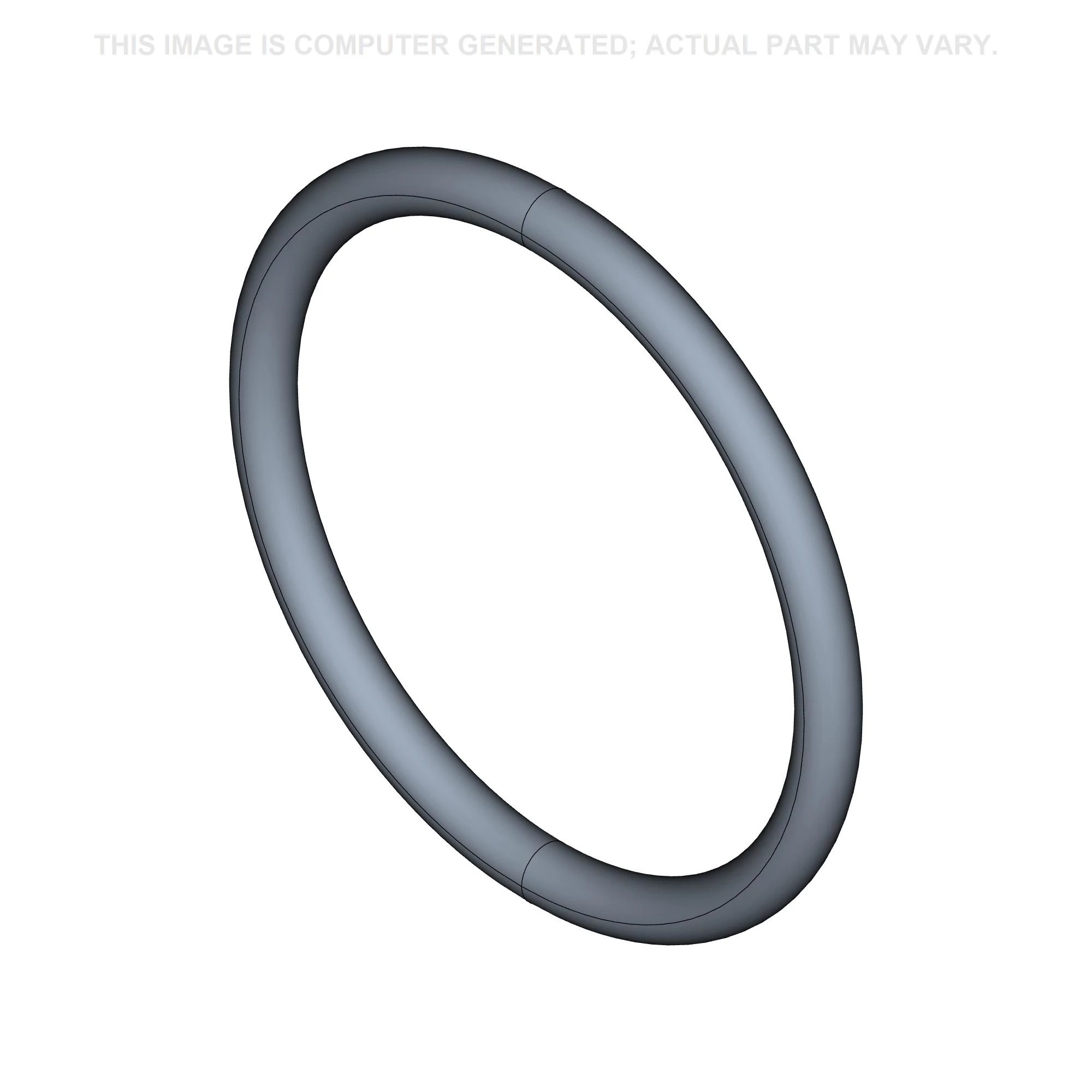

O-RING 0.07'' Thk x 0.739'' ID, -18, Cl 6, 90 Duro;Img
Alts
Ref.
36Qty
1Availability
Part #
218-5065Description
HYD CONNECTOR 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; O-Ring boss, Incl. 37Img
Alts
Ref.
37Qty
1Availability
Part #
237-6010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;Img
Alts
Ref.
38Qty
1Availability
Part #
218-837Description
TEE 37 Degree, 1 1/16''-12 x 1 1/16''-12, Fem Sw Br; 1-1/16-12 in swivel branch x flare x flareImg
Alts
Ref.
39Qty
2Availability
Part #
218-5232Description
ELBOW 90 Degree, 7/8''-14, 37 Degree x 7/8''-14, 37 Degree Fem Sw; Models with Single Seat BarImg
Alts
Ref.
40Qty
1Availability
Part #
218-5123Description
ELBOW 90 Degree Elbow, 1-1/16'' - 12 Male JIC x 7/8'' - 14 Male ORB; 90 degree, 1-1/16-12 flare x 7/8-14 in adj O-ring boss, Incl. 41, Models With Single Seat BarImg
Alts
Ref.
41Qty
1Availability
Part #
237-6008Description
O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; If usedImg
Alts
Ref.
42Qty
2Availability
Part #
218-1251Description

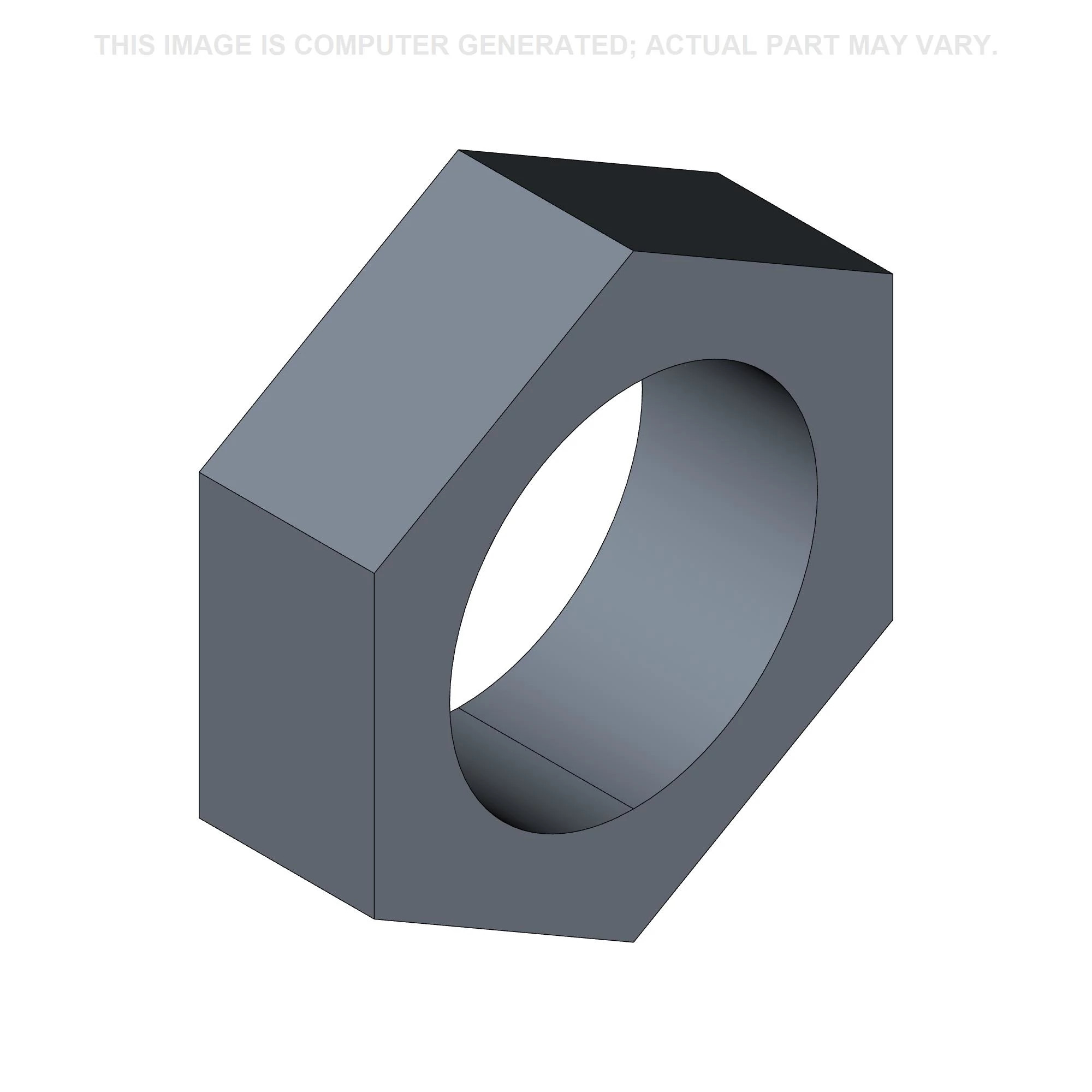

BHD LOCK NUT Blkhd, 7/8''-14; If UsedImg
Alts
