108 - REAR WHEEL AND WEIGHTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    A38403
    RIM; WHEEL - rear, integral (Takes 14.9/13 or 16.9 x 24 tire) (Used w/ backhoe) (Replaces A35578)
  • 1
    2
    G45188
    RIM; WHEEL - rear, integal (Takes 14.9/13 or 16.9 x 24 tire)
  • 2
    16
    A38208

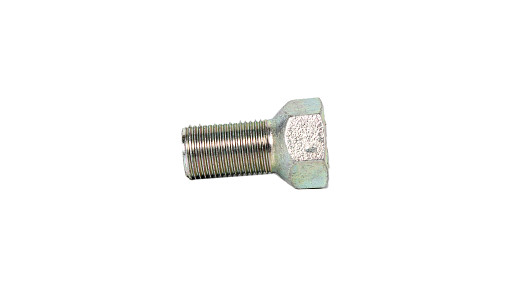

    WHEEL BOLT 5/8-18 UNF x 7/8'', Class 2A; BOLT - wheel to shaft (5/8 x 1'' N.F. spec.)
  • 2
    16
    B18264
    WHEEL BOLT Wheel, 9/16 - 18 x 1.583, Gr 5; BOLT - wheel to shaft (9/16 x 1-5/32'' N.F. spec.)
  • 3
    2
    G46240
    DISC; - wheel, 24'' demountable rim
  • 4
    2
    G12001
    DISC; - wheel, 28'' demountable rim
  • 5
    2
    G45205
    RIM; - demountable (Takes 12.4/11 or 13.6/12 x 24 tire)
  • 6
    2
    A38637
    RIM; - demountable (16.9 x 28 tire)
  • 6
    2
    G45710
    RIM; - demountable (14.9 x 28 tire)
  • 7
    12
    G10701
    BOLT; - rim (5/8 x 2-11/16'' spec.)
  • 8
    12
    129-565
    SPECIAL NUT 5/8''-18, G5; - rim bolt (5/8'' N.F. hex.)
  • 9
    16
    A38208
    WHEEL BOLT 5/8-18 UNF x 7/8'', Class 2A; BOLT - wheel to shaft (5/8 x 1-1/2'' N.F. special)
  • 9
    16
    B18264
    WHEEL BOLT Wheel, 9/16 - 18 x 1.583, Gr 5; BOLT - wheel to shaft, (9/16 x 1-5/32'' spec.)
  • 16
    2
    NSS
    NOT SOLD SEPARAT; WEIGHT (78'' lbs. ea.)
  • 17
    4
    11-1036
    BOLT (MACHINE); BOLT - 5/8 x 2-1/4'' rd. hd. sq. nk.
  • 18
    4
    25-1010
    NUT 5/8''-11, G5;
  • 19
    4
    92-10
    LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
  • 21
    2
    NSS
    NOT SOLD SEPARAT; WEIGHT (78 lbs. ea.)
  • 22
    4
    11-1052
    BOLT (MACHINE); BOLT - 5/8 x 3-1/4'' rd. hd. sq. nk.
  • 23
    4
    25-1010
    NUT 5/8''-11, G5;
  • 24
    4
    92-10
    LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
  • 26
    2
    NSS
    NOT SOLD SEPARAT; WEIGHT (73 lbs. ea.)
  • 27
    4
    11-1052
    BOLT (MACHINE); BOLT - 5/8 x 3-1/4'' N.C. rd. hd. sq. nk.
  • 28
    4
    25-1010
    NUT 5/8''-11, G5;
  • 29
    4
    92-10
    LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
