142 - BRAKE ASSEMBLY
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    G46351
    ROD; - brake actuating
  • 2
    2
    25-157
    JAM NUT Jam, 7/16''-20, G5; - jam, 7/16'' N.F. hex.
  • 3
    2
    G10709
    NUT; - adjusting, brake rod
  • 4
    2
    A135946
    DUST CAP; CAP - dust, brake rod opening (Replaces G10943)
  • 5
    2
    141-5
    CLEVIS PIN 7/16'' x 1.190''; PIN - yoke, brake rod
  • 6
    2
    132-26
    COTTER PIN 3/32'' x 3/4''; Pin, Split (Cotter), 3/32'' x 3/4''
  • 7
    4
    G46345
    LINK; - straight, brake actuating
  • 8
    4
    G46344
    LINK; - offset, brake actuating
  • 9
    4
    G49082
    PIN 14.22mm OD x 40.03mm L; - link
  • 10
    4
    132-26
    COTTER PIN 3/32'' x 3/4''; Pin, Split (Cotter), 3/32'' x 3/4''
  • 11
    2
    A44756
    BAND; - actuating (Set of 2)(Replaces G45468)
  • 12
    2
    A142980
    BRAKE DISC; DISC - brake (Replaces G45362)
  • 13
    8
    211-21
    BALL; - actuating (1'' dia.)
  • 14
    2
    A142979
    DRUM; - actuating (Replaces G45361)
  • 16
    1
    A44721
    KIT; - lining, band (Replaces A41728)
  • 17
    1
    A44720
    LINING; KIT - drum and disc with different color lining, with rivets (For 1 side only) (Order 2-A44718 linings and 35-A41553 rivets)
  • 17
    1
    249019A1

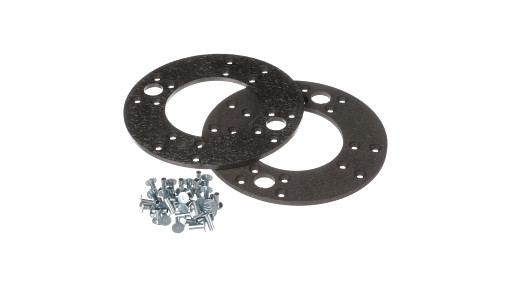

    BRAKE LINING; KIT - drum and disc with the same lining, Engineering approved to use the same lining (249024A1), with the IN-30969 stamp, per DFS 22-0171. with rivets (For 1 side only)
  • 20
    4
    G48508
    SPRING; - disc return
  • 21
    4
    G48507
    SPRING; - band return
  • 22
    4
    41-13
    GUARD Exp, 13/16''; - return spring (13/16'' expansion)
  • 23
    2
    G15801
    BOLT; - anchor, brake band
  • 24
    2
    92-10
    LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
  • 25
    1
    G1394
    COVER; - brake, R.H. (for diff. lock see ref. 34)
  • 26
    1
    G1395
    COVER; - brake, L.H. (R.H. shown)
  • 27
    4
    A38707
    STUD 1/2'' N.F. x 2-1/2''; - cover (1/2'' N.C. - N.F. x 2-1/2'')
  • 28
    4
    25-118
    NUT 1/2''-20, G5; - 1/2'' N.F. hex.
  • 29
    4
    92-8
    LOCK WASHER 1/2'';
  • 30
    2
    13-860
    BOLT Hex, 1/2'' - 13 x 3-3/4'', Gr 5; Cover Hex, 1/2''-13 x 3 3/4'', G5
  • 31
    2
    92-8
    LOCK WASHER 1/2'';
  • 32
    2
    61-828
    HEX SOC SCREW 1/2''-13 x 1 3/4''; SCREW - cap, 1/2 x 1-3/4'' N.C. hex. socket hd.
  • 33
    2
    193-12
    LOCK WASHER Ext Tooth, 0.52'' ID x 0.89'' OD, STL, PLN; WASHER, LOCK, Ext Tooth, 1/2''
  • 34
    1
    A37052
    COVER; - brake, R.H. (w/diff. lock)
