018 - AIR CLEANER-MANIFOLD-MUFFLER, (159) SPARK IGNITION ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    D22685
    CAP; - air cleaner
  • 2
    1
    D20604
    PRECLEANER; PRE-CLEANER ASSY., Includes: Ref. 3 and 4
  • 3
    1
    D30676
    COVER;
  • 4
    1
    D30675
    CUERPO; - plastic
  • 5
    1
    A35585
    FILTRO ARIA; ASSY., Includes: Ref. 6 - 8
  • 6
    1
    G45153
    MORSETTO; - oil cup
  • 7
    1
    G46324
    SCODELLINO; - oil, inner
  • 8
    1
    G46325
    CUP; - oil, outer
  • 10
    1
    111-108
    CARRIAGE BOLT Short NK, 1/4''-20 x 3/4'', G2; BOLT - 1/4'' x 3/4'' rd. hd. sq. nk.
  • 11
    1
    25-104
    NUT 1/4''-20, G5;
  • 12
    1
    92-4
    LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
  • 15
    2
    14-612
    BOLT Hex, 3/8'' - 24 x 3/4'', Gr 5, Full Thd;
  • 16
    2
    25-116
    ECROU Hex, 3/8''-24, G5; - 3/8'' N.F. hex.
  • 17
    2
    92-6
    RONDELLE FREIN 3/8''; std. 3/8''
  • 18
    2
    G46157
    AIR INTAKE TUBE 2'' ID x 2.375'' OD x 2'' L; HOSE, 2.00'' ID x 2.00'', SAE 20R2 - Intake Tube
  • 19
    4
    214-260
    HOSE CLAMP #36, 1.81'' - 2.75'', Type F Worm;
  • 20
    1
    A35588
    TUBE; - air
  • 22
    1
    13-620
    BOLT Hex, 3/8'' - 16 x 1-1/4'', Gr 5, Full Thd;
  • 23
    1
    25-106
    ECROU 3/8''-16, G5; - 3/8'' N.C. hex.
  • 24
    1
    92-6
    LOCK WASHER 3/8''; std. 3/8''
  • 25
    1
    G11964
    X; MANIFOLD - intake (Order 1-A37004 and 1-221-1012), Includes: Ref. 26
  • 26
    1
    221-1
    DRAIN PLUG Sq Hd, 1/8''-27 NPTF; PLUG - pipe, 1/8'' sq. hd.
  • 27
    2
    413-632
    BOLT Hex, 3/8'' - 16 x 2'', Gr 5; - 3/8'' x 2'' N.C. hex. hd.
  • 28
    2
    92-6
    LOCK WASHER 3/8''; std. 3/8''
  • 29
    7
    A29431
    STUD 3/8'' x 1 3/4'', N.C.; - manifold to head (3/8 x 1-3/4'')
  • 30
    4
    A30058
    WASHER 9.53mm ID x 22.23mm OD x 3.18mm Thk; - special
  • 31
    3
    95-6
    WASHER 3/8''; - plain 3/8''
  • 32
    1
    G2042
    MANIFOLD; - exhaust
  • 33
    1
    A30030
    GASKET;
  • 34
    1
    G2095
    FITTING; ELBOW - upright muffler
  • 35
    2
    13-616
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5, Full Thd;
  • 36
    2
    92-6
    LOCK WASHER 3/8''; std. 3/8''
  • 37
    2
    G46853
    GASKET; - exhaust opening
  • 38
    1
    A38188
    PLATE; COVER - exhaust opening
  • 39
    2
    13-624
    BULLONE Hex, 3/8'' - 16 x 1-1/2'', Gr 5; - 3/8'' x 1-1/2'' N.C. hex. hd.

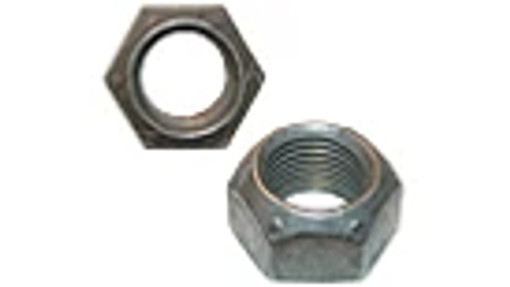

  • 40
    7
    131-903
    DADO 3/8''-16; NUT - brass, 3/8'' N.C. hex.
  • 41
    2
    195-25
    WASHER 3/8''; - plain (Pltd.) 3/8''
  • 42
    1
    G45239
    MUFFLER; - upright
  • 43
    1
    A13240
    CLAMP 2-5/8'' ID; - upright muffler

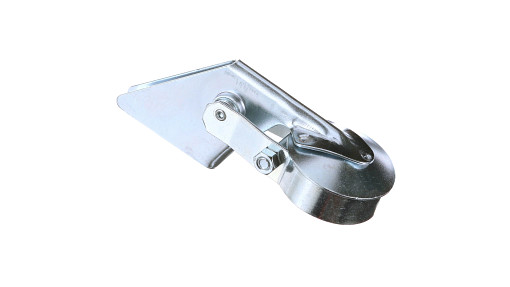

  • 44
    1
    G45048
    CAPUCHON; - weather, upright muffler
  • 45
    1
    A36908
    EXHAUST SYSTEM PIPE; PIPE - exhaust, underneath
  • 46
    1
    G45287
    SILENCIEUX; - underneath
  • 47
    1
    A27077
    COLLIER;
  • 48
    1
    A36909
    BRACKET; CLAMP - rear, muffler
  • 49
    1
    11-516
    VIS Short NK, 5/16''-18 x 1'', G2; CARRIAGE, Short NK, 5/16''-18 x 1'', G2
  • 50
    1
    9635082
    ECROU 5/16'' - 18, Gr 5; - 5/16'' N.C. hex.

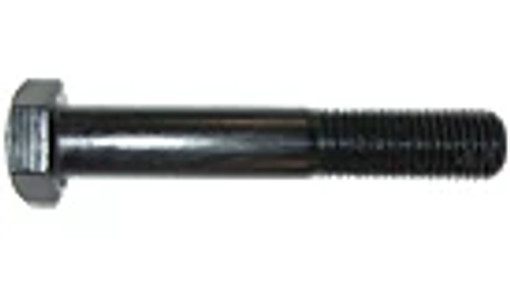

  • 51
    1
    13-510
    BULLONE Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd;
  • 52
    2
    92-5
    RONDELLA DI SICUREZZ 5/16''; std. 5/16''
