D100XR - CASE BACKHOE (01... 00 - COMPLETE MACHINE 9-30 - H607713 BOOM AND D...
9-30 - H607713 BOOM AND DIPPER ARM CYLINDER, LANTEX NO. 2904-BL (GLAND RETAINED BY THREADED CAP)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    H607713
    CYLINDER; - boom and dipper arm, 3 inch (76 mm) ID x 24 inch (610 mm) stroke, Includes: Ref. 1 - 19
  • 1
    H602599
    KIT; - manifold, Includes: Ref. 1 - 4
  • 1
    1
    H286013
    VALVE SPRING; SPRING - tube retaining
  • 2
    2
    238-5111
    O-RING 10.8mm ID x 2.62mm Thk, NBR;
  • 3
    2
    H745620
    WASHER; RING - backup
  • 4
    1
    NSS
    NOT SOLD SEPARAT; TUBE - hydraulic
  • 5
    2
    219-1
    LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - grease, straight, 1/8 PT x 21/32 inch
  • 6
    1
    H608240
    TUBE; - cylinder
  • 7
    1
    131-1141
    LOCK NUT 1 1/8'' - 12, Gr A; NUT - hex, self-locking, 1-1/8 inch NF
  • 8
    1
    R15365
    O-RING 0.989'' ID x 1.129'' OD x 0.07''; RING - backup, piston rod, small (replaces H754614) R15365 subs to 238-5022;Part of Seal Kit P/N H621573.
  • 9
    1
    H298059
    PISTON; - cylinder
  • 11
    1
    238-5334
    O-RING 66mm ID x 5.33mm Thk, NBR; Part of Seal Kit P/N H621573.
  • 12
    1
    H298018
    SPACER; - piston
  • 13
    1
    A27996
    O-RING 0.139'' Thk x 2.734'' ID, -232, Cl 5, 75 Duro; - gland, large;Part of Seal Kit P/N H621573.
  • 14
    1
    H223081
    GLAND; - cylinder
  • 15
    1

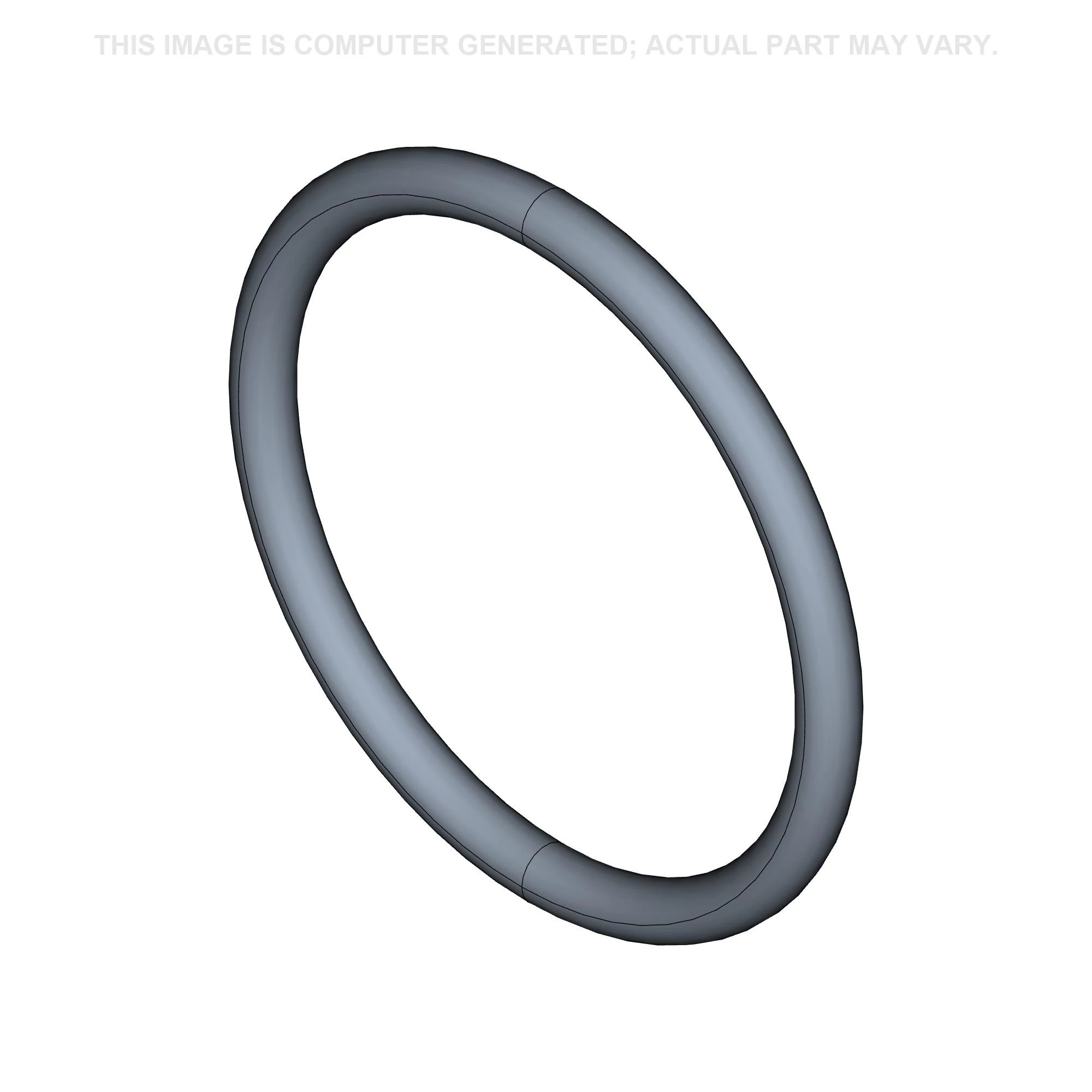

    238-5222
    O-RING 37.7mm ID x 3.53mm Thk, NBR; Part of Seal Kit P/N H621573.
  • 16
    1
    H745687
    WASHER; RING - backup;Part of Seal Kit P/N H621573.
  • 18
    1
    H223032
    COLLAR CLAMP; CAP - gland retaining
  • 19
    1
    H608232
    ROD; - piston, 1-1/2 inch (38 mm) diameter
  • 1
    H621573
    SEAL; KIT - seal, Includes: Ref. 8, 10, 11, 13 and 15 - 17 (replaces 621573)
Select All

Select

Ref.

Qty

2

Availability

Part #

H607713

Description

CYLINDER; - boom and dipper arm, 3 inch (76 mm) ID x 24 inch (610 mm) stroke, Includes: Ref. 1 - 19


Alts

Select

Ref.

Qty

1

Availability

Part #

H602599

Description

KIT; - manifold, Includes: Ref. 1 - 4


Alts

Select

Ref.

1

Qty

1

Availability

Part #

H286013

Description

VALVE SPRING; SPRING - tube retaining


Alts

Select

Ref.

2

Qty

2

Availability

Part #

238-5111

Description

O-RING 10.8mm ID x 2.62mm Thk, NBR;


Alts

Select

Ref.

3

Qty

2

Availability

Part #

H745620

Description

WASHER; RING - backup


Alts

Select

Ref.

4

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; TUBE - hydraulic


Alts

Select

Ref.

5

Qty

2

Availability

Part #

219-1

Description

LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - grease, straight, 1/8 PT x 21/32 inch


Alts

Select

Ref.

6

Qty

1

Availability

Part #

H608240

Description

TUBE; - cylinder


Alts

Select

Ref.

7

Qty

1

Availability

Part #

131-1141

Description

LOCK NUT 1 1/8'' - 12, Gr A; NUT - hex, self-locking, 1-1/8 inch NF


Alts

Select

Ref.

8

Qty

1

Availability

Part #

R15365

Description

O-RING 0.989'' ID x 1.129'' OD x 0.07''; RING - backup, piston rod, small (replaces H754614) R15365 subs to 238-5022;Part of Seal Kit P/N H621573.


Alts

Select

Ref.

9

Qty

1

Availability

Part #

H298059

Description

PISTON; - cylinder


Alts

Select

Ref.

11

Qty

1

Availability

Part #

238-5334

Description

O-RING 66mm ID x 5.33mm Thk, NBR; Part of Seal Kit P/N H621573.


Alts

Select

Ref.

12

Qty

1

Availability

Part #

H298018

Description

SPACER; - piston


Alts

Select

Ref.

13

Qty

1

Availability

Part #

A27996

Description

O-RING 0.139'' Thk x 2.734'' ID, -232, Cl 5, 75 Duro; - gland, large;Part of Seal Kit P/N H621573.


Alts

Select

Ref.

14

Qty

1

Availability

Part #

H223081

Description

GLAND; - cylinder


Alts

Select

Ref.

15

Qty

1

Availability

Part #

238-5222

Description

O-RING 37.7mm ID x 3.53mm Thk, NBR; Part of Seal Kit P/N H621573.


Alts

Select

Ref.

16

Qty

1

Availability

Part #

H745687

Description

WASHER; RING - backup;Part of Seal Kit P/N H621573.


Alts

Select

Ref.

18

Qty

1

Availability

Part #

H223032

Description

COLLAR CLAMP; CAP - gland retaining


Alts

Select

Ref.

19

Qty

1

Availability

Part #

H608232

Description

ROD; - piston, 1-1/2 inch (38 mm) diameter


Alts

Select

Ref.

Qty

1

Availability

Part #

H621573

Description

SEAL; KIT - seal, Includes: Ref. 8, 10, 11, 13 and 15 - 17 (replaces 621573)


Alts
