26D - BACKHOE (01/80 - 12... NO_D - NO DESCRIPTION 8-56 - G104127 AND G11039...
8-56 - G104127 AND G110395 SWING CYLINDERS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    G104127
    CYLINDER; ASSEMBLY - 3-1/2 inch (89 mm) ID x 11 inch (279 mm) stroke, swing, no longer used, order G110395 swing cylinder, Includes: Ref. 2 - 23
  • 1
    2
    G110395
    HYDRAULIC CYLINDER Double Acting, 89mm ID x 38.1mm Rod, 327.15mm Stroke; ASSEMBLY - 3-1/2 inch (89 mm) ID x 11 inch (279 mm) stroke, swing, Includes: Ref. 2 - 23
  • 2
    1
    G104128
    TUBE 3.5'' DIA x 18.19'' L; ASSEMBLY - G104127 or G110395 cylinder, Includes: Ref. 3
  • 3
    2
    D34340
    BUSHING 44.68mm ID x 53.98mm OD x 25.4mm L; - tube, trunnion
  • 1
    G104280
    GLAND; ASSEMBLY - cylinder, Includes: Ref. 4 - 11
  • 4
    1
    NSS
    NOT SOLD SEPARAT; GLAND - cylinder
  • 5
    1
    G102569
    PLUG 12.7mm ID x 6mm W; - nylon, locking, gland, if used
  • 6
    1
    NSS
    NOT SOLD SEPARAT; RING - retaining, bushing
  • 7
    1
    D95142
    WIPER SEAL 38mm ID x 50.7mm OD x 7.92mm W; WIPER - piston rod, outer;Part of Seal Kit P/N G109472
  • 8
    1
    G102424
    BUSHING 38.1mm ID x 41.17mm OD x 25.15mm L; BEARING - Center;Part of Seal Kit P/N G109472
  • 9
    1
    G107921
    SEAL 38.07mm ID x 50.93mm OD x 10.69mm Thk; - U-cup, piston rod, wide, with O-ring;Part of Seal Kit P/N G109472
  • 9
    1
    G100776
    SEAL 38mm ID x 50mm OD x 9.5mm Thk; - U-cup, piston rod, service option - severe heat or cold
  • 9A
    1
    G109093
    SEAL 37.72mm ID x 50.98mm OD x 3.05mm Thk; - piston rod, narrow, with groove;Part of Seal Kit P/N G109472
  • 10
    1
    238-5238
    O-RING 0.139'' Thk x 3.484'' ID, -238, Cl 5, 75 Duro; Gland -238, 70 Duro, 3.484'' ID x .139'' Thk;Part of Seal Kit P/N G109472
  • 11
    1
    G32126
    BACK-UP RING 89.28mm ID x 95.38mm OD x 1.4mm Thk; - backup, gland O-ring;Part of Seal Kit P/N G109472
  • 11A
    1
    276-2446
    SELF-TAP SCREW Hex Hd, #8 NC x 3/8''; SCREW - self-tapping, hex hd, No. 8 NC x 3/8 '', If used
  • 12
    1
    G33475
    ROD; ASSEMBLY - piston, 1-1/2 inch (38 mm) diameter, G104127 cylinder, no longer used, order 1978067C1 rod assembly, Includes: Ref. 13
  • 12
    1
    1978067C1
    ROD; ASSEMBLY - piston 1-1/2 inch (38 mm) diameter
  • 13
    2

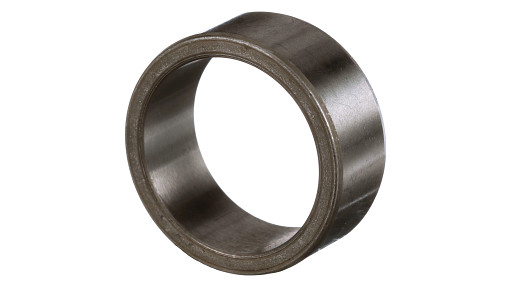

    D32919
    BUSHING 38.4mm ID x 47.63mm OD x 19.05mm L; - G33474 or 1978067C1 piston rod
  • 14
    1
    G100700
    PISTON; - cylinder
  • 15
    1
    G102286
    SEAL Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk; RING - backup, piston seal;Part of Seal Kit P/N G109472
  • 16
    1
    G100710
    RING Square, 5.28mm Thk x 75.31mm ID; SEAL - piston;Part of Seal Kit P/N G109472
  • 17
    2
    G100711
    SEAL Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk; Piston;Part of Seal Kit P/N G109472
  • 18
    1
    D44554
    VALVE SPRING; SPRING - relief
  • 19
    1
    G100049
    PIN 9.2mm OD x 92mm L; - sliding, spring guide
  • 20
    1
    D44571
    BOLT 1 - 14 UNS-2A x 92mm L; BOLT - hex head, 1 NF x 3, grade 8
  • 21
    1
    G32303
    WASHER 26.97mm ID x 47.63mm OD x 3.58mm Thk; - flat, 1 inch, hardened
  • 22
    1
    219-1
    LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - grease, straight, 1/8 PT x 21/32 inch
  • 23
    2
    219-55
    LUBE NIPPLE 90 Degree Elbow, 1/8'' - 27 NPTF; NIPPLE, LUBE, 90?, 1/8'' NPT x .84'' lg
  • 1
    G109472
    SET; KIT - seal, Includes: Refs. 7, 8, 9, 9A, 10, 11, 15, 16 and 17
