9-42 - BACKHOE BUCKET, INCLUDES BUCKET TEETH, TRENCHING BUCKET -
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    D140494
    BUCKET; ASSEMBLY - 24 inch (610 mm), with 5 teeth, machinery item, order from Machinery Price List, Includes: Ref. 2 - 12
  • 2
    1
    D134982
    CUTTING EDGE; EDGE - cutting, bucket, right-hand side
  • 3
    1
    D134983
    CUTTING EDGE; EDGE - cutting, bucket, left-hand side
  • 4
    1
    D135514
    CUTTING EDGE; EDGE - cutting, center, 24 inch (610 mm) bucket
  • 2
    D139851

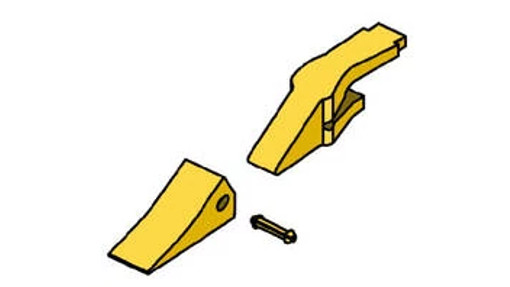

    BUCKET TOOTH; TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7
  • 5
    1
    D51750

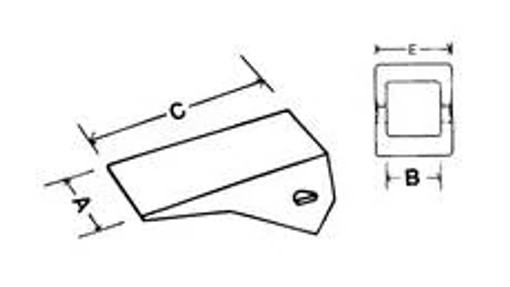

    BUCKET TOOTH POINT; POINT - tooth, outer corners
  • 6
    1
    D134686
    SPLIT PIN/SAFETY PIN; PIN - flex, outer point and shank
  • 7
    1
    D138157
    SHANK; - tooth, outer corners
  • 3
    D139849
    BUCKET TOOTH; TOOTH, BUCKET, Assy, Center, Includes Ref 8 - 10
  • 8
    1
    D51750
    BUCKET TOOTH POINT; POINT - tooth, center
  • 9
    1
    D39094
    BUCKET TOOTH KEY; PIN - flex, center point and shank
  • 10
    1
    D48212
    SHANK; - tooth, center
  • 11
    2
    D37495
    BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - 1-3/4'' ID x 2-1/4'' O.D. x 1-1/4'' long
  • 12
    4
    D30933
    BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - 1-1/2'' ID x 1-7/8'' O.D. x 1-1/4'' long
Select All

Select

Ref.

1

Qty

1

Availability

Part #

D140494

Description

BUCKET; ASSEMBLY - 24 inch (610 mm), with 5 teeth, machinery item, order from Machinery Price List, Includes: Ref. 2 - 12


Alts

Select

Ref.

2

Qty

1

Availability

Part #

D134982

Description

CUTTING EDGE; EDGE - cutting, bucket, right-hand side


Alts

Select

Ref.

3

Qty

1

Availability

Part #

D134983

Description

CUTTING EDGE; EDGE - cutting, bucket, left-hand side


Alts

Select

Ref.

4

Qty

1

Availability

Part #

D135514

Description

CUTTING EDGE; EDGE - cutting, center, 24 inch (610 mm) bucket


Alts

Select

Ref.

Qty

2

Availability

Part #

D139851

Description

BUCKET TOOTH; TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7


Alts

Select

Ref.

5

Qty

1

Availability

Part #

D51750

Description

BUCKET TOOTH POINT; POINT - tooth, outer corners


Alts

Select

Ref.

6

Qty

1

Availability

Part #

D134686

Description

SPLIT PIN/SAFETY PIN; PIN - flex, outer point and shank


Alts

Select

Ref.

7

Qty

1

Availability

Part #

D138157

Description

SHANK; - tooth, outer corners


Alts

Select

Ref.

Qty

3

Availability

Part #

D139849

Description

BUCKET TOOTH; TOOTH, BUCKET, Assy, Center, Includes Ref 8 - 10


Alts

Select

Ref.

8

Qty

1

Availability

Part #

D51750

Description

BUCKET TOOTH POINT; POINT - tooth, center


Alts

Select

Ref.

9

Qty

1

Availability

Part #

D39094

Description

BUCKET TOOTH KEY; PIN - flex, center point and shank


Alts

Select

Ref.

10

Qty

1

Availability

Part #

D48212

Description

SHANK; - tooth, center


Alts

Select

Ref.

11

Qty

2

Availability

Part #

D37495

Description

BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - 1-3/4'' ID x 2-1/4'' O.D. x 1-1/4'' long


Alts

Select

Ref.

12

Qty

4

Availability

Part #

D30933

Description

BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - 1-1/2'' ID x 1-7/8'' O.D. x 1-1/4'' long


Alts
