Ref.
Qty
Part #
Alts
Description
-
21ROD; SUPPORT hose
-
32COTTER PIN 1/8'' x 1'';
-
42INSTRUCTION; HYDRAULIC cylinder, stabilizer, see Figure 054 for proper cylinder
-
52AXLE PIN; STABILIZER cylinder at frame
-
62PIN; STABILIZER cylinder at leg
-
74BOLT Hex, 5/8'' - 11 x 1-1/4'', Gr 5, Full Thd;
-
84LOCK WASHER 5/8'';
-
94WASHER 16.67mm ID x 47.63mm OD x 6.35mm Thk; PIN retaining
-
122AXLE PIN; LEG stabilizer
-
134SNAP RING #175, Ext;
-
152AXLE PIN; MOUNTING leg
-
162PIN; RETAINING
-
172PAD; FOOT stabilizer, cleated
-
188SCREW Hex, 7/16'' - 20 x 1 1/2'', Gr 5; HHCS 7/16'' - 20 NF x 1-1/2''
-
198LOCK WASHER 7/16'';
-
208NUT 7/16''-20, G5; HEX 7/16'' - 20 NF
-
214SHOE (ASSY); PAD rubber (optional)
-
228SPECIAL NUT; HEX special, 7/16'' - 20 NF
-
241BUSHING 51.03mm ID x 63.45mm OD x 50.8mm L; SWING upper
-
251SPHERICAL BEARING 2'' ID, 3.1875'' OD, 1.5'' Thk; BUSHING pivotal ball type
-
261SNAP RING 3.156'', Int, #315; BUSHING retaining, CLAMP P-type, attaches to coolant recovery reservoir;Part of D14016 Bushing Kit.
-
271LUBE NIPPLE 1/8'' - 27 NPTF;
-
282CHAIN (AG); TRANSPORT
-
294BOLT Hex, 5/8'' - 11 x 1-1/4'', Gr 5, Full Thd;
-
304LOCK WASHER 5/8'';
-
4COVER; ASSEMBLY locking cylinder, D35601 frame only
-
311NOT SOLD SEPARAT; COVER locking cylinder
-
321NOT SOLD SEPARAT; PIN stop, 1/2'' dia x 4-3/8''
-
334O-RING 0.139'' Thk x 3.484'' ID, -238, Cl 5, 75 Duro; COVER seal
-
348SEAL 76.2mm ID x 85.72mm OD x 2.39mm Thk; BACKUP
-
354O-RING 0.21'' Thk x 2.975'' ID, -337, Cl 5, 75 Duro; Tube
-
364PISTON ASSY.; CYLINDER locking
-
374SHOE; FRAME locking
-
381INSTRUCTION; CYLINDER L.H., swing, see Figures 056 and 058 for proper cylinder
-
391INSTRUCTION; CYLINDER R.H., swing, see Figures 056 and 058 for proper cylinder
-
404PIN; SWING cylinder to swing tower
-
404PIN; SWINGcylinder to swing tower
-
4116BOLT Hex, 1/2'' - 13 x 2'', Gr 5;
-
4216LOCK WASHER 1/2'';
-
434FITTING; GREASE 45?, 1/8'' NPT
-
442PIN; CYLINDER to swing tower;Before Backhoe S/N 4175260
-
442PIN 38.1mm OD x 139.7mm L; CYLINDER to swing tower;Backhoe S/N 4175260 and after.
-
442PIN 38.1mm OD x 139.7mm L; CYLINDER to swing tower;Backhoe S/N 4175260 and after.
-
452X; HHCS 5/8'' - 11 NC x 4'', grade 8
-
452X; HHCS 5/8'' - 11 NC x 4'' grade 8
-
462LOCK WASHER 5/8'';
-
472NUT 5/8''-11, G5;
-
482FITTING; GREASE 45?, 1/8'' NPT, D30761 pin only
-
1KIT; BUSHING lower mounting frame, Includes: Ref. No. 26
-
492BEARING; BEARING spacer
-
501SNAP RING 3.156'', Int, #315; BUSHING retaining, CLAMP P-type, attaches to coolant recovery reservoir
-
511SPHERICAL BEARING 2'' ID, 3.1875'' OD, 1.5'' Thk; BUSHING pivotal ball type
-
521BEARING; RETAINER
Select All
Select
Ref.
4Qty
2Availability
Part #
REFDescription
INSTRUCTION; HYDRAULIC cylinder, stabilizer, see Figure 054 for proper cylinderImg
Alts
Select
Ref.
5Qty
2Availability
Part #
D35675Description
AXLE PIN; STABILIZER cylinder at frameImg
Alts
Select
Ref.
7Qty
4Availability
Part #
13-1020Description
BOLT Hex, 5/8'' - 11 x 1-1/4'', Gr 5, Full Thd;Img
Alts
Select
Ref.
9Qty
4Availability
Part #

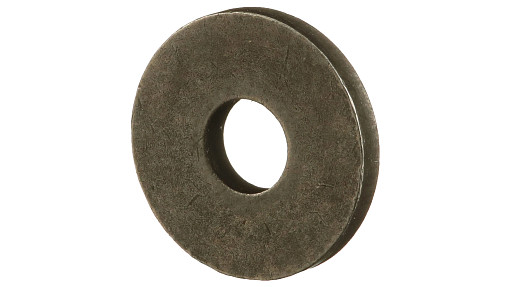

70523Description
WASHER 16.67mm ID x 47.63mm OD x 6.35mm Thk; PIN retainingImg
Alts
Select
Ref.
18Qty
8Availability
Part #
14-724Description
SCREW Hex, 7/16'' - 20 x 1 1/2'', Gr 5; HHCS 7/16'' - 20 NF x 1-1/2''Img
Alts
Select
Ref.
20Qty
8Availability
Part #
25-117Description
NUT 7/16''-20, G5; HEX 7/16'' - 20 NFImg
Alts
Select
Ref.
21Qty
4Availability
Part #
D40469Description
SHOE (ASSY); PAD rubber (optional)Img
Alts
Select
Ref.
22Qty
8Availability
Part #
D29712Description
SPECIAL NUT; HEX special, 7/16'' - 20 NFImg
Alts
Select
Ref.
24Qty
1Availability
Part #
D21927Description
BUSHING 51.03mm ID x 63.45mm OD x 50.8mm L; SWING upperImg
Alts
Select
Ref.
25Qty
1Availability
Part #
D23601Description
SPHERICAL BEARING 2'' ID, 3.1875'' OD, 1.5'' Thk; BUSHING pivotal ball typeImg
Alts
Select
Ref.
26Qty
1Availability
Part #
100-21315Description
SNAP RING 3.156'', Int, #315; BUSHING retaining, CLAMP P-type, attaches to coolant recovery reservoir;Part of D14016 Bushing Kit.Img
Alts
Select
Ref.
29Qty
4Availability
Part #
13-1020Description
BOLT Hex, 5/8'' - 11 x 1-1/4'', Gr 5, Full Thd;Img
Alts
Select
Ref.
Qty
4Availability
Part #
D36438Description
COVER; ASSEMBLY locking cylinder, D35601 frame onlyImg
Alts
Select
Ref.
31Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; COVER locking cylinderImg
Alts
Select
Ref.
32Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; PIN stop, 1/2'' dia x 4-3/8''Img
Alts
Select
Ref.
33Qty
4Availability
Part #
G15457Description
O-RING 0.139'' Thk x 3.484'' ID, -238, Cl 5, 75 Duro; COVER sealImg
Alts
Select
Ref.
34Qty
8Availability
Part #
D35889Description
SEAL 76.2mm ID x 85.72mm OD x 2.39mm Thk; BACKUPImg
Alts
Select
Ref.
35Qty
4Availability
Part #
R13774Description
O-RING 0.21'' Thk x 2.975'' ID, -337, Cl 5, 75 Duro; TubeImg
Alts
Select
Ref.
38Qty
1Availability
Part #
REFDescription
INSTRUCTION; CYLINDER L.H., swing, see Figures 056 and 058 for proper cylinderImg
Alts
Select
Ref.
39Qty
1Availability
Part #
REFDescription
INSTRUCTION; CYLINDER R.H., swing, see Figures 056 and 058 for proper cylinderImg
Alts
Select
Ref.
40Qty
4Availability
Part #
D30724Description
PIN; SWING cylinder to swing towerImg
Alts
Select
Ref.
40Qty
4Availability
Part #
D30724Description
PIN; SWINGcylinder to swing towerImg
Alts
Select
Ref.
41Qty
16Availability
Part #
13-832Description
BOLT Hex, 1/2'' - 13 x 2'', Gr 5;Img
Alts
Select
Ref.
44Qty
2Availability
Part #
D30761Description
PIN; CYLINDER to swing tower;Before Backhoe S/N 4175260Img
Alts
Select
Ref.
44Qty
2Availability
Part #
D47866Description
PIN 38.1mm OD x 139.7mm L; CYLINDER to swing tower;Backhoe S/N 4175260 and after.Img
Alts
Select
Ref.
44Qty
2Availability
Part #
D47866Description
PIN 38.1mm OD x 139.7mm L; CYLINDER to swing tower;Backhoe S/N 4175260 and after.Img
Alts
Select
Ref.
45Qty
2Availability
Part #
113-635Description
X; HHCS 5/8'' - 11 NC x 4'', grade 8Img
Alts
Select
Ref.
45Qty
2Availability
Part #
113-635Description
X; HHCS 5/8'' - 11 NC x 4'' grade 8Img
Alts
Select
Ref.
48Qty
2Availability
Part #
219-39Description
FITTING; GREASE 45?, 1/8'' NPT, D30761 pin onlyImg
Alts
Select
Ref.
Qty
1Availability
Part #
D14016Description
KIT; BUSHING lower mounting frame, Includes: Ref. No. 26Img
Alts
Select
Ref.
50Qty
1Availability
Part #
100-21315Description
SNAP RING 3.156'', Int, #315; BUSHING retaining, CLAMP P-type, attaches to coolant recovery reservoirImg
Alts
Select
Ref.
51Qty
1Availability
Part #
D23601Description
SPHERICAL BEARING 2'' ID, 3.1875'' OD, 1.5'' Thk; BUSHING pivotal ball typeImg
Alts
