TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1GLAND; PACKING cylinder, when stock is exhausted, order D41401 kit for service, plus (2) D47204 packings and (1) D47209 metal ring if total piston packing is required
-
11PACKING; PISTON
-
21O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL gland, D37358 cylinder packing kit
-
31RING; BACKUP gland seal, D37358 cylinder packing kit
-
42SCRAPER RING; WIPER rod, D37358 cylinder packing kit
-
61RING; SEAL rod, D37358 cylinder packing kit
-
7UARRING Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk; BACKUP rod seal, D37358 cylinder packing kit
-
81SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; TAPPING self, #8 - 32 NC x 1/4'', D37358 cylinder packing kit
-
91LOCK NUT 1 1/4''-12, GB; Not shown, not used on this model, D37358 cylinder packing kit
-
1SEAL KIT; KIT cylinder packing, when stock is exhausted, order D42876 kit for service, plus (2) D47204 packings adn (1) D47209 metal ring if required
-
102PACKING; PISTON chevron, order D47204 packing for service, D41401 cylinder kit
-
111O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL gland, D41401 cylinder packing kit
-
121RING; BACKUP gland seal, D41401 cylinder packing kit
-
132SCRAPER RING; WIPER rod, D41401 cylinder packing kit
-
142O-RING 0.139'' Thk x 2.109'' ID, -227, Cl 5, 75 Duro; SEAL wiper if used, D41401 cylinder packing kit
-
151RING; SEAL rod, D41401 cylinder packing kit
-
16UARRING Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk; BACKUP rod seal, D41401 cylinder packing kit
-
171SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; TAPPING self, #8 - 32 NC x 1/4'', D41401 cylinder packing kit
-
1GLAND; KITpacking
-
181O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL gland, D42876 packing kit
-
191RING; BACKUP gland seal, D42876 packing kit
-
202SCRAPER RING; WIPER rod, D42876 gland packing kit
-
212O-RING 0.139'' Thk x 2.109'' ID, -227, Cl 5, 75 Duro; SEAL wiper, if used, D42876 gland packing kit
-
221BODY; SEAL rod, D42876 gland packing kit
-
23UARRING Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk; BACKUP rod seal, D42876 gland packing kit
-
241SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; TAPPING self, #8 - 32 NC x 1/4'', D42876 gland packing kit
-
1KIT; PACKING cylinder
-
252PACKING 89.15mm ID x 100.86mm OD; PISTON chevron, G32299 cylinder packing kit
-
261O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL gland, G32299 cylinder packing kit
-
271BACK-UP RING 101.22mm ID x 107.32mm OD x 1.4mm Thk; Gland seal, G32299 Cylinder packing kit
-
281SCRAPER RING; WIPER rod, inner, G32299 cylinder packing kit
-
291RING; SEAL rod, G32299 cylinder packing kit
-
301WIPER SEAL 50.77mm ID x 63.52mm OD x 7.92mm Thk; Wiper rod, outer, G32299 cylinder packing kit
Select All
Select
Ref.
Qty
1Availability
Part #
D37358Description
GLAND; PACKING cylinder, when stock is exhausted, order D41401 kit for service, plus (2) D47204 packings and (1) D47209 metal ring if total piston packing is requiredImg
Alts
Select
Ref.
2Qty
1Availability
Part #
A27507Description
O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL gland, D37358 cylinder packing kitImg
Alts
Select
Ref.
3Qty
1Availability
Part #
D27382Description
RING; BACKUP gland seal, D37358 cylinder packing kitImg
Alts
Select
Ref.
4Qty
2Availability
Part #
D27380Description
SCRAPER RING; WIPER rod, D37358 cylinder packing kitImg
Alts
Select
Ref.
6Qty
1Availability
Part #
D36971Description
RING; SEAL rod, D37358 cylinder packing kitImg
Alts
Select
Ref.
7Qty
UARAvailability
Part #
D28500Description
RING Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk; BACKUP rod seal, D37358 cylinder packing kitImg
Alts
Select
Ref.
8Qty
1Availability
Part #
187-1031Description
SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; TAPPING self, #8 - 32 NC x 1/4'', D37358 cylinder packing kitImg
Alts
Select
Ref.
9Qty
1Availability
Part #
131-22Description

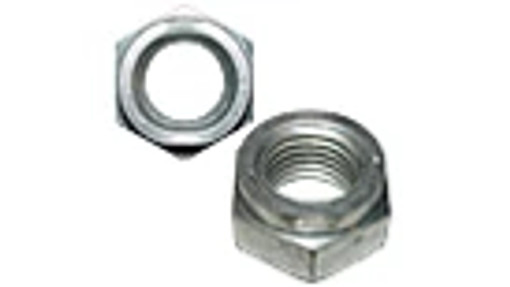

LOCK NUT 1 1/4''-12, GB; Not shown, not used on this model, D37358 cylinder packing kitImg
Alts
Select
Ref.
Qty
1Availability
Part #
D41401Description
SEAL KIT; KIT cylinder packing, when stock is exhausted, order D42876 kit for service, plus (2) D47204 packings adn (1) D47209 metal ring if requiredImg
Alts
Select
Ref.
10Qty
2Availability
Part #
D40689Description
PACKING; PISTON chevron, order D47204 packing for service, D41401 cylinder kitImg
Alts
Select
Ref.
11Qty
1Availability
Part #
A27507Description
O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL gland, D41401 cylinder packing kitImg
Alts
Select
Ref.
12Qty
1Availability
Part #
D27382Description
RING; BACKUP gland seal, D41401 cylinder packing kitImg
Alts
Select
Ref.
13Qty
2Availability
Part #
D27380Description
SCRAPER RING; WIPER rod, D41401 cylinder packing kitImg
Alts
Select
Ref.
14Qty
2Availability
Part #
D26115Description
O-RING 0.139'' Thk x 2.109'' ID, -227, Cl 5, 75 Duro; SEAL wiper if used, D41401 cylinder packing kitImg
Alts
Select
Ref.
15Qty
1Availability
Part #
D36971Description
RING; SEAL rod, D41401 cylinder packing kitImg
Alts
Select
Ref.
16Qty
UARAvailability
Part #
D28500Description
RING Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk; BACKUP rod seal, D41401 cylinder packing kitImg
Alts
Select
Ref.
17Qty
1Availability
Part #
187-1031Description
SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; TAPPING self, #8 - 32 NC x 1/4'', D41401 cylinder packing kitImg
Alts
Select
Ref.
18Qty
1Availability
Part #
A27507Description
O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL gland, D42876 packing kitImg
Alts
Select
Ref.
19Qty
1Availability
Part #
D27382Description
RING; BACKUP gland seal, D42876 packing kitImg
Alts
Select
Ref.
20Qty
2Availability
Part #
D27380Description
SCRAPER RING; WIPER rod, D42876 gland packing kitImg
Alts
Select
Ref.
21Qty
2Availability
Part #
D26115Description
O-RING 0.139'' Thk x 2.109'' ID, -227, Cl 5, 75 Duro; SEAL wiper, if used, D42876 gland packing kitImg
Alts
Select
Ref.
22Qty
1Availability
Part #
D31971Description
BODY; SEAL rod, D42876 gland packing kitImg
Alts
Select
Ref.
23Qty
UARAvailability
Part #
D28500Description
RING Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk; BACKUP rod seal, D42876 gland packing kitImg
Alts
Select
Ref.
24Qty
1Availability
Part #
187-1031Description
SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; TAPPING self, #8 - 32 NC x 1/4'', D42876 gland packing kitImg
Alts
Select
Ref.
25Qty
2Availability
Part #
D47204Description
PACKING 89.15mm ID x 100.86mm OD; PISTON chevron, G32299 cylinder packing kitImg
Alts
Select
Ref.
26Qty
1Availability
Part #
A27507Description
O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; SEAL gland, G32299 cylinder packing kitImg
Alts
Select
Ref.
27Qty
1Availability
Part #
G32176Description
BACK-UP RING 101.22mm ID x 107.32mm OD x 1.4mm Thk; Gland seal, G32299 Cylinder packing kitImg
Alts
Select
Ref.
28Qty
1Availability
Part #
D27380Description
SCRAPER RING; WIPER rod, inner, G32299 cylinder packing kitImg
Alts
Select
Ref.
29Qty
1Availability
Part #
D36971Description
RING; SEAL rod, G32299 cylinder packing kitImg
Alts
Select
Ref.
30Qty
1Availability
Part #
D95144Description
WIPER SEAL 50.77mm ID x 63.52mm OD x 7.92mm Thk; Wiper rod, outer, G32299 cylinder packing kitImg
Alts
