11BUCKET; - 18 inch (457 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6
-
21CUTTING EDGE; BLADE - cutting, RH side
-
31CUTTING EDGE; BLADE - cutting, LH side
-
41CUTTING EDGE; BLADE - cutting, center
-
52BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm
-
64BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, at bucket link
-
11BUCKET; - 24 inch (610 mm) machinery item - see Figure 2 for ordering, Includes: Ref.
-
21CUTTING EDGE; BLADE - cutting, RH side
-
31CUTTING EDGE; BLADE - cutting, LH side
-
41CUTTING EDGE; BLADE - cutting, center
-
52BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm
-
64BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, at bucket link
-
11BUCKET; - 30 inch (762 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6
-
21CUTTING EDGE; BLADE - cutting, RH side
-
31CUTTING EDGE; BLADE - cutting, LH side
-
41CUTTING EDGE; BLADE - cutting, center
-
52BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm
-
64BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, at bucket link
-
11BUCKET; - 36 inch (914 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6
-
21CUTTING EDGE; BLADE - cutting, RH side
-
31CUTTING EDGE; BLADE - cutting, LH side
-
41CUTTING EDGE; BLADE - cutting, center
-
52BUSHING 44.76mm ID x 57.15mm OD x 31.75mm L; - bucket, at dipper arm
-
64BUSHING 38.41mm ID x 47.63mm OD x 31.75mm L; - bucket, at bucket link
-

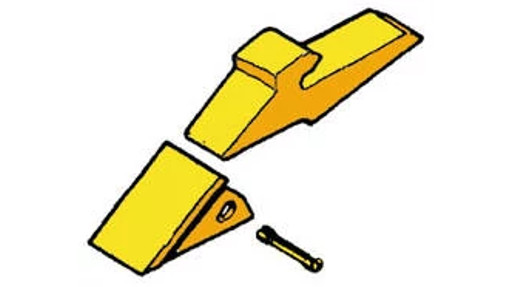

UARTOOTH; ASSEMBLY - heavy duty bucket only, Includes: Ref. 7 - 9
-
71NOT SOLD SEPARAT; SHANK - tooth assy.
-
81TOOTH; POINT - tooth assy.
-
91BUCKET TOOTH KEY; FLEX PIN - point assy.
-

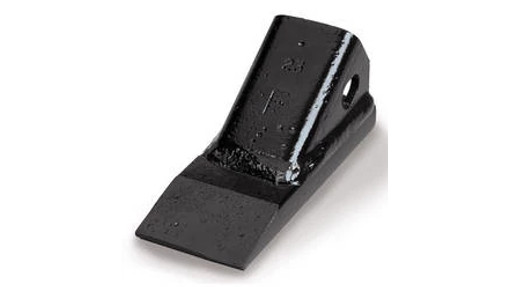

10UARTOOTH; POINT - tooth, heavy duty, flat end, service option assy.
-

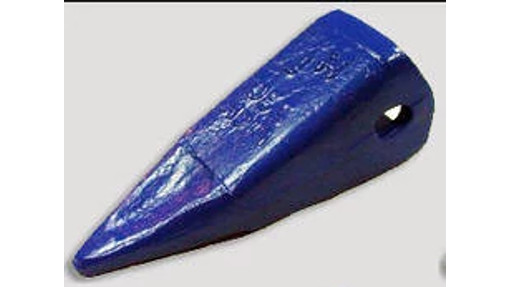

10AUARTOOTH; POINT - tooth, heavy duty, point end, service option assy.
-

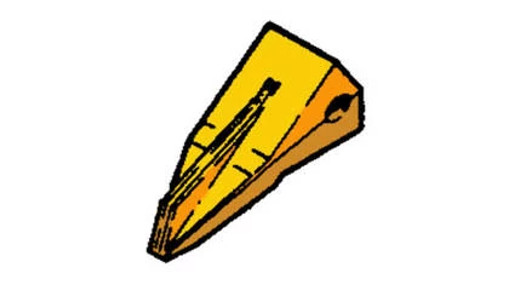

10BUARTOOTH; POINT - tooth, heavy duty, star point, service option assy.
-
1KIT; - pin, bucket, Includes: Ref. 11 and 12
-
111PIVOT PIN 38.1mm OD x 338.14mm L; PIN - bucket to bucket link D41679 kit
-
122SNAP RING M35, Int; RING - snap D41679 pin kit
