02-26[*] - DYNAMIC BALANCER, GEARS & SHAFTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    4897125
    SNAP RING Ext, M23;
  • 2
    1
    4897123
    THRUST BEARING;
  • 3
    16
    8093883
    SET OF STD MAIN BRGS; Replaces 4897071,
  • 4
    1
    4897048
    IDLER GEAR;
  • 5
    1
    4896947
    IDLER GEAR;
  • 6
    3
    4895586
    SCREW Hex, Flg Hd, M8 x 16;
  • 7
    5-4
    2830433
    HEX SOC SCREW; (4) Used with 2830953 Balancer Assy
  • 8
    1
    2831031
    SHAFT; No Longer Available, Order 2855743 Balance Assy, Ref 12
  • 9
    2
    2831354
    SHAFT 18T; 2830953 And 2855743 Balancer Assy, Replaces 2831023
  • 10
    1
    2831300
    HOUSING; See Figure 02-27, 2830953 And 2853225 Balancer Assy, Replaces 2830952
  • 10
    1
    2855744
    HOUSING; See Figure 02-27, 2855743 Balancer
  • 11
    1
    4897934
    SCREW Hex, Flg Hd, M10 x 100;
  • 11
    7
    4899109
    SCREW Hex, M10 x 1.5 x 80;
  • 12
    1
    2830953
    BALANCER; Incl. Ref 1 - 9, 10, If Used
  • 12
    1
    2853225
    HOUSING; Incl. Ref 1 - 8, 9A, 10, Includes (5) Ref 7 Screws, Fifth Screw Is Used During Assembly Under Balancer to Lock Shaft, But Must Be Removed After Balancer Is Assembled to Block, If Used
  • 12
    1
    2855743
    BALANCER; Incl Ref 1, Ref 3 - 9, 2855744 Housing, Ref 10, Ref 13, If Used

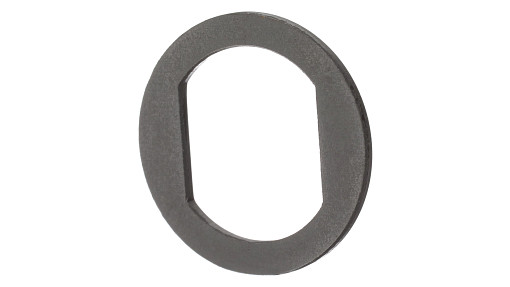

  • 13
    1
    2855753
    THRUST PLATE; Thrust Plate Brg, Used with 2855743 Ref 12
  • 9A
    2
    2853226
    SHAFT; 2853225 Balancer Assy
