TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11RADIATOR 4 row; ASSEMBLY - engine coolant, parts list Figure 2-4, replaces 129264A1 radiator, used with 139783A1 or 231280A1 oil cooler, see Figure 6-20 for cooler and baffles, Includes: Ref. 2
-
21RADIATOR CAP; CAP, RADIATOR, Filler, 15 psi
-
42SEALING STRIP 20mm W x 404mm L x 6mm Thk; - adhesive-backed, 6 (1/4) x 20 (25/32) x 404 mm (15-29/32 inch) long, radiator to shroud, upper and lower, Replaces 140825A1
-
51SHROUD; - fan
-
64PREV TORQUE BOLT Hex, M8 x 1.25 x 16mm, Cl 10.9; - hex, self-locking, 8 - 1.25 x 16 mm, class 10.9
-
74WASHER 9mm ID x 20mm OD x 1.6mm Thk;
-
81RESERVOIR; - coolant recovery bottle, Includes: Ref. 9
-
91FILLER CAP 80mm OD x 181mm L; - screw-on
-
102BOLT Hex, M8 x 1.25 x 50mm, Cl 10.9; - hex, self-locking, 8 - 1.25 x 50 mm, class 10.9
-
114WASHER 9mm ID x 16mm OD x 1.6mm Thk; - flat, 9 x 17 x 1.6 mm
-
122SPACER; - bottle
-
131HOSE 8mm ID x 14mm OD x 595mm L; - 591 mm (23-1/4 inch) long, coolant recovery, cut from L126767
-
141HOSE 8mm ID x 14mm OD x 125mm L; - 125 mm (4-15/16 inch) long, coolant overflow
-
153HOSE CLAMP 13.2mm - 15.4mm; CLAMP - spring-type, hose, retaining
-
161RADIATOR HOSE 45.00 mm ID x 270.00 mm, SAE 20 R4; Upper 45.00 mm ID x 270.00 mm, SAE 20 R4
-
172HOSE CLAMP #32, 1.56'' - 2.5'', Type F Worm; CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm
-
181RADIATOR HOSE 58.00 mm ID x 212.00, SAE 20 R4; Lower 58.00 mm ID x 212.00, SAE 20 R4
-
192HOSE CLAMP #40, 2.06'' - 3'', Type F Worm; CLAMP - adj, 2-1/16 - 3 inch dia
-
201COCK 1/4'' NPTF; VALVE - drain, 1/4 inch PT, drain
-
212SUPPORT; BRACKET - radiator mounting, lower, see Figure 9-70 for upper bracket that attaches to the radiator shroud
-
224BOLT Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd; - hex, full threads, 8 - 1.25 x 16 mm
-
232BOLT Hex, M10 x 1.5 x 50mm, Cl 8.8;
-
244WASHER 10.5mm ID x 30mm OD x 3.0mm Thk; - flat, special
-
252ISOLATOR 10.16mm ID x 28.07mm OD x mm L; INSULATOR - rubber, mount, radiator
-
262LOCK NUT M10 x 1.5, Cl 8; NUT, LOCK, M10 x 1.5, Cl 8
-
271FAN 7 blade, 499mm OD, CW rotation; - engine cooling, models without air conditioning;Part number is stamped on fan blade.
-
27A1PULLER; FAN - engine cooling, models with air conditioning, prior to tractor P.I.N. JJG0209067, if used;Part number is stamped on fan blade.
-
27B1FAN 7 blade, 500mm OD, CW rotation; - engine cooling, models with air conditioning, tractor P.I.N. JJG0209067 and after, if used, not shown;Part number is stamped on fan blade.
-
284BOLT Hex, M10 x 1.5 x 70mm, Cl 8.8; - hex, 10 - 1.5 x 70 mm
-
294WASHER 13/32'' x 13/16'' x .089'', HDN; - flat, 13/32 x 13/16 x 3/32'', hardened
-
301SPACER 15mm ID x 74mm OD x 42.5mm W; fan
-
311V-BELT 3.56 mm W x 1485.90 mm L, 8 Ribs; Fan, Alternator and Fan, See Figure 9-130 for Belt Used on Air Conditioning Compressor 3.56 mm W x 1485.90 mm L, 8 Ribs
-
321PLATE; PLATE - anti-recirculation
-
332BOLT Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd; - hex, full threads, 8 - 1.25 x 16 mm
-
341PLATE; - backup, if used
-
351FOAM INSULATION; - foam, adhesive-backed, 20 (25/32) x 504 (19-27/32) x 3 mm (1/8 inch), backup plate to cooler, if used
-
361SEAL; - foam, adhesive-backed, 20 (25/32) x 504 (19-27/32) x 10 mm (3/8 inch), radiator, if used
-
1HOSE 7.9mm ID x 2336mm L, SAE 30R6;
Select All
![]()
Ref.
1Qty
1Availability
Part #
234876A1Description
RADIATOR 4 row; ASSEMBLY - engine coolant, parts list Figure 2-4, replaces 129264A1 radiator, used with 139783A1 or 231280A1 oil cooler, see Figure 6-20 for cooler and baffles, Includes: Ref. 2Img
Alts
Ref.
2Qty
1Availability
Part #
A170241Description
RADIATOR CAP; CAP, RADIATOR, Filler, 15 psiImg
Alts
Ref.
4Qty
2Availability
Part #
233272A1Description
SEALING STRIP 20mm W x 404mm L x 6mm Thk; - adhesive-backed, 6 (1/4) x 20 (25/32) x 404 mm (15-29/32 inch) long, radiator to shroud, upper and lower, Replaces 140825A1Img
Alts
Ref.
6Qty
4Availability
Part #
806-8016Description
PREV TORQUE BOLT Hex, M8 x 1.25 x 16mm, Cl 10.9; - hex, self-locking, 8 - 1.25 x 16 mm, class 10.9Img
Alts
Ref.
7Qty
4Availability
Part #
895-15008Description
WASHER 9mm ID x 20mm OD x 1.6mm Thk;Img
Alts
Ref.
8Qty
1Availability
Part #
131084A1Description
RESERVOIR; - coolant recovery bottle, Includes: Ref. 9Img
Alts
Ref.
9Qty
1Availability
Part #
1547924C1Description
FILLER CAP 80mm OD x 181mm L; - screw-onImg
Alts
Ref.
10Qty
2Availability
Part #
806-8050Description
BOLT Hex, M8 x 1.25 x 50mm, Cl 10.9; - hex, self-locking, 8 - 1.25 x 50 mm, class 10.9Img
Alts
Ref.
11Qty
4Availability
Part #
895-11008Description
WASHER 9mm ID x 16mm OD x 1.6mm Thk; - flat, 9 x 17 x 1.6 mmImg
Alts
Ref.
13Qty
1Availability
Part #
132218A1Description
HOSE 8mm ID x 14mm OD x 595mm L; - 591 mm (23-1/4 inch) long, coolant recovery, cut from L126767Img
Alts
Ref.
14Qty
1Availability
Part #
132217A1Description
HOSE 8mm ID x 14mm OD x 125mm L; - 125 mm (4-15/16 inch) long, coolant overflowImg
Alts
Ref.
15Qty
3Availability
Part #
A171099Description
HOSE CLAMP 13.2mm - 15.4mm; CLAMP - spring-type, hose, retainingImg
Alts
Ref.
16Qty
1Availability
Part #
141512A1Description
RADIATOR HOSE 45.00 mm ID x 270.00 mm, SAE 20 R4; Upper 45.00 mm ID x 270.00 mm, SAE 20 R4Img
Alts
Ref.
17Qty
2Availability
Part #
214-1432Description
HOSE CLAMP #32, 1.56'' - 2.5'', Type F Worm; CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F WormImg
Alts
Ref.
18Qty
1Availability
Part #
141513A1Description
RADIATOR HOSE 58.00 mm ID x 212.00, SAE 20 R4; Lower 58.00 mm ID x 212.00, SAE 20 R4Img
Alts
Ref.
19Qty
2Availability
Part #
214-1440Description
HOSE CLAMP #40, 2.06'' - 3'', Type F Worm; CLAMP - adj, 2-1/16 - 3 inch diaImg
Alts
Ref.
20Qty
1Availability
Part #

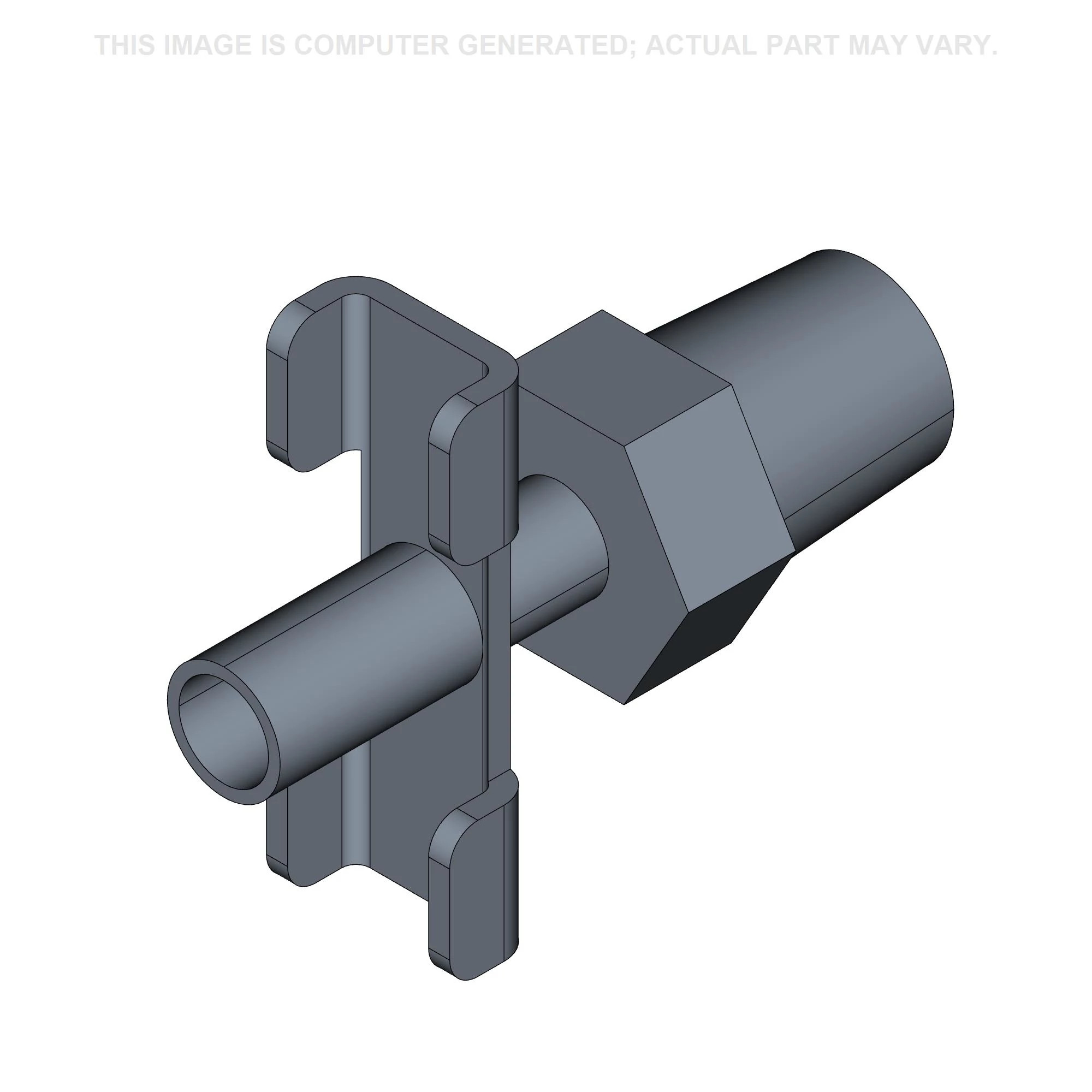

217-92Description
COCK 1/4'' NPTF; VALVE - drain, 1/4 inch PT, drainImg
Alts
Ref.
21Qty
2Availability
Part #
121501A1Description
SUPPORT; BRACKET - radiator mounting, lower, see Figure 9-70 for upper bracket that attaches to the radiator shroudImg
Alts
Ref.
22Qty
4Availability
Part #
614-8016Description
BOLT Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd; - hex, full threads, 8 - 1.25 x 16 mmImg
Alts
Ref.
23Qty
2Availability
Part #
814-10050Description
BOLT Hex, M10 x 1.5 x 50mm, Cl 8.8;Img
Alts
Ref.
24Qty
4Availability
Part #
K691987Description
WASHER 10.5mm ID x 30mm OD x 3.0mm Thk; - flat, specialImg
Alts
Ref.
25Qty
2Availability
Part #
D52276Description
ISOLATOR 10.16mm ID x 28.07mm OD x mm L; INSULATOR - rubber, mount, radiatorImg
Alts
Ref.
26Qty
2Availability
Part #
832-10410Description
LOCK NUT M10 x 1.5, Cl 8; NUT, LOCK, M10 x 1.5, Cl 8Img
Alts
Ref.
27Qty
1Availability
Part #
185377A1Description
FAN 7 blade, 499mm OD, CW rotation; - engine cooling, models without air conditioning;Part number is stamped on fan blade.Img
Alts
Ref.
27AQty
1Availability
Part #
1998743C1Description
PULLER; FAN - engine cooling, models with air conditioning, prior to tractor P.I.N. JJG0209067, if used;Part number is stamped on fan blade.Img
Alts
Ref.
27BQty
1Availability
Part #
228133A1Description
FAN 7 blade, 500mm OD, CW rotation; - engine cooling, models with air conditioning, tractor P.I.N. JJG0209067 and after, if used, not shown;Part number is stamped on fan blade.Img
Alts
Ref.
28Qty
4Availability
Part #
814-10070Description
BOLT Hex, M10 x 1.5 x 70mm, Cl 8.8; - hex, 10 - 1.5 x 70 mmImg
Alts
Ref.
29Qty
4Availability
Part #
496-21041Description
WASHER 13/32'' x 13/16'' x .089'', HDN; - flat, 13/32 x 13/16 x 3/32'', hardenedImg
Alts
Ref.
30Qty
1Availability
Part #
A184545Description
SPACER 15mm ID x 74mm OD x 42.5mm W; fanImg
Alts
Ref.
31Qty
1Availability
Part #
J921603Description
V-BELT 3.56 mm W x 1485.90 mm L, 8 Ribs; Fan, Alternator and Fan, See Figure 9-130 for Belt Used on Air Conditioning Compressor 3.56 mm W x 1485.90 mm L, 8 RibsImg
Alts
Ref.
33Qty
2Availability
Part #
614-8016Description
BOLT Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd; - hex, full threads, 8 - 1.25 x 16 mmImg
Alts
Ref.
35Qty
1Availability
Part #
233312A1Description
FOAM INSULATION; - foam, adhesive-backed, 20 (25/32) x 504 (19-27/32) x 3 mm (1/8 inch), backup plate to cooler, if usedImg
Alts
Ref.
36Qty
1Availability
Part #
233286A1Description
SEAL; - foam, adhesive-backed, 20 (25/32) x 504 (19-27/32) x 10 mm (3/8 inch), radiator, if usedImg
Alts
