580M - SERIES 2 LOADER BA... 02 - ENGINE 02-10 - CYLINDER BLOCK
02-10 - CYLINDER BLOCK
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    4
    4894218
    SCREW Special, M8 x 20;
  • 2
    1
    4895605
    HEX SOCKET PLUG M14 x 1.5; Incl. Ref 3
  • 3
    1
    4899115
    O-RING 2.2mm Thk x 11.3mm ID;
  • 4
    1
    4899009

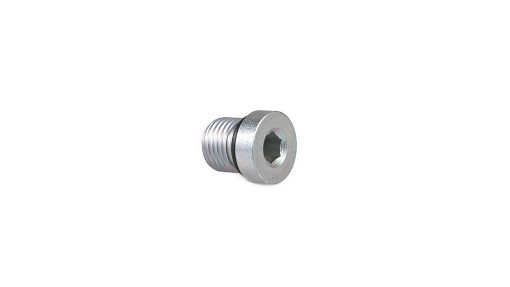

    HEX SOCKET PLUG M10 x1; Incl. Ref 5
  • 5
    1
    4899072
    O-RING 1.6mm Thk x 8.1mm ID;
  • 6
    2
    4895392
    HEX SOCKET PLUG M18 x 1.5; Incl. Ref 7
  • 7
    1
    4895393
    O-RING 2.2mm Thk x 15.3mm ID;
  • 8
    2
    4895049
    DOWEL M16.05 x 10;
  • 9
    8
    J931623
    TAPPET 16mm OD x 60mm H;
  • 10
    4
    2852202
    NOZZLE, PISTON COOLI; Incl. Ref 1
  • 11
    1
    REF
    INSTRUCTION; PISTON, See Figure 02-23
  • 12
    1
    REF
    INSTRUCTION; CAMSHAFT, See Figure 02-28
  • 13
    1
    4896153
    PLUG; Piston Cooling, M6.08 OD x 30 lg, If Used
