Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1-HYDRAULIC OIL FILTER; Transmission
-
2-FUEL FILTER Spin-on, 96.5mm OD x 184mm L, M16 x 1.5, 30 Microns; W/ Seperator
-
3-CAB FILTER Standard; HVAC
-
4-FILTER, DEF; KIT, DEF
-
5-BREATHER;
-
6-FILTER, DEF 100 Micron;
-
7-HYDRAULIC OIL FILTER Spin-on, 115.6mm OD x 295.4mm L, M108 x 2.5;
-
8-FILTER STRAINER;
-
9-AIR FILTER; Secondary Air Filter
-
10-AIR FILTER; Primary Air Filter
-
11-ENGINE OIL FILTER 93.5mm OD x 173mm L, M27, 10 Microns;
-
12-FUEL FILTER 94mm OD x 192mm L, M20 x 1.5, 10 Microns, 12 Pack Qty;
-
13-FILTER SCREEN;
-
14-CAB FILTER Square, 415mm L x 164mm W, Paper; Cab Recirculation
-
15-FILTER SCREEN; Transmission
-
16-SHEET; Filter
-
17-BREATHER TANK VENT; Def System
Select All
Select
Ref.
1Qty
-Availability
Part #
87519452Description
HYDRAULIC OIL FILTER; TransmissionImg
Alts
Select
Ref.
2Qty
-Availability
Part #
84348882Description
FUEL FILTER Spin-on, 96.5mm OD x 184mm L, M16 x 1.5, 30 Microns; W/ SeperatorImg
Alts
Select
Ref.
7Qty
-Availability
Part #

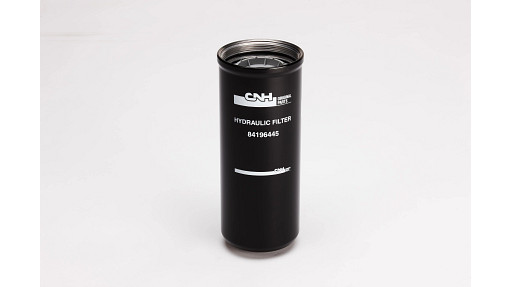

84196445Description
HYDRAULIC OIL FILTER Spin-on, 115.6mm OD x 295.4mm L, M108 x 2.5;Img
Alts
Select
Ref.
9Qty
-Availability
Part #

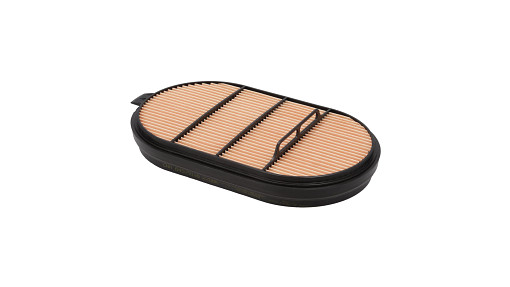

84579126Description
AIR FILTER; Secondary Air FilterImg
Alts
Select
Ref.
10Qty
-Availability
Part #

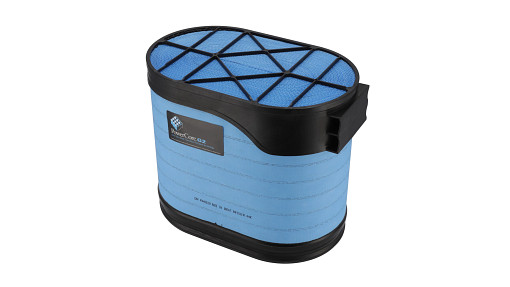

47446529Description
AIR FILTER; Primary Air FilterImg
Alts
Select
Ref.
11Qty
-Availability
Part #
4897898Description
ENGINE OIL FILTER 93.5mm OD x 173mm L, M27, 10 Microns;Img
Alts
Select
Ref.
12Qty
-Availability
Part #
84412164Description
FUEL FILTER 94mm OD x 192mm L, M20 x 1.5, 10 Microns, 12 Pack Qty;Img
Alts
Select
Ref.
14Qty
-Availability
Part #

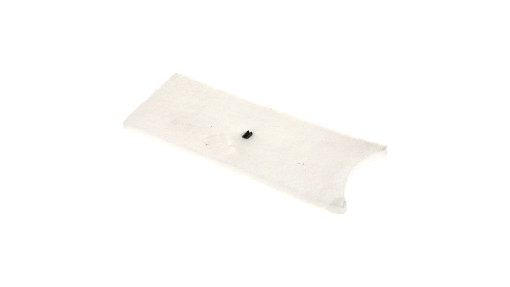

84389987Description
CAB FILTER Square, 415mm L x 164mm W, Paper; Cab RecirculationImg
Alts
Select
Ref.
17Qty
-Availability
Part #
47437399Description
BREATHER TANK VENT; Def SystemImg
Alts
