P170 - IRRIGATION POWER U... 02 - ENGINE 02-02A - CHARGE AIR COOLE...
02-02A - CHARGE AIR COOLER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    82028450

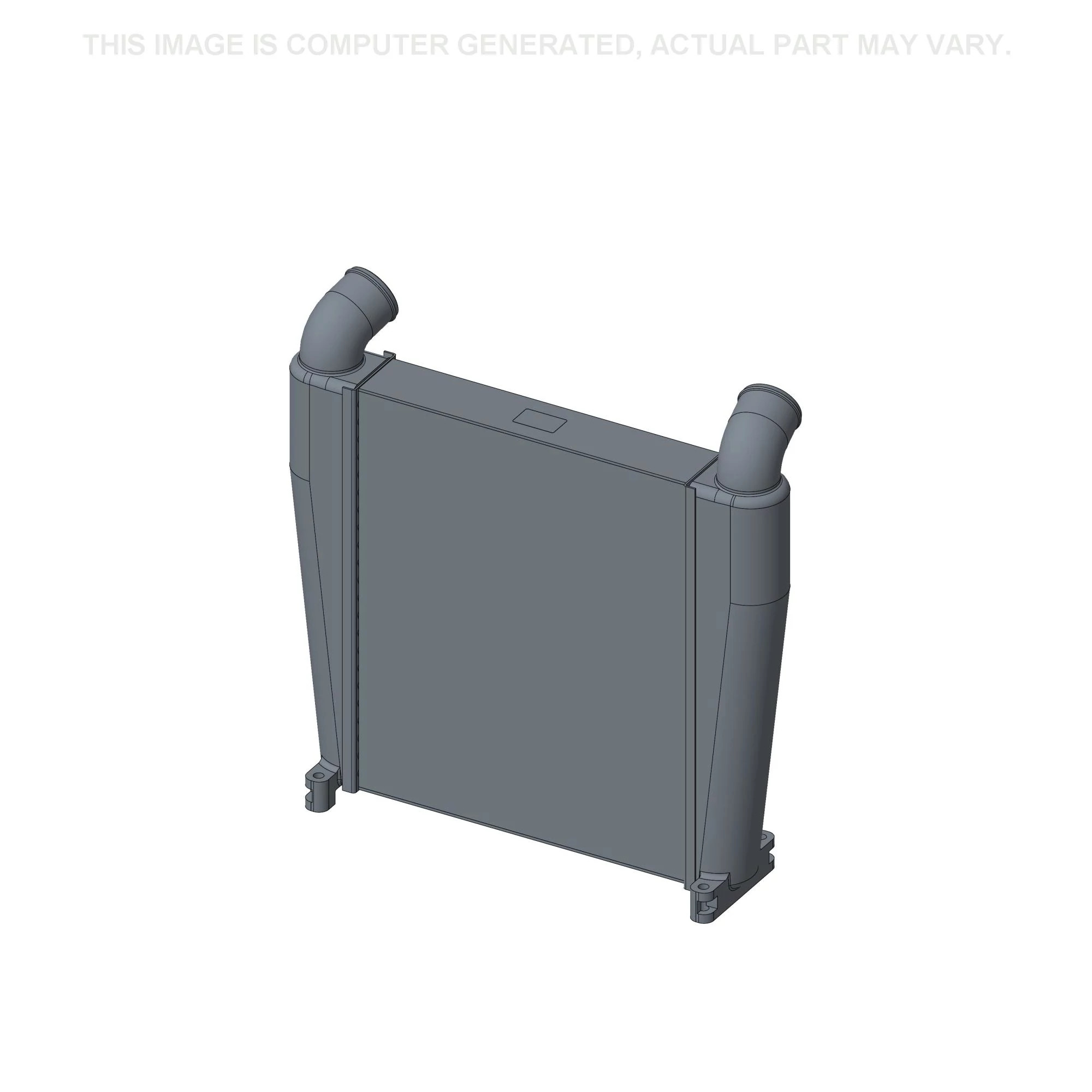

    INTERCOOLER;
  • 2
    1
    87416799
    TUBE 63.50 mm OD x 639.2 mm L; Left (Cold)
  • 3
    1
    87405430

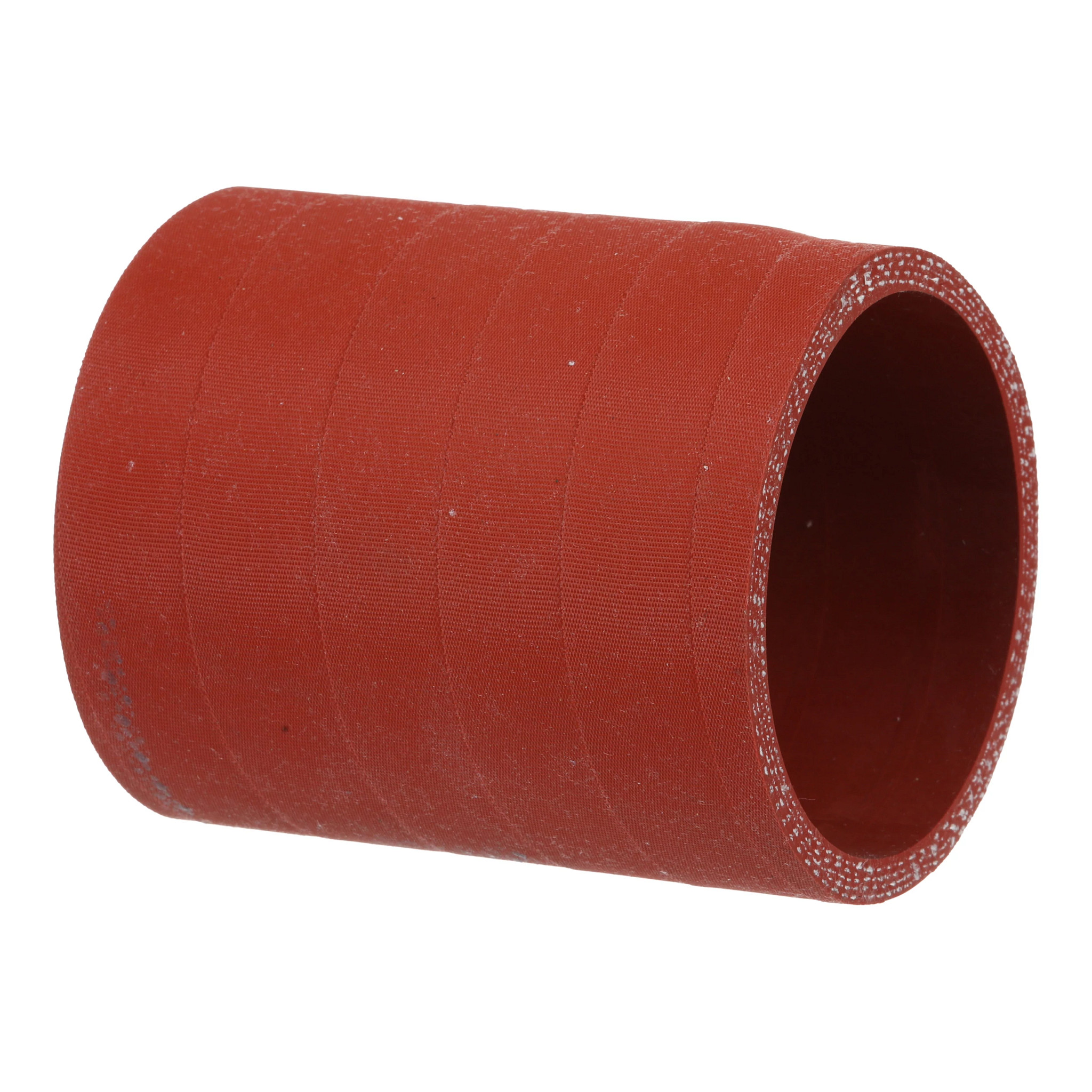

    HOSE 76mm ID x 84mm OD x 102mm L; 3 Inch ID x 4 Inch
  • 4
    2
    87416749

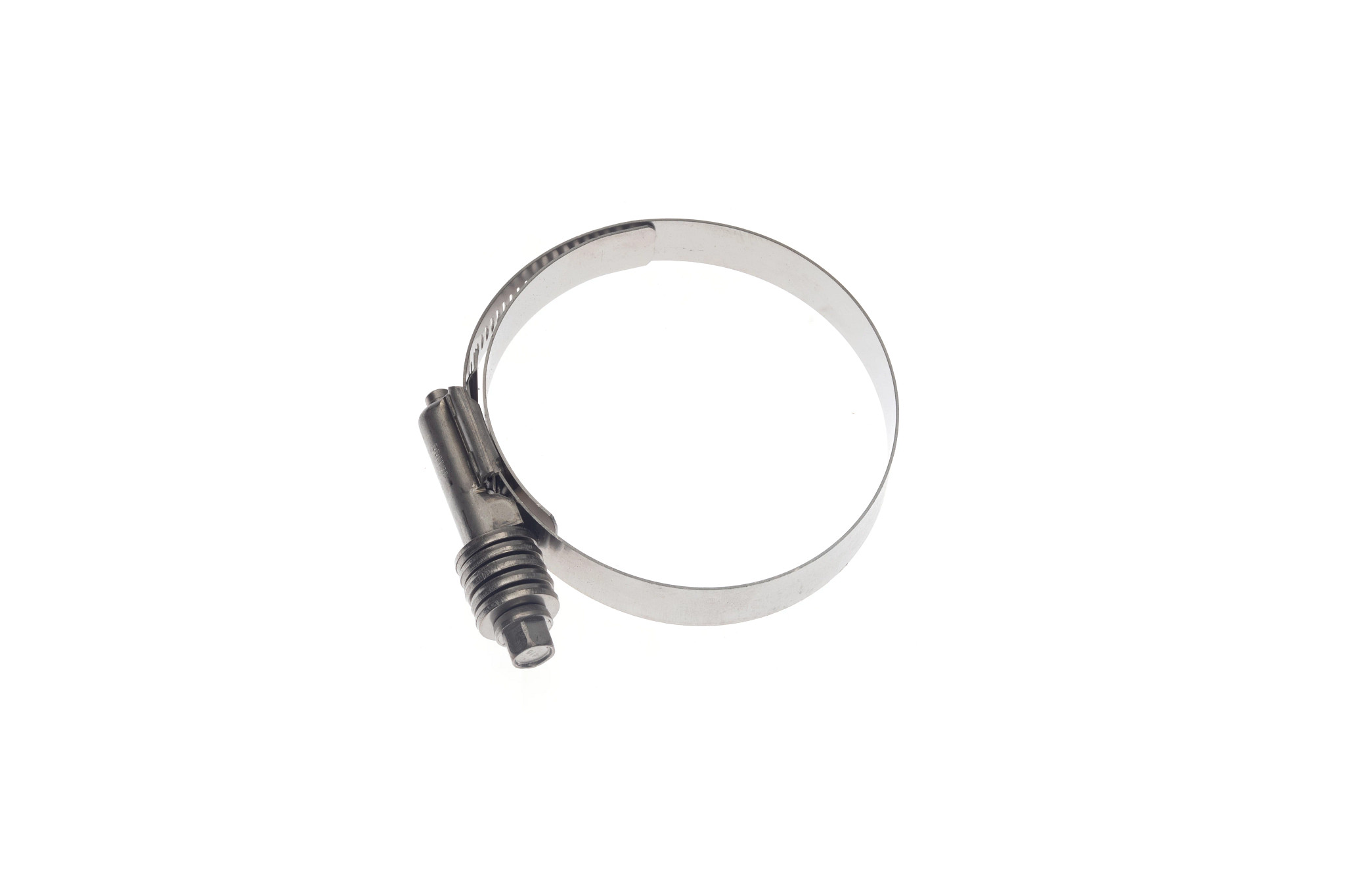

    CLAMP 2.75'' - 3.62'', Worm Gear;
  • 5
    3
    87416333
    HOSE; 2.5 Inch ID x 3 Inch
  • 6
    6
    L115548
    HOSE CLAMP 57.15mm - 79.38mm;
  • 7
    1
    87717221
    TUBE 2.5 mm OD x 35.125, 15.866 mm L; Right (Hot)
  • 8
    1
    87717286
    BRACKET;
  • 9
    4
    88436
    BOLT Hex, 3/8'' - 16 x 2'', Gr 5;
  • 10
    8
    280136
    NUT 3/8''-16, G8; (Not Shown)
  • 11
    8
    492-11038
    LOCK WASHER 3/8''; (Not Shown)
  • 12
    4
    9670285
    BOLT Hex, 3/8'' - 16 x 1'', Gr 8, Full Thd; (Not Shown)
