TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1PUMP; Remanufactured, No Longer Available, Order A77703
-
1REMAN-WATER PUMP WATER PUMP; Reman for new P/N AR77703
-
1CORE-WATER PUMP WATER PUMP; Return Number
-
-CORE-WATER PUMP WATER PUMP; Return Number, Incl. 1 - 3
-
1CORE-WATER PUMP WATER PUMP; Replaces A77471, No Longer Available, Order J286277
-
1WATER PUMP; Replaces A77471, No Longer Available, Order J286277
-
1WATER PUMP; Value, Water Pump Assy.
-
1WATER PUMP; Note: For Water Pump Replacement - JAF0064393, Also Order (1) H437716 fan spacer, (4) 614-10030 bolts and (4) 496-21041 washers. See Figure 02-02, REF 10, 11, 14
-
1REMAN-WATER PUMP WATER PUMP; 1840 Prior to PIN JAF0064393, Must Also Order Qty. 1 of P.N H437716 Fan Spacer, Qty. 4 of 43140 Bolts, Qty. 4 of 86625241 Washers.
-
1CORE-WATER PUMP WATER PUMP; Return Number
-
11NOT SOLD SEPARAT; Pump
-
21NOT SOLD SEPARAT; Pulley, Water Pump
-
31O-RING 0.21'' Thk x 3.475'' ID, -341, Cl 5, 75 Duro; Used with A77703
-
31RUBBER SEAL Square, 5.16mm Thk x 88.27mm ID; Used With J286277
-
42BOLT Hex, M8 x 1.25 x 22mm, Cl 10.9;
-
81BRACKET; Fan
-
102BOLT Hvy Hex, M8 x 30mm, Cl 8.8;
-
112BOLT Hvy Hex, M8 x 40mm, Cl 8.8;
-
121PULLEY 8 Rib, 165.25mm OD, 60mm Bolt Pattern; 1.1 to 1 ratio, European Models - JAF0098065, North American Models - JAF0118968
-
121PULLEY 207.26mm OD; 207 mm diameter, 0.87 to 1 ratio, Replaces J914461, European Models JAF0098065 - , North American Models JAF0118968 -
-
151SUPPORT; Belt Tensioner, European Models - JAF0098065, Replaces J904550
-
151SUPPORT; Belt Tensioner, European Models JAF0098065 - , Replaces J919985
-
151SUPPORT; Belt Tensioner, North American Models - JAF0118968
-
151SUPPORT; Belt Tensioner, North American Models JAF0118968 -
-
162SCREW Torx, M8 x 1.25 x 25mm, Cl 10.9; Replaces J903095
-
181BELT TENSIONER; Replaces J914086, No Longer Available, Order J936203
-
181BELT TENSIONER;
-
211BOLT Hvy Hex, M10 x 70mm, Cl 10.9;
-
221KIT; Belt Tensioner Pulley, Used To Replace Pulley Of J918944, Incl. 23 - 25
-
231NOT SOLD SEPARAT; Pulley
-
241NOT SOLD SEPARAT; Bolt
-
251NOT SOLD SEPARAT; Seal
Select All
Select
Ref.
Qty
1Availability
Part #
AR77703Description
PUMP; Remanufactured, No Longer Available, Order A77703Img
Alts
Select
Ref.
Qty
1Availability
Part #
J286278RDescription
REMAN-WATER PUMP WATER PUMP; Reman for new P/N AR77703Img
Alts
Select
Ref.
Qty
1Availability
Part #
J286278CDescription
CORE-WATER PUMP WATER PUMP; Return NumberImg
Alts
Select
Ref.
Qty
-Availability
Part #
AC77703Description
CORE-WATER PUMP WATER PUMP; Return Number, Incl. 1 - 3Img
Alts
Select
Ref.
Qty
1Availability
Part #
AC77703Description
CORE-WATER PUMP WATER PUMP; Replaces A77471, No Longer Available, Order J286277Img
Alts
Select
Ref.
Qty
1Availability
Part #
A77703Description
WATER PUMP; Replaces A77471, No Longer Available, Order J286277Img
Alts
Select
Ref.
Qty
1Availability
Part #
A77703GVDescription

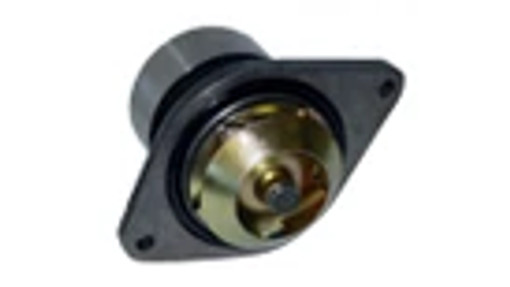

WATER PUMP; Value, Water Pump Assy.Img
Alts
Select
Ref.
Qty
1Availability
Part #
J286277Description
WATER PUMP; Note: For Water Pump Replacement - JAF0064393, Also Order (1) H437716 fan spacer, (4) 614-10030 bolts and (4) 496-21041 washers. See Figure 02-02, REF 10, 11, 14Img
Alts
Select
Ref.
Qty
1Availability
Part #
J286278RDescription
REMAN-WATER PUMP WATER PUMP; 1840 Prior to PIN JAF0064393, Must Also Order Qty. 1 of P.N H437716 Fan Spacer, Qty. 4 of 43140 Bolts, Qty. 4 of 86625241 Washers.Img
Alts
Select
Ref.
Qty
1Availability
Part #
J286278CDescription
CORE-WATER PUMP WATER PUMP; Return NumberImg
Alts
Select
Ref.
2Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Pulley, Water PumpImg
Alts
Select
Ref.
3Qty
1Availability
Part #
238-5341Description
O-RING 0.21'' Thk x 3.475'' ID, -341, Cl 5, 75 Duro; Used with A77703Img
Alts
Select
Ref.
3Qty
1Availability
Part #
J906698Description
RUBBER SEAL Square, 5.16mm Thk x 88.27mm ID; Used With J286277Img
Alts
Select
Ref.
4Qty
2Availability
Part #
J900227Description
BOLT Hex, M8 x 1.25 x 22mm, Cl 10.9;Img
Alts
Select
Ref.
10Qty
2Availability
Part #
845-8030Description
BOLT Hvy Hex, M8 x 30mm, Cl 8.8;Img
Alts
Select
Ref.
11Qty
2Availability
Part #
845-8040Description
BOLT Hvy Hex, M8 x 40mm, Cl 8.8;Img
Alts
Select
Ref.
12Qty
1Availability
Part #
J914462Description

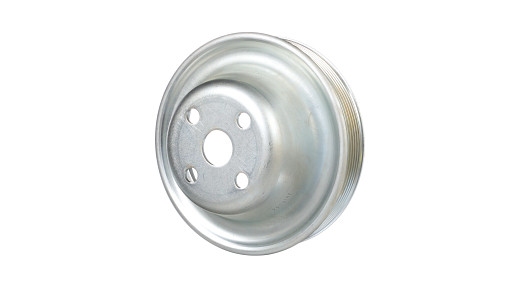

PULLEY 8 Rib, 165.25mm OD, 60mm Bolt Pattern; 1.1 to 1 ratio, European Models - JAF0098065, North American Models - JAF0118968Img
Alts
Select
Ref.
12Qty
1Availability
Part #
87739401Description

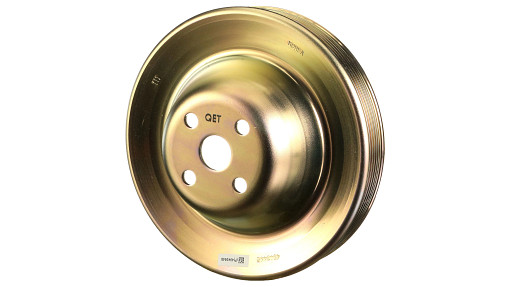

PULLEY 207.26mm OD; 207 mm diameter, 0.87 to 1 ratio, Replaces J914461, European Models JAF0098065 - , North American Models JAF0118968 -Img
Alts
Select
Ref.
15Qty
1Availability
Part #
J925195Description
SUPPORT; Belt Tensioner, European Models - JAF0098065, Replaces J904550Img
Alts
Select
Ref.
15Qty
1Availability
Part #
J925207Description

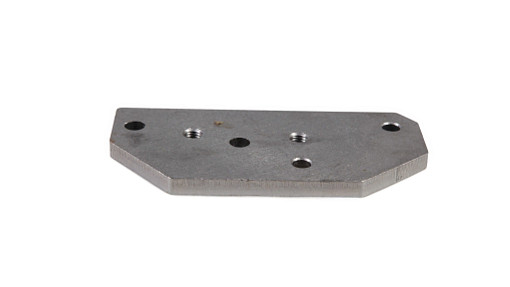

SUPPORT; Belt Tensioner, European Models JAF0098065 - , Replaces J919985Img
Alts
Select
Ref.
15Qty
1Availability
Part #
J925194Description
SUPPORT; Belt Tensioner, North American Models - JAF0118968Img
Alts
Select
Ref.
15Qty
1Availability
Part #
J925195Description
SUPPORT; Belt Tensioner, North American Models JAF0118968 -Img
Alts
Select
Ref.
16Qty
2Availability
Part #
J925186Description
SCREW Torx, M8 x 1.25 x 25mm, Cl 10.9; Replaces J903095Img
Alts
Select
Ref.
18Qty
1Availability
Part #
J918944Description
BELT TENSIONER; Replaces J914086, No Longer Available, Order J936203Img
Alts
Select
Ref.
21Qty
1Availability
Part #
854-10070Description

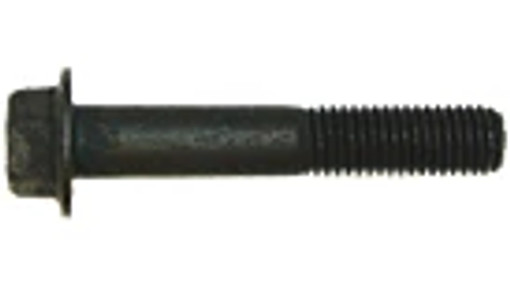

BOLT Hvy Hex, M10 x 70mm, Cl 10.9;Img
Alts
Select
Ref.
22Qty
1Availability
Part #
A77817Description

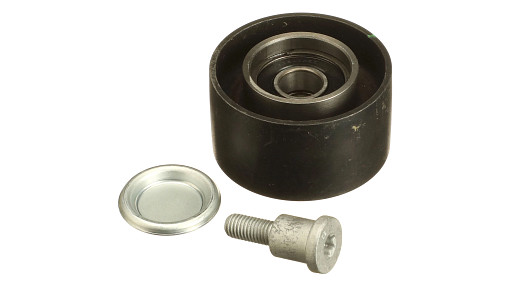

KIT; Belt Tensioner Pulley, Used To Replace Pulley Of J918944, Incl. 23 - 25Img
Alts
