226 - G33443 AND G33444 LOADER LIFT CYLINDERS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    G33443
    CYLINDER; ASSEMBLY - lift, RH, 3'' (76 mm) ID x 31-1/2'' (800 mm) stroke order G101544, Includes: Ref. 2 - 20
  • 1
    1
    G33444
    CYLINDER; ASSEMBLY - lift, LH, 3'' (76 mm) ID x 31-1/2'' (800 mm) stroke, order G101545, Includes: Ref. 2 - 20
  • 2
    1
    D48617
    BODY; TUBE - cylinder body, LH
  • 2
    1
    D48616
    TUBE; - cylinder body, RH
  • 3
    1
    G33485
    GLAND; ASSEMBLY - order G34328, Includes: Ref. 4 - 9
  • 4
    1
    NSS
    NOT SOLD SEPARAT; GLAND - see inset A
  • 5
    1
    D95142
    WIPER SEAL 38mm ID x 50.7mm OD x 7.92mm W; WIPER - piston rod, outer;Part of seal kit P/N G34332;Gland has identification ring.
  • 6
    1
    D36969
    CUP; SEAL - piston rod;Part of seal kit P/N G34332;Part of seal kit P/N G100776;Gland has identification ring.
  • 7
    1
    D27706
    WIPER SEAL; WIPER - piston rod, inner;Part of seal kit P/N G34332;Gland has identification ring.
  • 8
    1
    G32122

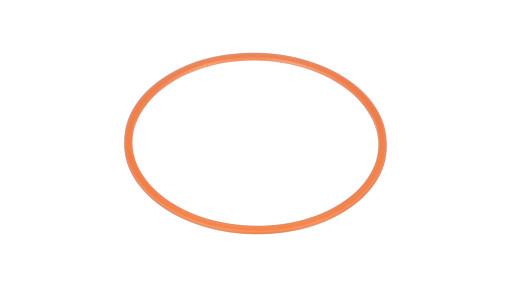

    BACK-UP RING 75.82mm ID x 81.92mm OD x 1.4mm Thk; - backup;Part of seal kit P/N G34332;Gland has identification ring.
  • 9
    1
    A30095
    O-RING 0.139'' Thk x 2.984'' ID, -234, Cl 5, 75 Duro; - gland;Part of seal kit P/N G34332;Gland has identification ring.
  • 10
    1
    187-1031
    SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; SCREW - self-tapping, no. 8 - 32 NC x 1/4''
  • 11
    1
    G33445
    ROD; ASSSEMBLY - piston, 1-1/2'' (38 mm) diameter, order G35006, Includes: Ref. 12
  • 12
    1
    D30929
    BUSHING 38.33mm ID x 47.63mm OD x 38.1mm L; - piston rod
  • 13
    1
    G33150
    PISTON; - spilt, rod end, with identification ring
  • 14
    1
    D28366
    PISTON; - split, bolt end
  • 16
    2
    NSS
    NOT SOLD SEPARAT; PACKING - V-type
  • 17
    1
    NSS
    NOT SOLD SEPARAT; RING - center bearing
  • 18
    1
    28-1240

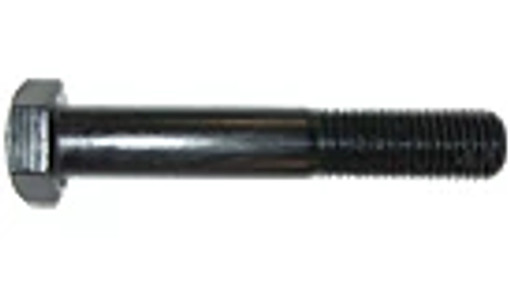

    BOLT Hex, 3/4'' - 16 x 2-1/2'', Gr 8; - hex, 3/4'' - 16 NF x 2-1/2'', grade 8
  • 19
    1
    G32317
    WASHER 33.34mm ID x 63.5mm OD x 2.38mm Thk; - hardened
  • 20
    1
    219-1
    LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8''NPT
  • 1
    G34332
    SEAL; KIT - seal, Includes Refs. 5, 6, 7, 8, 9 and 15 replaces G32292;Gland has identification ring.
  • 1
    G100776
    SEAL 38mm ID x 50mm OD x 9.5mm Thk; - piston rod, service option - severe heat or cold;Gland has identification ring.
Select All

Select

Ref.

1

Qty

1

Availability

Part #

G33443

Description

CYLINDER; ASSEMBLY - lift, RH, 3'' (76 mm) ID x 31-1/2'' (800 mm) stroke order G101544, Includes: Ref. 2 - 20


Alts

Select

Ref.

1

Qty

1

Availability

Part #

G33444

Description

CYLINDER; ASSEMBLY - lift, LH, 3'' (76 mm) ID x 31-1/2'' (800 mm) stroke, order G101545, Includes: Ref. 2 - 20


Alts

Select

Ref.

2

Qty

1

Availability

Part #

D48617

Description

BODY; TUBE - cylinder body, LH


Alts

Select

Ref.

2

Qty

1

Availability

Part #

D48616

Description

TUBE; - cylinder body, RH


Alts

Select

Ref.

3

Qty

1

Availability

Part #

G33485

Description

GLAND; ASSEMBLY - order G34328, Includes: Ref. 4 - 9


Alts

Select

Ref.

4

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; GLAND - see inset A


Alts

Select

Ref.

5

Qty

1

Availability

Part #

D95142

Description

WIPER SEAL 38mm ID x 50.7mm OD x 7.92mm W; WIPER - piston rod, outer;Part of seal kit P/N G34332;Gland has identification ring.


Alts

Select

Ref.

6

Qty

1

Availability

Part #

D36969

Description

CUP; SEAL - piston rod;Part of seal kit P/N G34332;Part of seal kit P/N G100776;Gland has identification ring.


Alts

Select

Ref.

7

Qty

1

Availability

Part #

D27706

Description

WIPER SEAL; WIPER - piston rod, inner;Part of seal kit P/N G34332;Gland has identification ring.


Alts

Select

Ref.

8

Qty

1

Availability

Part #

G32122

Description

BACK-UP RING 75.82mm ID x 81.92mm OD x 1.4mm Thk; - backup;Part of seal kit P/N G34332;Gland has identification ring.


Alts

Select

Ref.

9

Qty

1

Availability

Part #

A30095

Description

O-RING 0.139'' Thk x 2.984'' ID, -234, Cl 5, 75 Duro; - gland;Part of seal kit P/N G34332;Gland has identification ring.


Alts

Select

Ref.

10

Qty

1

Availability

Part #

187-1031

Description

SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; SCREW - self-tapping, no. 8 - 32 NC x 1/4''


Alts

Select

Ref.

11

Qty

1

Availability

Part #

G33445

Description

ROD; ASSSEMBLY - piston, 1-1/2'' (38 mm) diameter, order G35006, Includes: Ref. 12


Alts

Select

Ref.

12

Qty

1

Availability

Part #

D30929

Description

BUSHING 38.33mm ID x 47.63mm OD x 38.1mm L; - piston rod


Alts

Select

Ref.

13

Qty

1

Availability

Part #

G33150

Description

PISTON; - spilt, rod end, with identification ring


Alts

Select

Ref.

14

Qty

1

Availability

Part #

D28366

Description

PISTON; - split, bolt end


Alts

Select

Ref.

16

Qty

2

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; PACKING - V-type


Alts

Select

Ref.

17

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; RING - center bearing


Alts

Select

Ref.

18

Qty

1

Availability

Part #

28-1240

Description

BOLT Hex, 3/4'' - 16 x 2-1/2'', Gr 8; - hex, 3/4'' - 16 NF x 2-1/2'', grade 8


Alts

Select

Ref.

19

Qty

1

Availability

Part #

G32317

Description

WASHER 33.34mm ID x 63.5mm OD x 2.38mm Thk; - hardened


Alts

Select

Ref.

20

Qty

1

Availability

Part #

219-1

Description

LUBE NIPPLE 1/8'' - 27 NPTF; GREASE FITTING - straight, 1/8''NPT


Alts

Select

Ref.

Qty

1

Availability

Part #

G34332

Description

SEAL; KIT - seal, Includes Refs. 5, 6, 7, 8, 9 and 15 replaces G32292;Gland has identification ring.


Alts

Select

Ref.

Qty

1

Availability

Part #

G100776

Description

SEAL 38mm ID x 50mm OD x 9.5mm Thk; - piston rod, service option - severe heat or cold;Gland has identification ring.


Alts
