8-069A - 102480A1 HYDRAULIC PUMP, COMMERCIAL INTERTECH
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1

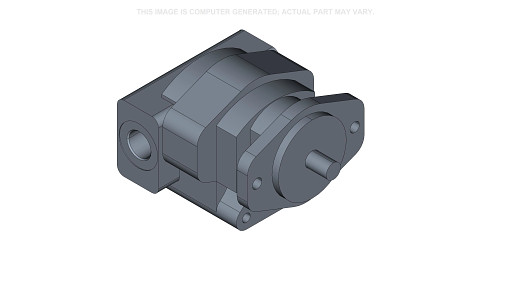

    102480A1
    PUMP; ASSEMBLY - hydraulic, Commercial Intertech 324-9110-248, Includes: Ref. 1 - 14
  • 1

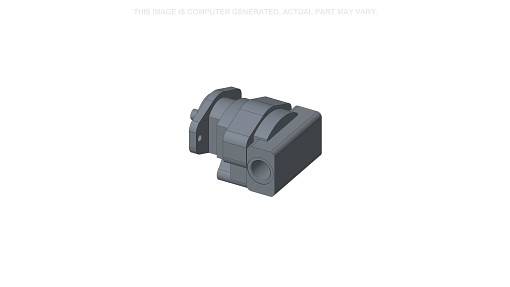

    102480A1R
    REMAN-HYD PUMP; 480F, 480F LL, Both (9/89-)
  • 1
    102480A1C
    CORE-HYDRAULIC PUMP; Return Number
  • 1
    1
    NSS
    NOT SOLD SEPARAT; COVER - shaft end, includes a bushing which is not serviced separately
  • 2
    1
    L32418
    SEAL 26.99mm ID x 42.93mm OD x 7.92mm Thk; - shaft
  • 4
    1
    NSS
    NOT SOLD SEPARAT; HOUSING - gear, shaft end
  • 5
    2
    144172A1
    PLATE; - thrust
  • 6
    2
    144173A1
    SEAL; RETAINER - wear plate
  • 7
    2
    L32100
    SEAL Square, 3.17mm Thk x 101.6mm ID, 70 Duro; - housing, large
  • 8
    4
    W16323
    DOWEL; PIN - dowel, gear housing
  • 9
    1
    NSS
    NOT SOLD SEPARAT; SET - gear, shaft end
  • 10
    1
    NSS
    NOT SOLD SEPARAT; HOUSING - closed end, with ports, includes bushings which are not serviced separately
  • 11
    4
    3031159R1
    WASHER; - flat, 5/8 inch, hardened, order 19-488
  • 12
    4
    326-1072
    BOLT Hex, 5/8'' - 11 x 4-1/2'', Gr 8;
  • 13
    1
    18-970
    BALL BEARING; BEARING - ball, sealed
  • 14
    1
    71466
    SNAP RING #206, 2.190'', Int, Spiral; RING - retaining, spring lock
Select All

Select

Ref.

Qty

1

Availability

Part #

102480A1

Description

PUMP; ASSEMBLY - hydraulic, Commercial Intertech 324-9110-248, Includes: Ref. 1 - 14


Alts

Select

Ref.

Qty

1

Availability

Part #

102480A1R

Description

REMAN-HYD PUMP; 480F, 480F LL, Both (9/89-)


Alts

Select

Ref.

Qty

1

Availability

Part #

102480A1C

Description

CORE-HYDRAULIC PUMP; Return Number


Alts

Select

Ref.

1

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; COVER - shaft end, includes a bushing which is not serviced separately


Alts

Select

Ref.

2

Qty

1

Availability

Part #

L32418

Description

SEAL 26.99mm ID x 42.93mm OD x 7.92mm Thk; - shaft


Alts

Select

Ref.

4

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; HOUSING - gear, shaft end


Alts

Select

Ref.

5

Qty

2

Availability

Part #

144172A1

Description

PLATE; - thrust


Alts

Select

Ref.

6

Qty

2

Availability

Part #

144173A1

Description

SEAL; RETAINER - wear plate


Alts

Select

Ref.

7

Qty

2

Availability

Part #

L32100

Description

SEAL Square, 3.17mm Thk x 101.6mm ID, 70 Duro; - housing, large


Alts

Select

Ref.

8

Qty

4

Availability

Part #

W16323

Description

DOWEL; PIN - dowel, gear housing


Alts

Select

Ref.

9

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; SET - gear, shaft end


Alts

Select

Ref.

10

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; HOUSING - closed end, with ports, includes bushings which are not serviced separately


Alts

Select

Ref.

11

Qty

4

Availability

Part #

3031159R1

Description

WASHER; - flat, 5/8 inch, hardened, order 19-488


Alts

Select

Ref.

12

Qty

4

Availability

Part #

326-1072

Description

BOLT Hex, 5/8'' - 11 x 4-1/2'', Gr 8;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

18-970

Description

BALL BEARING; BEARING - ball, sealed


Alts

Select

Ref.

14

Qty

1

Availability

Part #

71466

Description

SNAP RING #206, 2.190'', Int, Spiral; RING - retaining, spring lock


Alts
