4-010 - ALTERNATOR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    AR187623

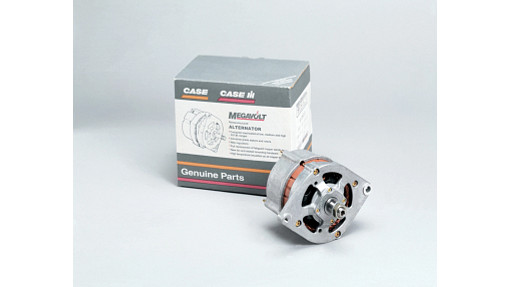

    REMAN-ALTERNATOR; ALTERNATOR ASSEMBLY, engine, 95 ampere, Includes: Ref. 1 - 25
  • 1
    A187623

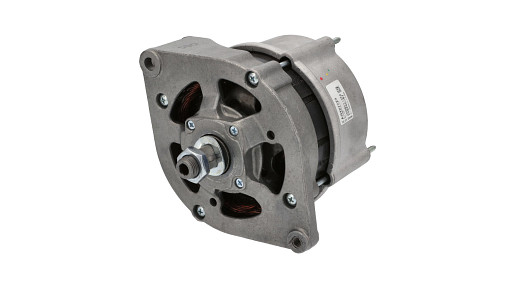

    ALTERNATOR; ALTERNATOR ASSEMBLY, engine, 95 ampere, Includes: Ref. 1 - 25
  • 1
    AC187623
    CORE-ALTERNATOR ALTERNATOR; ALTERNATOR ASSEMBLY, engine, 95 ampere, Includes: Ref. 1 - 25
  • 1
    1
    A187903
    COVER; HOUSING collector ring end
  • 2
    1
    A187906

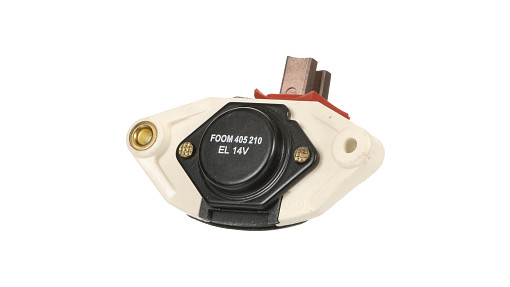

    VOLTAGE REGULATOR; REGULATOR voltage
  • 4
    1
    1964968C1

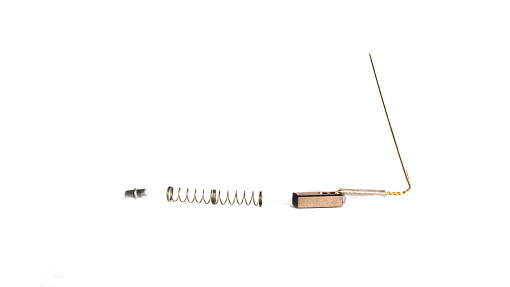

    COMMUTATOR BRUSH; BRUSH ASSEMBLY, alternator
  • 5
    2
    A187898
    SCREW; BOLT retaining, with washer
  • 6
    1
    3079134R1
    CAPACITOR; CAPACITOR alternator
  • 7
    1
    1964969C1
    SCREW; SCREW - capacitor retaining
  • 9
    1
    A187904
    MULTIPOLE CONNECTOR; SET hardware, terminal
  • 11
    1
    A187905
    DIODE ELEMENT; BRIDGE rectifier, alternator
  • 12
    1
    A187899
    INNER SHIELD; SHIELD alternator
  • 13
    2
    A187907
    CAPTIVE WASHER SCREW; BOLT retaining, with washer
  • 14
    1
    A187902
    STATOR; STATOR ASSEMBLY, alternator
  • 15
    1
    A187908
    BALL BEARING 12mm ID x 32mm OD x 10mm W; BEARING ball, rotor, collector ring end
  • 16
    1
    A187900
    ROTOR; ROTOR ASSEMBLY, alternator
  • 17
    1
    A187901
    PLATE; PLATE bearing retaining
  • 18
    1
    A186183
    BALL BEARING 17mm ID x 47mm OD x 14mm W; BEARING ball, rotor, drive end
  • 1
    3078897R1
    SET OF PARTS; KIT rotor retaining, Includes: Ref. 19 - 23
  • 19
    1
    NSS
    NOT SOLD SEPARAT; RING spacer
  • 20
    1
    NSS
    NOT SOLD SEPARAT; WASHER lock, rotor shaft
  • 21
    1
    NSS
    NOT SOLD SEPARAT; NUT rotor shaft
  • 22
    1
    NSS
    NOT SOLD SEPARAT; KEY pulley retainer
  • 23
    1
    NSS
    NOT SOLD SEPARAT; SCREW bearing retaining plate
  • 24
    1
    A186182
    HOUSING; HOUSING drive end
  • 25
    4
    A186193
    BOLT Pan, Cross Recess Phillips, M5 x 110mm; BOLT cover retaining
  • 26
    1
    221425R1
    FAN; FAN alternator
  • 27
    1
    J908560
    PULLEY; PULLEY alternator
  • 28
    1
    J908563
    RETAINER; RETAINER alternator pulley
