222 - P.T.O. CLUTCH AND LINKAGE, INDEPENDENT P.T.O.
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    A37696
    SHAFT; - cross, clutch control
  • 2
    1
    G13818
    OIL RESERVOIR; SEAL - oil , 1 x 1-1/2 x 5/16''
  • 3
    2
    126-12
    WOODRUFF KEY #6, 5/32'' x 5/8'';
  • 4
    1
    A39534
    LEVER; - hand, throwout
  • 5
    1
    A39084
    LEVER; - brake
  • 6
    1
    135-350
    PULLEY; PIN - groove (7/32 x 1-1/4'')
  • 7
    1
    135-90
    PULLEY; PIN - groove (5/16 x 2'')
  • 8
    1
    A37684
    AXLE PIN; PIN - over center lock
  • 9
    1
    A38412
    WASHER; - thrust, actuator spring
  • 10
    1
    A37699
    SPRING; - brake actuator
  • 11
    1
    A37698
    ARM; - pivot, brake lever
  • 12
    1
    219-1
    LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - lube, 1/8'' P.T. str.
  • 17
    1
    A37679
    SHAFT; - brake pivot
  • 18
    1
    B18206
    SNAP RING #87, Ext; Ring, Snap, , lever shaft #87, Ext
  • 19
    1
    A37682
    YOKE; - throwout
  • 20
    1
    138-90
    LOCK PIN Sl Spring, 3/16'' x 5/8'', Hvy; Pin, 3/16'' x 5/8'', Slotted
  • 21
    1
    G13611
    BALL BEARING Ball, 1.378 ID x 2.835 OD x 0.925; BEARING ASSY. - rear, output shaft, Includes: Ref. 22 and 23
  • 22
    1
    G46844
    O-RING 2.628'' ID; ''O'' RING - 2-5/8 x 2-13/16 x 7/64''
  • 23
    1
    G13819
    SEAL; - oil, bearing
  • 24
    1
    A21619

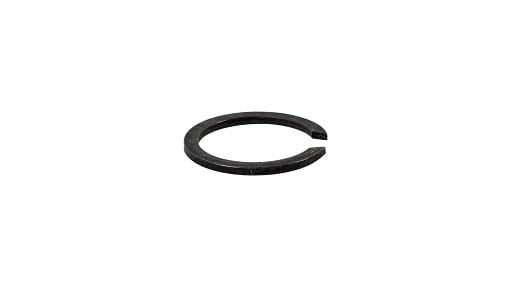

    CIRCLIP; RING - snap, rear bearing, output shaft
  • 25
    2
    A27369
    SNAP RING; RING - snap, rear
  • 28
    1
    A37695
    WASHER; - pressure spring adjusting
  • 29
    1
    A37694
    SPRING; - plate pressure
  • 30
    1
    A38305
    PLATE; PLATE - clutch adjusting
  • 31
    1
    A37675
    COLLAR ASSY.; - clutch throwout, Includes: Ref. 32 and 33
  • 32
    2
    14-540
    BOLT Hex, 5/16'' - 24 x 2-1/2'', Gr 5; - 5/16 x 2-1/2'' N.F. hex.
  • 33
    2
    131-575
    NUT; NUT - 5/16'' N.F. flexlock
  • 34
    1
    A38282
    SLEEVE; - sliding (Includes bonded brake lining)
  • 35
    1
    135-139
    PIN; - groove, 1/4 x 1/2'' shearproof
  • 36
    1
    A38280
    CARRIER; - clutch lever
  • 37
    1
    138-43
    LOCK PIN 3/32'' x 7/8'', Slotted; PIN, 3/32'' x 7/8'', Slotted
  • 38
    1
    A51596
    PIN; - lock, clutch adjusting (Replaces A37691)
  • 39
    1
    A37692
    VALVE SPRING; SPRING - lock pin, clutch adjusting
  • 40
    3
    A37671
    AXLE PIN 6.29mm OD x 42.16mm L; PIN - pivot, clutch link
  • 41
    6
    132-24
    COTTER PIN 3/32'' x 1/2''; PIN, SPLIT (COTTER), 3/32'' x 1/2''
  • 42
    6
    A37689
    ROLLER; - outer, clutch link
  • 43
    3
    A37688
    ROLLER; - inner, clutch link
  • 44
    6
    A38281
    DRAG LINK; LINK - clutch plate
  • 45
    3
    A37670
    SPACER; - clutch link
  • 46
    3
    A37690
    AXLE PIN 6.31mm OD x 18.9mm L; PIN - link roller
  • 47
    1
    A39934
    PLATE; - pressure, clutch (Replaces A38975)
  • 49
    8
    A11127
    PLATE; - clutch, external tooth
  • 50
    8
    A27591

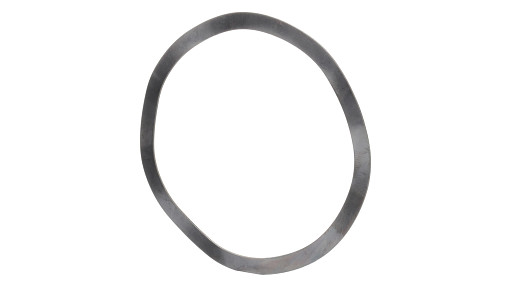

    VALVE SPRING; SPRING - separator, clutch plate
  • 51
    1
    A7101
    PLATE; - backing, clutch
  • 52
    1
    A37666
    SHAFT; - output
  • 53
    1
    F7232
    BEARING; - needle, output shaft
  • 54
    7
    A65425
    PLATE; - clutch, internal tooth (Replaced A57170)
  • 55
    7
    A57170
    BRAKE DISC; PLATE - clutch, internal tooth (Order A65425)
