TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1HYDRAULIC PUMP 18 GPM; 586G Forklift Only, Incl. 1 - 13
-
11NOT SOLD SEPARAT; Cover, Shaft End
-
21SEAL 26.99mm ID x 42.93mm OD x 7.92mm Thk; Shaft
-
31NOT SOLD SEPARAT; Cover, Closed End
-
41NOT SOLD SEPARAT; Housing, Gear, Shaft End
-
51NOT SOLD SEPARAT; Gear, Set
-
61NO LONGER SERVICED;
-
71SNAP RING #206, 2.190'', Int, Spiral;
-
84WASHER;
-
94BOLT Hex, 5/8'' - 11 x 4'', Gr 8;
-
102THRUST PLATE;
-
112SEAL;
-
11A2BACK-UP RING;
-
122SEAL Square, 3.17mm Thk x 101.6mm ID, 70 Duro;
-
134DOWEL;
-
1SEAL KIT; Seal, Incl. 2, 11, 11A, 12
Select All
Select
Ref.
Qty
1Availability
Part #
87677681Description

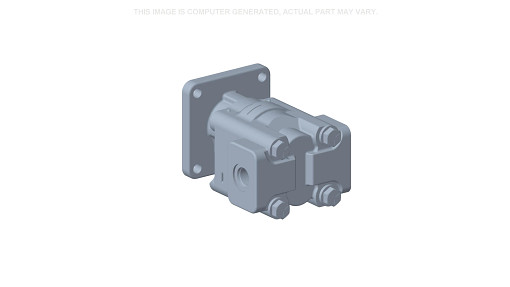

HYDRAULIC PUMP 18 GPM; 586G Forklift Only, Incl. 1 - 13Img
Alts
Select
Ref.
2Qty
1Availability
Part #
L32418Description
SEAL 26.99mm ID x 42.93mm OD x 7.92mm Thk; ShaftImg
Alts
Select
Ref.
3Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Cover, Closed EndImg
Alts
Select
Ref.
4Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; Housing, Gear, Shaft EndImg
Alts
Select
Ref.
7Qty
1Availability
Part #
102-23206Description
SNAP RING #206, 2.190'', Int, Spiral;Img
Alts
Select
Ref.
9Qty
4Availability
Part #
326-1064Description

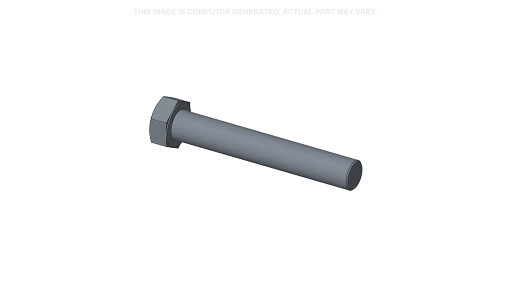

BOLT Hex, 5/8'' - 11 x 4'', Gr 8;Img
Alts
Select
Ref.
12Qty
2Availability
Part #
L32100Description
SEAL Square, 3.17mm Thk x 101.6mm ID, 70 Duro;Img
Alts
Select
Ref.
Qty
1Availability
Part #
341552A1Description
SEAL KIT; Seal, Incl. 2, 11, 11A, 12Img
Alts
