27.120.AF - FINAL DRIVE ASSEMBLY, STANDARD
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

84496956

Description

HOUSING; Final Drive


Alts

Select

Ref.

2

Qty

1

Availability

Part #

76088742

Description

VALVE; Breather


Alts

Select

Ref.

3

Qty

1

Availability

Part #

84150634

Description

SEAL; Wheel End


Alts

Select

Ref.

4

Qty

1

Availability

Part #

47852582

Description

TAPERED BEARING; Cup and Cone


Alts

Select

Ref.

5

Qty

1

Availability

Part #

87743209

Description

TAPERED BEARING 100 X 150 X 32mm; Cup and Cone


Alts

Select

Ref.

6

Qty

1

Availability

Part #

87743210

Description

SHAFT; Output


Alts

Select

Ref.

7

Qty

1

Availability

Part #

87743211

Description

COVER; Shaft


Alts

Select

Ref.

8

Qty

4

Availability

Part #

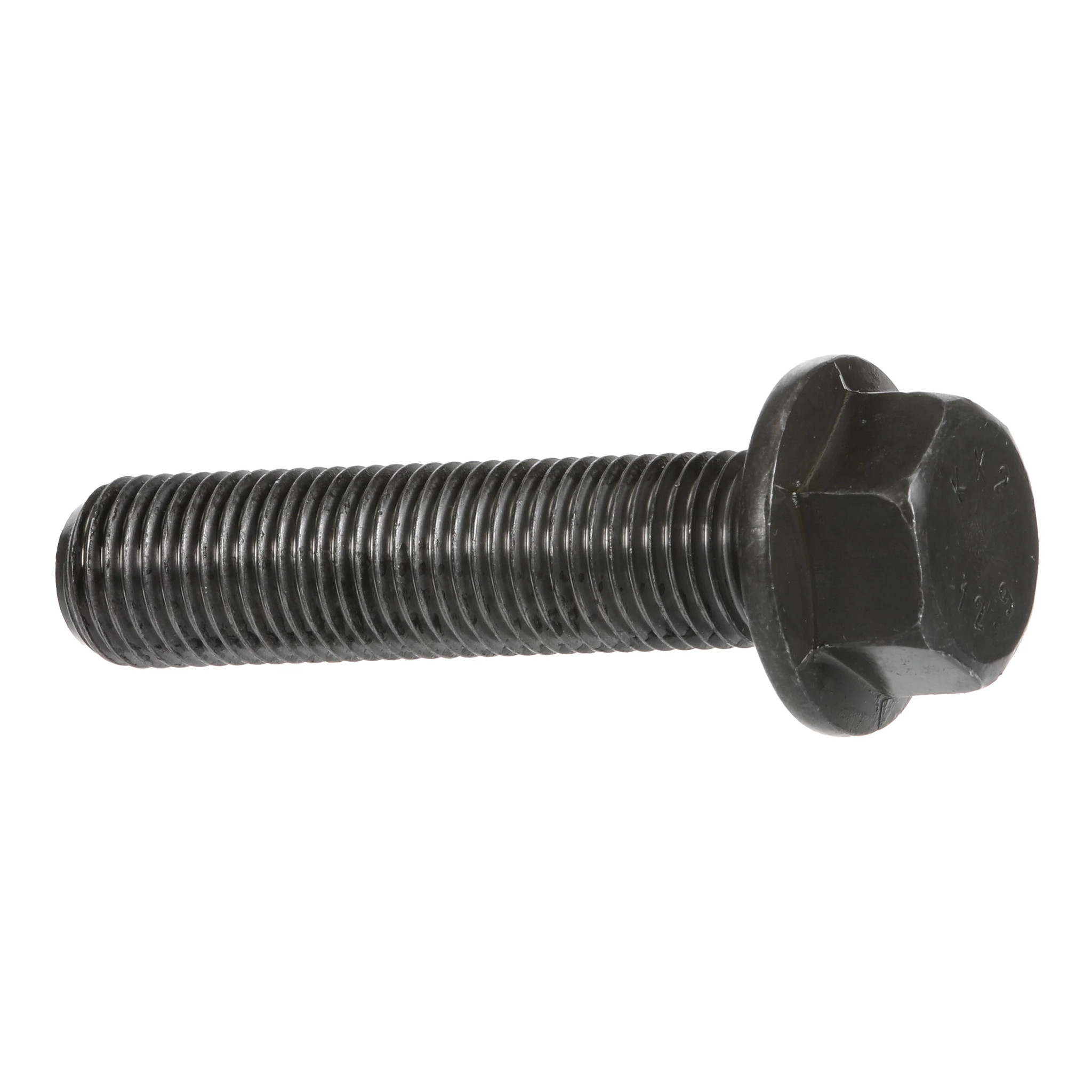

84329412

Description

SCREW; Cover Mounting


Alts

Select

Ref.

9

Qty

1

Availability

Part #

8603567

Description

COVER; Wheel Flange Nut


Alts

Select

Ref.

10

Qty

1

Availability

Part #

8603527

Description

O-RING; Wheel Flange Nut Cover


Alts

Select

Ref.

11

Qty

1

Availability

Part #

84395432

Description

SUN GEAR; Planetary Carrier


Alts

Select

Ref.

12

Qty

3

Availability

Part #

84497842

Description

PLANETARY GEAR; Planetary


Alts

Select

Ref.

13

Qty

1

Availability

Part #

84395439

Description

PLANETARY CARRIER; Assembly


Alts

Select

Ref.

14

Qty

1

Availability

Part #

8603571

Description

PLUG; Planetary Carrier


Alts

Select

Ref.

15

Qty

3

Availability

Part #

87358698

Description

SNAP RING; Bearing Retainer


Alts

Select

Ref.

16

Qty

1

Availability

Part #

84401558

Description

PLUG; Housing, Incl 17


Alts

Select

Ref.

17

Qty

1

Availability

Part #

8603208

Description

O-RING 2mm Thk x 21mm ID;


Alts
