27.100.01[01] - AXLE MOUNTING, FRONT AND REAR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

84353609

Description

BEARING HOUSING TRUNNION; Bearing


Alts

Select

Ref.

2

Qty

12

Availability

Part #

896-11020

Description

WASHER 22mm ID x 37mm OD x 4mm Thk;


Alts

Select

Ref.

3

Qty

12

Availability

Part #

863-20070

Description

HEX SOC SCREW M20 x 70mm, 12.9;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

84305637

Description

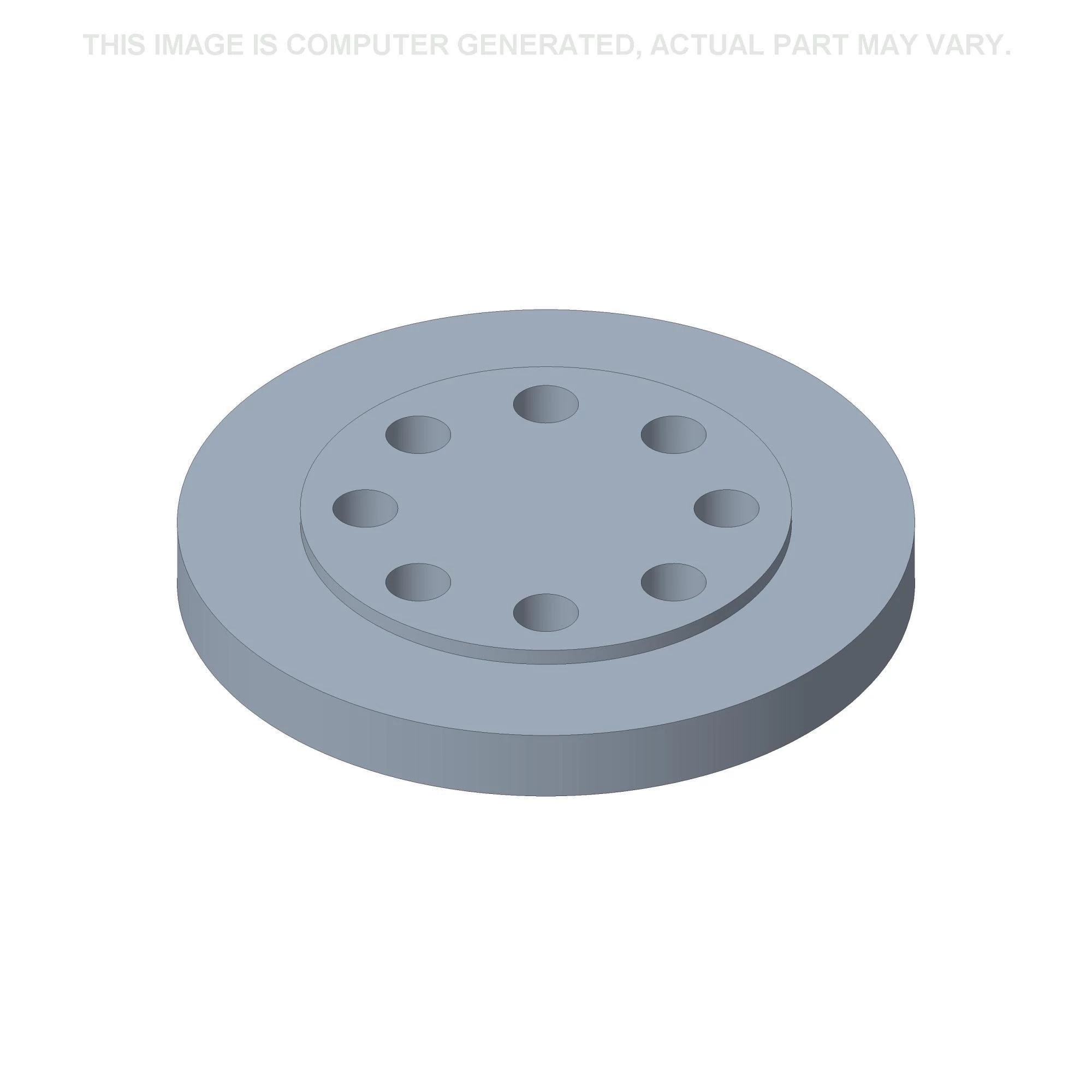

SPACER;


Alts

Select

Ref.

5

Qty

2

Availability

Part #

84305638

Description

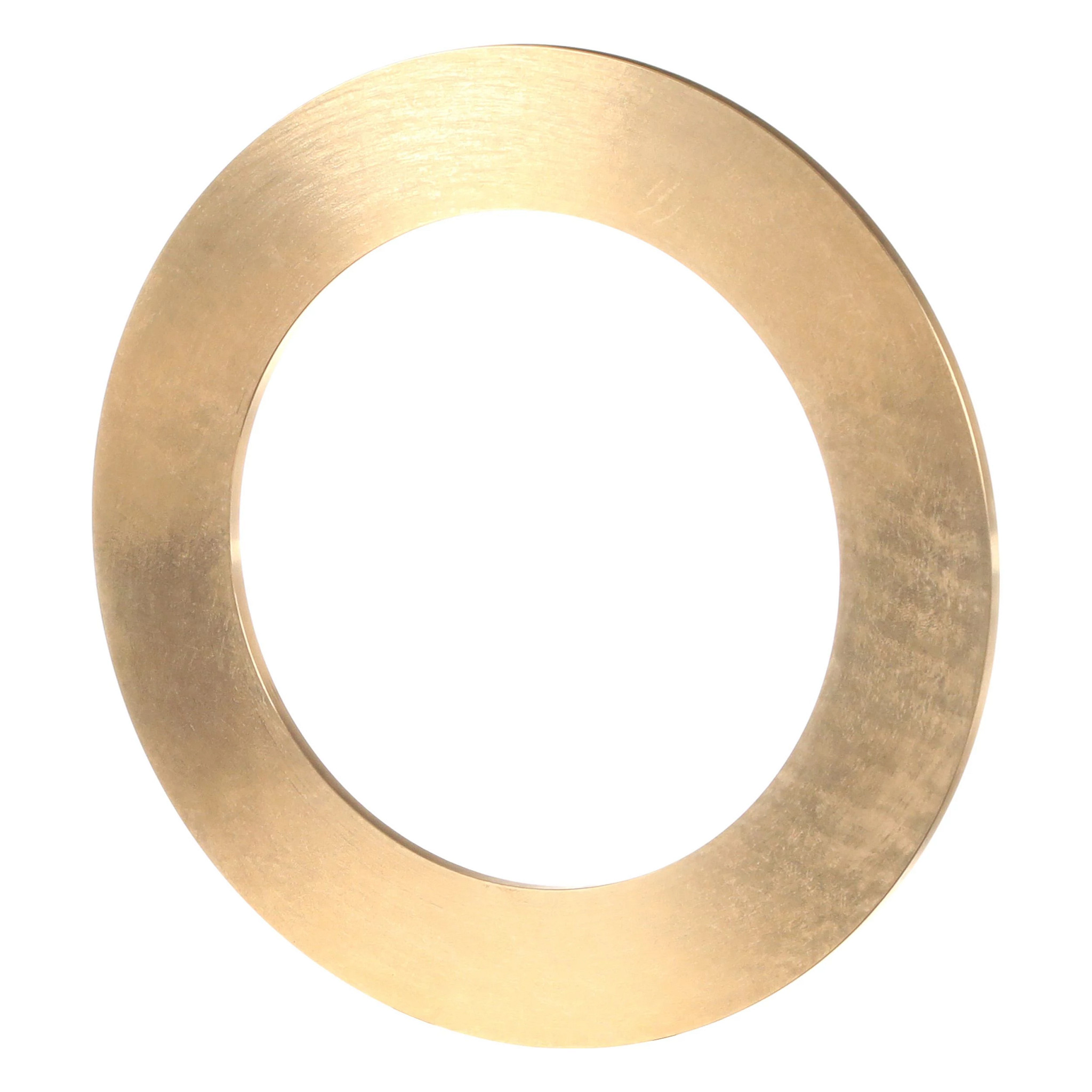

THRUST WASHER;


Alts

Select

Ref.

6

Qty

6

Availability

Part #

896-11016

Description

WASHER 17.5mm ID x 30mm OD x 4mm Thk;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

84305622

Description

TRUNNION; Rear


Alts

Select

Ref.

7a

Qty

2

Availability

Part #

37-11236

Description

DOWEL 3/4'' x 2 1/4''; Dowel, Not Shown, Located on top side of Trunnion


Alts

Select

Ref.

7b

Qty

1

Availability

Part #

84392054

Description

GROOVED BUSHING; Bushing, Axle Pivot, Rear


Alts

Select

Ref.

8

Qty

1

Availability

Part #

84305629

Description

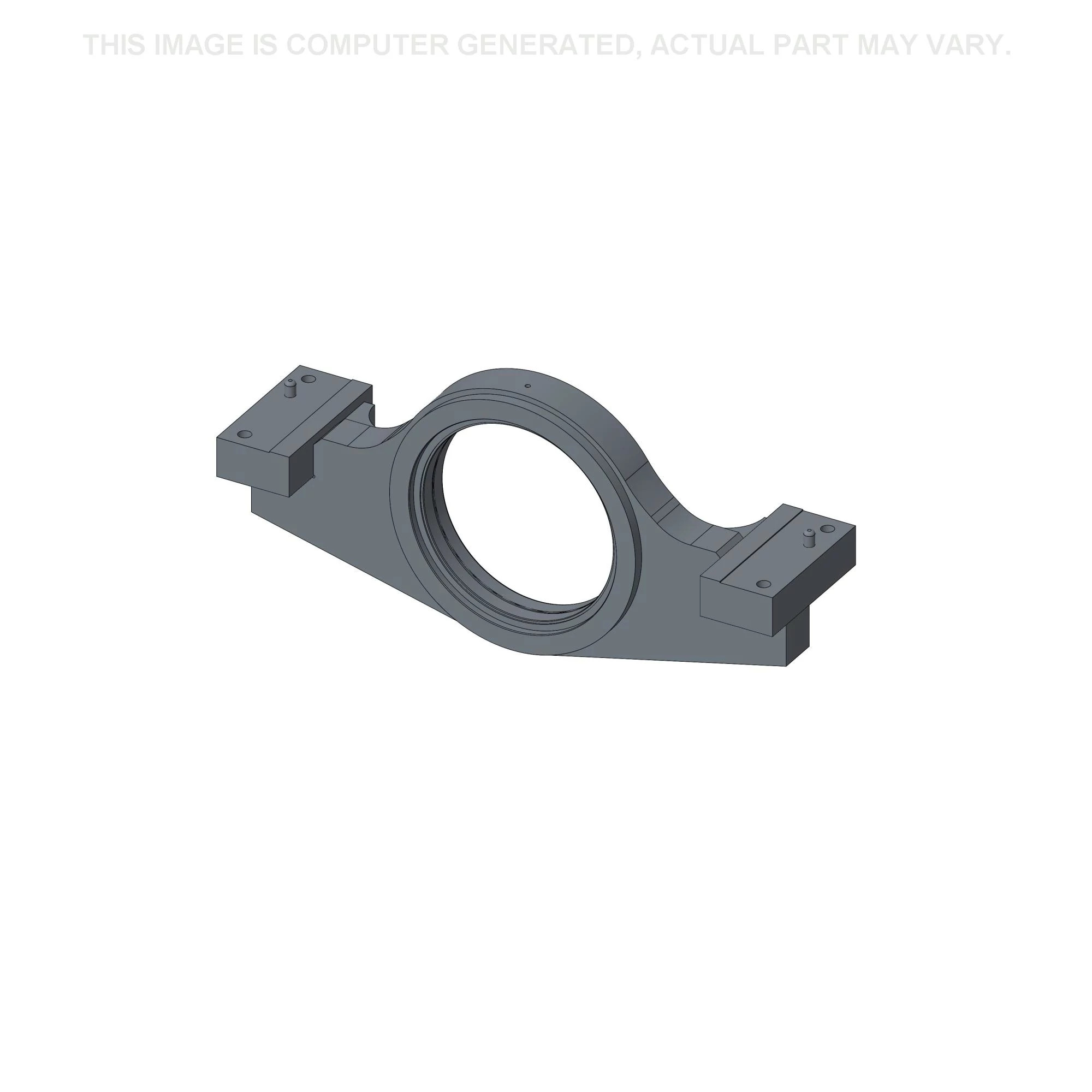

TRUNNION; Front, Incl Ref 7a, 8a


Alts

Select

Ref.

8a

Qty

1

Availability

Part #

84392053

Description

GROOVED BUSHING; Bushing, Axle Pivot, Front


Alts

Select

Ref.

9

Qty

1

Availability

Part #

84305639

Description

REAR COVER; Trunnion


Alts

Select

Ref.

10

Qty

6

Availability

Part #

896-11012

Description

WASHER 13.5mm ID x 24mm OD x 3mm Thk;


Alts

Select

Ref.

11

Qty

6

Availability

Part #

827-12060

Description

BOLT Hex, M12 x 1.75 x 60mm, Cl 10.9;


Alts

Select

Ref.

12

Qty

2

Availability

Part #

218-5450

Description

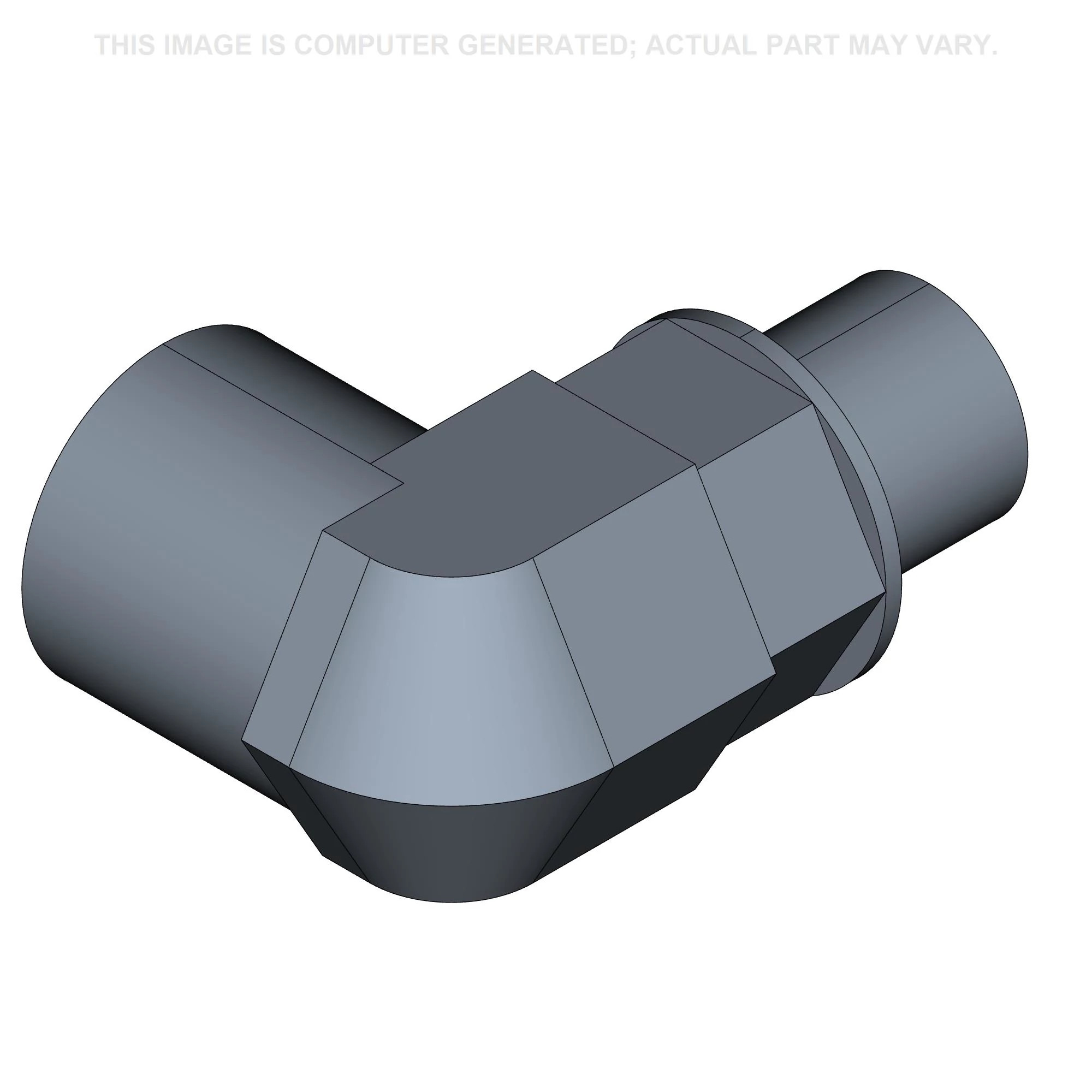

ELBOW 90 Degree, 7/16''-20 ORB x 1/8'' NPT Fem;


Alts

Select

Ref.

13

Qty

108

Availability

Part #

896-11022

Description

WASHER 24mm ID x 44mm OD x 4mm Thk;


Alts

Select

Ref.

14

Qty

8

Availability

Part #

827-22170

Description

BOLT Hex, M22 x 2.5 x 170mm, Cl 10.9;


Alts

Select

Ref.

15

Qty

8

Availability

Part #

829-1422

Description

NUT M22 x 2.5, Cl 10;


Alts

Select

Ref.

16

Qty

92

Availability

Part #

84227695

Description

NUT Hex, M22 x 1.5, Cl 10, ZND;


Alts

Select

Ref.

17

Qty

16

Availability

Part #

87036956

Description

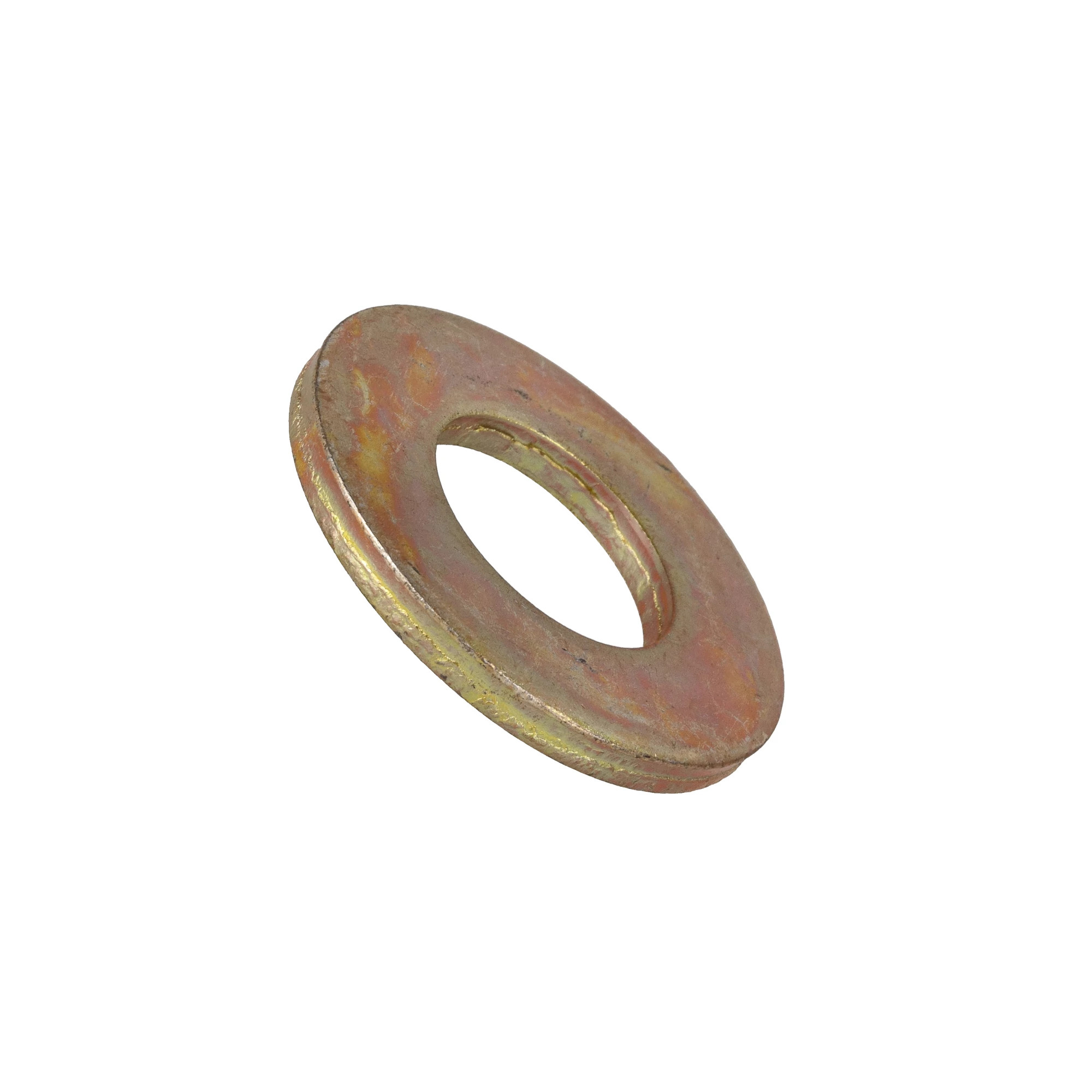

WASHER 32.8mm ID x 66.5mm OD x 6mm Thk, HTS, ZND;


Alts

Select

Ref.

18

Qty

8

Availability

Part #

86508625

Description

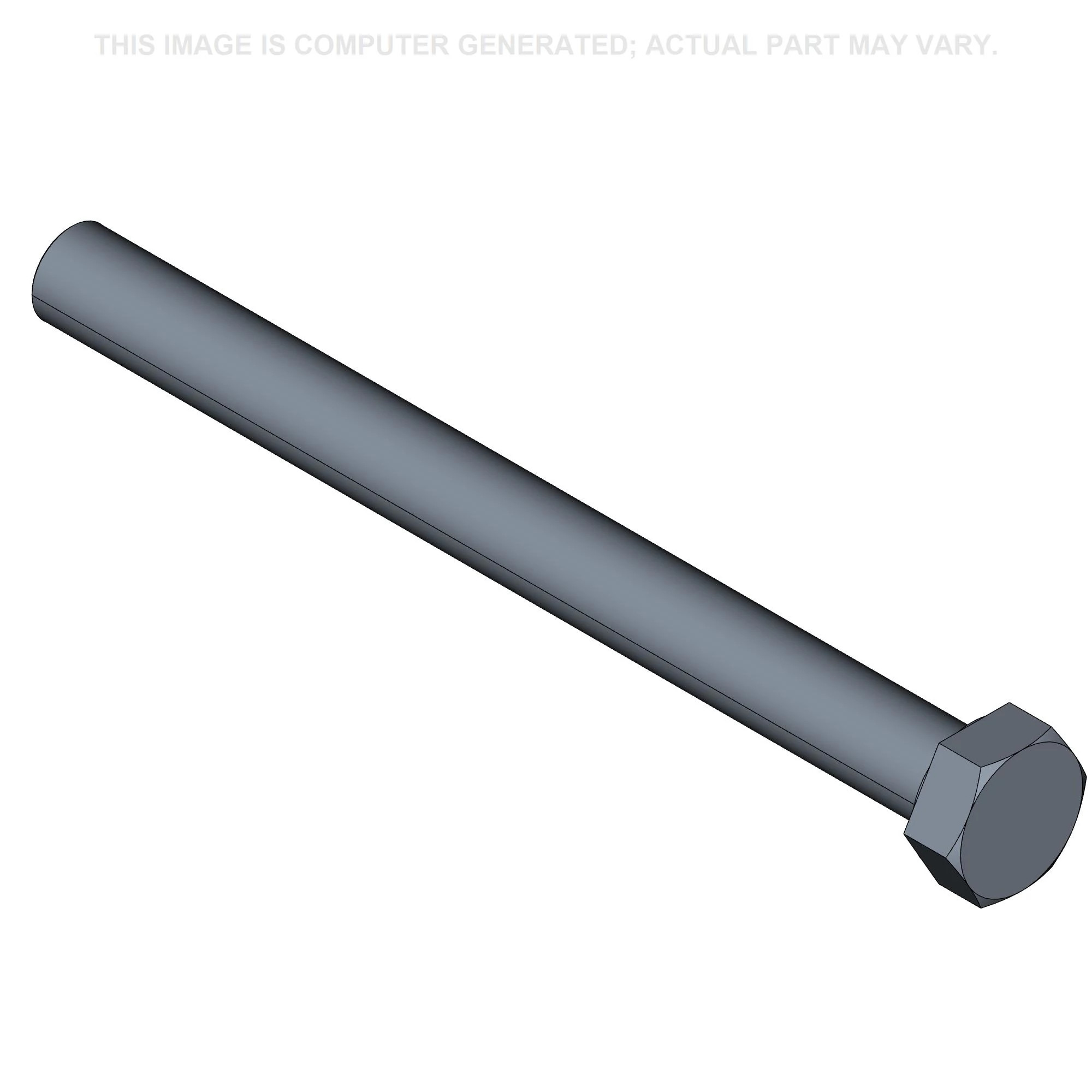

BOLT Hex, M30 x 340mm, Cl 10.9;


Alts

Select

Ref.

19

Qty

8

Availability

Part #

829-1430

Description

NUT M30, Cl 10;


Alts

Select

Ref.

20

Qty

2

Availability

Part #

8603201

Description

BREATHER; Valve


Alts

Select

Ref.

21

Qty

8

Availability

Part #

827-16070

Description

BOLT Hex, M16 x 2 x 70mm, Cl 10.9;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

84477334

Description

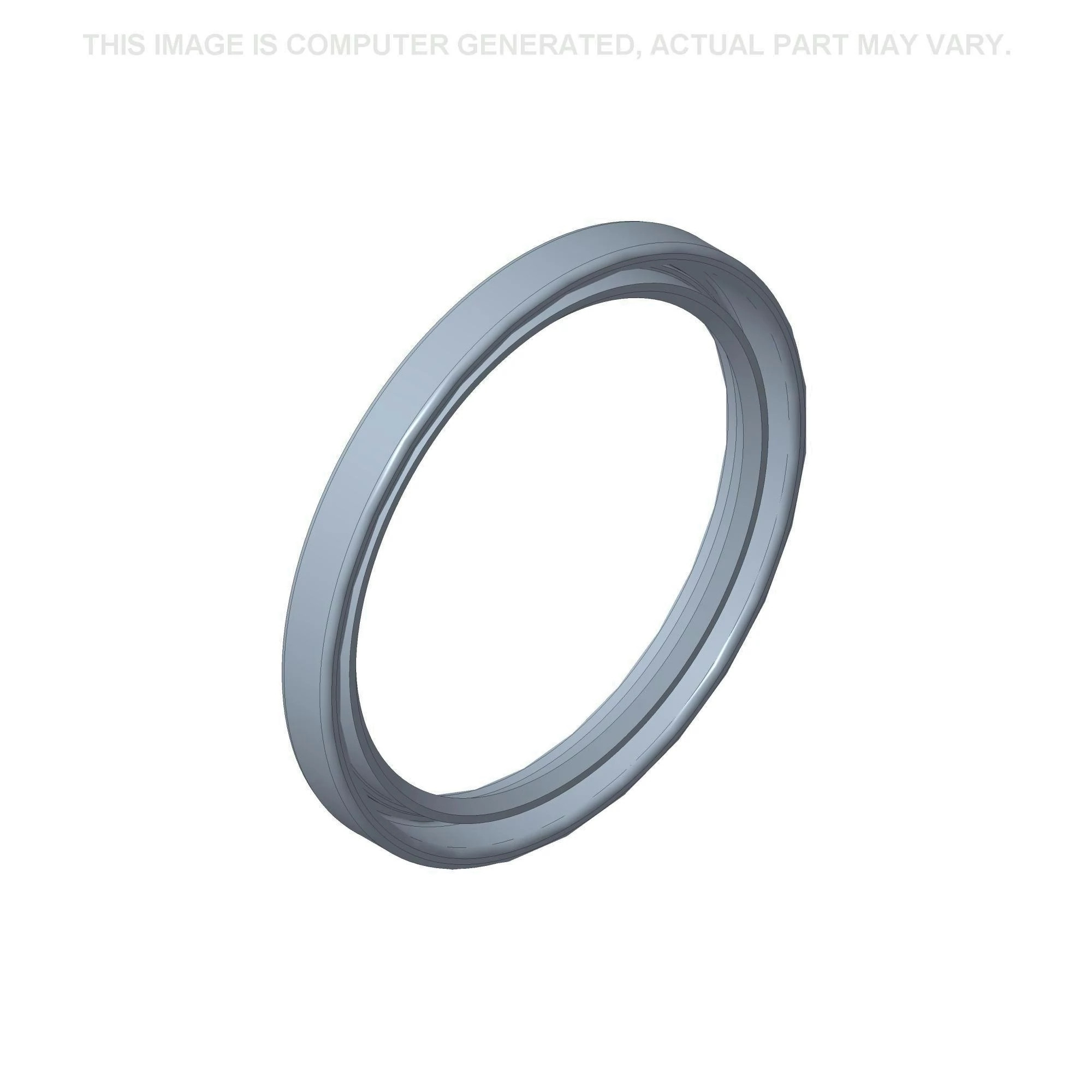

SEAL; Rear


Alts

Select

Ref.

23

Qty

2

Availability

Part #

84477331

Description

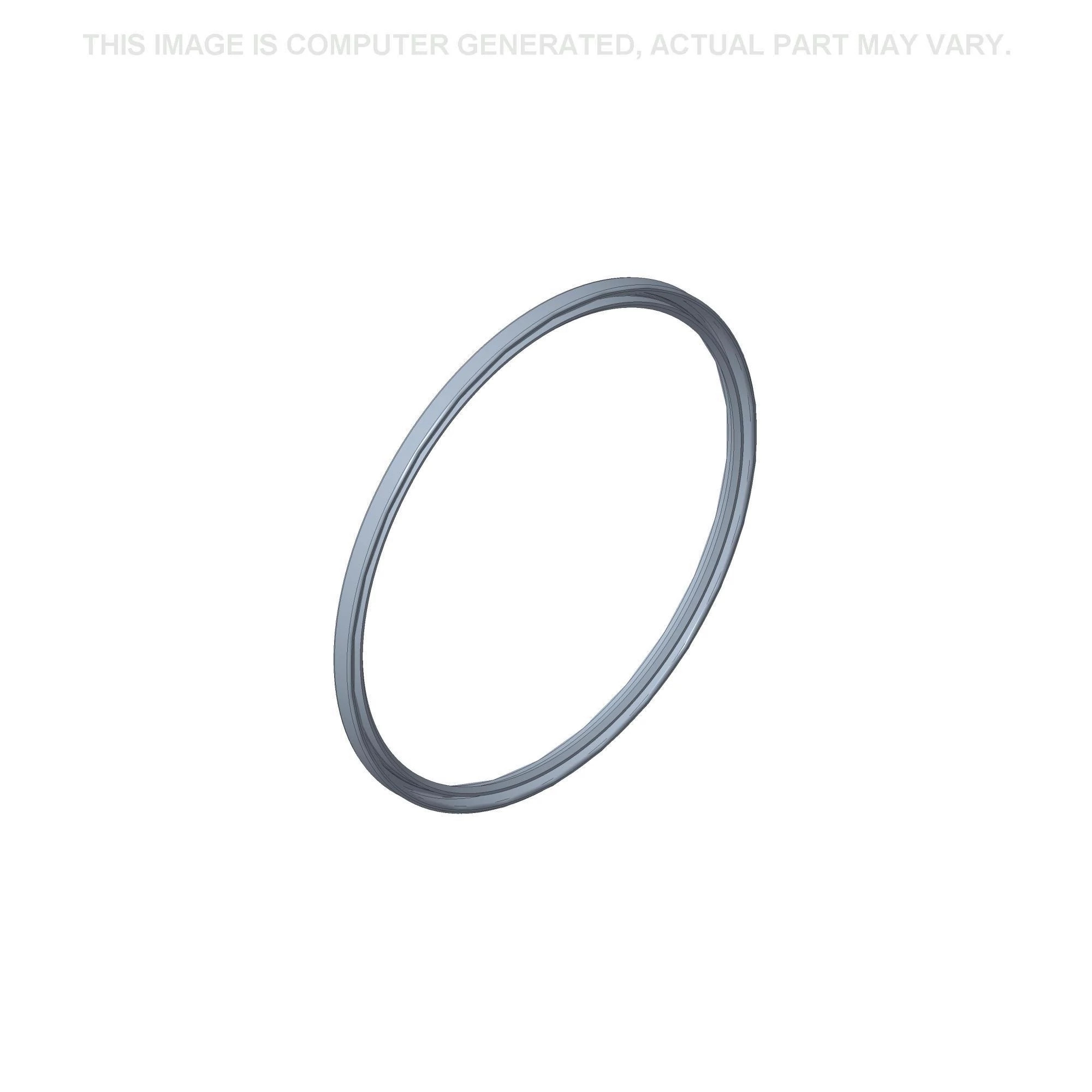

SEAL; Front


Alts

Select

Ref.

Qty

-

Availability

Part #

47570307

Description

SENSOR; Temp Sensor, Not Shown, Located side of Differential Top


Alts
