05.100.041 - MAINTENANCE PARTS - FILTERS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    AIR FILTER; Air Cleaner, Primary;to be Replaced Every 1000 Hours
  • 2
    1
    AIR FILTER SECONDARY; Air Cleaner, Secondary;to be Replaced Every 1000 Hours
  • 3
    1
    HYDRAULIC OIL FILTER; Pilot Line;to be Replaced Every 2000 Hours or After the Break-in Period
  • 4
    1
    HYDRAULIC OIL FILTER RETURN; Hydraulic Oil Reservoir, Return;to be Replaced Every 2000 Hours or After the Break-in Period
  • 5
    1
    FILTER STRAINER; Hydraulic Oil Reservoir, Inlet
  • 6
    1
    BREATHER; Hydraulic Oil Reservoir;to be Replaced Every 1000 Hours
  • 7
    1
    ENGINE OIL FILTER; Element
  • 7
    1
    ENGINE OIL FILTER; Element
  • 7
    1
    FILTER; Engine Oil, Element
  • 8
    1
    FUEL FILTER; Fuel Line, Element;to be Replaced Every 500 Hours
  • 9
    1
    FUEL FILTER; Engine, Element;to be Replaced Every 500 Hours
  • 10
    1
    FUEL FILTER; Fuel Pump;to be Replaced Every 500 Hours
  • 11
    1
    FILTER STRAINER; Fuel Tank
  • 12
    1
    FILTER STRAINER; Def/Adblue%TM% Tank
  • 12
    1
    FILTER STRAINER; Def/Adblue%TM% Tank
  • 12
    1
    FILTER STRAINER; Def/Adblue%TM% Tank
  • 13
    1
    FILTER, DEF; Supply Module;to be Replaced Every 3000 Hours
  • 14
    1
    CAB FILTER; Air Conditioner Unit;to be Replaced Every 2000 Hours
  • 15
    1
    CAB FILTER; Air Conditioner, Air Suction;to be Replaced Every 2000 Hours
Select All

Select

Ref.

1

Qty

1

Availability

Part #

KBH0921

Description

AIR FILTER; Air Cleaner, Primary;to be Replaced Every 1000 Hours


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87683001

Description

AIR FILTER SECONDARY; Air Cleaner, Secondary;to be Replaced Every 1000 Hours


Alts

Select

Ref.

3

Qty

1

Availability

Part #

47635916

Description

HYDRAULIC OIL FILTER; Pilot Line;to be Replaced Every 2000 Hours or After the Break-in Period


Alts

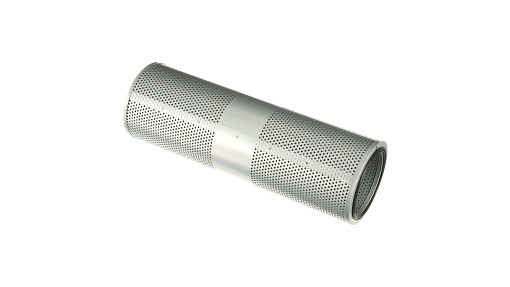

Select

Ref.

4

Qty

1

Availability

Part #

47757762

Description

HYDRAULIC OIL FILTER RETURN; Hydraulic Oil Reservoir, Return;to be Replaced Every 2000 Hours or After the Break-in Period


Alts

Select

Ref.

5

Qty

1

Availability

Part #

47788011

Description

FILTER STRAINER; Hydraulic Oil Reservoir, Inlet


Alts

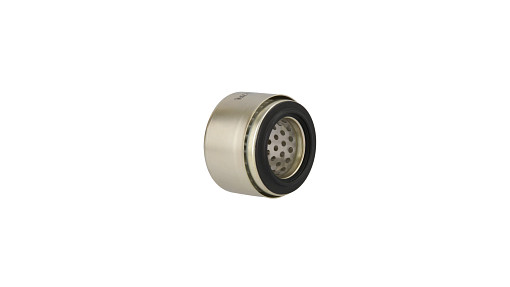

Select

Ref.

6

Qty

1

Availability

Part #

KHJ22152

Description

BREATHER; Hydraulic Oil Reservoir;to be Replaced Every 1000 Hours


Alts

Select

Ref.

7

Qty

1

Availability

Part #

51441635

Description

ENGINE OIL FILTER; Element


Alts

Select

Ref.

7

Qty

1

Availability

Part #

51441635

Description

ENGINE OIL FILTER; Element


Alts

Select

Ref.

7

Qty

1

Availability

Part #

MMH80890

Description

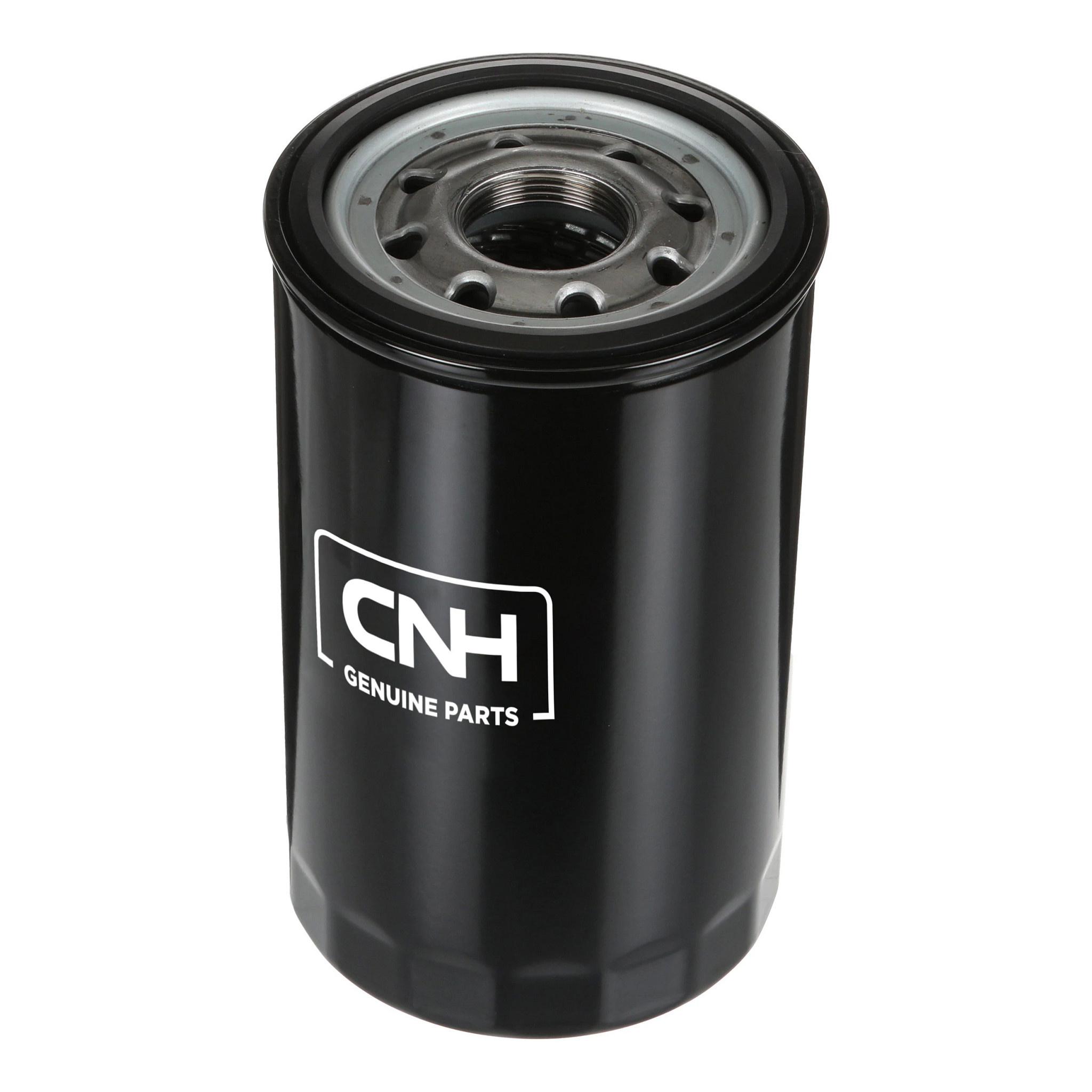

FILTER; Engine Oil, Element


Alts

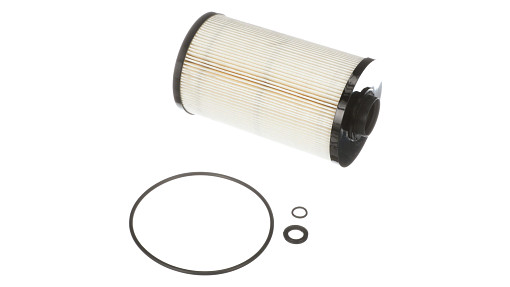

Select

Ref.

8

Qty

1

Availability

Part #

47585451

Description

FUEL FILTER; Fuel Line, Element;to be Replaced Every 500 Hours


Alts

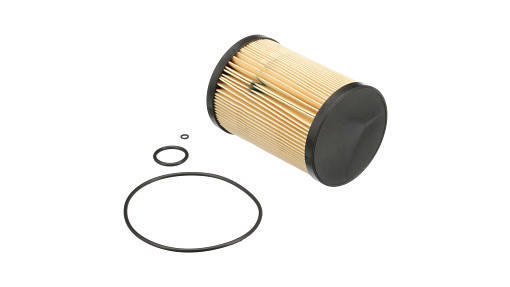

Select

Ref.

9

Qty

1

Availability

Part #

47518440

Description

FUEL FILTER; Engine, Element;to be Replaced Every 500 Hours


Alts

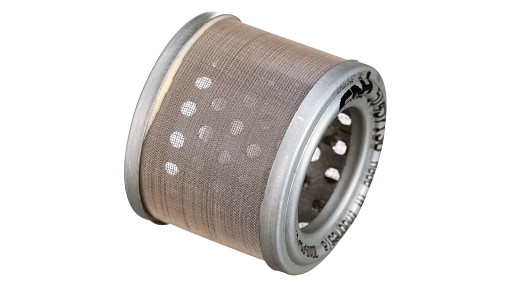

Select

Ref.

10

Qty

1

Availability

Part #

51457138

Description

FUEL FILTER; Fuel Pump;to be Replaced Every 500 Hours


Alts

Select

Ref.

11

Qty

1

Availability

Part #

KHH10060

Description

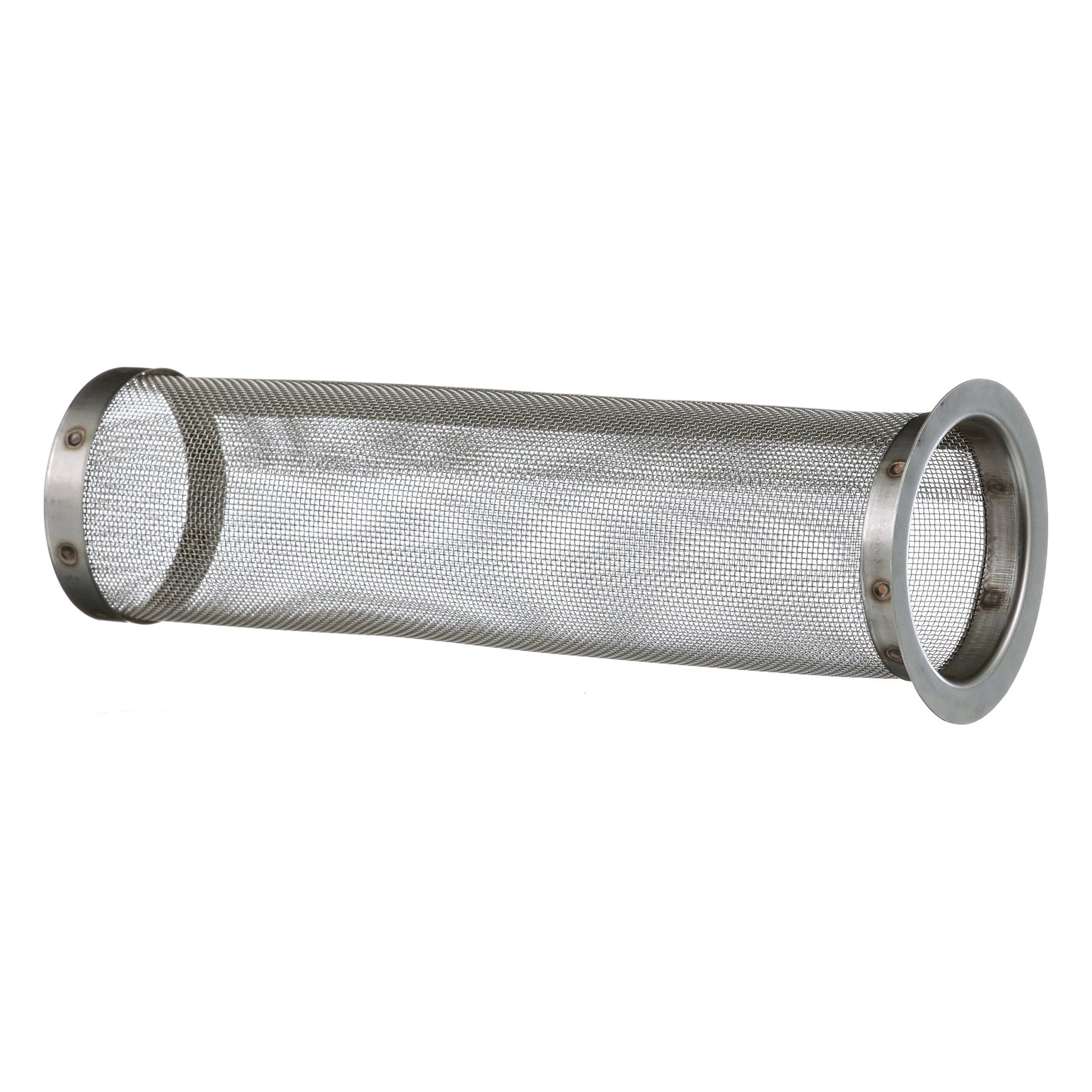

FILTER STRAINER; Fuel Tank


Alts

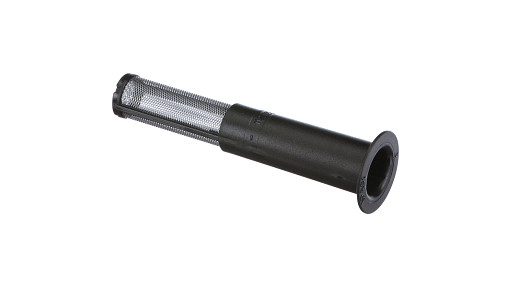

Select

Ref.

12

Qty

1

Availability

Part #

47757844

Description

FILTER STRAINER; Def/Adblue%TM% Tank


Alts

Select

Ref.

12

Qty

1

Availability

Part #

KHH22190

Description

FILTER STRAINER; Def/Adblue%TM% Tank


Alts

Select

Ref.

12

Qty

1

Availability

Part #

KHH22190

Description

FILTER STRAINER; Def/Adblue%TM% Tank


Alts

Select

Ref.

13

Qty

1

Availability

Part #

48089821

Description

FILTER, DEF; Supply Module;to be Replaced Every 3000 Hours


Alts

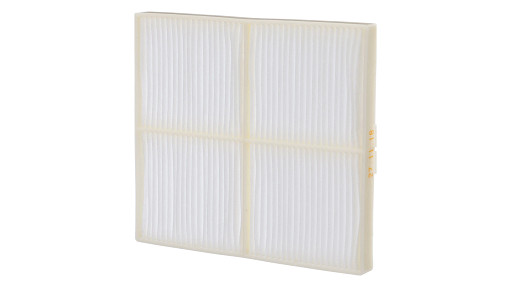

Select

Ref.

14

Qty

1

Availability

Part #

47986270

Description

CAB FILTER; Air Conditioner Unit;to be Replaced Every 2000 Hours


Alts

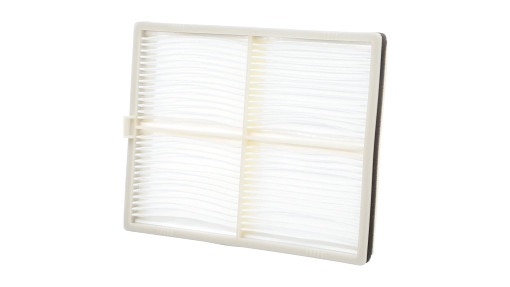

Select

Ref.

15

Qty

1

Availability

Part #

47986263

Description

CAB FILTER; Air Conditioner, Air Suction;to be Replaced Every 2000 Hours


Alts
