84.100.010 - VAR - 488046 - BUCKET, LINKAGE, W/ HOOK
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

KRV20780

Description

POWER ARM; ASSY, Incl 2 - 5


Alts

Select

Ref.

2

Qty

2

Availability

Part #

KRV20280

Description

BAGUE;


Alts

Select

Ref.

3

Qty

2

Availability

Part #

159647A1

Description

SEAL 80mm ID x 95mm OD x 5mm Thk;


Alts

Select

Ref.

4

Qty

2

Availability

Part #

KRV2395

Description

SELF LUB RING;


Alts

Select

Ref.

5

Qty

4

Availability

Part #

160401A1

Description

CONTA 85mm ID x 100mm OD x 5mm Thk;


Alts

Select

Ref.

6

Qty

4

Availability

Part #

153630A1

Description

GRAISSEUR;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

KRV13010

Description

LINKAGE YOKE;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

KRV13020

Description

LINK ARM ASSY KIT;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

169282A1

Description

PİM 80mm OD x 560mm L;


Alts

Select

Ref.

10

Qty

4

Availability

Part #

162995A1

Description

O HALKASI;


Alts

Select

Ref.

11

Qty

2

Availability

Part #

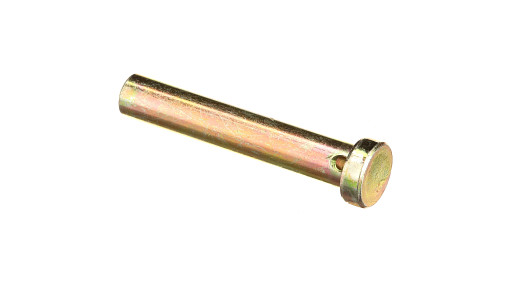

153748A1

Description

PIN 20mm OD x 125mm L;


Alts

Select

Ref.

12

Qty

2

Availability

Part #

153749A1

Description

SNAP RING 107mm ID, 4.5mm Thk;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

169283A1

Description

PIN 80mm OD x 510mm L; dia 85 lenght 413 mm


Alts

Select

Ref.

14

Qty

1

Availability

Part #

KRV2719

Description

PIN;


Alts

Select

Ref.

15

Qty

4

Availability

Part #

160402A1

Description

O-RING;


Alts

Select

Ref.

16

Qty

2

Availability

Part #

160405A1

Description

SHIM;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

514-1222

Description

BOLT Hex, M20 x 1.5 x 170mm, Cl 10.9;


Alts

Select

Ref.

18

Qty

4

Availability

Part #

829-11420

Description

NUT M20 x 1.5, Cl 10;


Alts

Select

Ref.

19

Qty

1

Availability

Part #

KRV2368

Description

PIN 75mm OD x 241mm L;


Alts

Select

Ref.

20

Qty

2

Availability

Part #

153688A1

Description

O HALKASI 112mm ID x 8mm Width;


Alts

Select

Ref.

21

Qty

2

Availability

Part #

160404A1

Description

AYAR SAÇI;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

514-1221

Description

BOLT Hex, M20 x 1.5 x 160mm, Cl 10.9;


Alts
