Ref.
Qty
Part #
Alts
Description
-
11BRACKET; rear engine mounting - (Left hand)
-
4BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;
-
4LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
-
22BOLT Hex, 3/4'' - 10 x 4-1/4'', Gr 5; CPSW - 3/4'' NC x 4-1/4'' gr 5
-
2MOUNT; MOUNT, rubber
-
2WASHER 13/16'' x 3'' x .238'', HDN; snubbing
-
2NUT 3/4''-10; NUT, self locking - 3/4'' NC
-
2BOLT Hex, 5/8'' - 11 x 2-1/2'', Gr 5;
-
2WASHER; flat - 5/8''
-
2LOCK NUT 5/8''-11, GC; NUT, LOCK, 5/8''-11, GC
-
41BOLT Hex, 3/4'' - 10 x 2-1/2'', Gr 5;
-
1LOCK NUT 3/4''-10, GB; LOCKNUT, 3/4''-10, GB
-
51V-BELT 36.70'' L; BELT , Alternator 36.70'' L
-
61BRACKET; rear engine mounting - (Right hand)
-
4BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;
-
4LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
-
71DAMPER; DAMPENER, pump drive
-
8BOLT Lock Place, Hex, 3/8'' - 16 x 5/8'', Gr 8; CPSW - 3/8'' NC x 5/8'' gr 5
-
81COUPLING;
-
91MOUNT; MOUNTING, hydraulic pump
-
12BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
12LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
111MUFFLER; - (Used on units with serial number 450 thru 759)
-
1MUFFLER; - (Used on units with serial number 760 and after)
-
121TUBE 4'' OD x 18'' L; PIPE, exhaust - (Used on units with serial number 450 thru 759)
-
1PIPE CLAMP; PIPE, exhaust - (Used on units with serial number 760 and after)
-
131CAP; exhaust pipe - (Used on units with serial number 450 thru 759)
-
1CAP; exhaust pipe - (Used on units with serial number 760 and after)
-
151BUSHING; SPACER, pump drive
-
161FAN; SPACER, fan
-
6BOLT Hex, 5/16'' - 18 x 1-1/2'', Gr 5;
-
181ELEMENT; fuel filter - (Not illustrated)
-
1ELEMENT; fuel strainer - (Not illustrated)
-
1ELEMENT; oil filter - (Not illustrated)
Select All
Ref.
1Qty
1Availability
Part #
S506055Description
BRACKET; rear engine mounting - (Left hand)Img
Alts
Ref.
Qty
4Availability
Part #
113-410Description
BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;Img
Alts
Ref.
2Qty
2Availability
Part #
13-1268Description
BOLT Hex, 3/4'' - 10 x 4-1/4'', Gr 5; CPSW - 3/4'' NC x 4-1/4'' gr 5Img
Alts
Ref.
Qty
2Availability
Part #
195-2270Description
WASHER 13/16'' x 3'' x .238'', HDN; snubbingImg
Alts
Ref.
Qty
2Availability
Part #
131-450Description
NUT 3/4''-10; NUT, self locking - 3/4'' NCImg
Alts
Ref.
Qty
2Availability
Part #
131-14Description
LOCK NUT 5/8''-11, GC; NUT, LOCK, 5/8''-11, GCImg
Alts
Ref.
Qty
1Availability
Part #
131-16Description
LOCK NUT 3/4''-10, GB; LOCKNUT, 3/4''-10, GBImg
Alts
Ref.
5Qty
1Availability
Part #
S82985Description
V-BELT 36.70'' L; BELT , Alternator 36.70'' LImg
Alts
Ref.
6Qty
1Availability
Part #
S506059Description
BRACKET; rear engine mounting - (Right hand)Img
Alts
Ref.
Qty
4Availability
Part #
113-410Description
BOLT Hex, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;Img
Alts
Ref.
Qty
8Availability
Part #
121-204Description
BOLT Lock Place, Hex, 3/8'' - 16 x 5/8'', Gr 8; CPSW - 3/8'' NC x 5/8'' gr 5Img
Alts
Ref.
11Qty
1Availability
Part #
S505881Description
MUFFLER; - (Used on units with serial number 450 thru 759)Img
Alts
Ref.
Qty
1Availability
Part #
S508420Description
MUFFLER; - (Used on units with serial number 760 and after)Img
Alts
Ref.
12Qty
1Availability
Part #
S93396Description
TUBE 4'' OD x 18'' L; PIPE, exhaust - (Used on units with serial number 450 thru 759)Img
Alts
Ref.
Qty
1Availability
Part #
S98927Description
PIPE CLAMP; PIPE, exhaust - (Used on units with serial number 760 and after)Img
Alts
Ref.
13Qty
1Availability
Part #
S93398Description
CAP; exhaust pipe - (Used on units with serial number 450 thru 759)Img
Alts
Ref.
Qty
1Availability
Part #
A19795Description

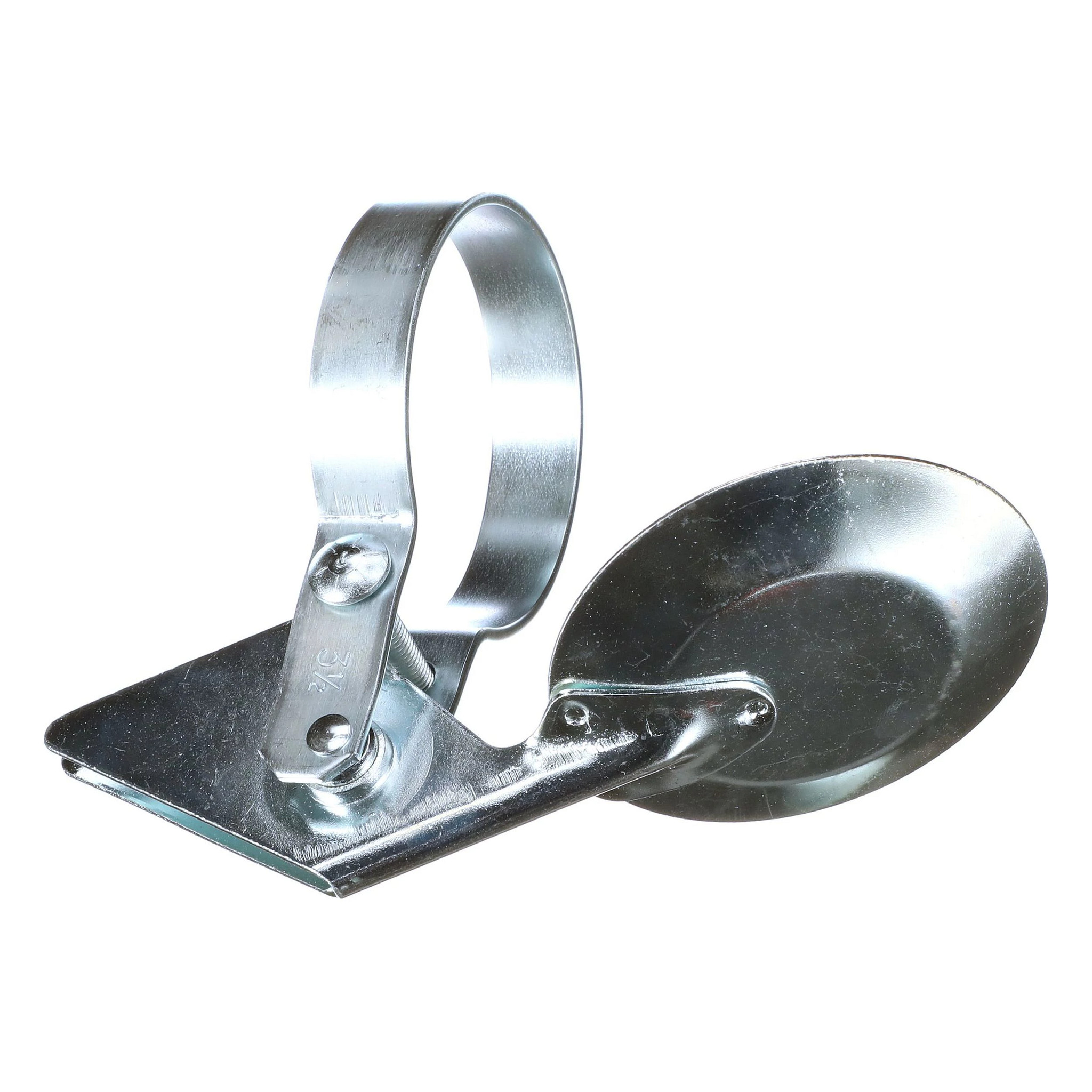

CAP; exhaust pipe - (Used on units with serial number 760 and after)Img
Alts
Ref.
18Qty
1Availability
Part #
A19578Description
ELEMENT; fuel filter - (Not illustrated)Img
Alts
Ref.
Qty
1Availability
Part #
A19579Description
ELEMENT; fuel strainer - (Not illustrated)Img
Alts
