TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11HOUSING; Drop, Final Drive
-
23DOWEL M8 x 30;
-
33DISC; Friction Plate, Clutch
-
44BRAKE PLATE; Separator
-
51O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 5, 75 Duro;
-
62SEALING RING 3.48mm Thk x 156.59mm ID, 70 Duro;
-
71EXPANSION PLUG 8mm; Upper Section
-
81SEALING RING 3.4mm ID x 122.3mm OD;
-
91BRAKE PLATE; Piston
-
102BELLEVILLE SPRING 70.15mm ID x 155mm OD x 3.5mm Thk;
-
111PROTECTIVE COVER; Upper, Sandwich
-
121BRAKE PLATE; Piston
-
132DOWEL 8mm OD x 20mm L;
-
141BEARING HOUSING 96 mm ID;
-
154LOCK BOLT Hex, M12 x 60mm, Cl 10.9;
-
162DOWEL M16 x 40;
-
171HYD CONNECTOR 11/16'' - 16 Male ORFS x 9/16'' - 18 Male ORB;
-
181O-RING 0.103'' Thk x 5.987'' ID, -163, Cl 7, 75 Duro;
-
191RING, LOCKING; Gear Input
-
201GEAR 19T Gear, 16T Spline;
-
211CLUTCH INPUT SHAFT; Break
-
222END PLATE; Wheel
-
232BEARING CUP 103.21mm OD x 11.99mm W;
-
242BEARING CUP 73mm OD x 19mm H;
-
251GEAR 59T, 20T; Countershaft
-
262BEARING ASSY 34.92 mm ID x 24.608 mm;
-
2711BOLT Hex, M16 x 85mm, Cl 10.9;
-
282HEX SOCKET PLUG 1-1/16'' - 12 ORB;
-
292BOLT Hex, M16 x 40mm, Cl 10.9;
-
301REMAN-FINAL DRIVE; Final Drive Complete, LT
-
301CORE-FINAL DRIVE; Final Drive Complete, LT
-
301FINAL DRIVE; Final Drive Complete, LT
-
301CORE-AXLE AXLE; Final Drive Complete, LT
-
301CORE- FINAL DRIVE; Final Drive Complete, LT
-
301FINAL DRIVE; Final Drive Complete, WT
Select All
Select
Ref.
5Qty
1Availability
Part #
238-5014Description
O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 5, 75 Duro;Img
Alts
Select
Ref.
6Qty
2Availability
Part #
385237A2Description

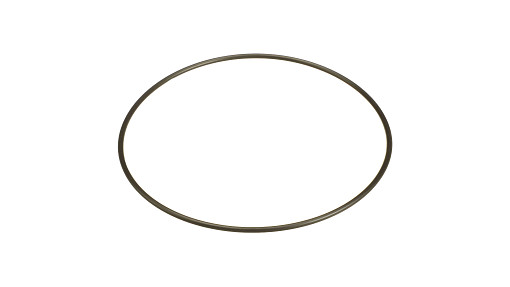

SEALING RING 3.48mm Thk x 156.59mm ID, 70 Duro;Img
Alts
Select
Ref.
7Qty
1Availability
Part #
87520608Description

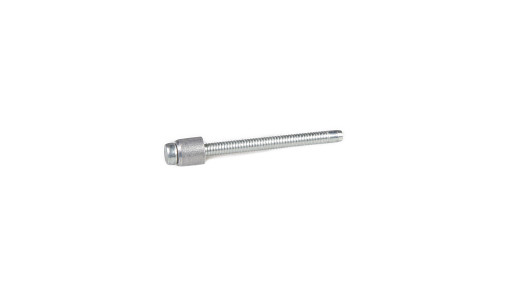

EXPANSION PLUG 8mm; Upper SectionImg
Alts
Select
Ref.
8Qty
1Availability
Part #
385236A2Description

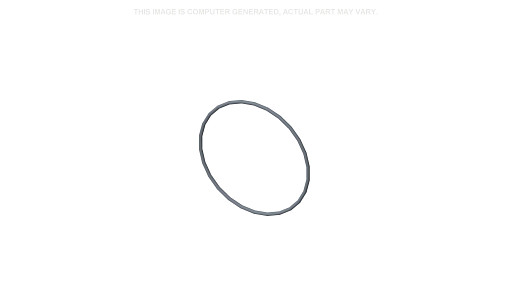

SEALING RING 3.4mm ID x 122.3mm OD;Img
Alts
Select
Ref.
10Qty
2Availability
Part #
1997880C1Description
BELLEVILLE SPRING 70.15mm ID x 155mm OD x 3.5mm Thk;Img
Alts
Select
Ref.
11Qty
1Availability
Part #
385277A1Description

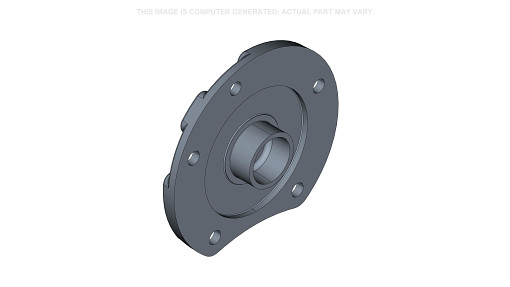

PROTECTIVE COVER; Upper, SandwichImg
Alts
Select
Ref.
15Qty
4Availability
Part #
608-12060Description
LOCK BOLT Hex, M12 x 60mm, Cl 10.9;Img
Alts
Select
Ref.
17Qty
1Availability
Part #
201-101Description
HYD CONNECTOR 11/16'' - 16 Male ORFS x 9/16'' - 18 Male ORB;Img
Alts
Select
Ref.
18Qty
1Availability
Part #
238-7163Description
O-RING 0.103'' Thk x 5.987'' ID, -163, Cl 7, 75 Duro;Img
Alts
Select
Ref.
23Qty
2Availability
Part #
385265A1Description
BEARING CUP 103.21mm OD x 11.99mm W;Img
Alts
Select
Ref.
24Qty
2Availability
Part #
385267A1Description
BEARING CUP 73mm OD x 19mm H;Img
Alts
Select
Ref.
26Qty
2Availability
Part #
385266A1Description
BEARING ASSY 34.92 mm ID x 24.608 mm;Img
Alts
Select
Ref.
27Qty
11Availability
Part #
608-16085Description
BOLT Hex, M16 x 85mm, Cl 10.9;Img
Alts
Select
Ref.
28Qty
2Availability
Part #
218-5212Description
HEX SOCKET PLUG 1-1/16'' - 12 ORB;Img
Alts
Select
Ref.
29Qty
2Availability
Part #
608-16040Description
BOLT Hex, M16 x 40mm, Cl 10.9;Img
Alts
Select
Ref.
30Qty
1Availability
Part #
47971267RDescription
REMAN-FINAL DRIVE; Final Drive Complete, LTImg
Alts
Select
Ref.
30Qty
1Availability
Part #
385250A4CDescription
CORE-FINAL DRIVE; Final Drive Complete, LTImg
Alts
Select
Ref.
30Qty
1Availability
Part #
47971267Description
FINAL DRIVE; Final Drive Complete, LTImg
Alts
Select
Ref.
30Qty
1Availability
Part #
87724629CDescription
CORE-AXLE AXLE; Final Drive Complete, LTImg
Alts
Select
Ref.
30Qty
1Availability
Part #
47971267CDescription
CORE- FINAL DRIVE; Final Drive Complete, LTImg
Alts
Select
Ref.
30Qty
1Availability
Part #
47971270Description

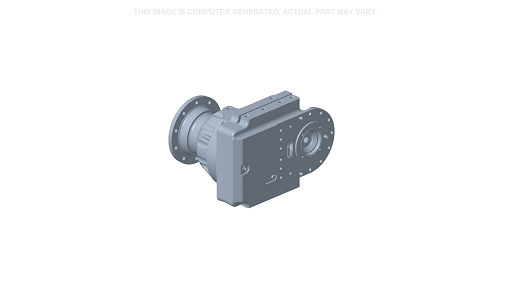

FINAL DRIVE; Final Drive Complete, WTImg
Alts
