Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1TRANSMISSION; ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 20
-
1VALVE; ASSY., high/low range, Replaces: 130936A2, Includes: Ref. 1 - 20
-
11NOT SOLD SEPARAT; HOUSING valve
-
24HEX SOCKET PLUG Hex, 7/16''-20 ORB; Incl Ref 3
-
31O-RING 0.072'' Thk x 0.351'' ID, -904, Cl 6, 90 Duro;
-
41PLUG Hex Soc, 3/4''-16 ORB; Incl Ref 5
-
51O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; Part of seal kit 238108A1
-
62HEX SOCKET PLUG 1 5/16''-12 ORB; Incl. Ref 7
-
71O-RING 0.116'' Thk x 1.171'' ID, -916, Cl 6, 90 Duro; Part of seal kit 238108A1
-
1SPOOL; ASSY., clutch cutout, Includes: Ref. 9 - 17
-
91NOT SOLD SEPARAT; SPOOL sleeve
-
101DOWEL 1/8'' x 7/8''; dowel, 1/8 x 7/8 inch, hardened
-
111SPRING; check valve ball
-
121BALL 3/8'' Dia; chrome alloy steel, 3/8 inch, grade 24
-
131SPOOL; track modulation
-

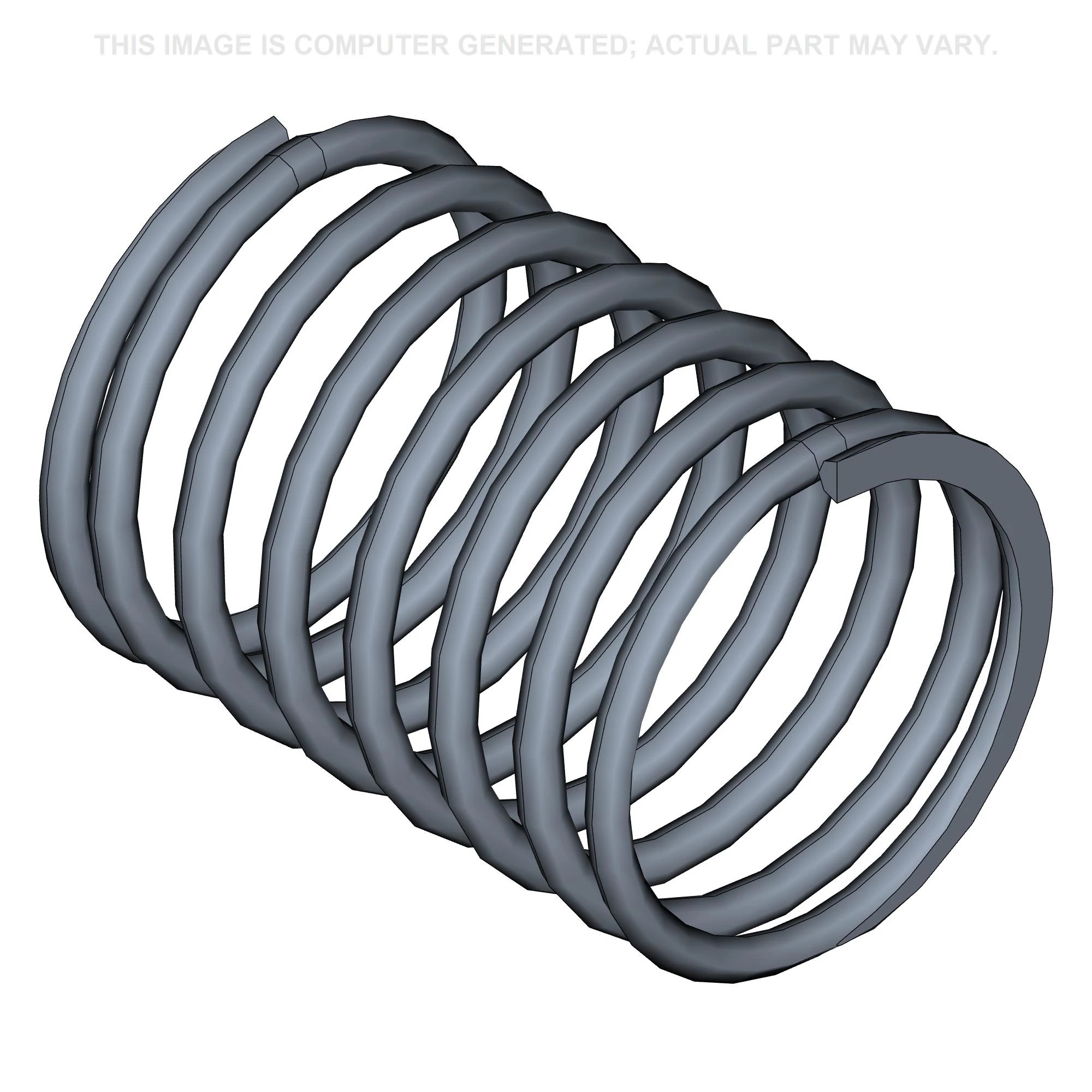

141SPRING; spool return
-
151PISTON; track modulation
-
161COMPRESSION SPRING; track modulation, outer
-
171SNAP RING #93, Ext, Spiral; external spiral retaining, No. 93, spring and piston, Replaces: 121493A2
-
181VALVE; SPOOL ASSY., magnetic detent, Includes: Ref. 19
-
191SEAL KIT; KIT replacement, includes 4 O-rings and 3 backup rings for magnetic detent spool, Ref. 9 above, not shown;Part of seal kit 238108A1
-
201WASHER; inlet, valve rework flow control, used to change orifice diameter in valve body inlet port from 6.35 mm to 4.00 mm, used in 130936A3 valve assembly only, if used, not shown
-
1SEAL KIT; KIT transmission, high/low range valve, Includes: Ref. 3, 5, 7, 19, also includes 238-6112 O-ring, Ref. 14 on Fig. 6-031A;Part of seal kit 238108A1
Select All
Ref.
Qty
1Availability
Part #
139993A1Description
TRANSMISSION; ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 20Img
Alts
Ref.
Qty
1Availability
Part #
130936A3Description
VALVE; ASSY., high/low range, Replaces: 130936A2, Includes: Ref. 1 - 20Img
Alts
Ref.
2Qty
4Availability
Part #
278548Description
HEX SOCKET PLUG Hex, 7/16''-20 ORB; Incl Ref 3Img
Alts
Ref.
3Qty
1Availability
Part #
237-6004Description
O-RING 0.072'' Thk x 0.351'' ID, -904, Cl 6, 90 Duro;Img
Alts
Ref.
4Qty
1Availability
Part #
71100209Description
PLUG Hex Soc, 3/4''-16 ORB; Incl Ref 5Img
Alts
Ref.
5Qty
1Availability
Part #

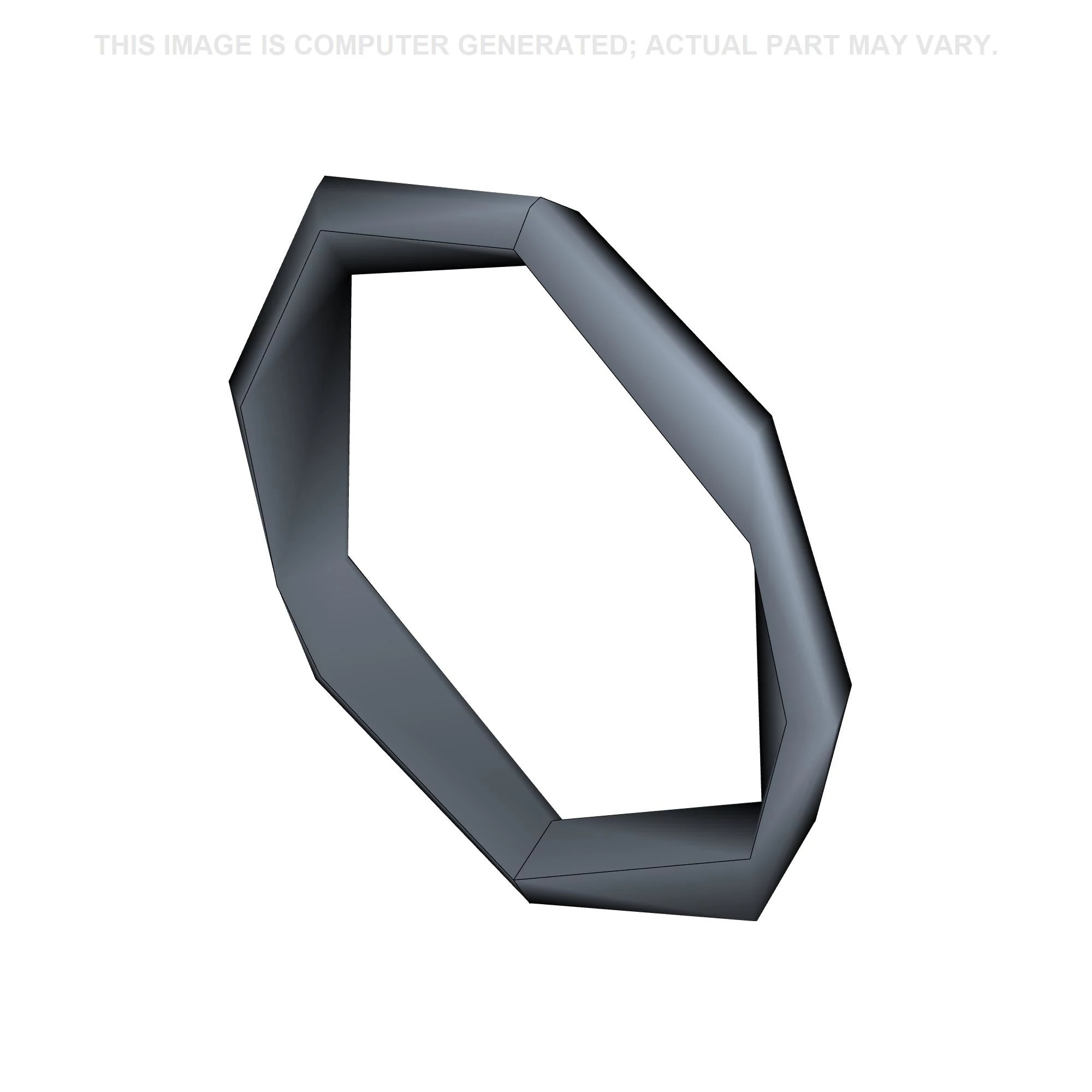

237-6008Description
O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; Part of seal kit 238108A1Img
Alts
Ref.
6Qty
2Availability
Part #

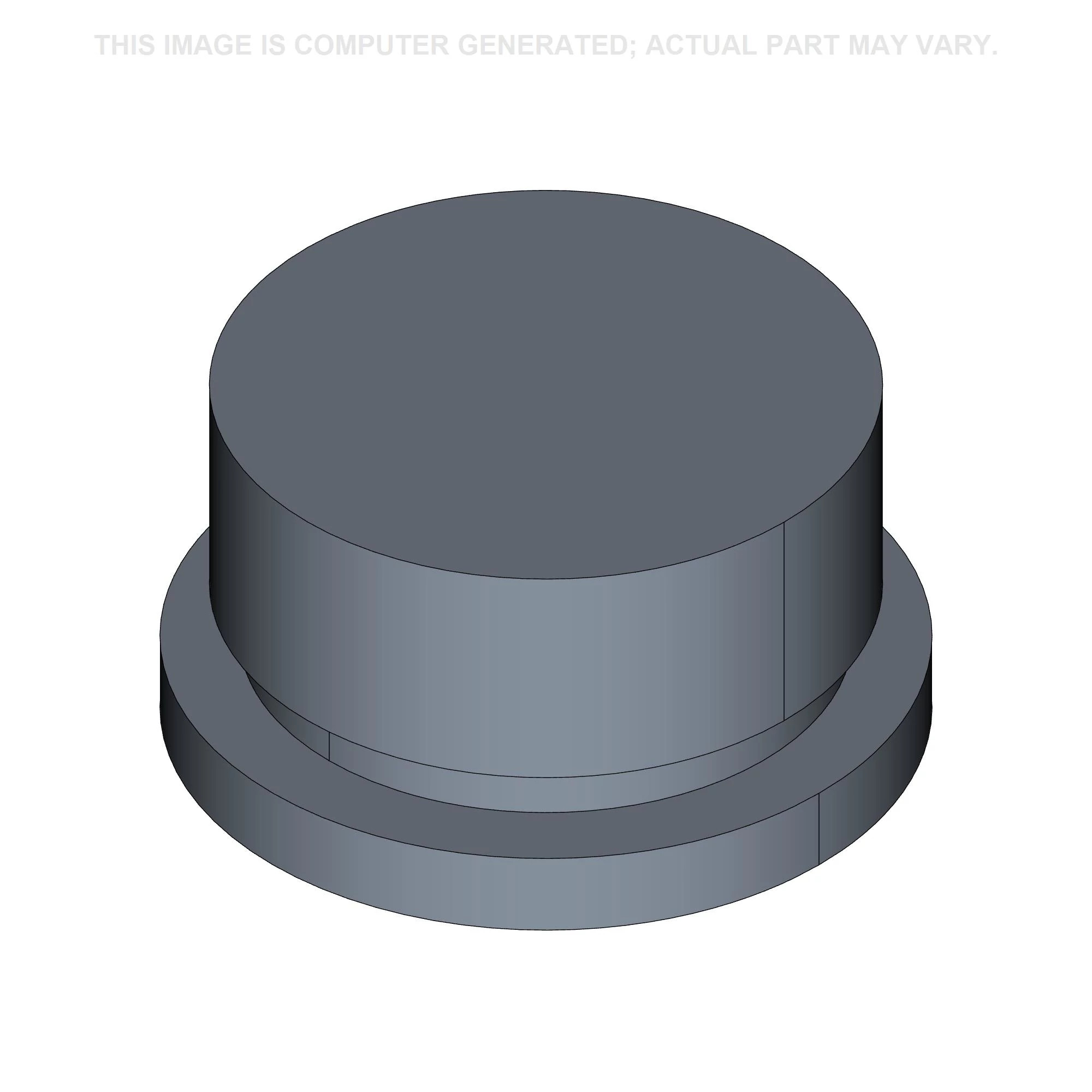

218-5214Description
HEX SOCKET PLUG 1 5/16''-12 ORB; Incl. Ref 7Img
Alts
Ref.
7Qty
1Availability
Part #
237-6016Description
O-RING 0.116'' Thk x 1.171'' ID, -916, Cl 6, 90 Duro; Part of seal kit 238108A1Img
Alts
Ref.
Qty
1Availability
Part #
189269A2Description
SPOOL; ASSY., clutch cutout, Includes: Ref. 9 - 17Img
Alts
Ref.
10Qty
1Availability
Part #
37-1214Description
DOWEL 1/8'' x 7/8''; dowel, 1/8 x 7/8 inch, hardenedImg
Alts
Ref.
12Qty
1Availability
Part #
211-1012Description
BALL 3/8'' Dia; chrome alloy steel, 3/8 inch, grade 24Img
Alts
Ref.
16Qty
1Availability
Part #
121866A1Description
COMPRESSION SPRING; track modulation, outerImg
Alts
Ref.
17Qty
1Availability
Part #
102-1393Description
SNAP RING #93, Ext, Spiral; external spiral retaining, No. 93, spring and piston, Replaces: 121493A2Img
Alts
Ref.
18Qty
1Availability
Part #
141943A2Description
VALVE; SPOOL ASSY., magnetic detent, Includes: Ref. 19Img
Alts
Ref.
19Qty
1Availability
Part #
187850C1Description
SEAL KIT; KIT replacement, includes 4 O-rings and 3 backup rings for magnetic detent spool, Ref. 9 above, not shown;Part of seal kit 238108A1Img
Alts
Ref.
20Qty
1Availability
Part #
197767A1Description
WASHER; inlet, valve rework flow control, used to change orifice diameter in valve body inlet port from 6.35 mm to 4.00 mm, used in 130936A3 valve assembly only, if used, not shownImg
Alts
Ref.
Qty
1Availability
Part #
238108A1Description
SEAL KIT; KIT transmission, high/low range valve, Includes: Ref. 3, 5, 7, 19, also includes 238-6112 O-ring, Ref. 14 on Fig. 6-031A;Part of seal kit 238108A1Img
Alts
