PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
316STUD; (SN Break) Up to 084
-
316STUD; (SN Break) From 085
-
42OIL SEAL;
-
52BALL BEARING 75mm ID x 130mm OD x 33.25mm W;
-
62RING;
-
72HUB;
-
82RING;
-
92BALL BEARING 60mm ID x 110mm OD x 29.75mm W;
-
101BOLT Hex, M20 x 2.5 x 200mm, Cl 8.8;
-
112NUT;
-
122COTTER PIN;
-
1412HEX SOC SCREW M8 x 1.25 x 10mm, Cl 10.9, Full Thd;
-
172CAP;
-
1810LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;
-
222RING NUT;
-
232HEX SOC SCREW M10 x 30mm, Cl 8.8;
-
242O-RING;
-
252CAP;
-
262LOCK PIN M6 x 12, Slotted;
-
271SPACER;
-
284WASHER;
-
291SHOCK ABSORBER;
-
306LOCK NUT M20 x 2.5, Cl 8;
-
311BUSHING;
-
321BUSHING;
-
332BAR;
-
342BOLT Hex, M20 x 2.5 x 210mm;
-
352STEERING CYLINDER; Incl 49
-
362LOCK NUT;
-
372BOLT Hex, M20 x 120mm, Cl 8.8;
-
382SCREW;
-
401CROWN NUT; Incl 11, 12
-
411KIT; Incl 13, 14
-
421FIP KIT; Incl 3
-
431SEAL KIT; Incl 4, 6, 8
-
441KIT; Incl 15, 20
-
451KIT; Incl 17 - 19, 24, 25
-
461KIT; Incl 16, 21 - 23, 26
-
491SEAL KIT;
Select All
Select
Ref.
5Qty
2Availability
Part #
84100483Description
BALL BEARING 75mm ID x 130mm OD x 33.25mm W;Img
Alts
Select
Ref.
9Qty
2Availability
Part #
84100485Description
BALL BEARING 60mm ID x 110mm OD x 29.75mm W;Img
Alts
Select
Ref.
10Qty
1Availability
Part #
16440421Description

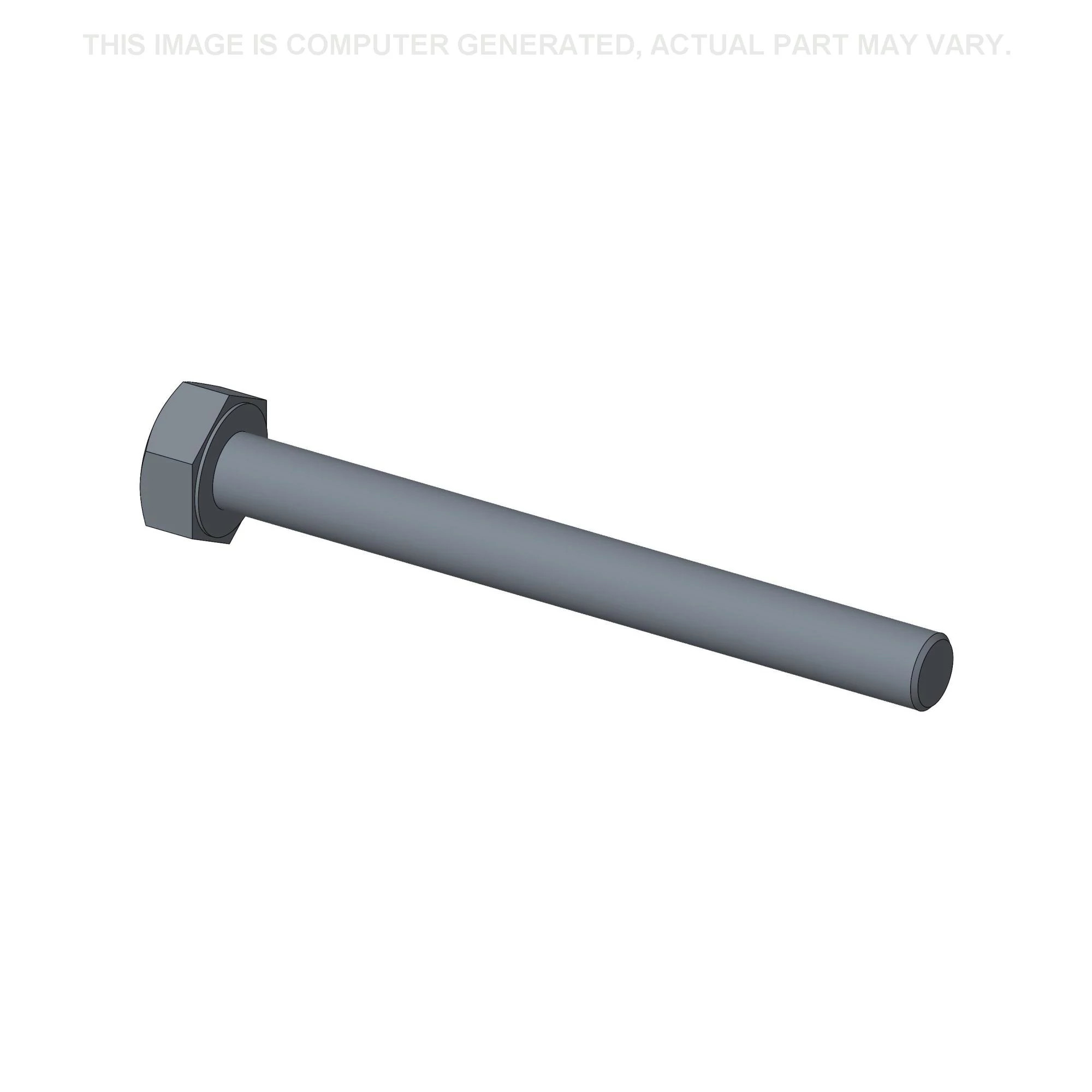

BOLT Hex, M20 x 2.5 x 200mm, Cl 8.8;Img
Alts
Select
Ref.
14Qty
12Availability
Part #
14301931Description

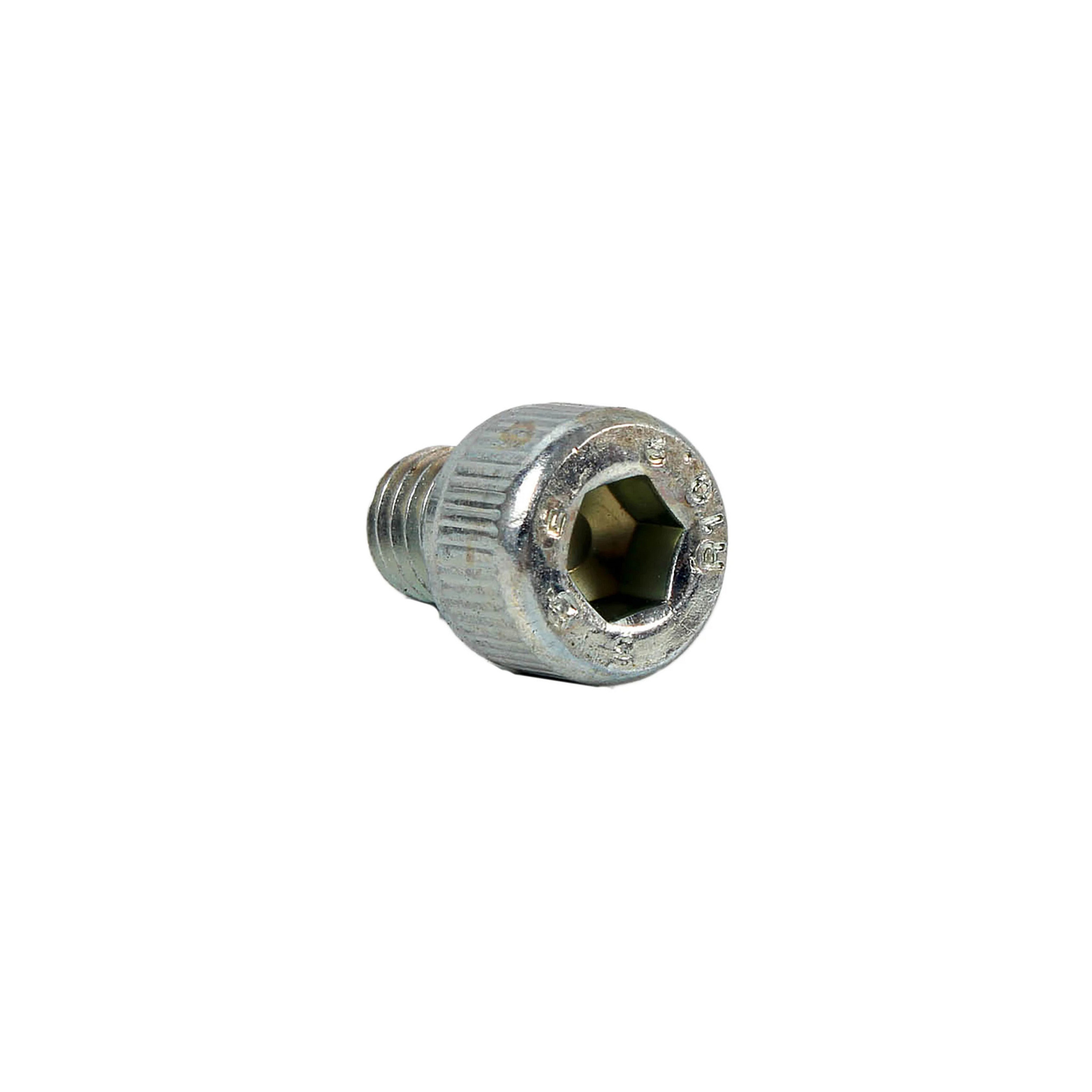

HEX SOC SCREW M8 x 1.25 x 10mm, Cl 10.9, Full Thd;Img
