TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11SUPPORT; Rear, Replaces D131504
-
24BOLT Hex, M12 x 1.75 x 85mm, Cl 8.8; 12 - 1.75 x 85 mm
-
34WASHER 1/2'', SAE; Replaces 195-533
-
42BAGUE 13.41mm ID x 18mm OD x 13.25mm L;
-
53BOLT Hex, M16 x 2 x 90mm, Cl 8.8; Replaces 413-1056
-
62WASHER 5/8''; 11/16 x 1-3/4 x 9/64 in
-
75-6WASHER 21/32'' x 2 1/2'' x .188'', HDN;
-
83MOUNT; North American Models
-
81SUPPORT; European Models
-
92LOCK NUT M16 x 2, Cl 8; Replaces 232-14110
-
104BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; Models Without Emissions Certified Engine, Replaces 614-10030
-
104BOLT Hex, M10 x 1.5 x 70mm, Cl 8.8; Models With Emissions Certified Engine With Fuel Injection Pump J933090, See Figure 03-07
-
104BOLT Hex, M10 x 1.5 x 75mm, Cl 8.8; 10 - 1.5 x 80 mm, Models With Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-08
-
114WASHER 13/32'' x 13/16'' x .089'', HDN;
-
121FAN 7 Blades, 450mm OD; Models Without Emissions Certified Engine, Replaces A173543
-
121FAN; Models With Emissions Certified Engine, Replaces A173543, 1998736C1
-
131V-BELT V-Belt, 27.92mm W x 1498.6mm L, 8 Ribs; European Models, JAF0098065, North American Models, JAF0118968, Used With Sound Package Option
-
131V-BELT V-Belt, 27.92mm W x 1574.8mm L, 8 Ribs; 89DBA Noise Kit, European Models JAF0098065, North American Models JAF0118968, Standard Speed Fan
-
131V-BELT V-Belt, 27.92mm W x 1498.6mm L, 8 Ribs; Models With Emissions Certified Engine, Used with Sound Package Installed
-
141SPACER 15mm ID x 74mm OD x 6mm Thk; Aluminum, Models Without Emissions Certified Engine, If Used
-
141ENTRETOISE; Steel, Models Without Emissions Certified Engine, If Used
-
141ENTRETOISE 15mm ID x 74mm OD x 42.5mm W; Models With Emissions Certified Engine With Fuel Injection Pump J933090, See Figure 03-07
-
141SPACER 15mm ID x 74mm OD x 48mm Thk; Models With Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-08, Replaces D142327
-
151MUFFLER; Standard, Models Without Emissions Certified Engine
-
161SILENCIEUX W/ Spark Arrester; Spark Arresting, Replaces 103319A1, Models Without Emissions Certified Engine, Incl. 17 - 19
-
261MUFFLER; Spark Arresting, Models With Emissions Certified Engine, Incl. Ref 17 - 19, 27, Replaces 103319A1
-
171PLUG; 3/8 inch PT
-
181VIS Hex, 3/8'' - 16 x 1-1/2'', Gr 5;
-
191LOCK NUT 3/8''-24, GC;
-
201GASKET 0.4mm Thk; Steel
-
214BOLT Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd;
-
224RONDELLE FREIN M10;
-
231SUPPORT; Models Without Emissions Certified Engine
-
241-2BOLT Hex, 3/8'' - 16 x 1-1/4'', Gr 5; If used
-
251-2FLANGE NUT 3/8''-16; If used
-
271NOT SOLD SEPARAT; BRACKET, Muffler, Models With Emissions Certified Engine
Select All
Select
Ref.
1Qty
1Availability
Part #
247421A1Description
SUPPORT; Rear, Replaces D131504Img
Alts
Select
Ref.
2Qty
4Availability
Part #
814-12085Description
BOLT Hex, M12 x 1.75 x 85mm, Cl 8.8; 12 - 1.75 x 85 mmImg
Alts
Select
Ref.
3Qty
4Availability
Part #
495-11053Description
WASHER 1/2'', SAE; Replaces 195-533Img
Alts
Select
Ref.
4Qty
2Availability
Part #
A170309Description

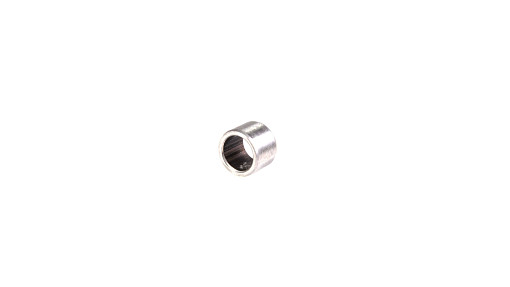

BAGUE 13.41mm ID x 18mm OD x 13.25mm L;Img
Alts
Select
Ref.
5Qty
3Availability
Part #
814-16090Description
BOLT Hex, M16 x 2 x 90mm, Cl 8.8; Replaces 413-1056Img
Alts
Select
Ref.
6Qty
2Availability
Part #
495-21069Description

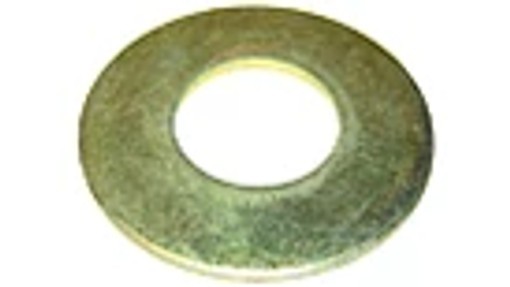

WASHER 5/8''; 11/16 x 1-3/4 x 9/64 inImg
Alts
Select
Ref.
7Qty
5-6Availability
Part #
496-81025Description
WASHER 21/32'' x 2 1/2'' x .188'', HDN;Img
Alts
Select
Ref.
9Qty
2Availability
Part #
832-10416Description

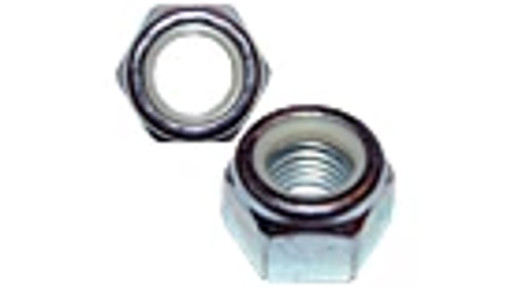

LOCK NUT M16 x 2, Cl 8; Replaces 232-14110Img
Alts
Select
Ref.
10Qty
4Availability
Part #
43140Description
BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; Models Without Emissions Certified Engine, Replaces 614-10030Img
Alts
Select
Ref.
10Qty
4Availability
Part #
814-10070Description
BOLT Hex, M10 x 1.5 x 70mm, Cl 8.8; Models With Emissions Certified Engine With Fuel Injection Pump J933090, See Figure 03-07Img
Alts
Select
Ref.
10Qty
4Availability
Part #
814-10075Description
BOLT Hex, M10 x 1.5 x 75mm, Cl 8.8; 10 - 1.5 x 80 mm, Models With Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-08Img
Alts
Select
Ref.
11Qty
4Availability
Part #
496-21041Description
WASHER 13/32'' x 13/16'' x .089'', HDN;Img
Alts
Select
Ref.
12Qty
1Availability
Part #
1998736C1Description

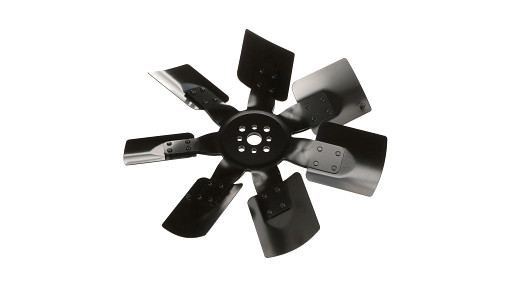

FAN 7 Blades, 450mm OD; Models Without Emissions Certified Engine, Replaces A173543Img
Alts
Select
Ref.
12Qty
1Availability
Part #

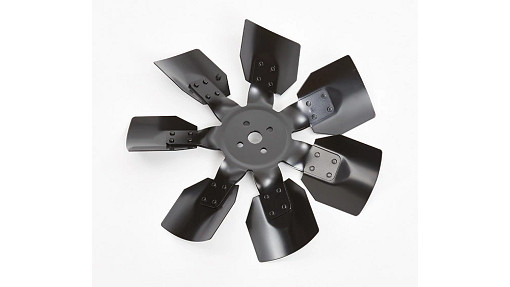

301849A1Description
FAN; Models With Emissions Certified Engine, Replaces A173543, 1998736C1Img
Alts
Select
Ref.
13Qty
1Availability
Part #
J911558Description
V-BELT V-Belt, 27.92mm W x 1498.6mm L, 8 Ribs; European Models, JAF0098065, North American Models, JAF0118968, Used With Sound Package OptionImg
Alts
Select
Ref.
13Qty
1Availability
Part #
J911559Description
V-BELT V-Belt, 27.92mm W x 1574.8mm L, 8 Ribs; 89DBA Noise Kit, European Models JAF0098065, North American Models JAF0118968, Standard Speed FanImg
Alts
Select
Ref.
13Qty
1Availability
Part #
J911558Description
V-BELT V-Belt, 27.92mm W x 1498.6mm L, 8 Ribs; Models With Emissions Certified Engine, Used with Sound Package InstalledImg
Alts
Select
Ref.
14Qty
1Availability
Part #
H437716Description

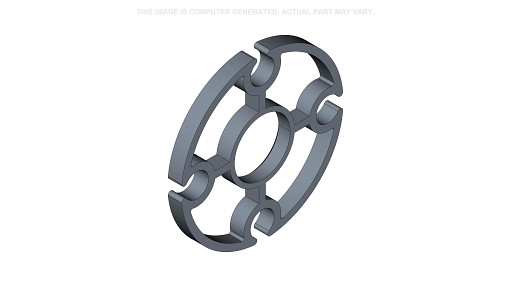

SPACER 15mm ID x 74mm OD x 6mm Thk; Aluminum, Models Without Emissions Certified Engine, If UsedImg
Alts
Select
Ref.
14Qty
1Availability
Part #
H437612Description
ENTRETOISE; Steel, Models Without Emissions Certified Engine, If UsedImg
Alts
Select
Ref.
14Qty
1Availability
Part #
A184545Description
ENTRETOISE 15mm ID x 74mm OD x 42.5mm W; Models With Emissions Certified Engine With Fuel Injection Pump J933090, See Figure 03-07Img
Alts
Select
Ref.
14Qty
1Availability
Part #
A184523Description
SPACER 15mm ID x 74mm OD x 48mm Thk; Models With Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-08, Replaces D142327Img
Alts
Select
Ref.
15Qty
1Availability
Part #
A189113Description

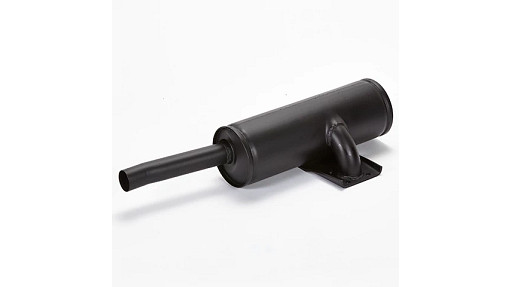

MUFFLER; Standard, Models Without Emissions Certified EngineImg
Alts
Select
Ref.
16Qty
1Availability
Part #
117000A1Description
SILENCIEUX W/ Spark Arrester; Spark Arresting, Replaces 103319A1, Models Without Emissions Certified Engine, Incl. 17 - 19Img
Alts
Select
Ref.
26Qty
1Availability
Part #
298119A1Description

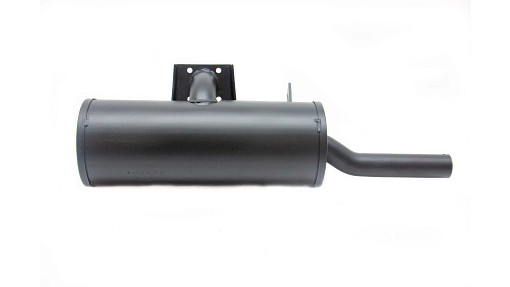

MUFFLER; Spark Arresting, Models With Emissions Certified Engine, Incl. Ref 17 - 19, 27, Replaces 103319A1Img
Alts
Select
Ref.
18Qty
1Availability
Part #
413-624Description
VIS Hex, 3/8'' - 16 x 1-1/2'', Gr 5;Img
Alts
Select
Ref.
21Qty
4Availability
Part #
613-10025Description
BOLT Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd;Img
Alts
Select
Ref.
23Qty
1Availability
Part #
1347886C1Description
SUPPORT; Models Without Emissions Certified EngineImg
Alts
Select
Ref.
24Qty
1-2Availability
Part #
413-620Description
BOLT Hex, 3/8'' - 16 x 1-1/4'', Gr 5; If usedImg
Alts
Select
Ref.
25Qty
1-2Availability
Part #
231-5146Description

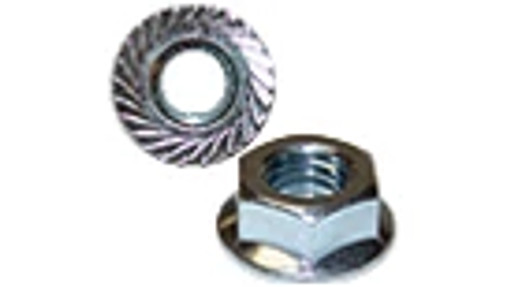

FLANGE NUT 3/8''-16; If usedImg
Alts
Select
Ref.
27Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; BRACKET, Muffler, Models With Emissions Certified EngineImg
Alts
