18 - FRICTION CLUTCH ASSEMBLY
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    H559054
    CLUTCH ASSEMBLY; Friction Clutch Asm
  • 2
    1
    H529370
    CLUTCH ASSEMBLY; Sliding Sleeve Asm
  • 3
    1
    H529388
    COLLAR; Shifting Collar Asm
  • 4
    4
    H111229
    AXLE PIN; Lever Link Pin
  • 5
    4
    F11938
    AXLE PIN; Lever Link Pin
  • 6
    8
    F11937
    DRAG LINK; Lever Link
  • 7
    1
    NSS
    NOT SOLD SEPARAT; Sliding Sleeve
  • 8
    1
    H529362
    YOKE; Adjusting Yoke Asm
  • 9
    4
    H111179
    LEVER; Finger
  • 10
    4
    H111187
    AXLE PIN; Finger Pin
  • 11
    1
    H111195
    AXLE PIN; Adjusting Pin
  • 12
    1
    A26944
    VALVE SPRING; Spring - Adjusting Pin
  • 13
    1
    H189050
    PLATE ASSY.; Floating Plate
  • 14
    1
    H111245
    PLATE; Driving Plate
  • 15
    6
    H111260
    VALVE SPRING; Release Spring
  • 16
    1
    H559062
    HUB CAP; Hub & Back Plate Asm
  • 17
    1
    H111161
    AXLE PIN; Pin - Plate
  • 18
    1
    F62235
    SNAP RING #112, Ext; Ring, Snap, #112, Ext
  • 19
    2
    H344523
    FORK TEDDER; Fork - Clutch
  • 21
    2
    113-120
    BOLT Hex, 5/16'' - 18 x 1-3/4'', Gr 5;
  • 22
    2
    131-176
    LOCK NUT Prev Torque, Hex, 5/16'' - 18, Gr A; Nut (5/16 NC Hex - Lock)
  • 23
    1
    219-55
    LUBE NIPPLE 90 Degree Elbow, 1/8'' - 27 NPTF; NIPPLE, LUBE, 90?, 1/8'' NPT x .84'' lg
  • 24
    1
    H33332
    GRIP; - Hand
  • 25
    1
    H584995
    SHEAVE; Asm
  • 26
    1
    H749234
    SEAL; Grease Seal
  • 27
    1
    H747998
    NEEDLE BEARING; Bearing - Needle
  • 28
    1
    H179614
    SHEAVE; Large shave
  • 29
    1
    H748178
    NEEDLE BEARING; Bearing - Needle
  • 30
    1
    H749143
    SEAL; Grease Seal
  • 31
    1
    219-1
    LUBE NIPPLE 1/8'' - 27 NPTF; Grease Fitting
  • 32
    2
    H68015
    WASHER; - Fitting
  • 33
    1
    H81760
    WASHER; - Steel
  • 34

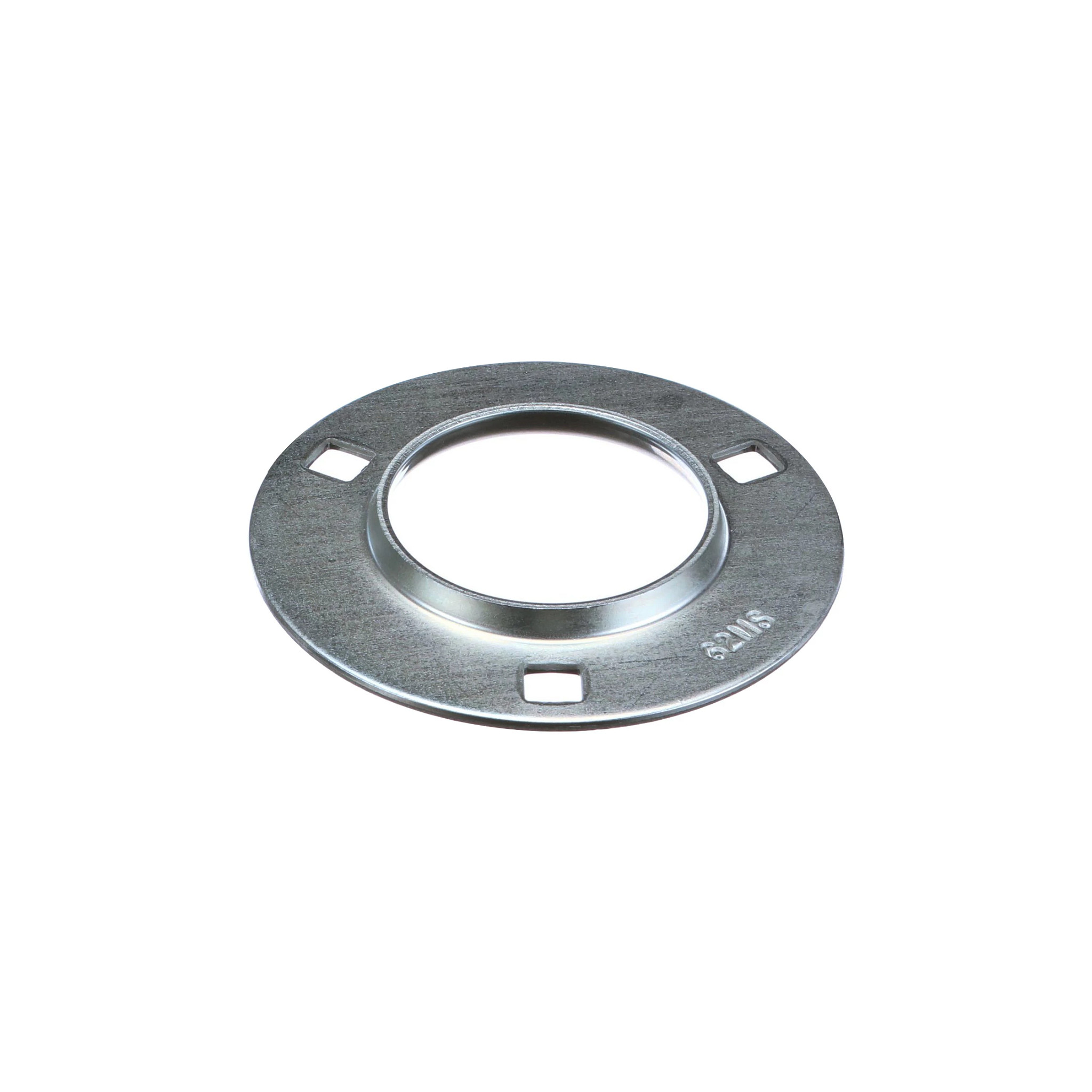

    4
    H747188
    FLANGED BEARING 112.73 mm OD x 8.74 mm; Flangette - Bearing
  • 35
    2
    T36576
    BALL BEARING 1.12'' ID x 2.4409'' OD; Bearing
  • 36
    1
    H209015
    V-BELT; Drive
  • 37
    1
    H347500
    JACKSHAFT; Shaft - Jack
  • 38
    1
    H41996
    KEY; (1/4 Sq x 1 3/4)
  • 39
    1
    T13450
    KEY; (1/4 Sq x 1 1/4)
  • 41
    6
    113-207
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
