300 - CESSNA HYDRAULIC PUMP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    D48950
    PUMP; ASSEMBLY - hydraulic, complete, Cessna no. 24505-LAD, for service order D53690, Includes: Ref. 2 - 7
  • 2
    1
    D48879
    COVER; - drive shaft end
  • 3
    1
    D56471
    COVER; - gear
  • 4
    2
    D48882
    PIN; - dowel
  • 5
    1
    D48883
    COVER; - port end
  • 1
    D48881
    GEAR; SET - drive and driven, Includes: Ref. 6 and 7
  • 6
    1
    NSS
    NOT SOLD SEPARAT; GEAR - drive
  • 7
    1
    NSS
    NOT SOLD SEPARAT; GEAR - driven
  • 1
    D59656
    GASKET KIT; KIT - seal, Includes: Ref. 8 - 16
  • 8
    1
    A45358
    PLATE; - thrust
  • 9
    1
    H335331
    DIAPHRAGM; pump
  • 10
    1
    H260935
    GASKET; - protector
  • 11
    1
    H260927
    GASKET; - backup
  • 12
    1
    D48888
    SEAL; - diaphragm
  • 13
    1
    A25139

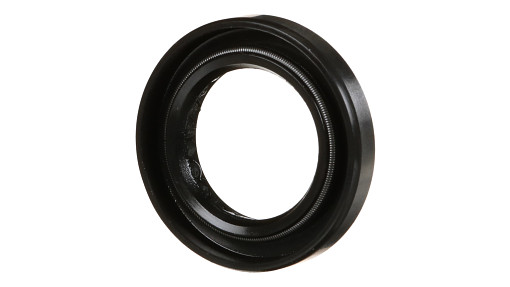

    SEAL 22.22mm ID x 35.08mm OD x 6.91mm Thk; - drive shaft
  • 14
    2
    D31403
    COMPRESSION SPRING; - ball retaining
  • 15
    2
    211-312
    BALL 13/32'' Dia; steel, subs to 211-1013
  • 16
    2
    H756221
    O-RING 4.987'' ID x 5.193'' OD; - pump covers
  • 17
    4
    166-55
    12 PT SCREW Flg, 3/8'' - 16 x 3 1/2'', Gr 8; SCREW - Ferry head, 3/8'' - 16 NC x 3-1/2''
  • 18
    4
    166-59
    12 PT SCREW Flg, 3/8'' - 16 x 3 3/4'', Gr 8; SCREW - Ferry head, 3/8'' - 16 NC x 3-3/4''
