054 - G103773 SWING CYLINDER, BACKHOE SN 5411088 AND AFTER, WITH ONE PIECE PISTON
ÍNDICE
DIAGRAMA
LISTA DE PEÇAS
Limpar Avisos
Janela do núm série
Data de criação
Selecionar tudo
Ref.
Qtd
Nº de peça
Alts
Descrição
Imagem
  • 1
    2
    G103773
    CYLINDER; ASSEMBLY - swing, 4'' (102 mm) ID x 11-1/4'' (286 mm) stroke, see footnote, Includes: Ref. 2 - 24
  • 2
    1
    G103774
    TUBE 469.89'' L; ASSEMBLY - cylinder, Includes: Ref. 3
  • 3
    2
    G34875

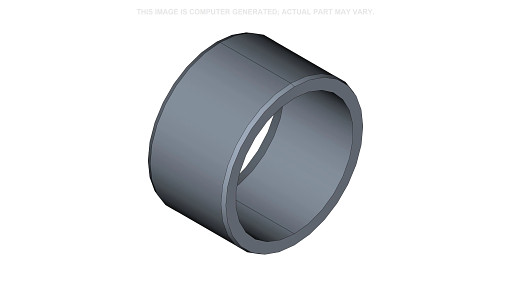

    BUSHING 50.67mm ID x 60.25mm OD x 33.53mm L; - tube
  • 1
    G34331
    GLAND; ASSEMBLY - cylinder, Includes: Ref. 4 - 10
  • 4
    1
    NSS
    NOT SOLD SEPARAT; GLAND - cylinder
  • 5
    1
    NSS
    NOT SOLD SEPARAT; RING - retaining
  • 6
    1
    D95144
    WIPER SEAL 50.77mm ID x 63.52mm OD x 7.92mm Thk; Wiper - piston rod, outer;Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.;Part of seal kit, P/N G102401
  • 7
    1
    G34322
    BEARING; - center;Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.;Part of seal kit, P/N G102401
  • 8
    1
    D36971
    RING; SEAL - piston rod;Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.;Part of seal kit, P/N G102401
  • 9
    1
    A27507
    O-RING 0.139'' Thk x 3.984'' ID, -242, Cl 5, 75 Duro; - gland;Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.;Part of seal kit, P/N G102401
  • 10
    1
    G32176
    BACK-UP RING 101.22mm ID x 107.32mm OD x 1.4mm Thk; Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.;Part of seal kit, P/N G102401
  • 11
    1
    187-1031
    SELF-TAP SCREW Pan, 0.164''-32 x 1/4''; SCREW - self-tapping, no. 8 - 32 NC x 1/4''
  • 12
    1
    G34775
    ROD ASSY.; ROD ASSEMBLY - piston, 2'' (51 mm) dia, Includes: Ref. 13
  • 13
    2
    G34854
    BUSHING 44.58mm ID x 53.98mm OD x 22.35mm L; - piston rod
  • 14
    1
    G101309
    PISTON; - cylinder
  • 15
    1
    G102285
    SEAL Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk; - piston;Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.;Part of seal kit, P/N G102401
  • 16
    1
    G100440
    RING Square, 5.28mm Thk x 88.01mm ID; - backup;Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.;Part of seal kit, P/N G102401
  • 17
    2
    G100448
    RING 101.6mm OD, Ext; - wear;Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.;Part of seal kit, P/N G102401
  • 18
    1
    G102826
    PIN; - cushion relief
  • 19
    1
    D38683
    COMPRESSION SPRING; - cushion relief
  • 20
    1
    211-17
    BALL 3/4'' Dia; - cushion relief spring
  • 21
    1
    D41359
    BOLT Hex, 1 1/4'' - 12 x 63.5mm, Gr 8; - piston and cushion relief
  • 22
    1
    G32351
    WASHER; - hardened
  • 23
    1
    219-1
    LUBE NIPPLE 1/8'' - 27 NPTF; FITTING - grease, straight, 1/8'' NPT
  • 24
    2
    219-55
    LUBE NIPPLE 90 Degree Elbow, 1/8'' - 27 NPTF; NIPPLE, LUBE, 90?, 1/8'' NPT x .84'' lg
  • 1
    G102401
    SEAL; KIT - seal, Includes: Ref. 6, 7, 8, 9, 10, 15, 16, 17;Look for cylinder assembly part number to be stamped on cylinder gland or tube. For models before backhoe SN 5411088 see Figures 48 and 50.
  • 1
    G100778
    SEAL 50.8mm ID x 63mm OD x 9.5mm Thk; - piston rod, service option - extreme heat or cold
