11VALVE; SECTION ASSEMBLY - dipper and bucket, used before backhoe SN 5355084, order G35444, Includes: Ref. 2 - 28
-
11VALVE; SECTION ASSEMBLY - dipper and bucket, used on backhoe SN 5355084 and after, Includes: Ref. 2 - 28
-
21NOT SOLD SEPARAT; BODY - section
-
31NOT SOLD SEPARAT; SPOOL - valve
-
42O-RING 0.103'' Thk x 0.75'' ID, -116, Cl 5, 75 Duro;
-
51SEAL 18.8mm ID x 25.5mm OD x 3.1mm Thk; - valve spool
-
61RETAINER; - O-ring
-
71SPRING; - spool centering
-
82RETAINER 12.2mm ID, 27.9mm OD; - centering spring
-
91SNAP RING #47, Ext; Ring, Snap, #47, Ext
-
101CAP; - centering spring
-
112VALVE POPPET; POPPET - load check
-
122SPRING; - load check
-
132PLUG; - load check
-
142O-RING 0.07'' Thk x 0.61'' ID;
-
2KIT; VALVE ASSEMBLY - relief, Includes: Ref. 16 - 28
-
161NOT SOLD SEPARAT; BODY - relief valve;Part of service Kit P/N G34862
-
171NOT SOLD SEPARAT; POPPET - relief valve;Part of service Kit P/N G34862
-
181O-RING; Part of service Kit P/N G34862
-
191SPRING; - relief valve;Part of service Kit P/N G34862
-
201PISTON; - relief valve;Part of service Kit P/N G34862
-
211O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 6, 90 Duro; Part of service Kit P/N G34862
-
221RETAINER; - relief valve;Part of service Kit P/N G34862
-
231SNAP RING 0.75'', Int, #75; Ring, Snap, 0.75'', Int, #75;Part of service Kit P/N G34862
-
241SET SCREW 1/4'' - 20 x 1''; - set, hex socket, 1/4'' - 20 NC x 3/4'';Part of service Kit P/N G34862
-
24A1WASHER; - special, if used;Part of service Kit P/N G34862
-
251JAM NUT Jam, 1/4''-20, G5; - hex, lock, 1/4'' - 20 NC;Part of service Kit P/N G34862
-
261O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; - large;Part of service Kit P/N G34862
-
271O-RING 0.744'' ID x 0.879'' OD; - small;Part of service Kit P/N G34862
-
281BACK-UP RING 19.43mm ID x 22.23mm OD x 1.32mm Thk; - backup, if used;Part of service Kit P/N G34862
-
1VALVE; KIT - service for G34043, Includes: Refs. 16 - 28
Select All
Select
Ref.
1Qty
1Availability
Part #
G33097Description
VALVE; SECTION ASSEMBLY - dipper and bucket, used before backhoe SN 5355084, order G35444, Includes: Ref. 2 - 28Img
Alts
Select
Ref.
1Qty
1Availability
Part #
G35444Description
VALVE; SECTION ASSEMBLY - dipper and bucket, used on backhoe SN 5355084 and after, Includes: Ref. 2 - 28Img
Alts
Select
Ref.
4Qty
2Availability
Part #
A27365Description
O-RING 0.103'' Thk x 0.75'' ID, -116, Cl 5, 75 Duro;Img
Alts
Select
Ref.
5Qty
1Availability
Part #
A32309Description
SEAL 18.8mm ID x 25.5mm OD x 3.1mm Thk; - valve spoolImg
Alts
Select
Ref.
8Qty
2Availability
Part #
G33075Description

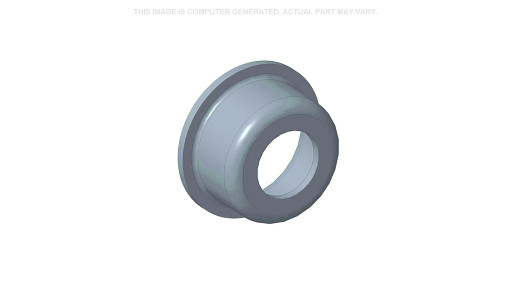

RETAINER 12.2mm ID, 27.9mm OD; - centering springImg
Alts
Select
Ref.
9Qty
1Availability
Part #
G33077Description
SNAP RING #47, Ext; Ring, Snap, #47, ExtImg
Alts
Select
Ref.
11Qty
2Availability
Part #
G33081Description
VALVE POPPET; POPPET - load checkImg
Alts
Select
Ref.
Qty
2Availability
Part #
G34043Description
KIT; VALVE ASSEMBLY - relief, Includes: Ref. 16 - 28Img
Alts
Select
Ref.
16Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; BODY - relief valve;Part of service Kit P/N G34862Img
Alts
Select
Ref.
17Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; POPPET - relief valve;Part of service Kit P/N G34862Img
Alts
Select
Ref.
18Qty
1Availability
Part #
G102844Description
O-RING; Part of service Kit P/N G34862Img
Alts
Select
Ref.
19Qty
1Availability
Part #
G33090Description
SPRING; - relief valve;Part of service Kit P/N G34862Img
Alts
Select
Ref.
20Qty
1Availability
Part #
G33091Description
PISTON; - relief valve;Part of service Kit P/N G34862Img
Alts
Select
Ref.
21Qty
1Availability
Part #
G102845Description
O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 6, 90 Duro; Part of service Kit P/N G34862Img
Alts
Select
Ref.
22Qty
1Availability
Part #
G33092Description
RETAINER; - relief valve;Part of service Kit P/N G34862Img
Alts
Select
Ref.
23Qty
1Availability
Part #
G46150Description
SNAP RING 0.75'', Int, #75; Ring, Snap, 0.75'', Int, #75;Part of service Kit P/N G34862Img
Alts
Select
Ref.
24Qty
1Availability
Part #
G102782Description
SET SCREW 1/4'' - 20 x 1''; - set, hex socket, 1/4'' - 20 NC x 3/4'';Part of service Kit P/N G34862Img
Alts
Select
Ref.
24AQty
1Availability
Part #
G102781Description
WASHER; - special, if used;Part of service Kit P/N G34862Img
Alts
Select
Ref.
25Qty
1Availability
Part #
25-144Description
JAM NUT Jam, 1/4''-20, G5; - hex, lock, 1/4'' - 20 NC;Part of service Kit P/N G34862Img
Alts
Select
Ref.
26Qty
1Availability
Part #
218-5008Description
O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; - large;Part of service Kit P/N G34862Img
Alts
Select
Ref.
27Qty
1Availability
Part #
G100959Description
O-RING 0.744'' ID x 0.879'' OD; - small;Part of service Kit P/N G34862Img
Alts
Select
Ref.
28Qty
1Availability
Part #
G35540Description

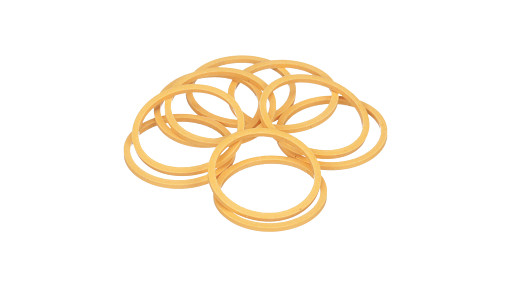

BACK-UP RING 19.43mm ID x 22.23mm OD x 1.32mm Thk; - backup, if used;Part of service Kit P/N G34862Img
Alts
Select
Ref.
Qty
1Availability
Part #
G34862Description
VALVE; KIT - service for G34043, Includes: Refs. 16 - 28Img
