040 - SELECTAMATIC OIL FILTER AND LINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    K920520
    COVER; - rear sump
  • 2
    1
    K906764
    GASKET; - rear sump cover
  • 3
    1
    K19581
    PLUG; - drain, 1/4'' BSP
  • 1
    K626765
    GASKET; WASHER - sealing, 1/2''
  • 4
    8
    13-510

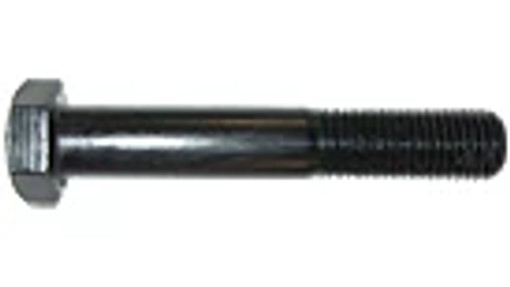

    BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd;
  • 8
    192-20
    LOCK WASHER Helical Spring, 0.318'' ID, CST, ZND; WASHER, LOCK, 5/16''
  • 1
    K920806
    FILTER, ELEMENT; FILTER ASSEMBLY, Includes: Ref. 5 - 11
  • 5
    1
    K920522
    HYDRAULIC OIL FILTER; ELEMENT
  • 6
    1
    K920521

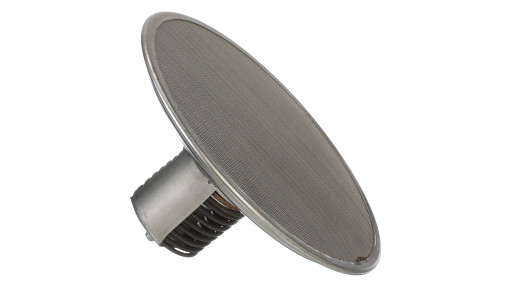

    VALVE; SCREEN AND VALVE, Includes: Ref. 7 and 8
  • 7
    1
    K942788
    PLUG; MAGNET
  • 8
    1
    K624300
    SCREW; - magnet retaining
  • 1
    K623002
    LOCK NUT; - Nyloc
  • 9
    1
    K15279
    O-RING 0.139'' Thk x 1.359'' ID, -220, Cl 5, 75 Duro; SEAL - ''O''ring, 1-3/8'' I.D.
  • 10
    1
    K623524
    O-RING 0.139'' Thk x 2.109'' ID, -227, Cl 5, 75 Duro; SEAL - ''O''ring, 2-1/8'' I.D.
  • 11
    1
    K920860
    PIPE; TUBE - oil suction
  • 12
    1
    K602850
    SCREW Set, 5/16'' - 18 x 1 1/8'', Gr S; HHCS - 5/16'' - 18 NC x 1-1/8''
  • 1
    K626620
    SPRING WASHER; - med. sect. lock, 5/16''
  • 13
    1
    K15596
    RING 3.63mm Thk x 31.34mm ID; SEAL - ''O''ring, 1-1/4'' I.D.
  • 14
    4
    K12131
    BOLT; - special
  • 4
    92-4
    LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
  • 15
    1
    K921214
    ADAPTER; - warning lamp switch
  • 16
    1
    K921220
    GASKET; - adapter to PTO case
  • 17
    2
    13-416
    BOLT Hex, 1/4'' - 20 x 1'', Gr 5;
  • 2
    92-4
    LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
  • 18
    1
    K14658
    O-RING 0.07'' Thk x 0.239'' ID; SEAL - ''O''ring, 1/4'' I.D.
  • 19
    1
    K915684
    TUBE; - pump outlet
  • 20
    1
    K24676
    O-RING 0.103'' Thk x 0.612'' ID, -114, Cl 6, 90 Duro; SEAL - ''O''ring, 5/8'' I.D.
  • 21
    1
    K89170
    SHIM; PLATE - clamping
  • 22
    3
    K603662
    SCREW; - 1/4'' - 20 NC x 5/8''
  • 23
    3
    K623557
    O-RING; SEAL - ''O''ring, 9/16'' I.D.
  • 24
    1
    K915344
    WASHER; PLATE - locating
  • 25
    2
    K603662
    SCREW; - 1/4'' - 20 NC x 5/8''
  • 26
    1
    K917127
    CONNECTOR, ELEC; PLATE - connector, axle case
  • 1
    K619528
    PLUG; - 7/8'' - 14 NF, oil return
  • 1
    K30085
    GASKET; WASHER - fiber, 7/8''
  • 27
    1
    K947236
    PLUG; - magnetic, 3/4'' NF
  • 28
    1
    K623589
    O-RING; WASHER - sealing, 3/4''
  • 1
    K917387

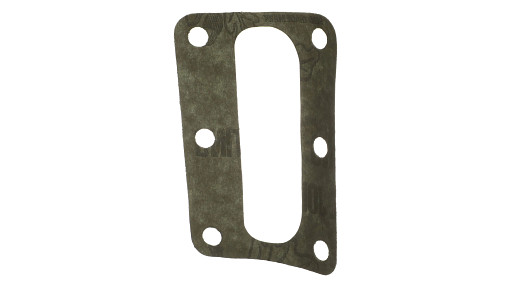

    GASKET; - connector plate to rear axle case
  • 29
    4
    13-622
    BOLT Hex, 3/8'' - 16 x 1-3/8'', Gr 5; HHCS - 3/8'' - 16 NC x 1-3/8''
  • 2
    192-21
    LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
  • 30
    1
    K915687
    TUBE; - control valve
  • 31
    2
    K24779
    O-RING 0.103'' Thk x 0.424'' ID, -11, Cl 6, 90 Duro; SEAL - ''O''ring, 7/16'' I.D.
  • 4
    192-21
    LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
  • 32
    2
    13-626
    BOLT Hex, 3/8'' - 16 x 1-5/8'', Gr 5;
  • 1
    425-145
    JAM NUT Jam, 5/16''-18, G5;
  • 33
    1
    K928511
    TUBE; - union to ram cylinder
  • 34
    1
    K24676
    O-RING 0.103'' Thk x 0.612'' ID, -114, Cl 6, 90 Duro; SEAL - ''O''ring, 5/8'' I.D.
  • 35
    1
    K910105
    WASHER; PLATE - clamping
  • 36
    2
    K603662
    SCREW; - 1/4'' - 20 NC x 5/8''
  • 37
    1
    K915339
    TUBE; - hydraulic
  • 38
    1
    K912269
    BUSHING; - reducing, axle case
  • 1
    K626577
    WASHER; - sealing, 1/2''
  • 39
    1
    113-107
    BOLT Hex, 5/16'' - 18 x 2-3/4'', Gr 5, Full Thd; HHCS - 5/16'' - 18 NC x 2-3/4''
  • 1
    129-145
    JAM NUT Jam, 1/2''-13, G5;
  • 40
    1
    K915337
    PIPE; TUBE - valve to cross piece
  • 41
    1
    K913783
    PIPE; TUBE - hydraulic, PTO
  • 42
    1
    K621660
    CLIP; CLAMP - tube
  • 43
    1
    K913785
    PIPE 0.5'' OD; TUBE - hydraulic, ram cylinder
  • 45
    1
    13-48
    BOLT Hex, 1/4'' - 20 x 1/2'', Gr 5;
  • 1
    92-4
    LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
