TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1VALVE; ACTUATOR ASSEMBLY - brake, models with front wheel brakes only, no longer available, order L126954 brake actuator when replacing complete assembly, parts list Figure 7-15, Includes: Ref. 1 - 41
-
13VIS Hex, 3/8'' - 16 x 1-1/4'', Gr 5; - hex, 3/8 NC x 1-1/4 inch
-
23RONDELLE FREIN 3/8'';
-
1SECTION DE COUTEAU; CHAMBER - oil, Includes: Ref. 3 - 24
-
31NOT SOLD SEPARAT; PLUG - chamber
-
41O-RING 0.103'' Thk x 0.612'' ID, -114, Cl 5, 75 Duro; - plug;Part of kit, P/N D82920
-
51SPRING; - piston
-
6UARSHIM; - piston
-
71NOT SOLD SEPARAT; PISTON - chamber, upper
-
81STEM; ROD - push, outer
-
91GROMMET; COVER - rubber;Part of kit, P/N D82920
-
101PISTON; ROD - inner
-
113NOT SOLD SEPARAT; RING - backup;Part of kit, P/N D82920
-
123NOT SOLD SEPARAT; SEAL - two piece;REF: 12A SEAL - THREE PIECE ASSY;Part of kit, P/N D82920
-
131PLUG; COVER - end
-
141NOT SOLD SEPARAT; O-RING - cover;Part of kit, P/N D82920
-
151PISTON; - chamber, lower
-
161NOT SOLD SEPARAT; RING - piston;Part of kit, P/N D82920
-
171SPRING; - inner
-
181RETAINER; - spring
-
191SPRING; - outer
-
201PISTON; ROD - actuator
-
211NOT SOLD SEPARAT; RING - retaining;Part of kit, P/N D82920
-
221NOT SOLD SEPARAT; HOUSING - chamber
-
231FITTING; PLUG - snubber
-
241SNAP RING; RING - retaining
-
1MASTER CYLINDER; MASTER CYLINDER - brake, Includes: Ref. 25 - 41
-
251NOT SOLD SEPARAT; BODY - master cylinder
-
261FILLER CAP; CAP - master cylinder
-
271SPRING; - master cylinder
-
1PACKAGE, REPAIR; KIT - master cylinder repair, Includes: Ref. 28 - 41
-
281SEAL 31.75mm ID x 41.27mm OD x 1.59mm Thk; - cap
-
291NOT SOLD SEPARAT; SEAT - valve
-
301NOT SOLD SEPARAT; VALVE - master cylinder
-
311NOT SOLD SEPARAT; RING - retaining
-
321NOT SOLD SEPARAT; RETAINER - spring
-
331NOT SOLD SEPARAT; SEAL - piston
-
341NOT SOLD SEPARAT; WASHER - backup
-
351NOT SOLD SEPARAT; PISTON - outer
-
361NOT SOLD SEPARAT; PISTON - inner
-
372NOT SOLD SEPARAT; SEAL - V-type
-
381O-RING 0.364'' ID x 0.504'' OD x 0.07''; - piston
-
391SEALING RING; RING - backup
-
401NOT SOLD SEPARAT; SEAL - piston
-
411NOT SOLD SEPARAT; RING - retaining
-
1KIT; - oil chamber repair, Includes: Ref. 4, 9, 11, 12, 14, 16, 21
Select All
Select
Ref.
Qty
1Availability
Part #
L79629Description
VALVE; ACTUATOR ASSEMBLY - brake, models with front wheel brakes only, no longer available, order L126954 brake actuator when replacing complete assembly, parts list Figure 7-15, Includes: Ref. 1 - 41Img
Alts
Select
Ref.
1Qty
3Availability
Part #
413-620Description
VIS Hex, 3/8'' - 16 x 1-1/4'', Gr 5; - hex, 3/8 NC x 1-1/4 inchImg
Alts
Select
Ref.
Qty
1Availability
Part #
D82919Description
SECTION DE COUTEAU; CHAMBER - oil, Includes: Ref. 3 - 24Img
Alts
Select
Ref.
4Qty
1Availability
Part #
A7982Description
O-RING 0.103'' Thk x 0.612'' ID, -114, Cl 5, 75 Duro; - plug;Part of kit, P/N D82920Img
Alts
Select
Ref.
7Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; PISTON - chamber, upperImg
Alts
Select
Ref.
9Qty
1Availability
Part #
N13012Description
GROMMET; COVER - rubber;Part of kit, P/N D82920Img
Alts
Select
Ref.
11Qty
3Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RING - backup;Part of kit, P/N D82920Img
Alts
Select
Ref.
12Qty
3Availability
Part #
NSSDescription
NOT SOLD SEPARAT; SEAL - two piece;REF: 12A SEAL - THREE PIECE ASSY;Part of kit, P/N D82920Img
Alts
Select
Ref.
14Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; O-RING - cover;Part of kit, P/N D82920Img
Alts
Select
Ref.
16Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RING - piston;Part of kit, P/N D82920Img
Alts
Select
Ref.
21Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RING - retaining;Part of kit, P/N D82920Img
Alts
Select
Ref.
22Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; HOUSING - chamberImg
Alts
Select
Ref.
Qty
1Availability
Part #
D82918Description
MASTER CYLINDER; MASTER CYLINDER - brake, Includes: Ref. 25 - 41Img
Alts
Select
Ref.
25Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; BODY - master cylinderImg
Alts
Select
Ref.
26Qty
1Availability
Part #
A12888Description
FILLER CAP; CAP - master cylinderImg
Alts
Select
Ref.
Qty
1Availability
Part #
D82921Description
PACKAGE, REPAIR; KIT - master cylinder repair, Includes: Ref. 28 - 41Img
Alts
Select
Ref.
28Qty
1Availability
Part #
S114797Description
SEAL 31.75mm ID x 41.27mm OD x 1.59mm Thk; - capImg
Alts
Select
Ref.
30Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; VALVE - master cylinderImg
Alts
Select
Ref.
31Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RING - retainingImg
Alts
Select
Ref.
32Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RETAINER - springImg
Alts
Select
Ref.
38Qty
1Availability
Part #
S114827Description
O-RING 0.364'' ID x 0.504'' OD x 0.07''; - pistonImg
Alts
Select
Ref.
41Qty
1Availability
Part #
NSSDescription
NOT SOLD SEPARAT; RING - retainingImg
Alts
Select
Ref.
Qty
1Availability
Part #
D82920Description

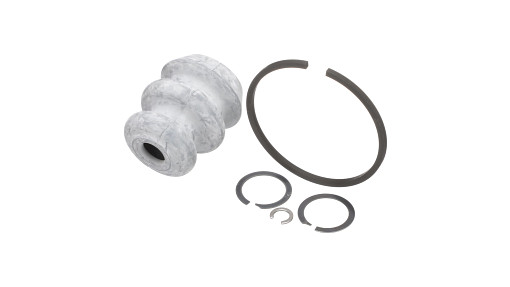

KIT; - oil chamber repair, Includes: Ref. 4, 9, 11, 12, 14, 16, 21Img
Alts
