10.400.01 - PIPING - ENGINE COOLING SYSTEM (504122685 - 504259533 - 504199747 - 4891480 - 504358254)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

3

Availability

Part #

16592924

Description

SCREW M10 x 1.5 x 80mm; M10 x 130


Alts

Select

Ref.

2

Qty

2

Availability

Part #

2854072

Description

SEALING RING Square, 5.16mm Thk x 50.17mm ID;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

2852392

Description

SUPPORT; ASSY


Alts

Select

Ref.

4

Qty

2

Availability

Part #

98405182

Description

DOWEL;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

4895393

Description

O-RING 2.2mm Thk x 15.3mm ID;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

4895080

Description

HEX SOCKET PLUG M22 x 1.5; ASSY


Alts

Select

Ref.

7

Qty

1

Availability

Part #

2854072

Description

SEALING RING Square, 5.16mm Thk x 50.17mm ID;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

4896924

Description

HYD CONNECTOR;


Alts

Select

Ref.

9

Qty

3

Availability

Part #

4895078

Description

PIPE PLUG 1/2''-14;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

4895118

Description

FITTING 1/4 - 18 NPTF x 37mm L;


Alts

Select

Ref.

11

Qty

1

Availability

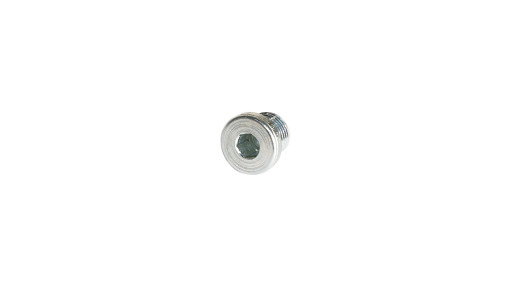

Part #

4895623

Description

HEX SOCKET PLUG M16 x 1.5; ASSY


Alts

Select

Ref.

12

Qty

1

Availability

Part #

4895625

Description

O-RING 13.3mm ID x 2.2mm Width;


Alts

Select

Ref.

13

Qty

2

Availability

Part #

4893036

Description

PIPE PLUG 3/4''-14 NPTF;


Alts

Select

Ref.

14

Qty

1

Availability

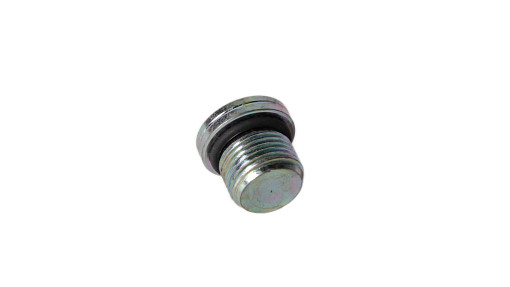

Part #

4895392

Description

HEX SOCKET PLUG M18 x 1.5; ASSY


Alts

Select

Ref.

15

Qty

1

Availability

Part #

84370315

Description

PIPE;


Alts
