00.00CR214[01] - MAINTENANCE PARTS, FEEDER WEAR PLATES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

86597140

Description

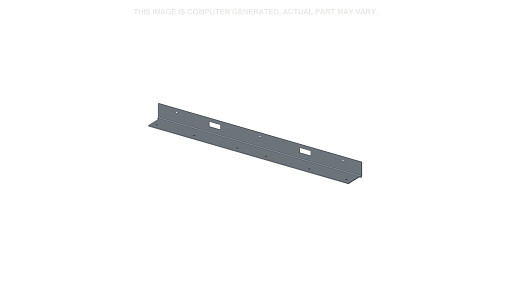

WEAR PLATE; Bottom plate;FOR CR9060 AND CR9070 ONLY


Alts

Select

Ref.

1

Qty

1

Availability

Part #

86602973

Description

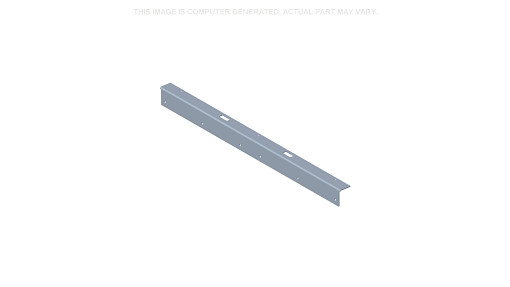

WEAR PLATE; Bottom plate;FOR CR9080 AND CR9090 ONLY


Alts

Select

Ref.

2

Qty

9

Availability

Part #

412710

Description

HEX SOC SCREW Flat Hd, Csk, M6 x 20mm, Cl 10.9;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

86602979

Description

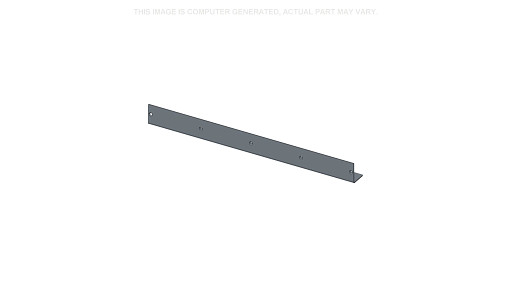

WEAR PLATE; Bottom plate;FOR CR9060 AND CR9070 ONLY


Alts

Select

Ref.

3

Qty

1

Availability

Part #

86602972

Description

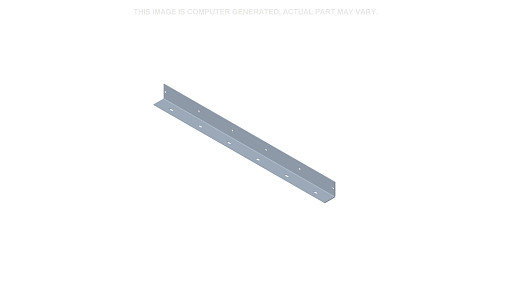

WEAR PLATE; Bottom plate;FOR CR9080 AND CR9090 ONLY


Alts

Select

Ref.

4

Qty

AR

Availability

Part #

412495

Description

HEX SOC SCREW Flat Hd, M8 x 20mm, Cl 8.8;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

86602978

Description

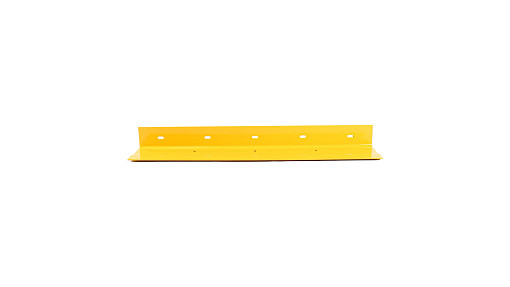

WEAR PLATE; Bottom plate;FOR CR9060 AND CR9070 ONLY


Alts

Select

Ref.

5

Qty

1

Availability

Part #

86602971

Description

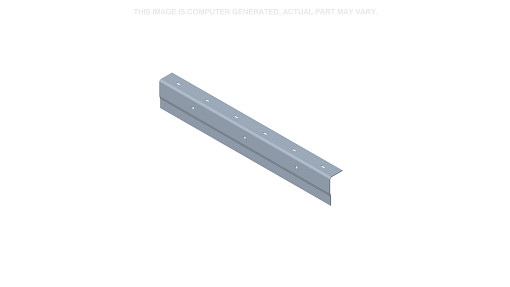

WEAR PLATE; Bottom plate;FOR CR9080 AND CR9090 ONLY


Alts

Select

Ref.

6

Qty

3

Availability

Part #

412168

Description

HEX SOC SCREW Flat Hd, M8 x 30mm, Cl 8.8;


Alts

Select

Ref.

7

Qty

3

Availability

Part #

86587330

Description

WEAR STRIP; Stone trap


Alts

Select

Ref.

7

Qty

4

Availability

Part #

86587330

Description

WEAR STRIP; Stone trap


Alts

Select

Ref.

8

Qty

9

Availability

Part #

86900703

Description

HEX SOC SCREW Flat Hd, CSK, M8 x 1.25 x 16mm, Cl 8.8; ,;FOR CR9060 AND CR9070 ONLY


Alts

Select

Ref.

8

Qty

9

Availability

Part #

14442031

Description

SCREW Flat Csk Hd, M8 x 1.25 x 20mm, Cl 10.9; ,;FOR CR9060 AND CR9070 ONLY


Alts

Select

Ref.

8

Qty

12

Availability

Part #

86900703

Description

HEX SOC SCREW Flat Hd, CSK, M8 x 1.25 x 16mm, Cl 8.8; ,;FOR CR9080 AND CR9090 ONLY


Alts

Select

Ref.

8

Qty

12

Availability

Part #

14442031

Description

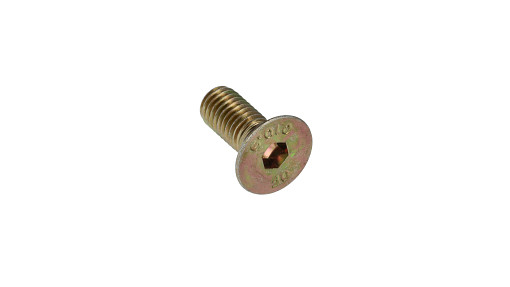

SCREW Flat Csk Hd, M8 x 1.25 x 20mm, Cl 10.9; ,;FOR CR9080 AND CR9090 ONLY


Alts

Select

Ref.

8

Qty

12

Availability

Part #

86900703

Description

HEX SOC SCREW Flat Hd, CSK, M8 x 1.25 x 16mm, Cl 8.8; ,;FOR HEAVY DUTY ONLY


Alts

Select

Ref.

8

Qty

12

Availability

Part #

14442031

Description

SCREW Flat Csk Hd, M8 x 1.25 x 20mm, Cl 10.9; ,;FOR HEAVY DUTY ONLY


Alts

Select

Ref.

9

Qty

3

Availability

Part #

86551643

Description

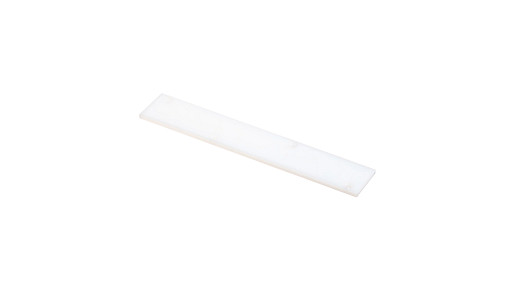

WEAR STRIP; Feeder chain guide;FOR USE WITH FRONT FACE ADJUSTMENT ONLY


Alts

Select

Ref.

9

Qty

8

Availability

Part #

84285814

Description

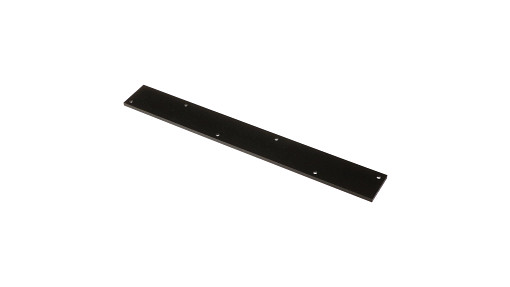

WEAR STRIP; Wear strip, Feeder chain guide;FOR HEAVY DUTY ONLY;FOR USE WITH FRONT FACE ADJUSTMENT ONLY


Alts

Select

Ref.

10

Qty

3

Availability

Part #

86587330

Description

WEAR STRIP; Feeder chain guide;FOR CR9060 AND CR9070 ONLY;FOR USE WITH FRONT FACE ADJUSTMENT ONLY


Alts

Select

Ref.

10

Qty

4

Availability

Part #

86587330

Description

WEAR STRIP; FOR CR9080 AND CR9090 ONLY;FOR USE WITH FRONT FACE ADJUSTMENT ONLY


Alts

Select

Ref.

11

Qty

21

Availability

Part #

84814921

Description

HEX SOC SCREW CSS, M8 x 25mm, Cl 10.9; ,;FOR USE WITH FRONT FACE ADJUSTMENT ONLY


Alts

Select

Ref.

11

Qty

52

Availability

Part #

84814921

Description

HEX SOC SCREW CSS, M8 x 25mm, Cl 10.9; ,;FOR USE WITH FRONT FACE ADJUSTMENT ONLY


Alts

Select

Ref.

12

Qty

1

Availability

Part #

84072474

Description

PLATE ASSY.; Wear plate kit


Alts

Select

Ref.

13

Qty

2

Availability

Part #

84045488

Description

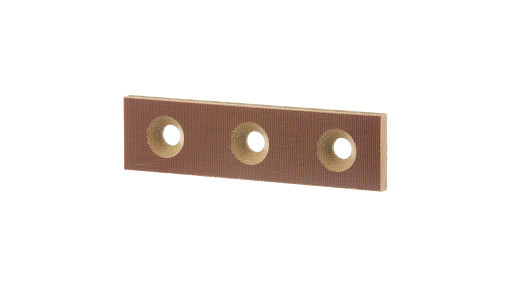

WEAR PLATE; Feeder balance frame


Alts

Select

Ref.

14

Qty

2

Availability

Part #

87367412

Description

STRIP; Feeder balance frame


Alts
