G.106[01] - PLATFORM CHASSI
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    NSS
    NOT SOLD SEPARAT; CHASSI, 13' RIG., Use actual model, Replaces 338583
  • 1
    NSS
    NOT SOLD SEPARAT; CHASSI, 15' RIG., Use actual model, Replaces 338599
  • 1
    36
    43140
    BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd;
  • 2
    36
    140017
    WASHER M10 x 20mm OD x 2mm Thk;
  • 3
    15
    140042
    WASHER 11mm ID x 34mm OD x 3mm Thk, CST, ZND;
  • 4
    61
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 5
    45
    100016
    NUT Hex, M10 x 1.5, Cl 8, ZND;
  • 6
    1
    338507
    SIDE PLATE; RH
  • 7
    3
    43128
    BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd;
  • 8
    26
    140041
    WASHER M8 x 28mm OD x 3mm Thk;
  • 9
    23
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 10
    27
    9706690
    NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 11
    15
    11106231
    BOLT Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd;
  • 12
    28
    43127
    VIS Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd;
  • 13
    2
    338514
    COLLIER;
  • 14
    1
    371950
    PLAQUE;
  • 15
    2
    86629541
    VIS Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd;
  • 16
    6
    140018
    RONDELLE 13.5mm ID x 24mm OD x 2.5mm Thk;
  • 17
    10
    140046
    RONDELLE BELLEVILLE M12 Bolt Size x 27mm OD x 1.8mm Thk;
  • 18
    8
    9706685
    NUT Hex, M12 x 1.75, Cl 8, ZND;
  • 19
    4
    43168
    BOLT Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd;
  • 20
    4
    333041
    WASHER 16.5mm ID x 49mm OD x 6mm Thk;
  • 21
    4
    140048
    BELLEVILLE WASHER M16 Bolt Size x 32mm OD x 2.8mm Thk;
  • 22
    4
    100020
    NUT Hex, M16 x 2, Cl 8, ZND;
  • 23
    10
    140016
    WASHER M8 x 16mm OD x 1.6mm Thk;
  • 24
    1
    368234
    SIDE PLATE; LH
  • 25
    1
    328754

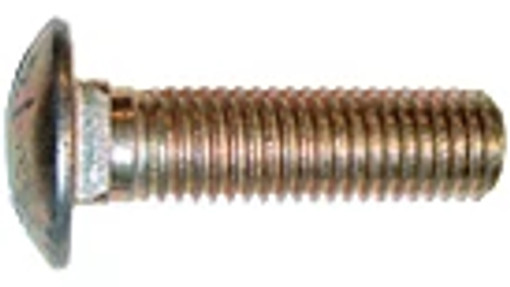

    CARRIAGE BOLT M12 x 1.75 x 40mm, Cl 8.8;
  • 26
    1
    362977
    SHIM;
  • 27
    1
    338593
    ANGLE BAR; 13' RIG.
  • 27
    1
    338609
    ANGLE BAR; 15' RIG.
  • 28
    2
    338826
    PROTECTION PLATE; 13' RIG.
  • 28
    2
    338828
    GUARD; 15' RIG.
  • 29
    AR
    120073
    BOLT Hex, M10 x 86.58mm, Cl 8.8;
  • 30
    4
    355235
    SLIDING PAD;
  • 31
    2
    338344
    STRIPPER; 13' RIG.
  • 31
    2
    338345
    STRIPPER; 15' RIG.
  • 32
    1
    338511
    GUARD; Central
  • 33
    1
    333116
    DIVIDER; RH
  • 33
    1
    333120
    DIVIDER; LH
  • 34
    1
    140043
    WASHER;
  • 35
    2
    328430
    CARRIAGE BOLT M12 x 1.75 x 35mm, Cl 8.8;
  • 36
    1
    362976
    SUPPORT;
  • 37
    4
    120044
    CARRIAGE BOLT M12 x 1.75 x 30mm, Cl 8.8;
