037 - LIGHTING, NORTH AMERICA
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    608852

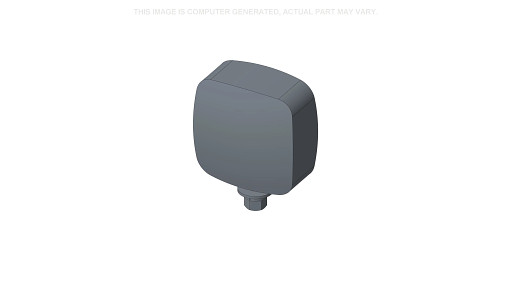

    LUZ DE ADVERTÊNCIA; Double-face, Amber
  • 2
    2
    86514198
    TAIL LAMP; Red
  • 3
    2
    9611465
    BRACKET;
  • 4
    2
    9611464
    BRACKET;
  • 5
    1
    86559103
    WIRE HARNESS;
  • 6
    1
    86559102
    WIRE HARNESS; Lighting
  • 7
    2
    9804255
    FLANGE BOLT Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8;
  • 8
    10
    86010402

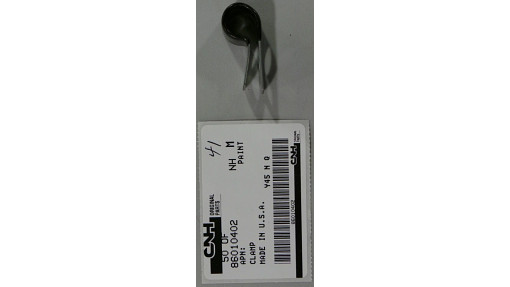

    ABRAZADERA 12.7mm, Coat, 10.3mm Bolt Hole, P Type;
  • 9
    1
    86533245
    SOPORTE;
  • 10
    1
    9611467
    SOPORTE; Plug Holder
  • 11
    12
    263117

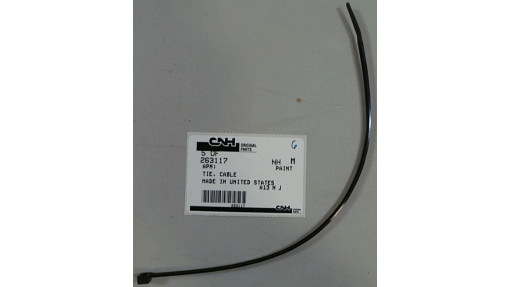

    BANDA DE CABLE 292.1mm L, Nylon, Black;
  • 12
    1
    237980
    ABRAZADERA DE CABLE 11.11mm, Coat, 7.14mm Bolt Hole, P Type; 7/16'', 1/4''-bolt
  • 13
    1
    9706732

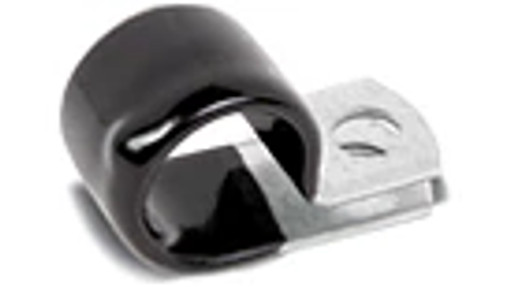

    ABRAZADERA 19mm ID, 8.7mm Bolt Hole, P Type;
  • 14
    2
    677808

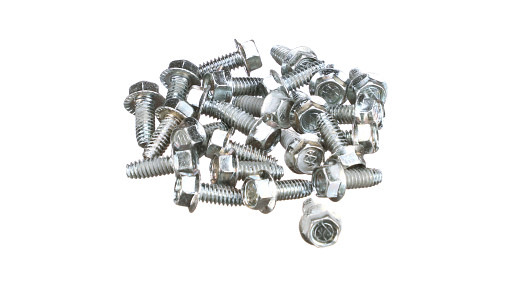

    TORNILLO AUTOROSCANT Hex Flng, 1/4'' - 20 x 5/8''; HWH, 1/4''-20 x 5/8''
  • 15
    AR
    258985
    GROMMET; Split Conduit
  • 16
    2
    86511444
    FLANGE NUT Hex, M6 x 1;
  • 17
    1
    86508568
    BOLT Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd;
  • 18
    2
    88146
    BOLT Hex, 1/4'' - 20 x 1'', Gr 5;
  • 19
    12
    9804258
    FLANGE BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8;
  • 20
    2
    80701

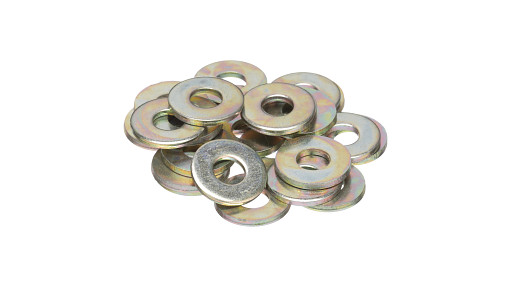

    WASHER 0.31'' ID x 0.73'' OD x 0.07'' Thk;
  • 21
    2
    80664

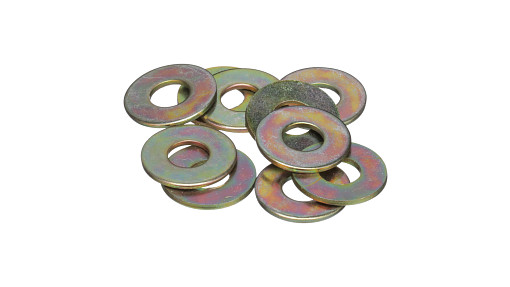

    WASHER 0.38'' ID x 0.88'' OD x 0.08'' Thk;
  • 22
    1
    86561136
    MODULE; Lighting Control
  • 23
    1
    86511444
    FLANGE NUT Hex, M6 x 1;
  • 24
    12
    86505868
    SERRATED NUT Hex, M8 x 1.25, Cl 8;
  • 25
    8
    853709
    GASKET 1.65mm Thk;
  • 26
    2
    529068
    BULB #1156, 12V, 21W;
  • 27
    2
    F0NN15N581BA
    LENS; Amber
  • 28
    4
    280963
    TUERCA Nut, 1/2-20 GR 5 ZND;
  • 29
    4
    80700

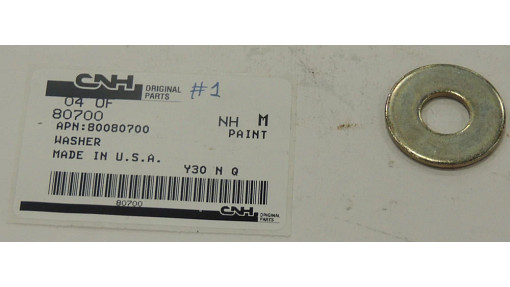

    WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;
  • 30
    4
    80679
    LOCK WASHER 1/20.507 CST ZND;
  • 31
    2
    853711
    LENS; Red Lens
  • 32
    2
    7770
    NUT Hex, 1/4 - 20, Gr 5;
  • 33
    2
    86537133
    BULB C6, #1157, 12.8V;
  • 34
    2
    86537132
    KIT; Black Lens
  • 35
    2
    322357
    ARANDELA BELLEVILLE M6 Bolt Size x 14mm OD x 1.3mm Thk;
