G309[01] - BEATER AND ROTARY SEPARATOR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • X
    1
    84995897
    BEATER; Only TC57
  • 1
    2
    84026027
    BALL BEARING 50mm ID x 110mm OD x 66.7mm W; Only TC57; (SN Break) From 9091
  • 1
    2

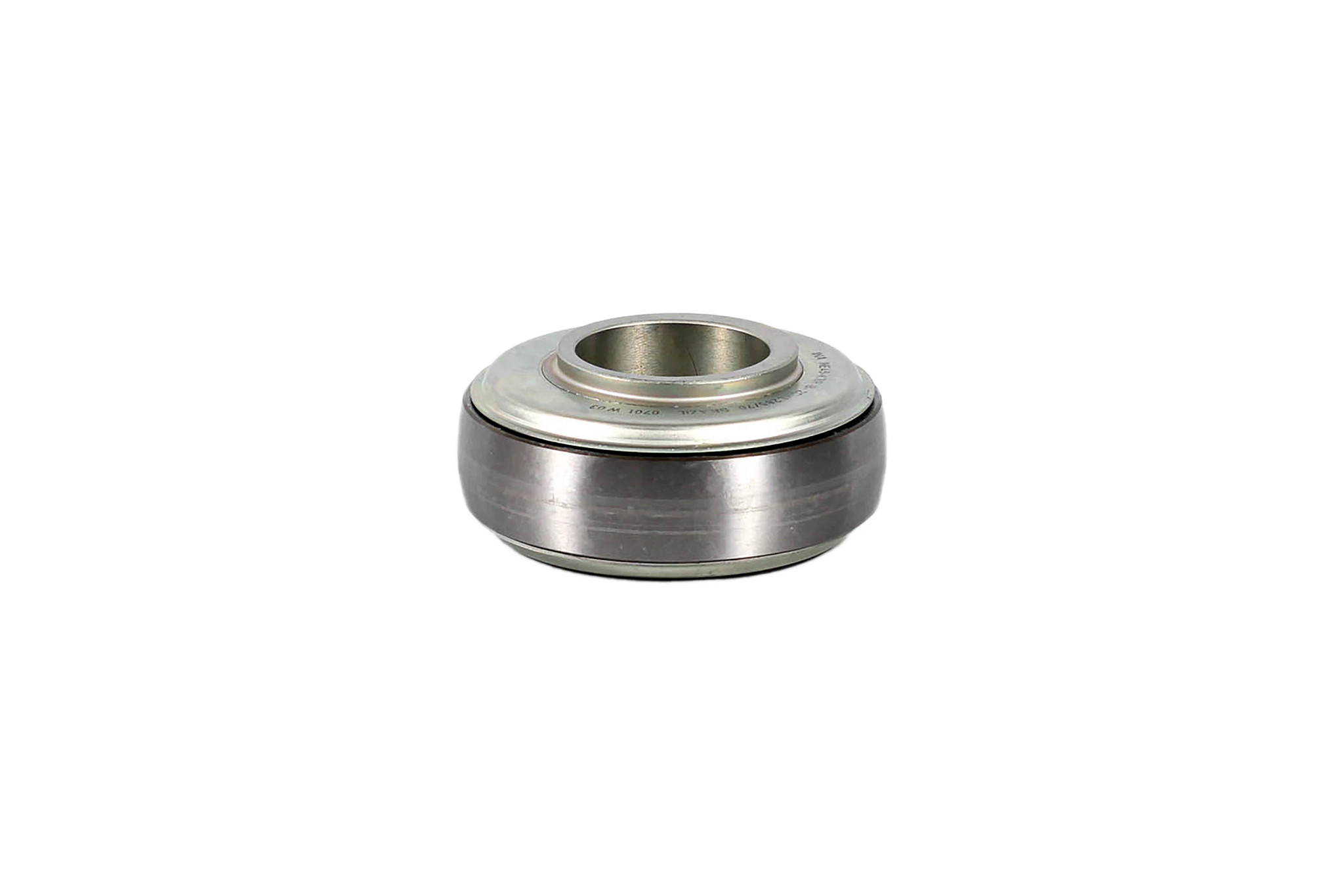

    84991731
    BALL BEARING 45mm ID x 100mm OD x 43mm W; (SN Break) Up to 9090
  • 1
    2
    NLS
    NO LONGER SERVICED; (SN Break) Up to 9090
  • 2
    2
    825644
    HOLDER; (SN Break) Up to 9090
  • 2
    2
    84990995
    BEARING HOUSING; Only TC55; (SN Break) From 9091
  • 2
    2

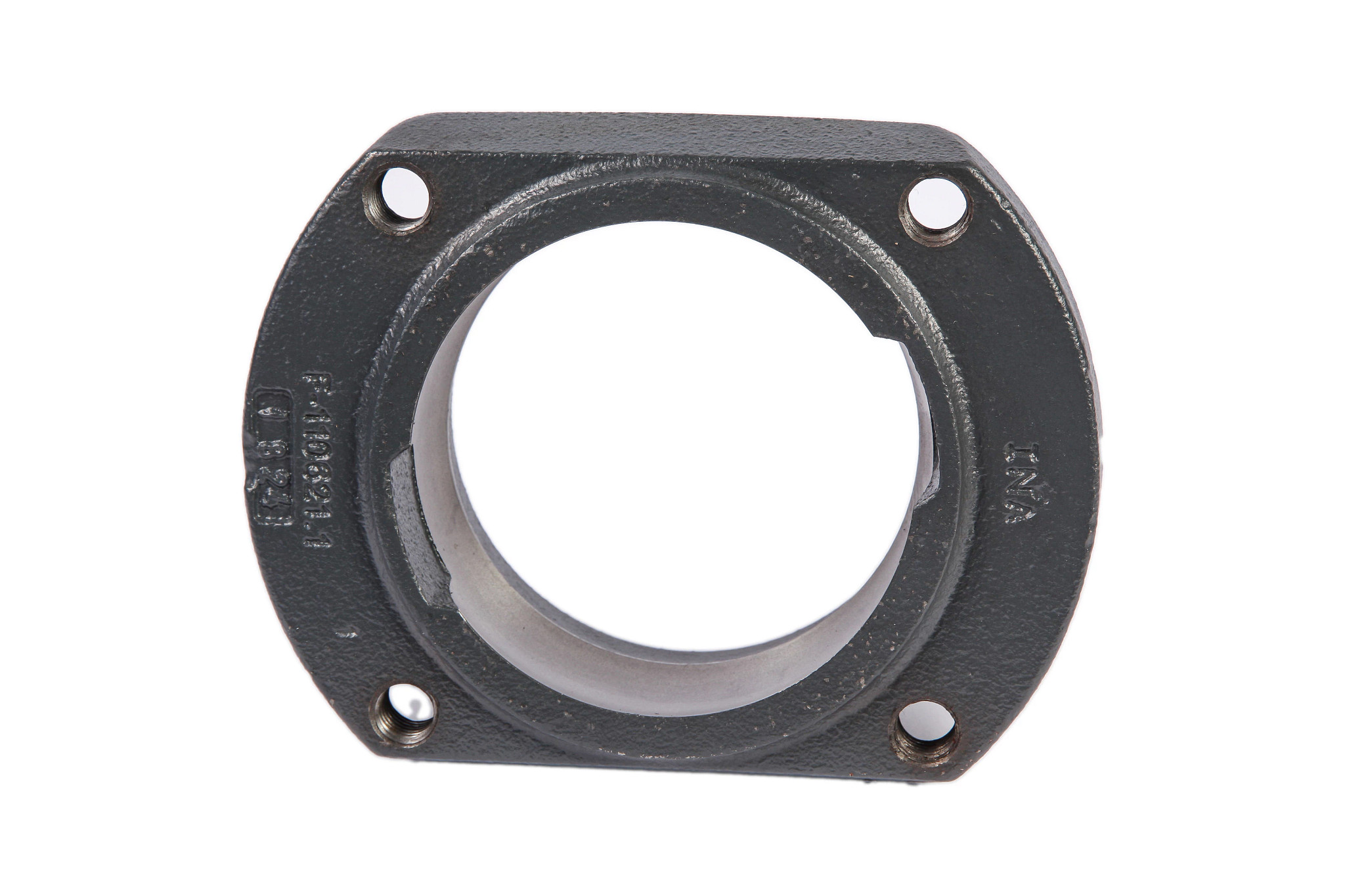

    84991021
    BEARING HOUSING; Only TC57; (SN Break) From 9091
  • 3
    8
    120201
    BOLT Hex, M10 x 35mm, Cl 8.8, Full Thd;
  • 4
    8
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 5
    36
    9706687
    BOLT Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd; Part of 84995897;Only TC57
  • 6
    36
    140046
    BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk; Part of 84995897;Only TC57
  • 7
    36
    378245
    WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; Part of 84995897;Only TC57
  • 8
    1
    84996664
    BEATER; Kit, Part of 84995897;Only TC57
  • 8
    4

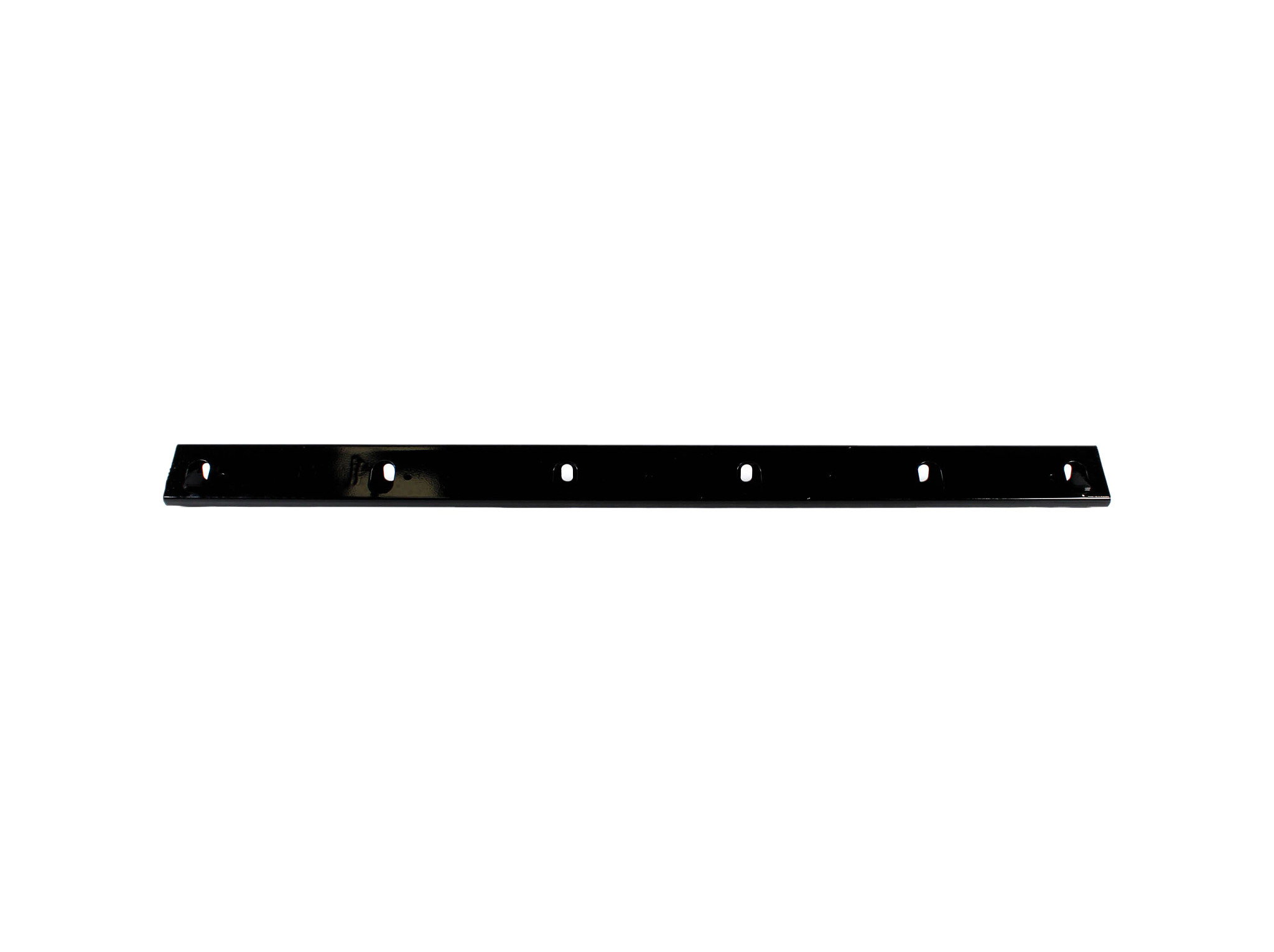

    84996665
    SUPPORT; Part of 84995897;Only TC57
  • 8
    4
    84996666
    SHEAR BAR; Part of 84995897;Only TC57
  • 9
    2

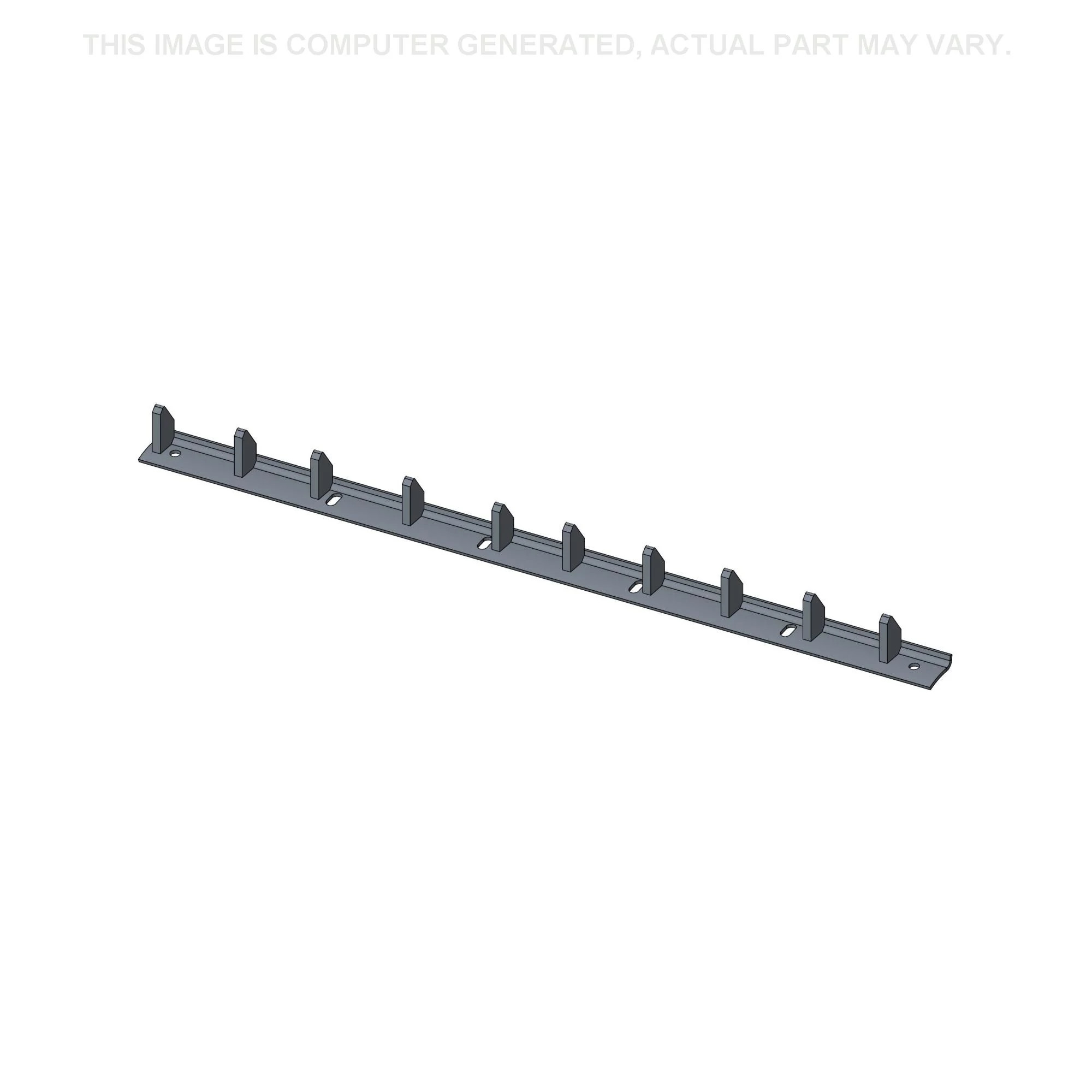

    84996661
    BEATER; Part of 84995897;The pair should be used,Only TC57
  • 9
    2
    84996662
    BEATER; Part of 84995897;The pair should be used,Only TC57
  • 10
    2
    84996743
    TUBE; Part of 84995897;Only TC57
  • 11
    2
    84995925
    DISC; Part of 84995897;Only TC57

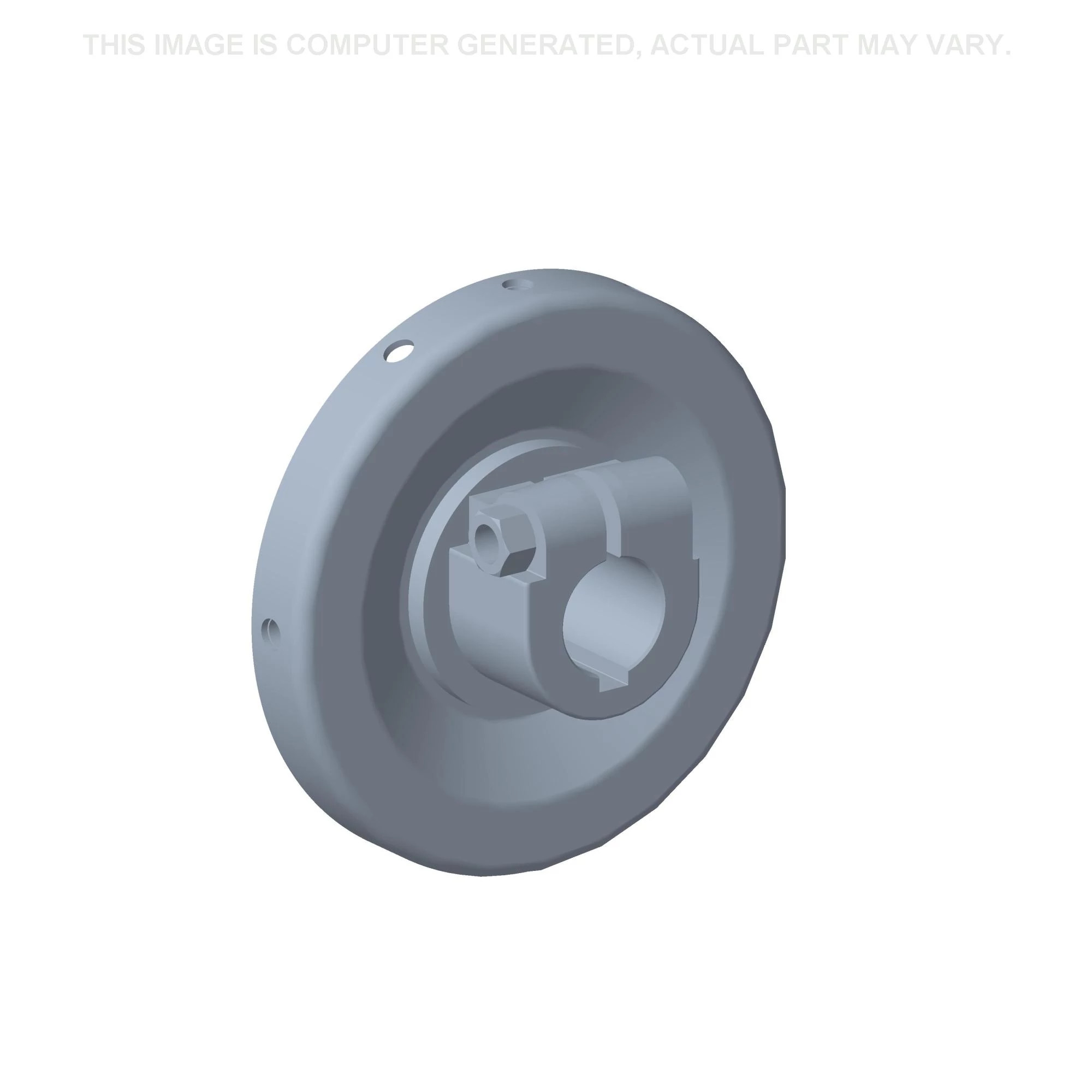

  • 12
    2
    84996716
    DISC; Part of 84995897;Only TC57
  • 13
    2
    350616
    BOLT Hex, M16 x 2 x 90mm, Cl 8.8;
  • 14
    1
    84992866
    SHAFT; Only TC57; (SN Break) From 9091
  • 14
    1
    84999343
    SHAFT; Replaces 825652;Only TC55
  • 14
    1
    84999344
    SHAFT; Replaces 825651;Only TC57; (SN Break) Up to 9090
  • 15
    2
    825062
    KEY;

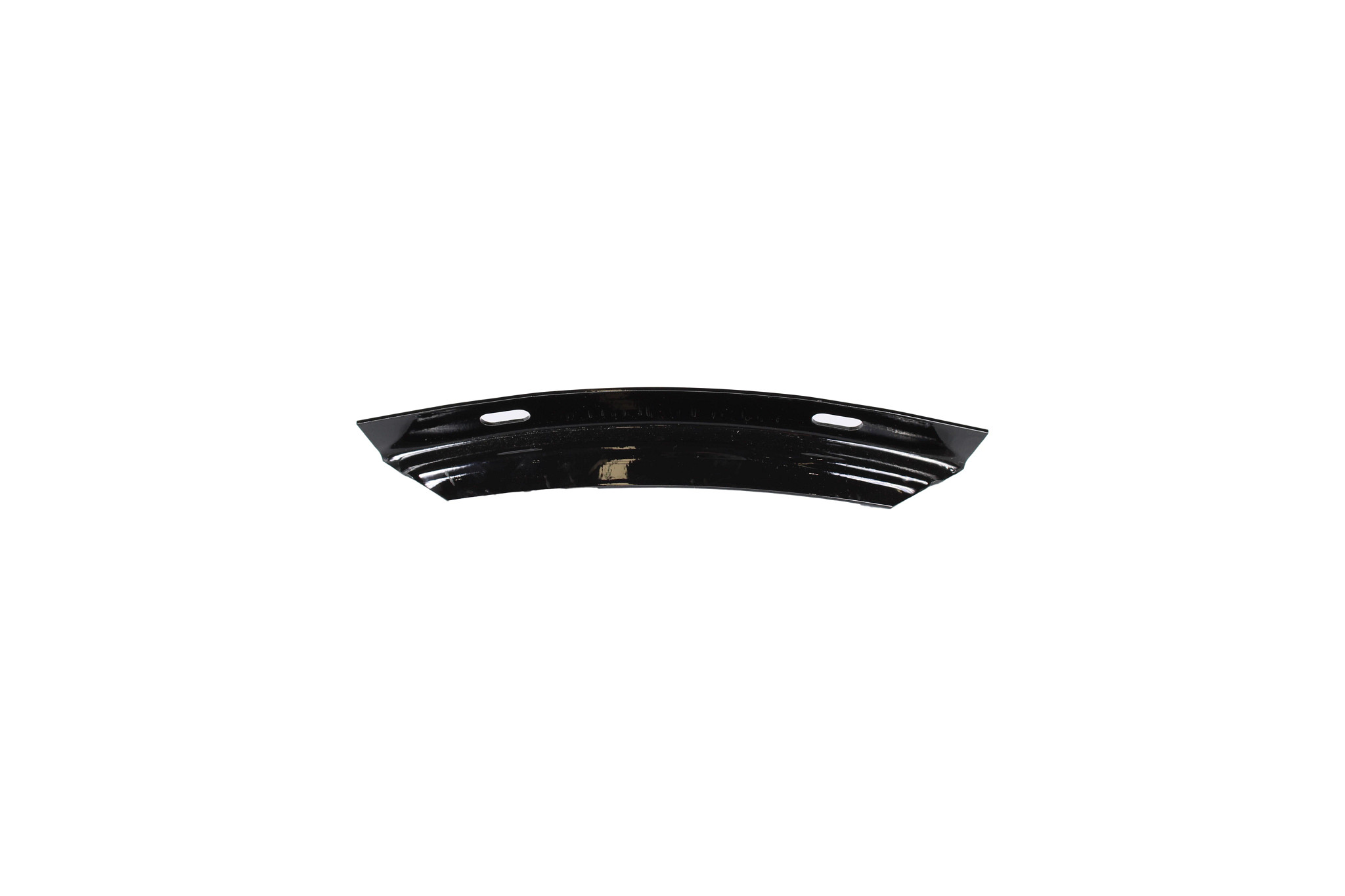

  • 16
    2
    824923
    GUARD;
  • 16
    2

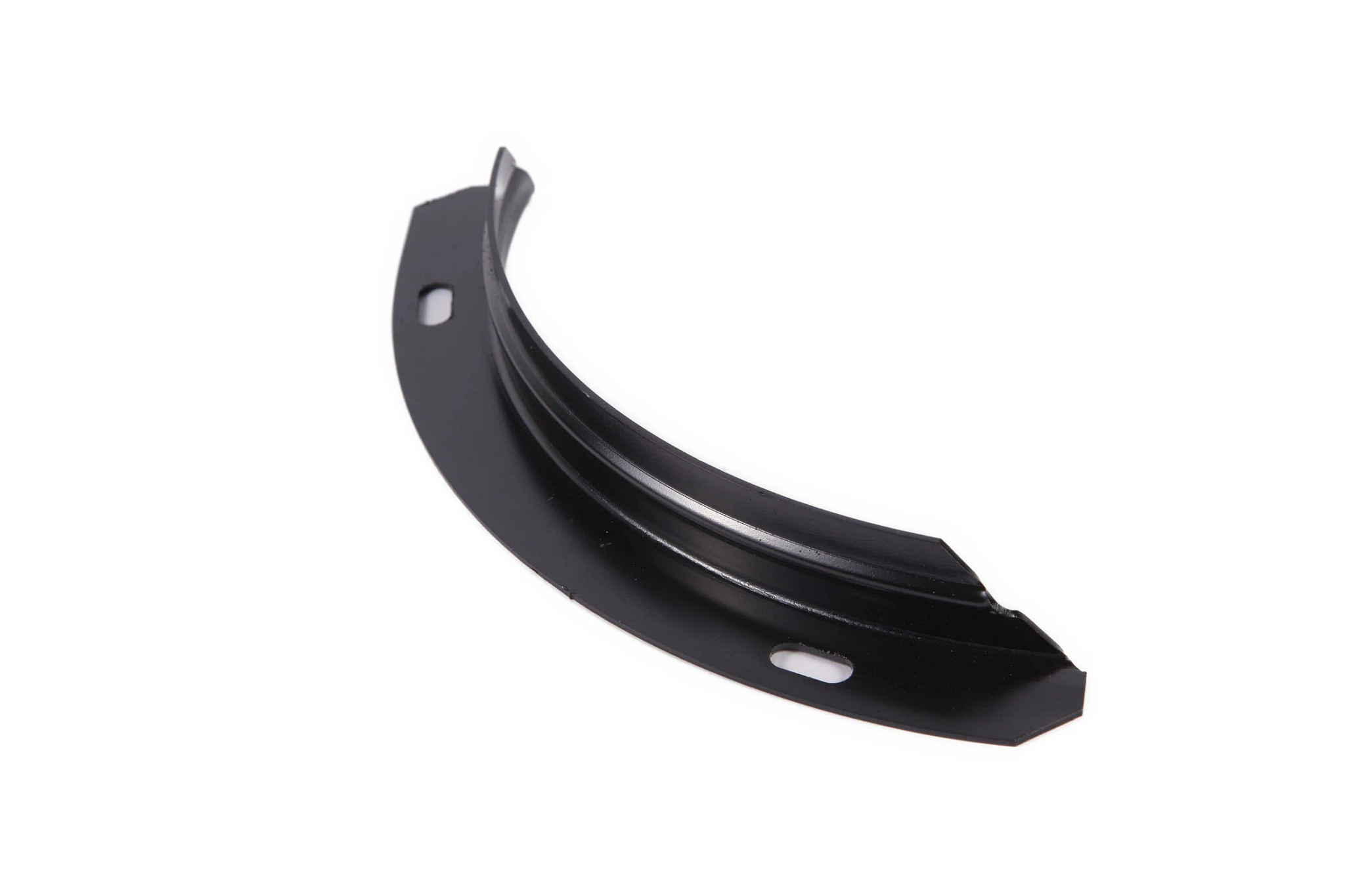

    84026586
    DEFLECTOR; Only TC57
  • 17
    4
    15896221
    NUT Hex, M6 x 1, Cl 10, ZND;
  • 18
    4
    322357
    BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;

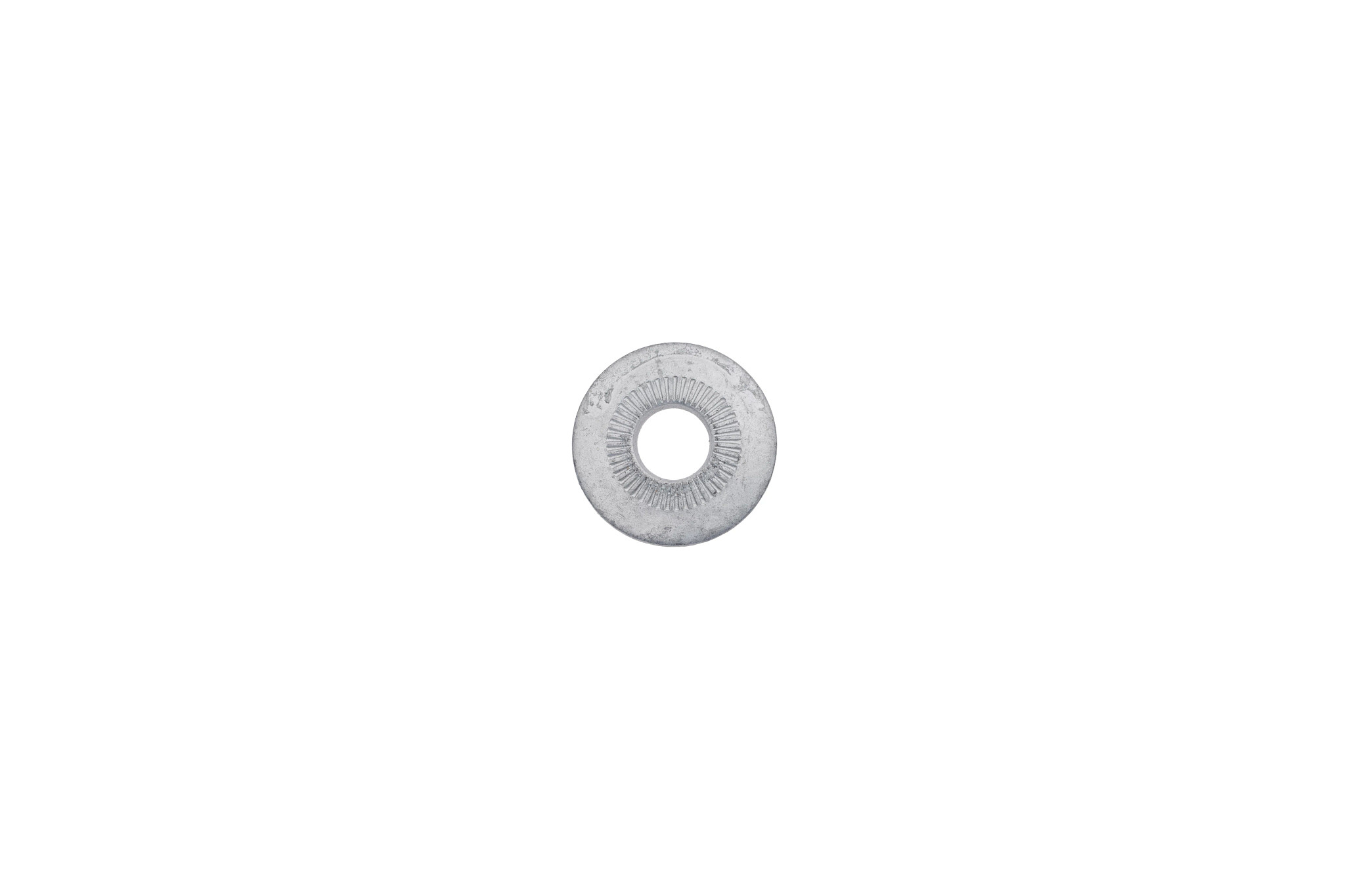

  • 18
    8
    412649
    BELLEVILLE WASHER M6 Bolt Size x 18mm OD x 1.4mm Thk; Only TC57
  • 19
    4
    140015
    WASHER 6.4mm ID x 14mm OD x 1.6mm Thk; Except ARGENTINA;Optional, 418538
  • 20
    4

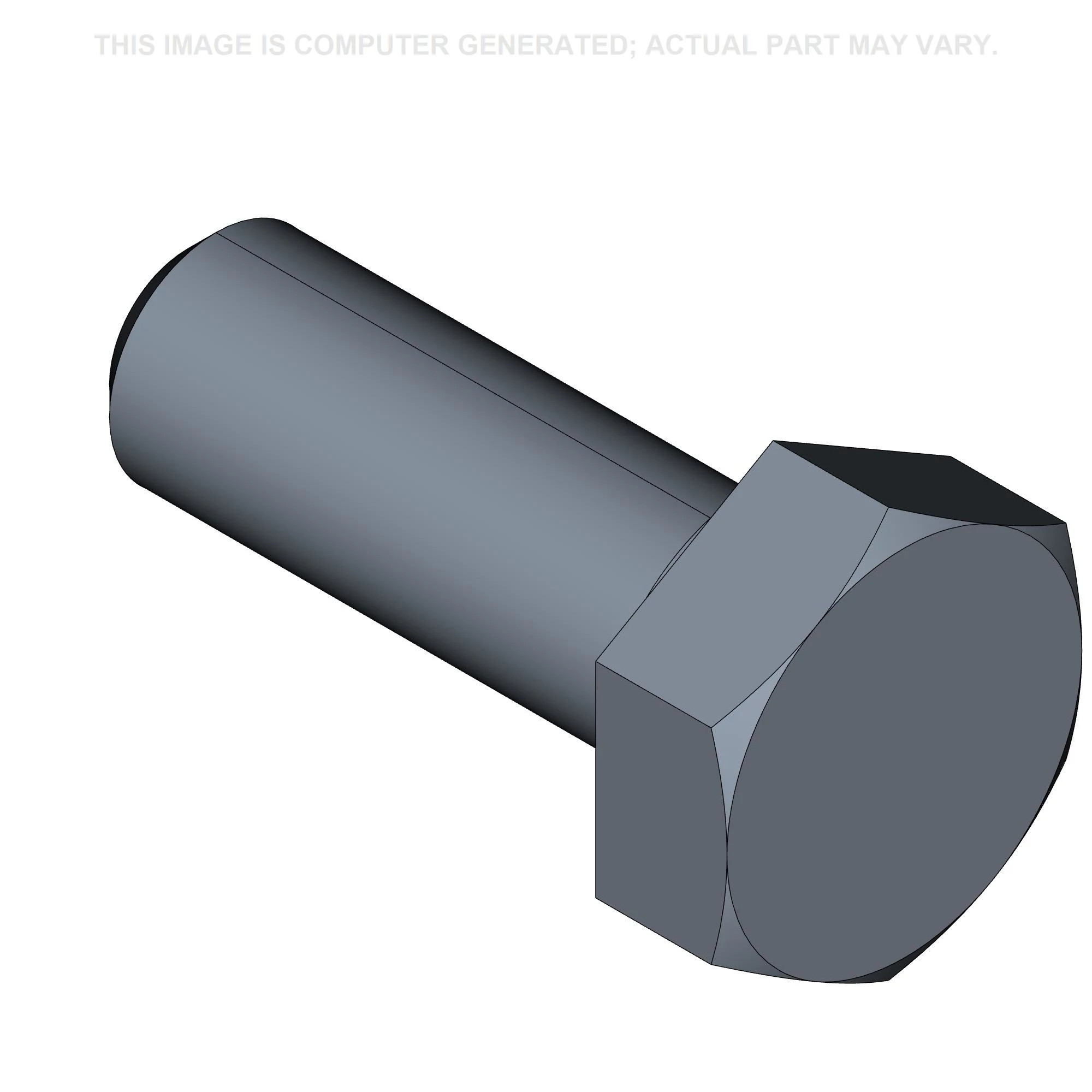

    120099
    BOLT Hex, M6 x 16, 8.8;
  • 21
    1
    825106
    SPACER 45.4mm ID x 57mm OD x 3mm L; LH, Use with 825651/2
  • 22
    2
    433131
    PLATE; Only TC55
  • 22
    2

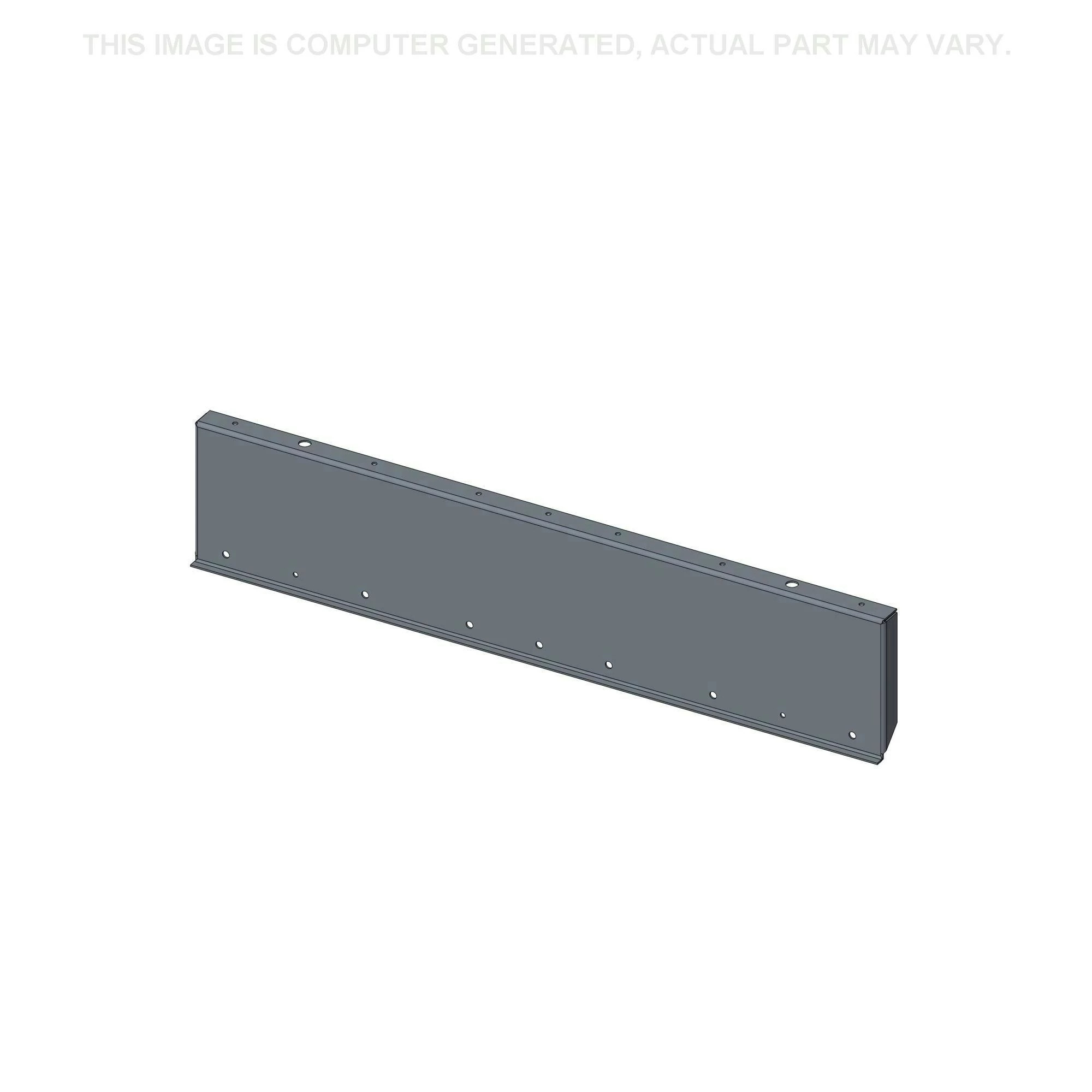

    447254
    PLATE; Only TC57
  • 23
    4
    757713
    PANEL; Only TC55

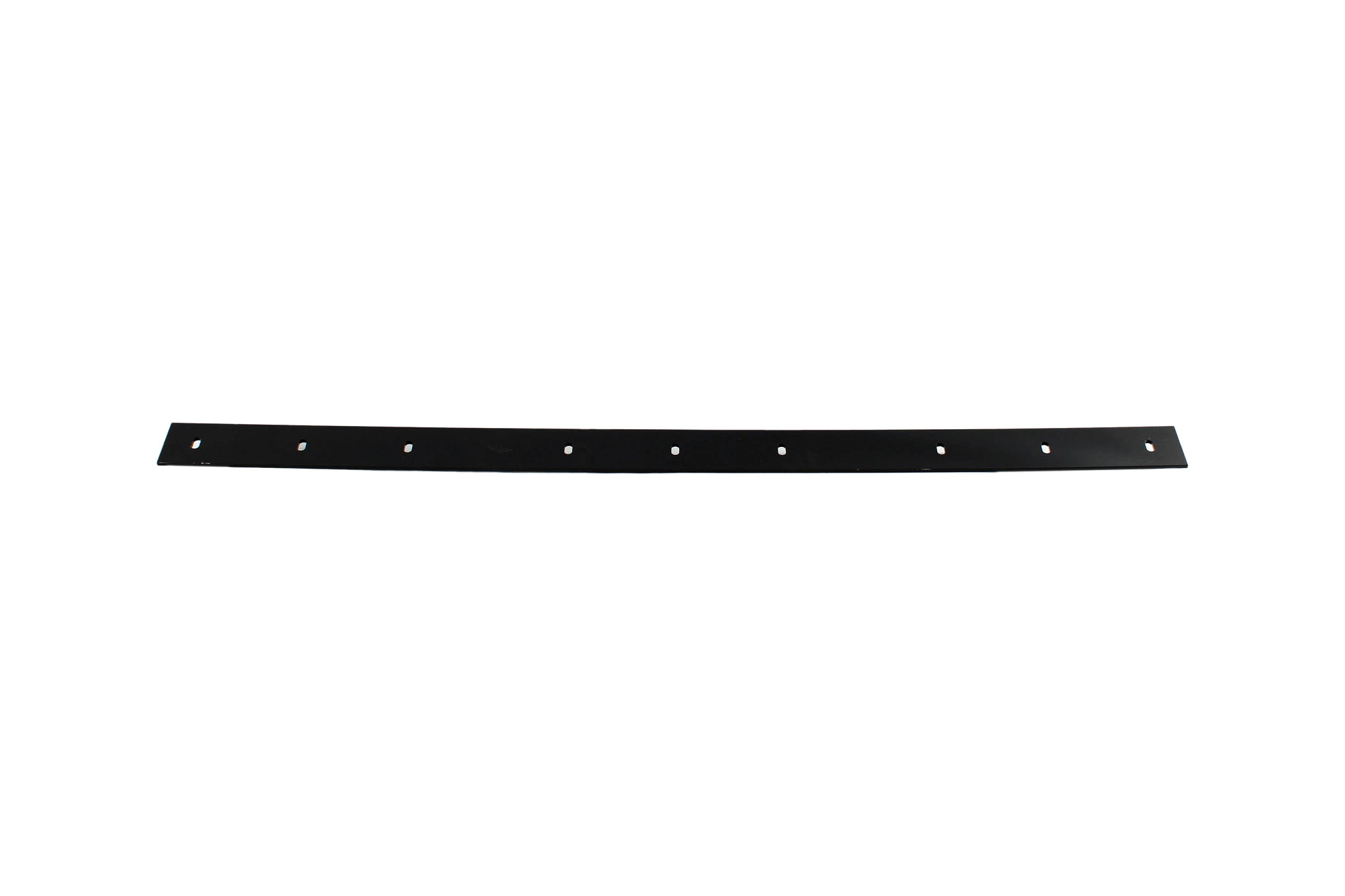

  • 23
    4
    757714
    STEEL PLATE; Only TC57
  • 24
    AR
    120104
    BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; TC55: Q = 44, TC57: Q = 52
  • 25
    AR
    140083
    WASHER 11mm ID x 40mm OD x 6mm Thk; For balancing
  • 25
    AR
    378243
    WASHER 8.4mm ID x 21mm OD x 1.6mm Thk; For balancing
  • 25
    AR
    378243
    WASHER 8.4mm ID x 21mm OD x 1.6mm Thk; For balancing;TC55: Q = 44, TC57: Q = 52

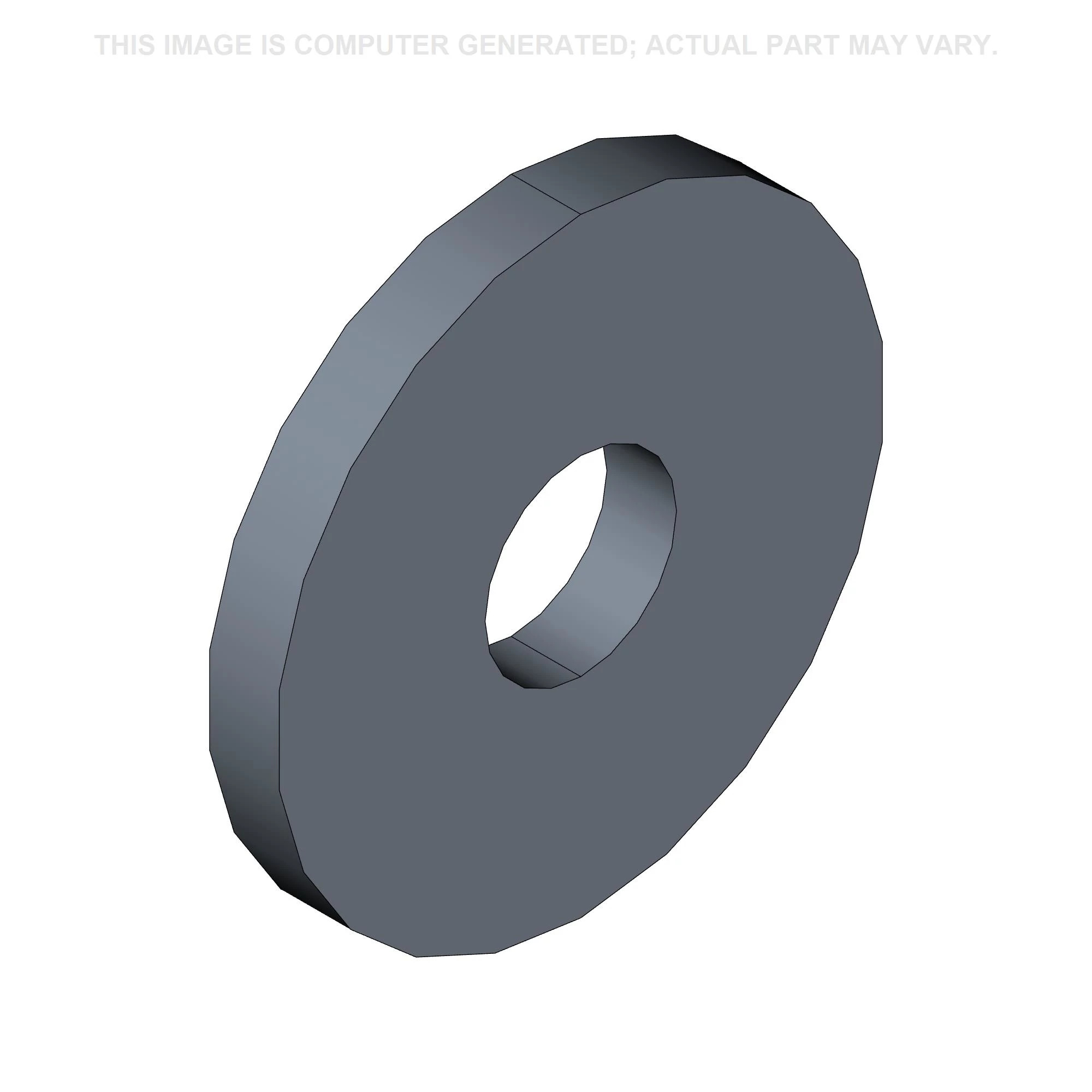

  • 25
    AR
    395900
    WASHER; For balancing
  • 26
    AR
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk; TC55: Q = 44, TC57: Q = 52
  • 27
    AR
    9706690
    NUT Hex, M8 x 1.25, Cl 8, ZND; TC55: Q = 44, TC57: Q = 52

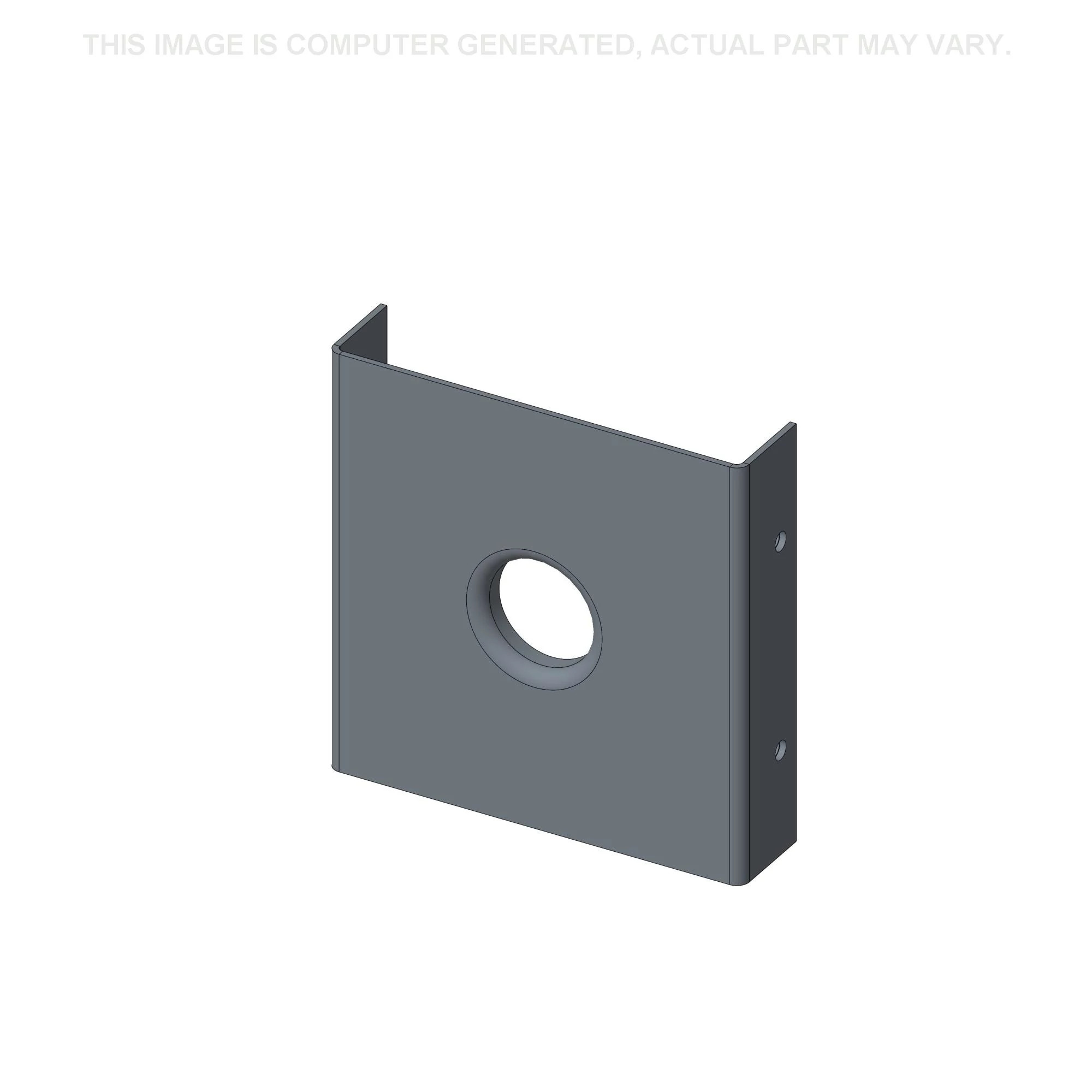

  • 28
    2
    427813
    SUPPORT;

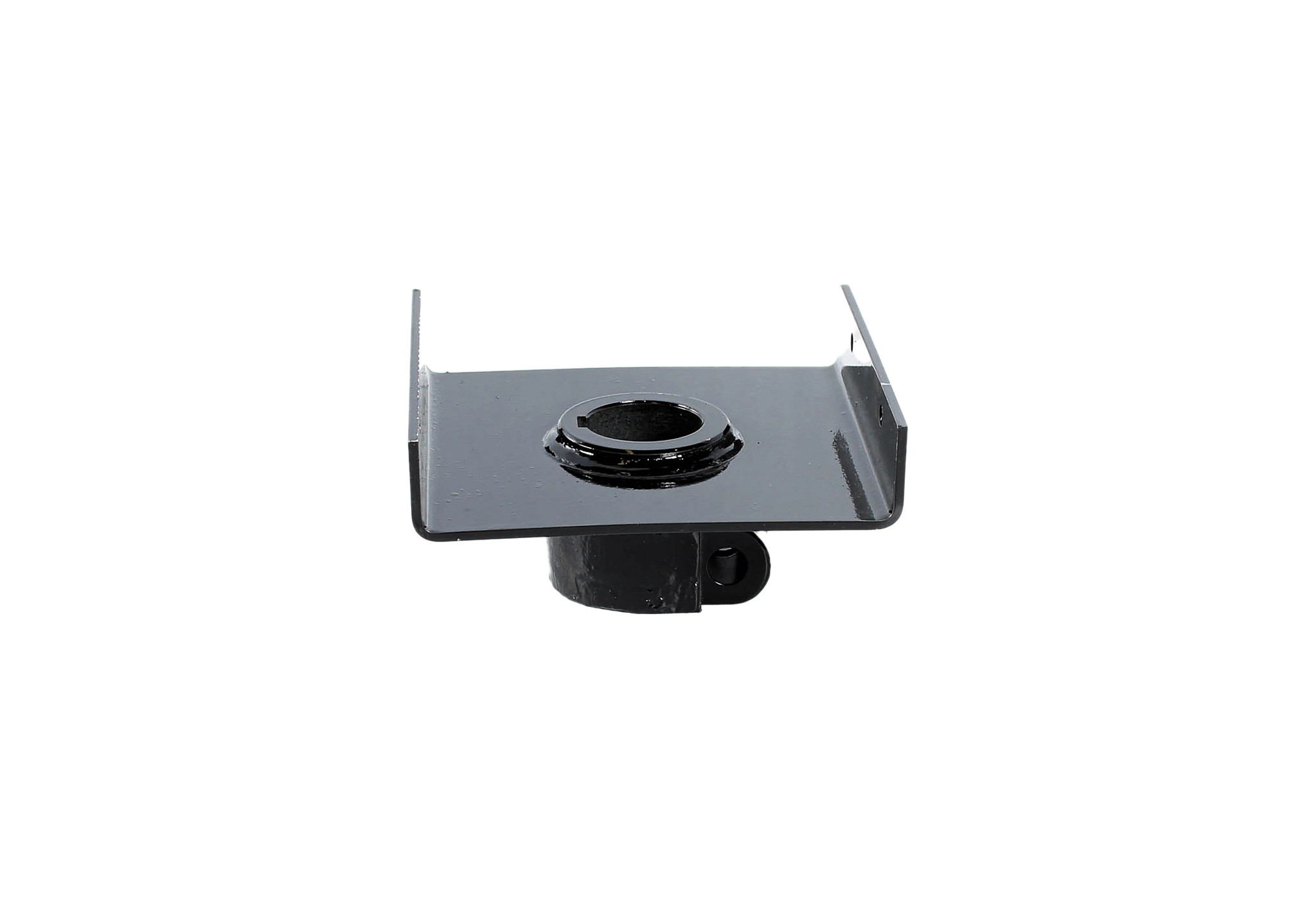

  • 29
    2
    825645
    SUPPORT;
  • 30
    2
    86000441
    LOCK NUT Hex, M16 x 2, Cl 8, ZND;
  • 31
    2
    418263
    PLATE; Only TC55

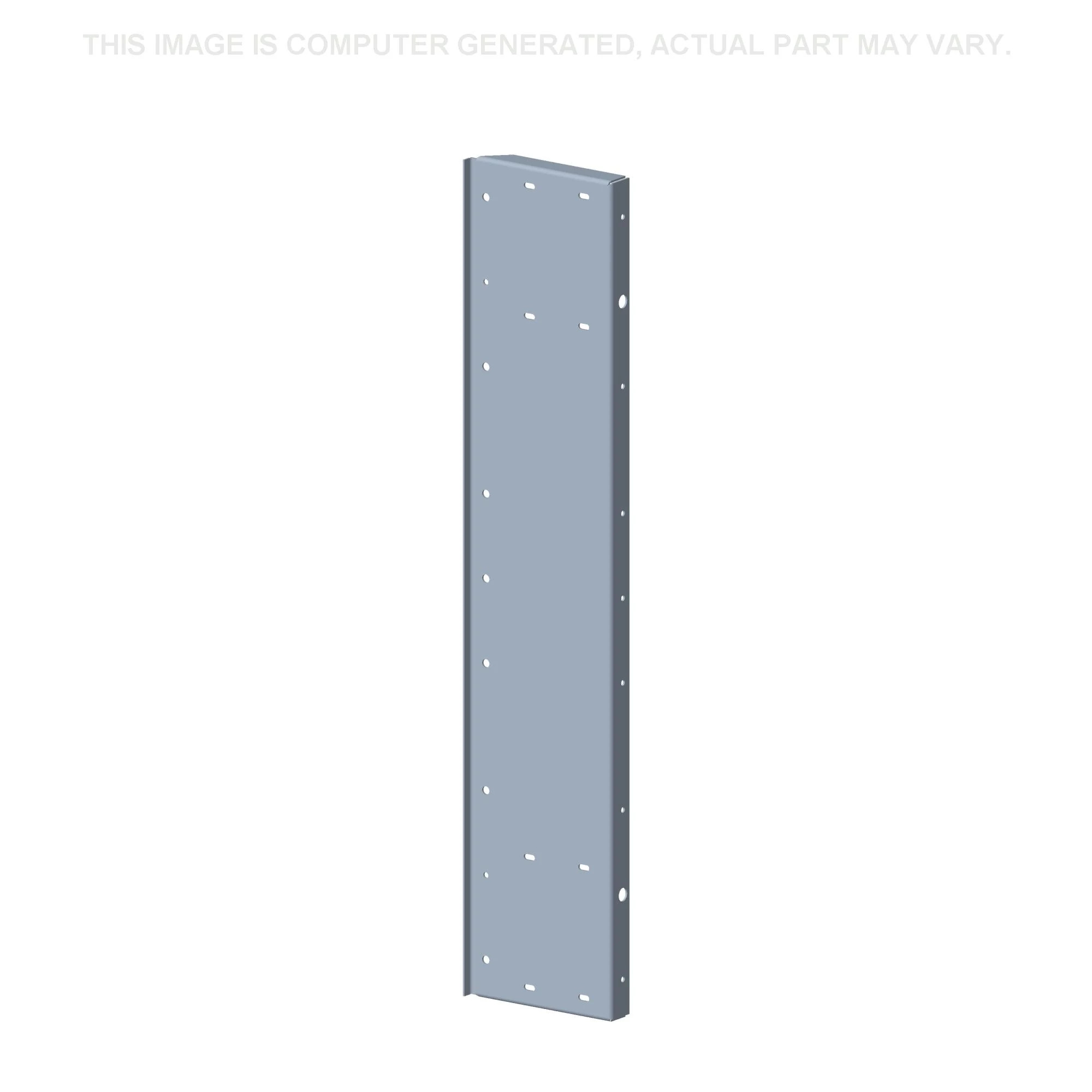

  • 31
    2
    447253
    PLATE; Only TC57
  • 50
    9
    100016
    NUT Hex, M10 x 1.5, Cl 8, ZND;
  • 51
    6
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 52
    58
    338949
    CARRIAGE BOLT M10 x 1.5 x 25mm, Cl 8.8;
  • 53
    AR
    120104
    BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; For balancing
  • 53
    AR
    300381
    BOLT Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd; For balancing
  • 53
    AR
    43127
    BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd; For Balancing
  • 53
    AR
    43128
    BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd; For Balancing
  • 53
    AR
    43129
    BOLT Hex, M8 x 1.25 x 40mm, Cl 8.8; For balancing
  • 54
    AR
    140041
    WASHER M8 x 28mm OD x 3mm Thk; For balancing
  • 54
    AR
    140042
    WASHER 11mm ID x 34mm OD x 3mm Thk, CST, ZND; For balancing
  • 55
    AR
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk; For Balancing
  • 56
    AR
    9706690
    NUT Hex, M8 x 1.25, Cl 8, ZND; For Balancing
  • 57
    2
    36403
    BEARING HOUSING 2.83in ID, 0.433in Holes, 3.94in Holes Diam; RH
  • 58
    1
    756965
    BALL BEARING 35mm ID x 72mm OD x 51.1mm W; RH
  • 58
    1
    48198936FP
    BALL BEARING 35mm ID x 72mm OD x 20mm W; RH, FLEETPRO, DEPOT
  • 59
    2
    323624
    KEY 14mm x 9mm x 63mm;
  • 60
    1

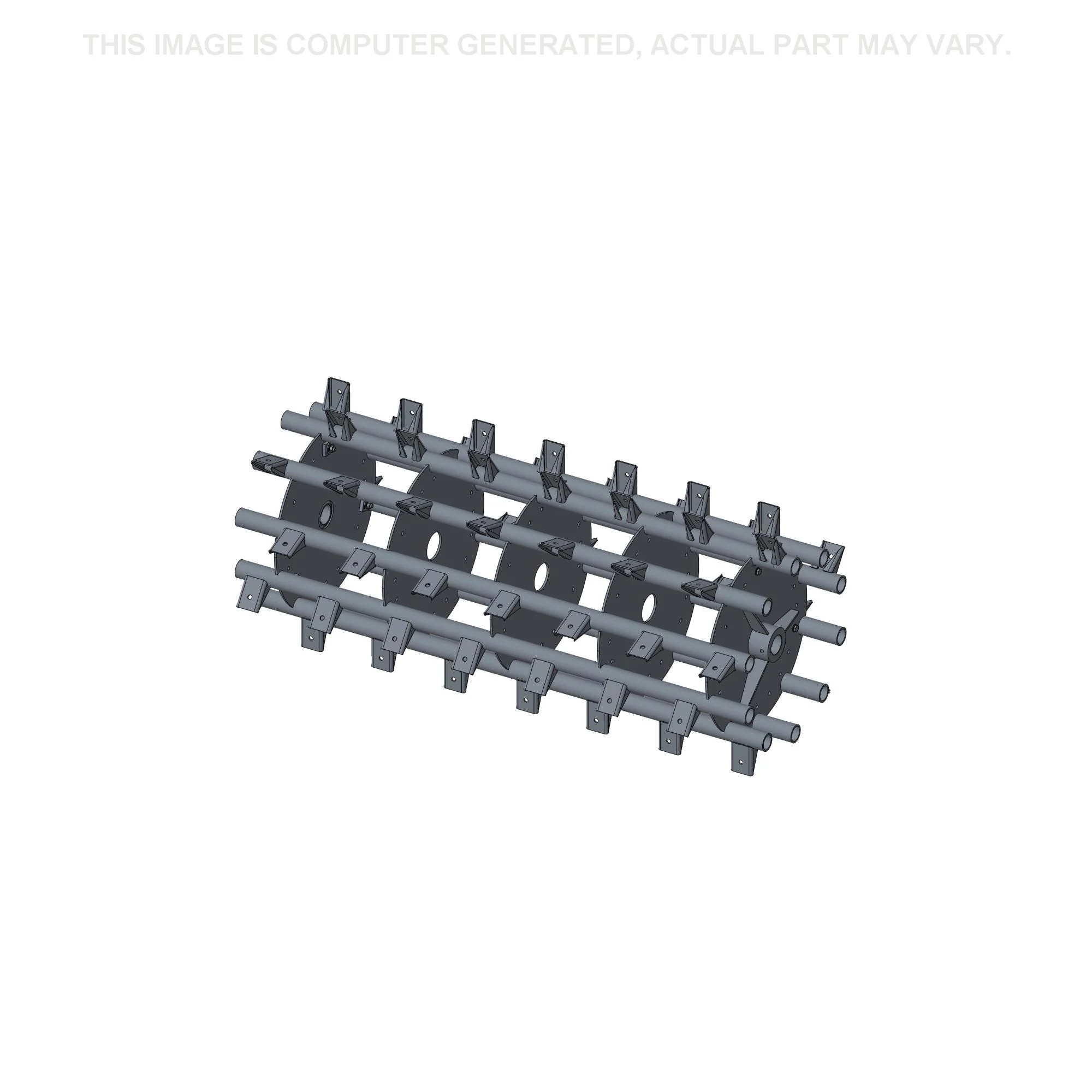

    84435329
    BEATER; BEATER;Replaces 824929,Only TC57
  • 60
    1
    84983647
    ROTOR; Replaces 824930,Only TC55
  • 61
    AR
    412141
    LOCK NUT M10 x 1.5, Cl 8; TC55: Q = 55, TC57: Q = 70
  • 62
    AR
    84991885
    SKID PLATE; Replaces 9510423;TC55: Q = 55, TC57: Q = 70
  • 63
    4
    374895
    CARRIAGE BOLT M12 x 1.75 x 25mm, Cl 8.8;
  • 64
    8
    140046
    BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;
  • 65
    4
    9706685
    NUT Hex, M12 x 1.75, Cl 8, ZND;
  • 66
    2
    120201
    BOLT Hex, M10 x 35mm, Cl 8.8, Full Thd;

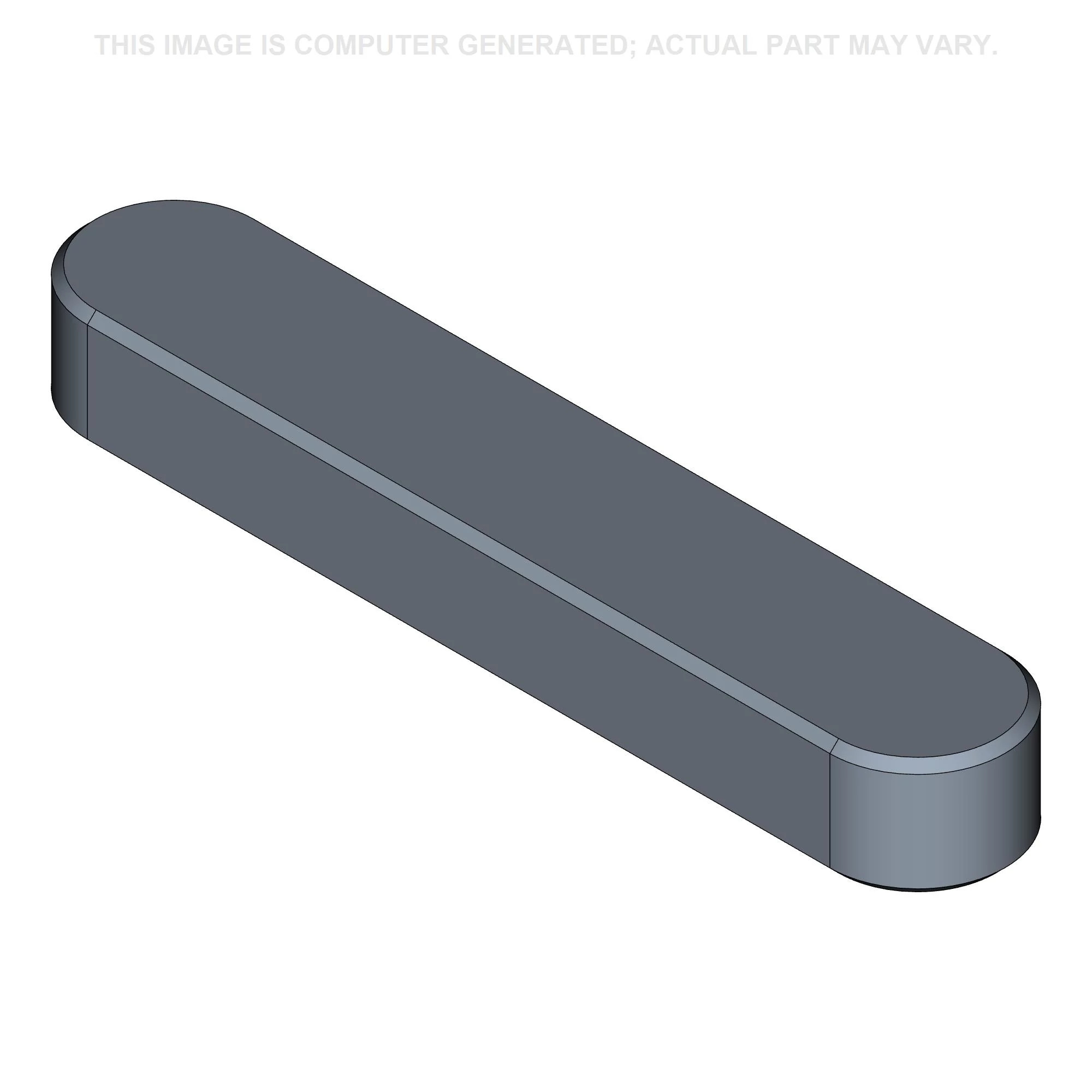

  • 67
    1
    320607
    KEY 12mm x 8mm x 63mm;

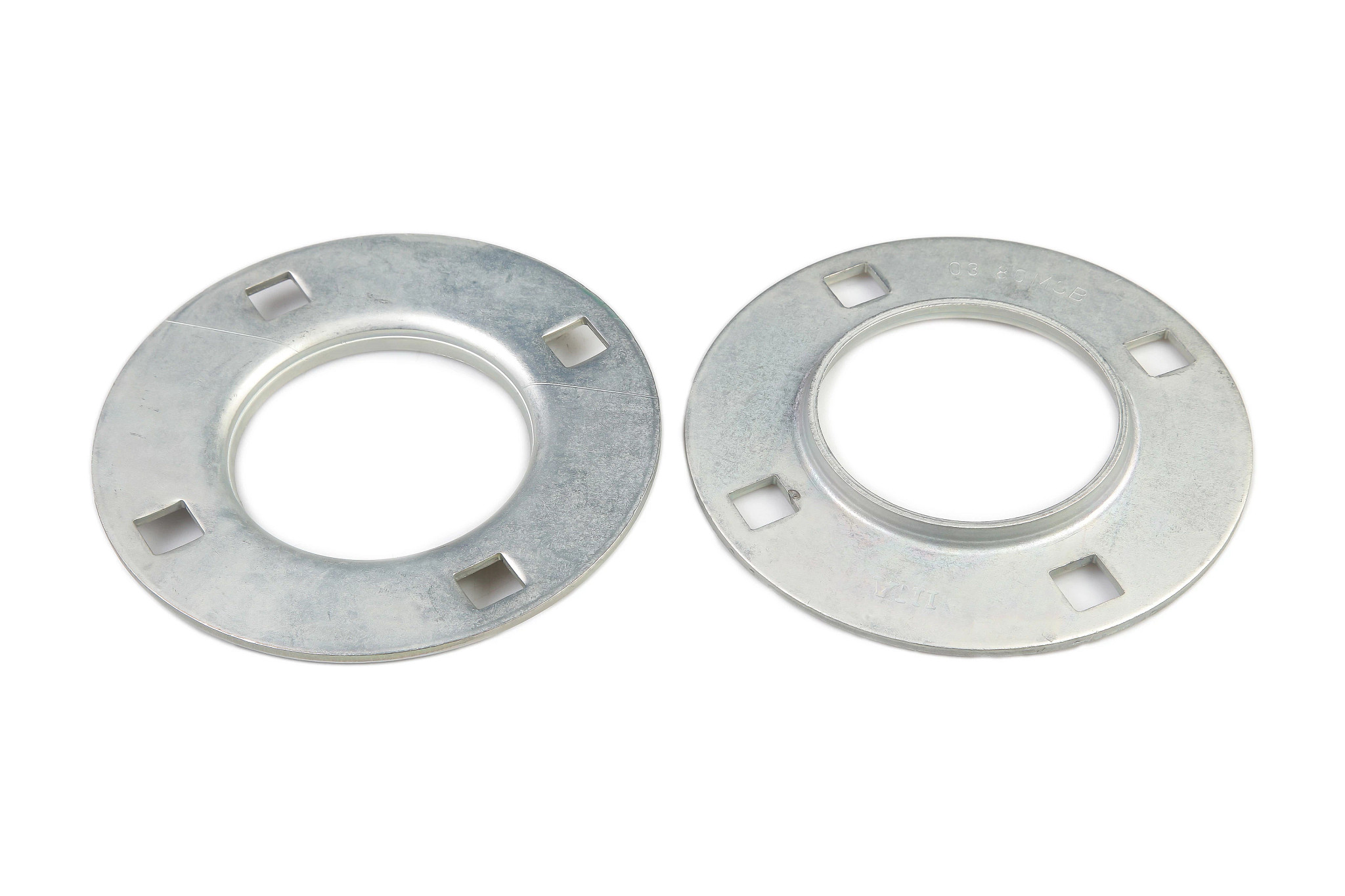

  • 68
    2
    9577001
    SOCKET; LH

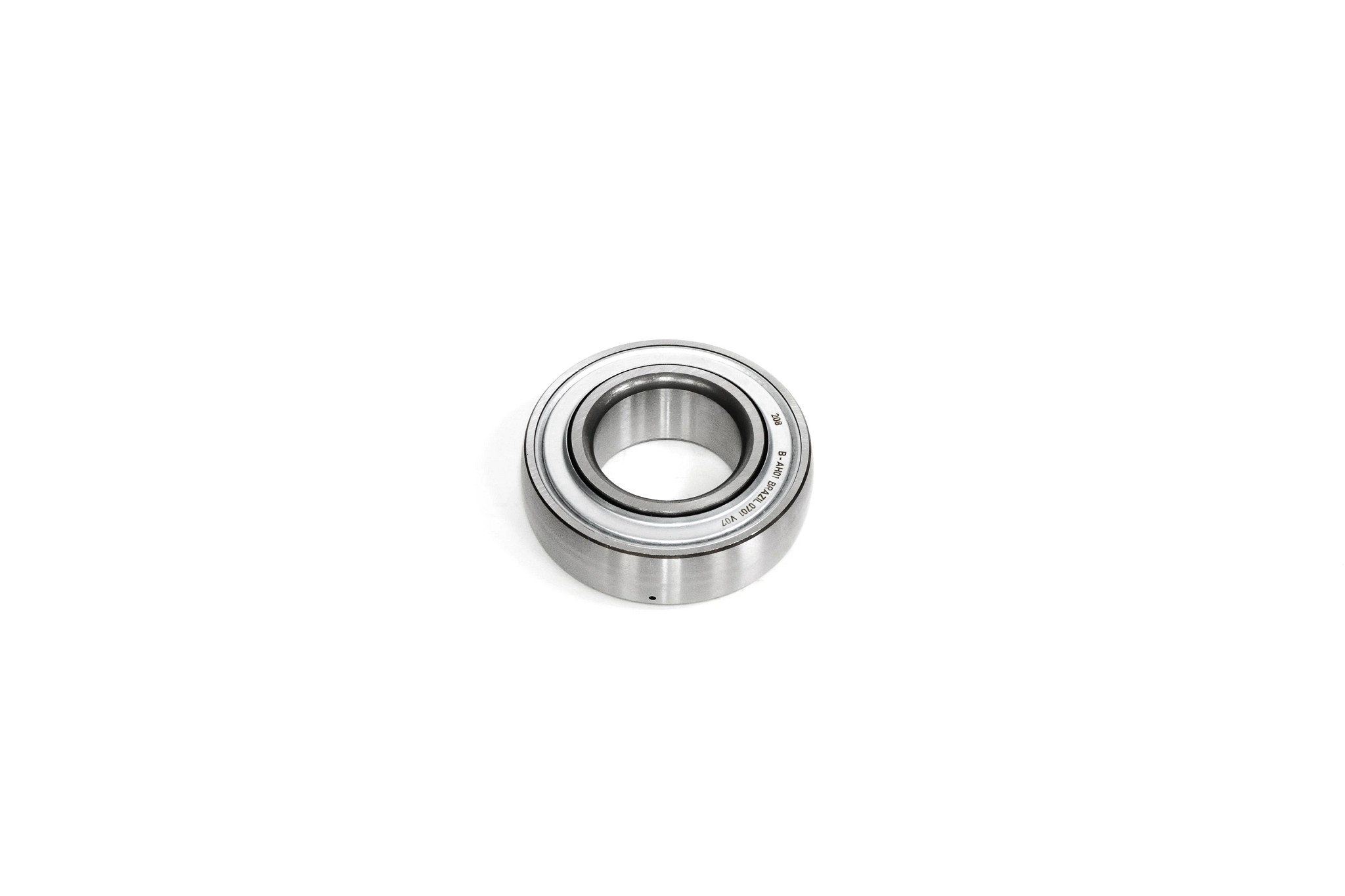

  • 69
    1
    825404
    BALL BEARING 40mm ID x 80mm OD x 27mm W; LH
  • 70
    1
    824933
    SHAFT; Only TC55
  • 70
    1
    84125273
    SHAFT; Only TC57
  • 79
    AR

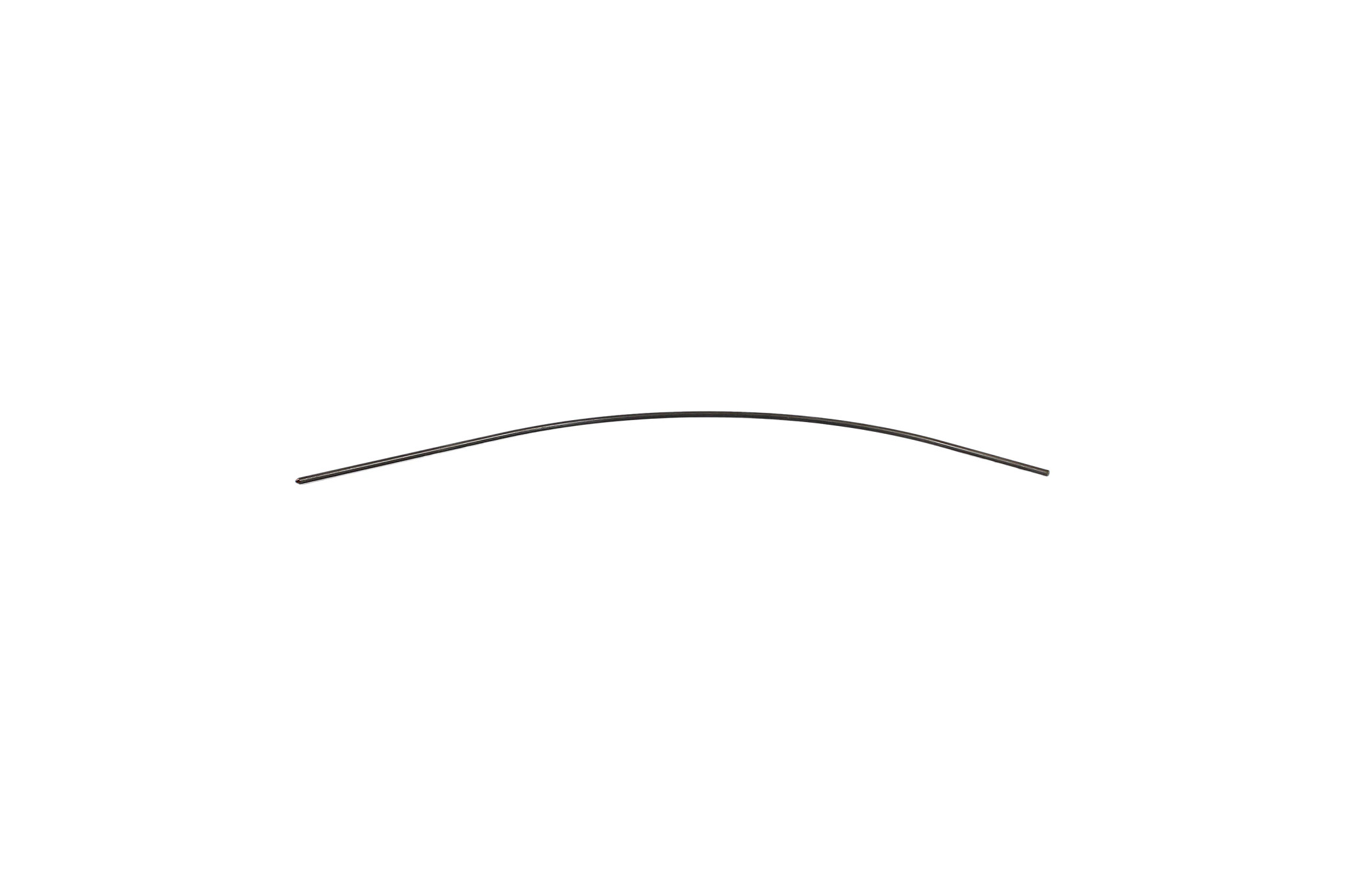

    824956
    GUARD; TC55: Q = 2, TC57: Q = 40

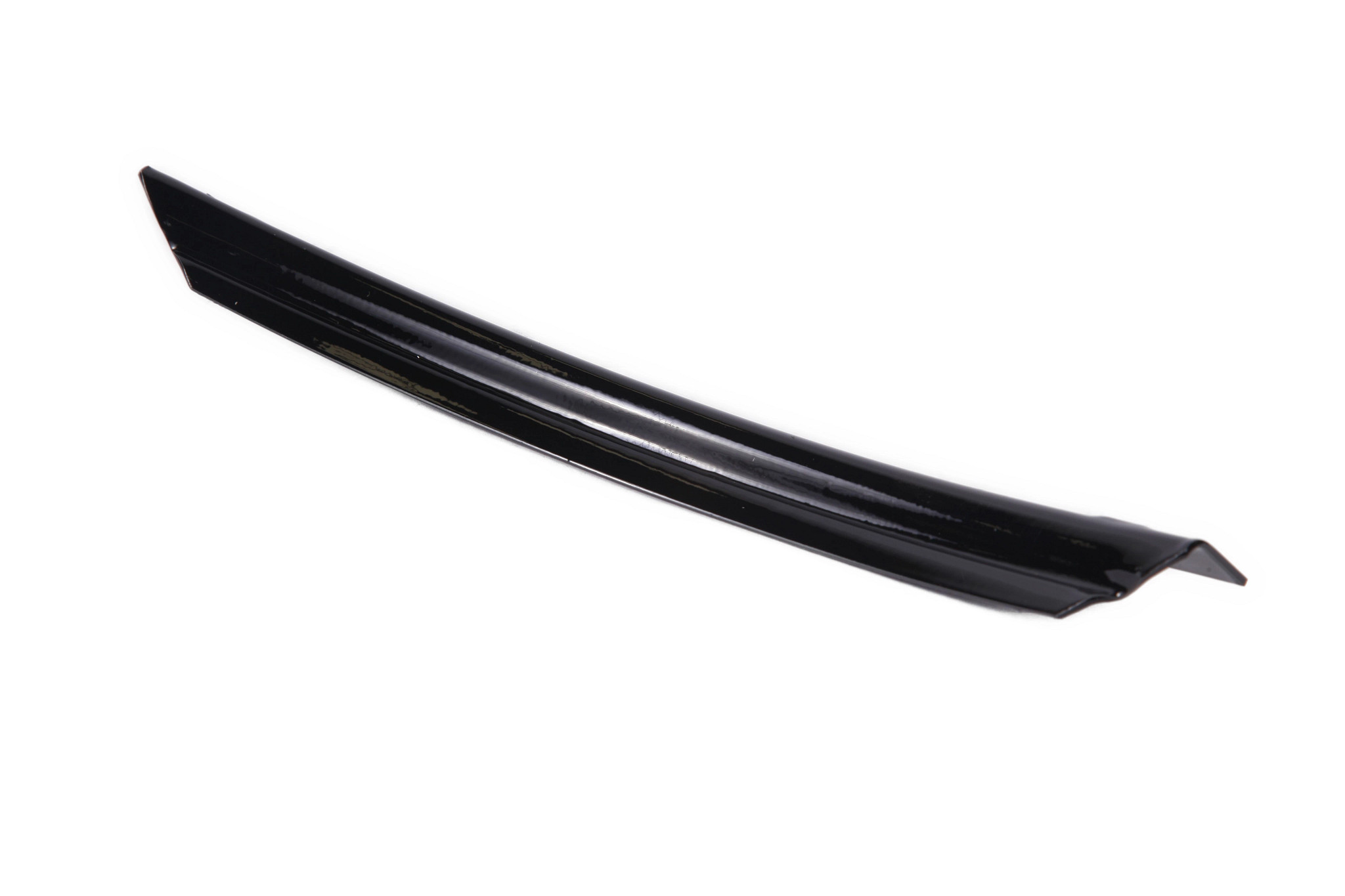

  • 80
    2
    825072
    PANEL;
  • 81
    4
    15896221
    NUT Hex, M6 x 1, Cl 10, ZND;
  • 82
    8
    322357
    BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;
  • 83
    4
    120100
    BOLT Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd;

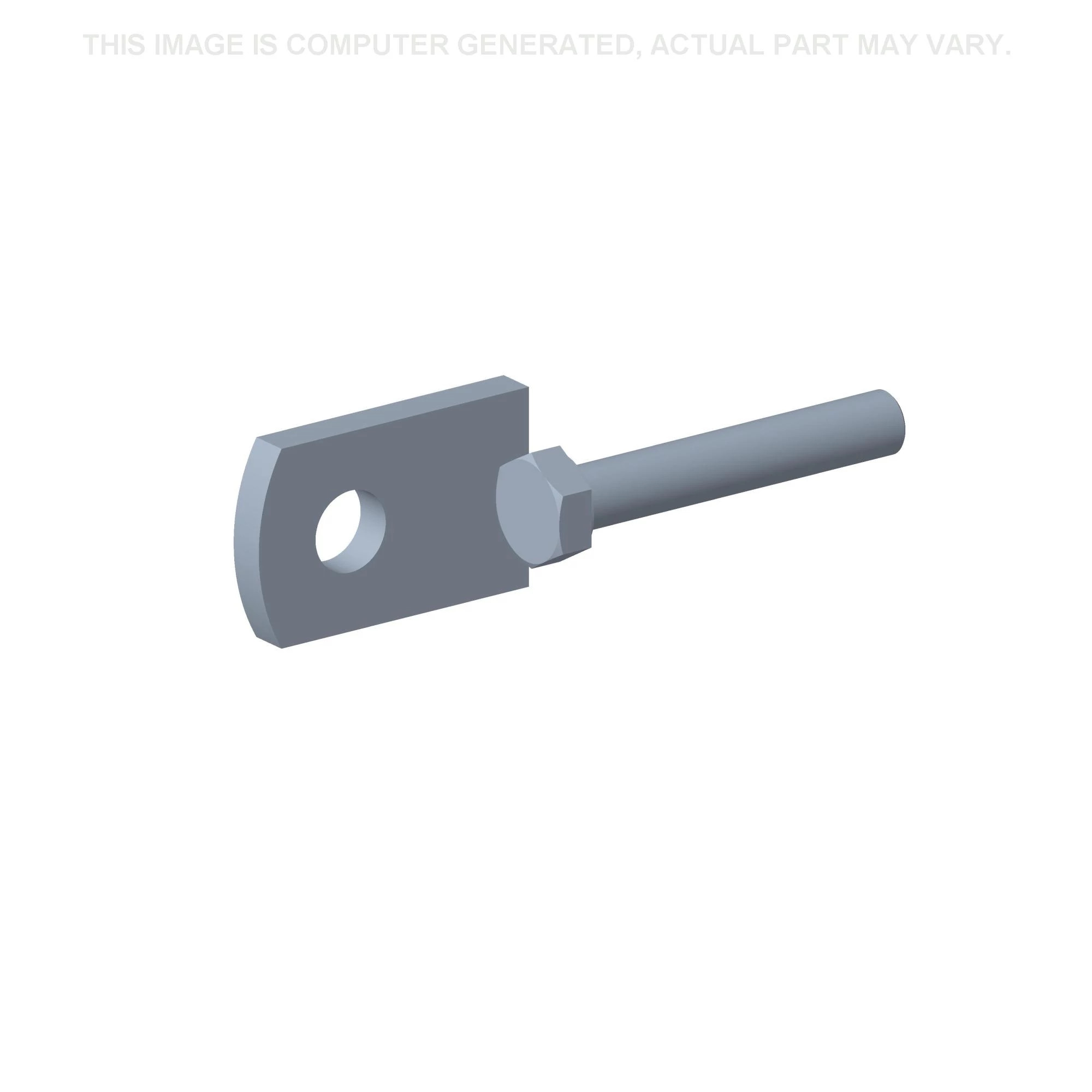

  • 84
    2
    825018
    TENSIONER;
  • 85
    4
    328754
    CARRIAGE BOLT M12 x 1.75 x 40mm, Cl 8.8;
  • 86
    1
    457879
    PLATE; Only TC57
  • 86
    1
    748039
    MOLDING; Only TC55
  • 87
    AR
    120100
    BOLT Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd; TC55: Q = 6, TC57: Q = 7
  • 88
    AR
    353308
    NUT Hex, M6 x 1, Cl 8, ZND; TC55: Q = 6, TC57: Q = 7
  • 89
    1
    84991567
    CONCAVE; (79), Rice, Replaces 824954;Only TC55

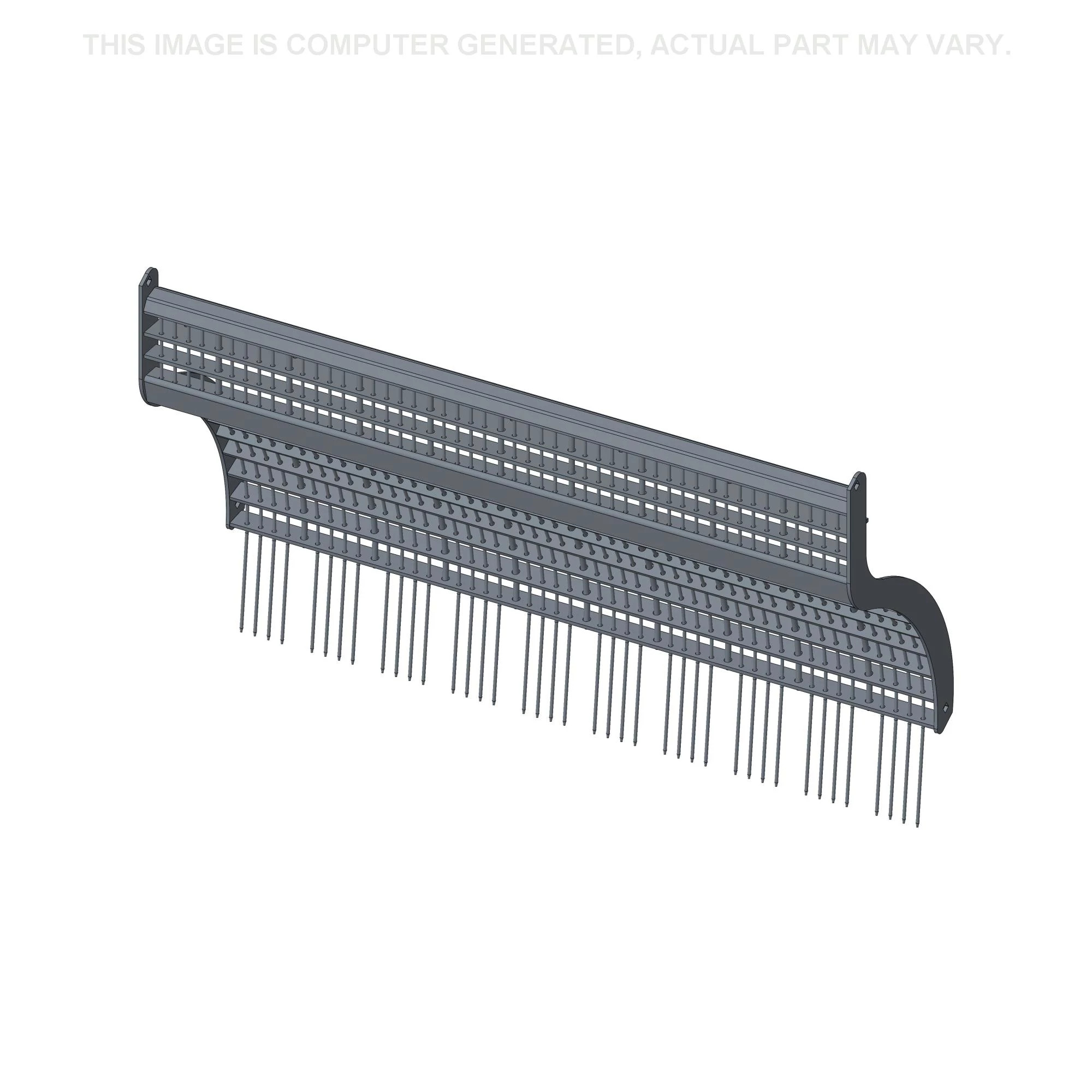

  • 89
    1
    84991568
    CONCAVE; (79) STD, Replaces 824955;Only TC57

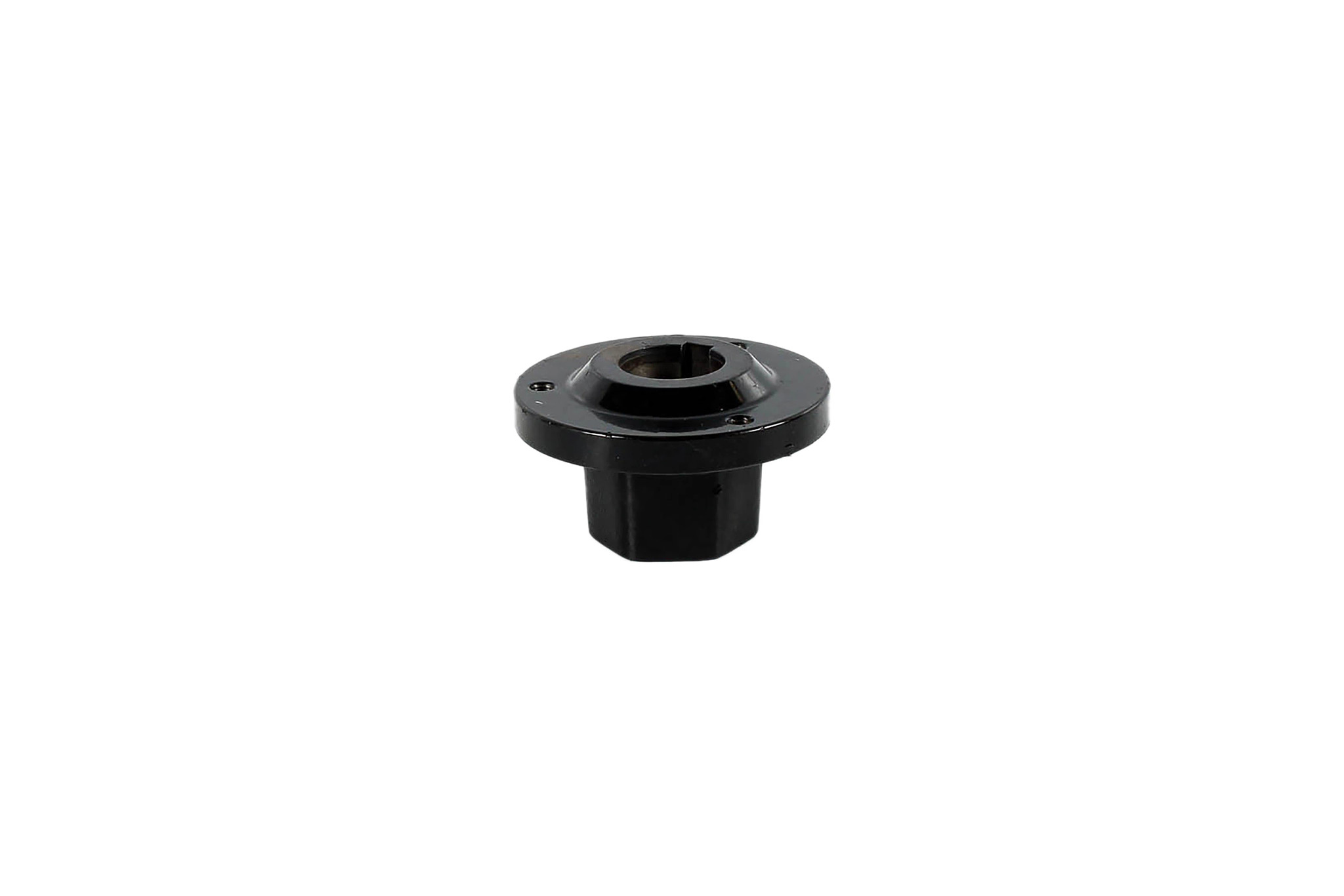

  • 90
    1
    824943
    HUB;
  • 91
    1

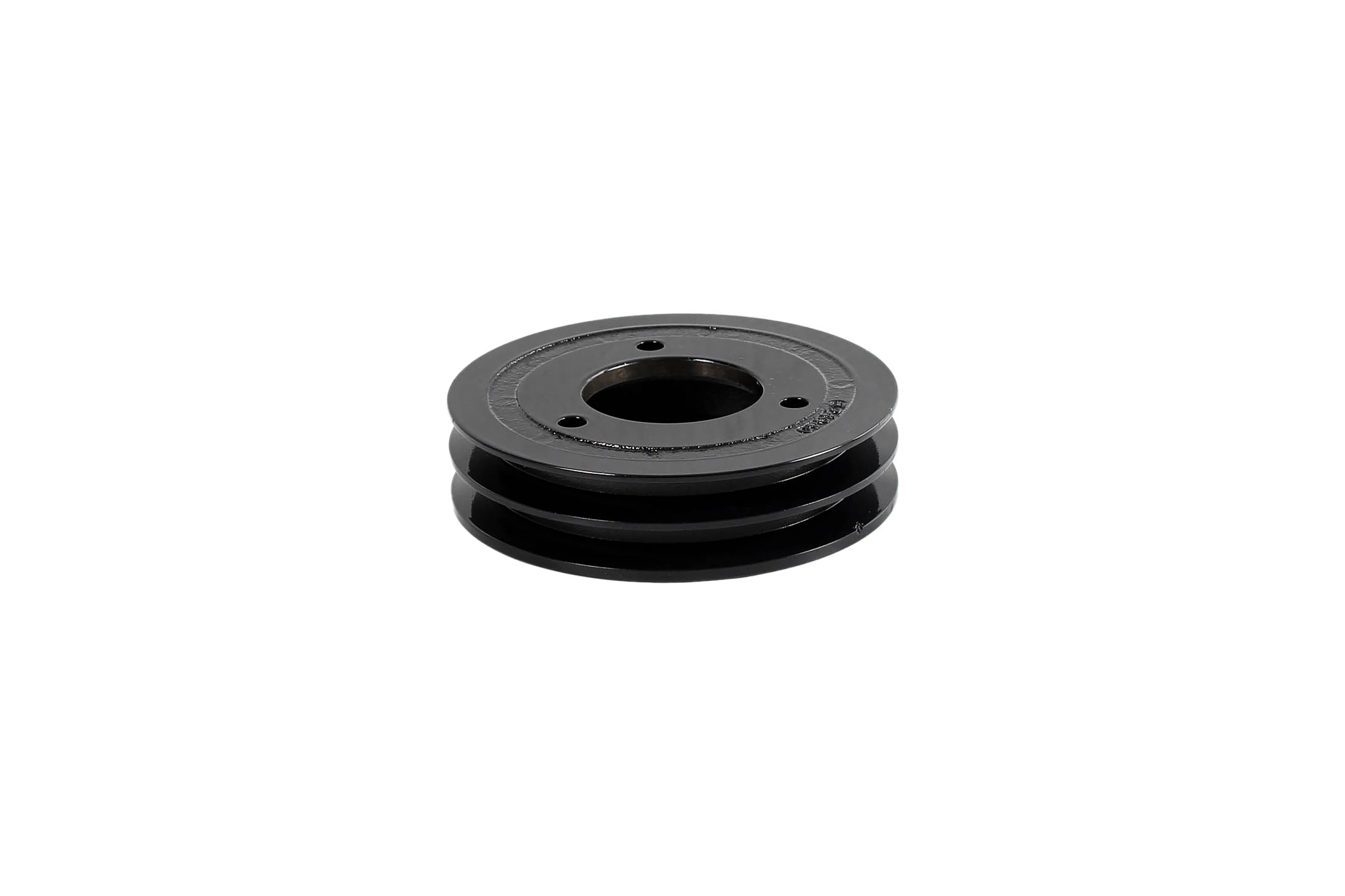

    824940
    PULLEY 176mm OD; Short, Rice - Wheat
  • 91
    1
    824941
    PULLEY 330mm OD; Large, Bean-Corn-Soy
  • 92
    1
    411961
    WASHER 30.5mm ID x 60mm OD x 8mm Thk;
  • 93
    1
    100034
    NUT M30 x 1.5, Cl 8;
  • 94
    1
    84991561
    CANVAS 400mm W x 1036mm L; Replaces 748038;Only TC55

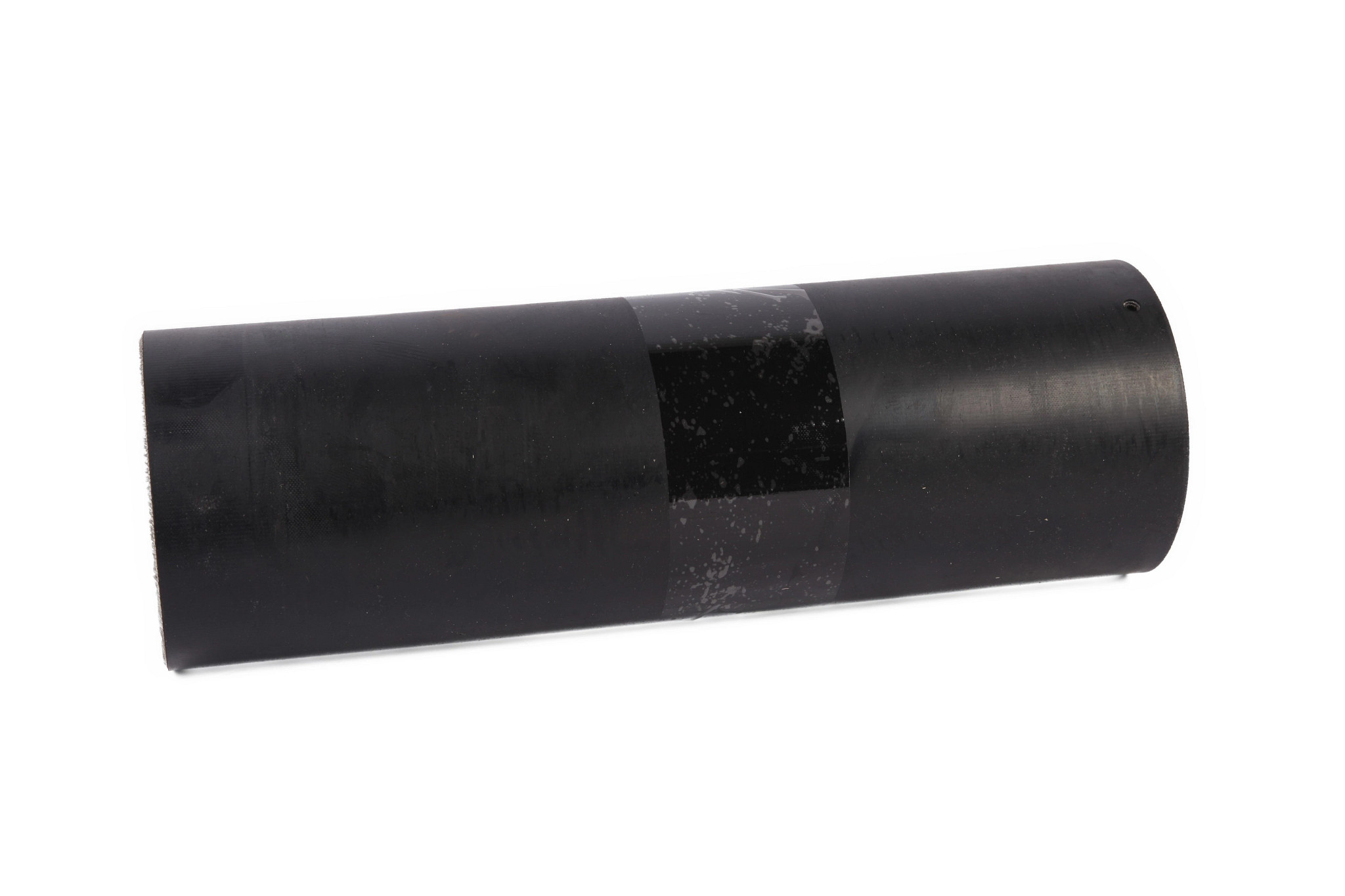

  • 94
    1
    84991562
    BRAKE BAND; Replaces 748037;Only TC57
  • 95
    2
    823508
    REINFORCEMENT;
  • 96
    3
    11106231
    BOLT Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd;
