66.101.010 - ROTOR BEARING
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    48099399
    PLATE;
  • 2
    2
    84571956
    BEARING HOUSING; Incl 3,4
  • 3
    1
    84571955
    BEARING HOUSING; MAINTENANCE PART
  • 4
    1
    66497
    BALL BEARING 34.9mm ID x 80mm OD x 38.1mm W; MAINTENANCE PART
  • 4
    1
    91738577
    BALL BEARING 34.9mm ID x 80mm OD x 38.1mm W;
  • 5
    1
    90494790

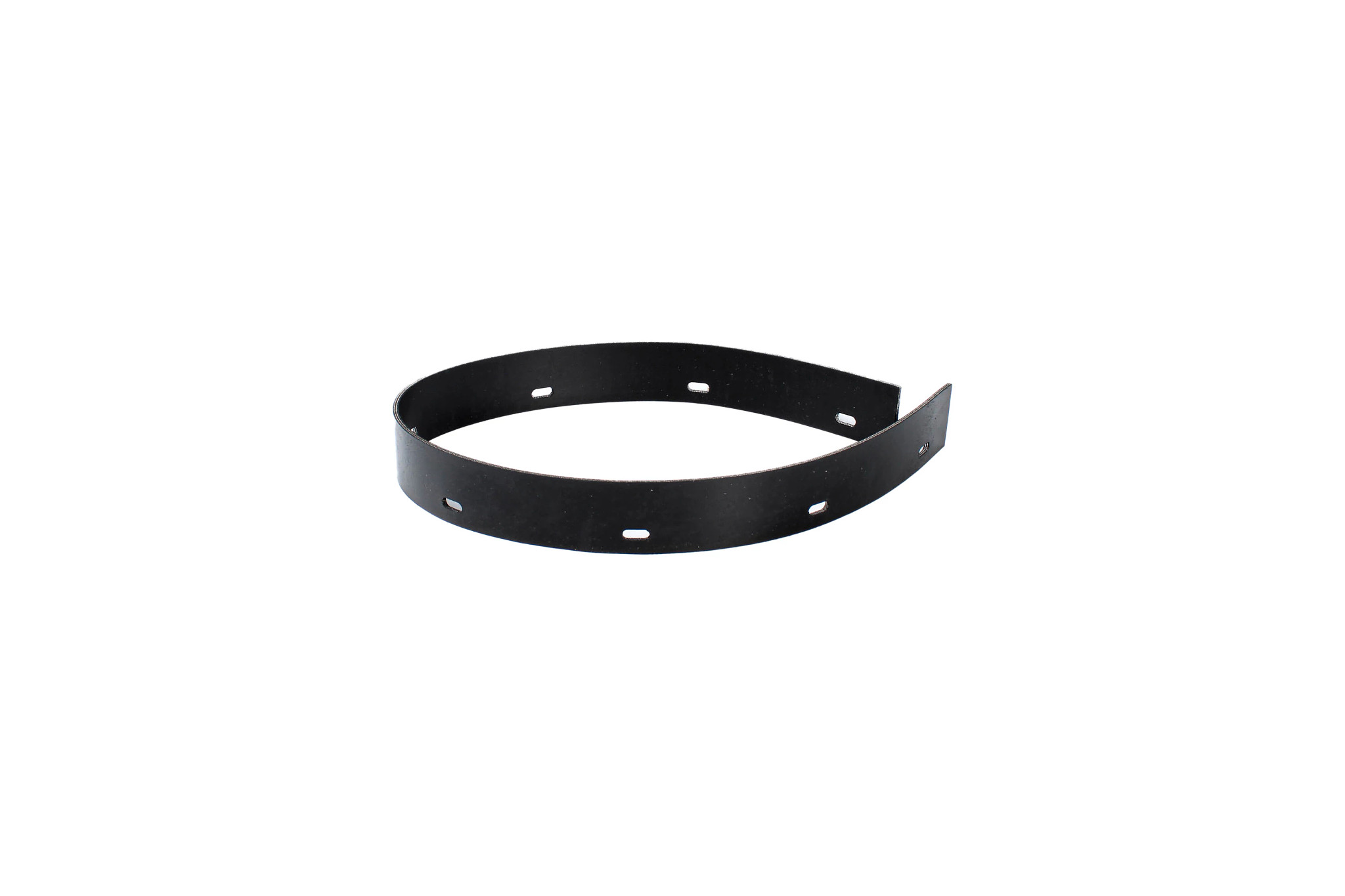

    RUBBER SEAL;
  • 6
    1
    47963528

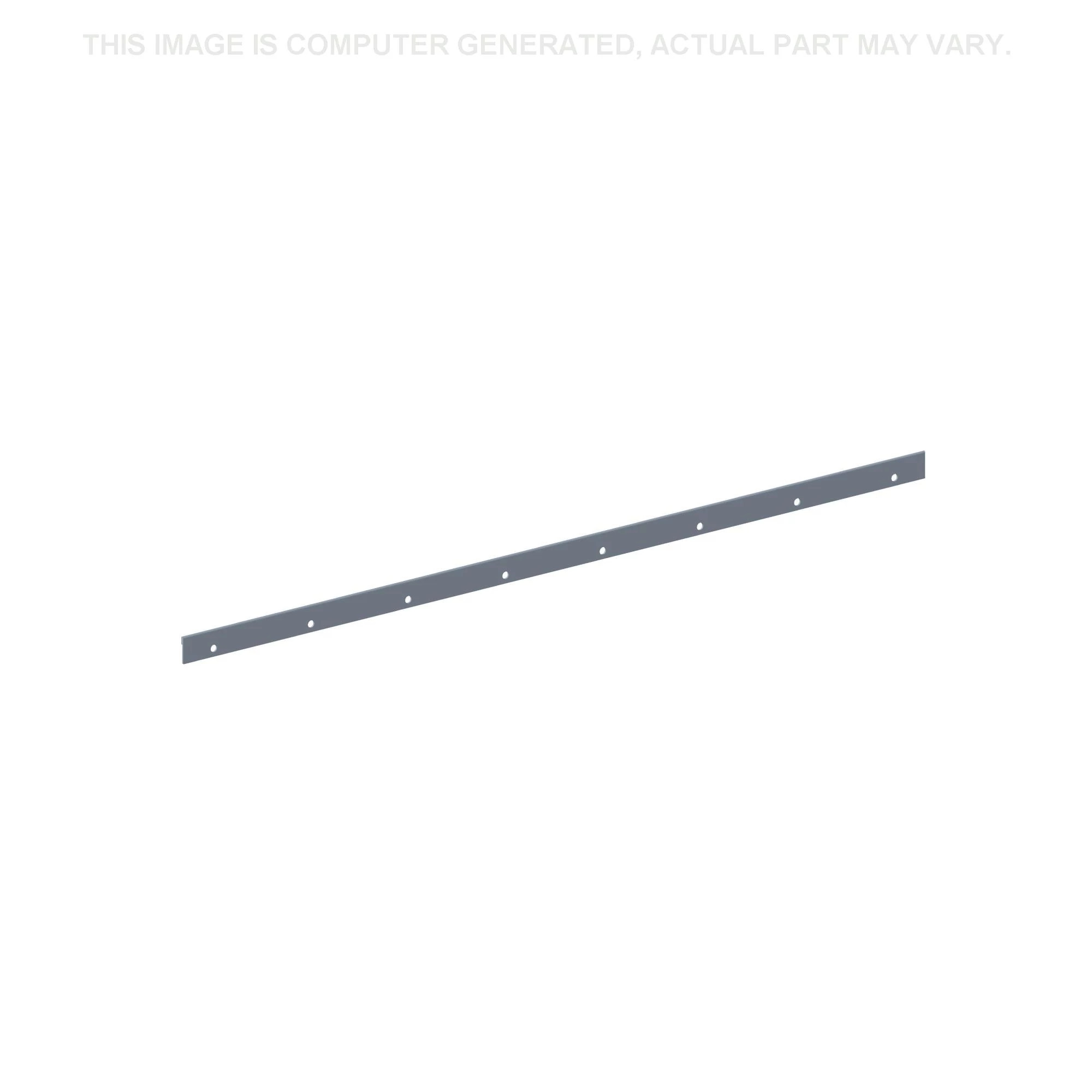

    ANGLE;
  • 7
    6
    140046
    BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;
  • 8
    6
    9706685
    NUT Hex, M12 x 1.75, Cl 8, ZND;
  • 9
    2
    84043025

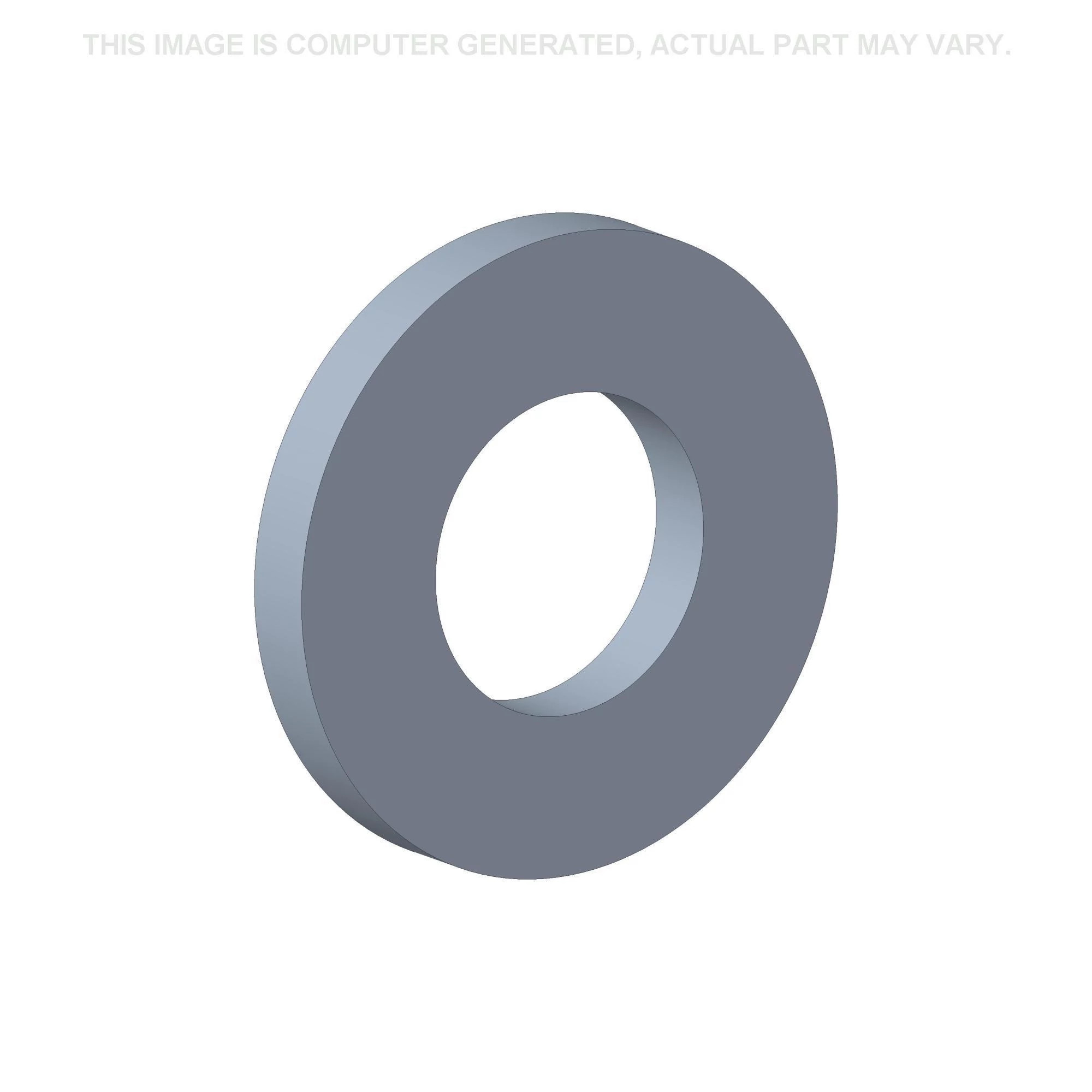

    WASHER;
  • 10
    2
    140048
    BELLEVILLE WASHER M16 Bolt Size x 32mm OD x 2.8mm Thk;
  • 11
    2
    43167
    BOLT Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd;
  • 12
    8
    308761
    CARRIAGE BOLT M8 x 1.25 x 25mm, Cl 8.8;
  • 13
    8
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 14
    8
    86629542
    LOCK NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 15
    1
    47463441

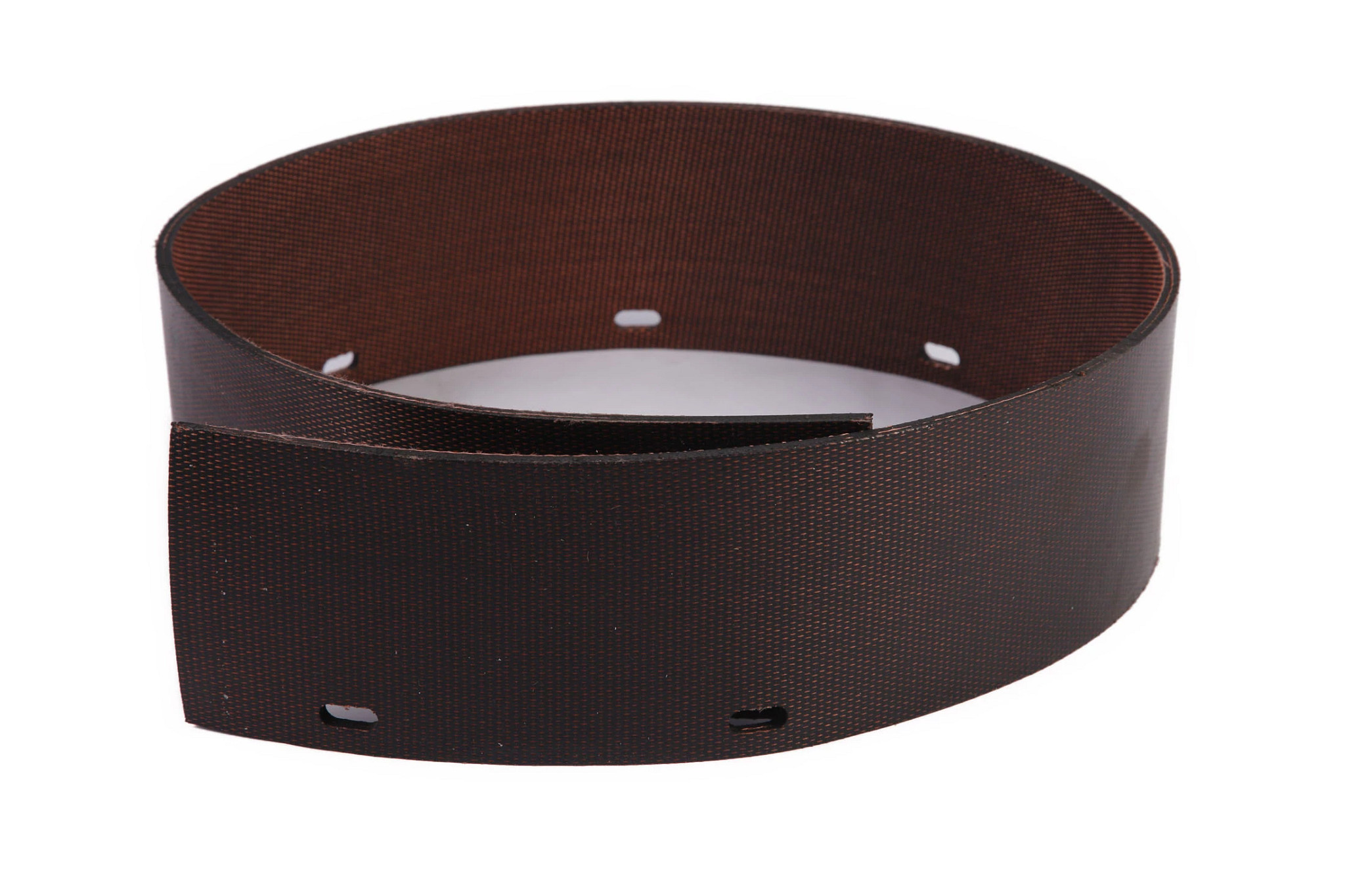

    SEAL;
  • 16
    1
    87645875

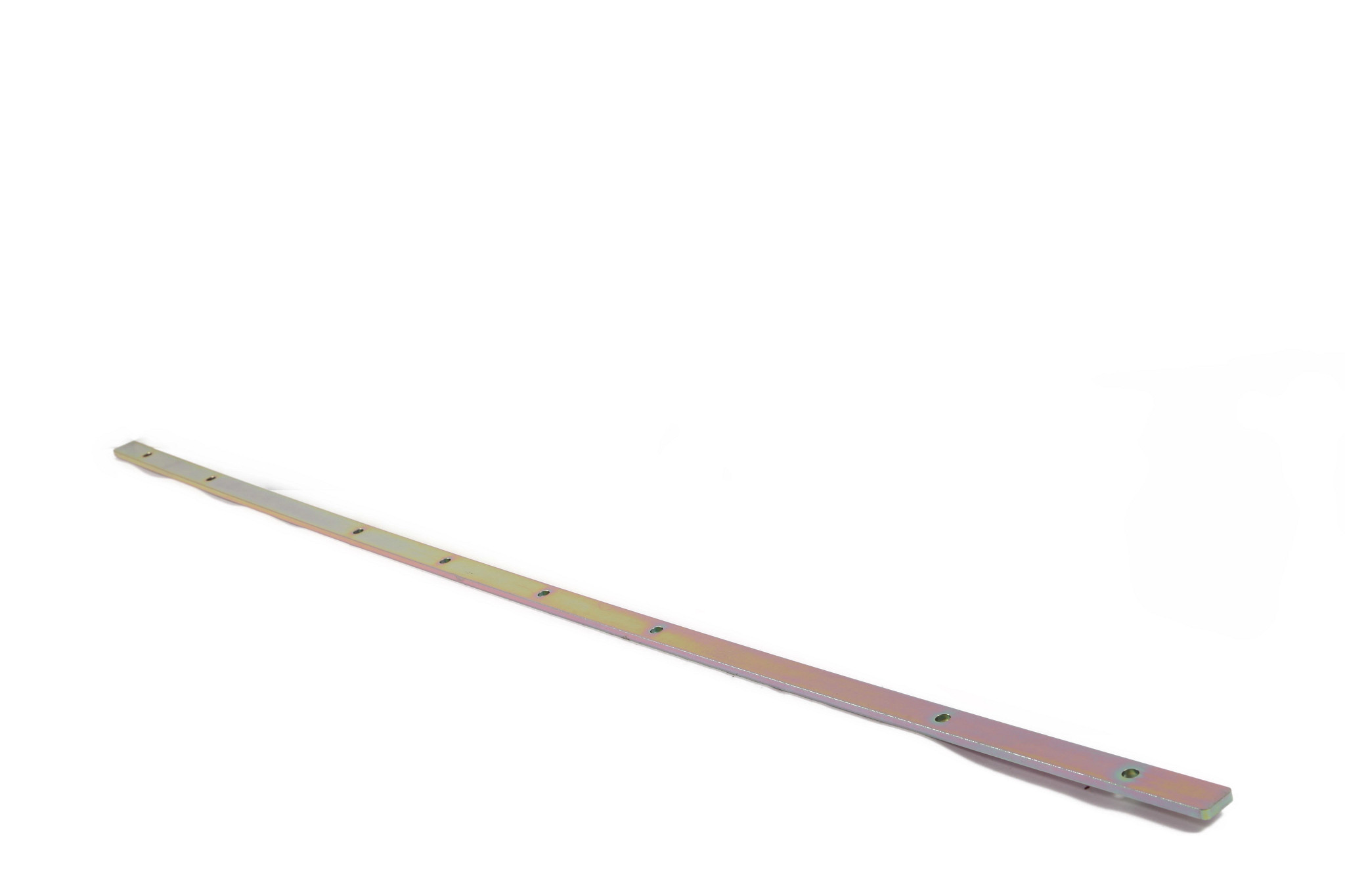

    PLATE;
  • 17
    8
    86977786
    BOLT Hex, M6 x 1 x 25mm, Cl 8.8;
  • 18
    8
    353308
    NUT Hex, M6 x 1, Cl 8, ZND;
