64.130.AL - CHOPPER GEARBOX
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

27

Availability

Part #

NA110000

Description

NUT M10 x 1.5, Gr 8.8;


Alts

Select

Ref.

2

Qty

27

Availability

Part #

WB100000

Description

WASHER;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87235128

Description

COVER ASSY;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87235129

Description

GASKET 3.25mm Thk;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87239602

Description

COVER;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87247440

Description

GASKET 3mm Thk;


Alts

Select

Ref.

5

Qty

21

Availability

Part #

FA110025

Description

BOLT;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

87239600

Description

COVER PLATE;


Alts

Select

Ref.

7

Qty

2

Availability

Part #

87254871

Description

NUT;


Alts

Select

Ref.

8

Qty

2

Availability

Part #

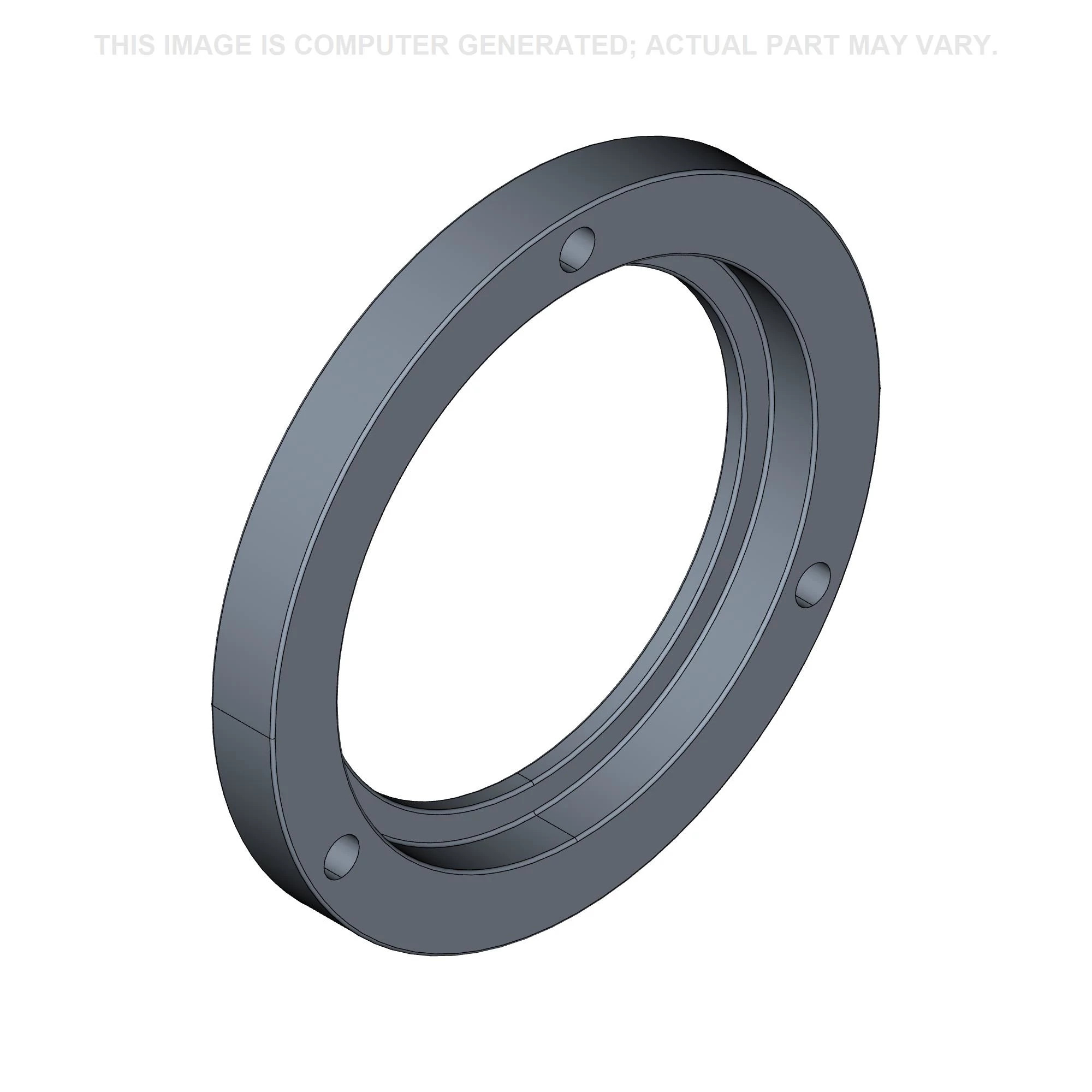

87254887

Description

PLATE;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

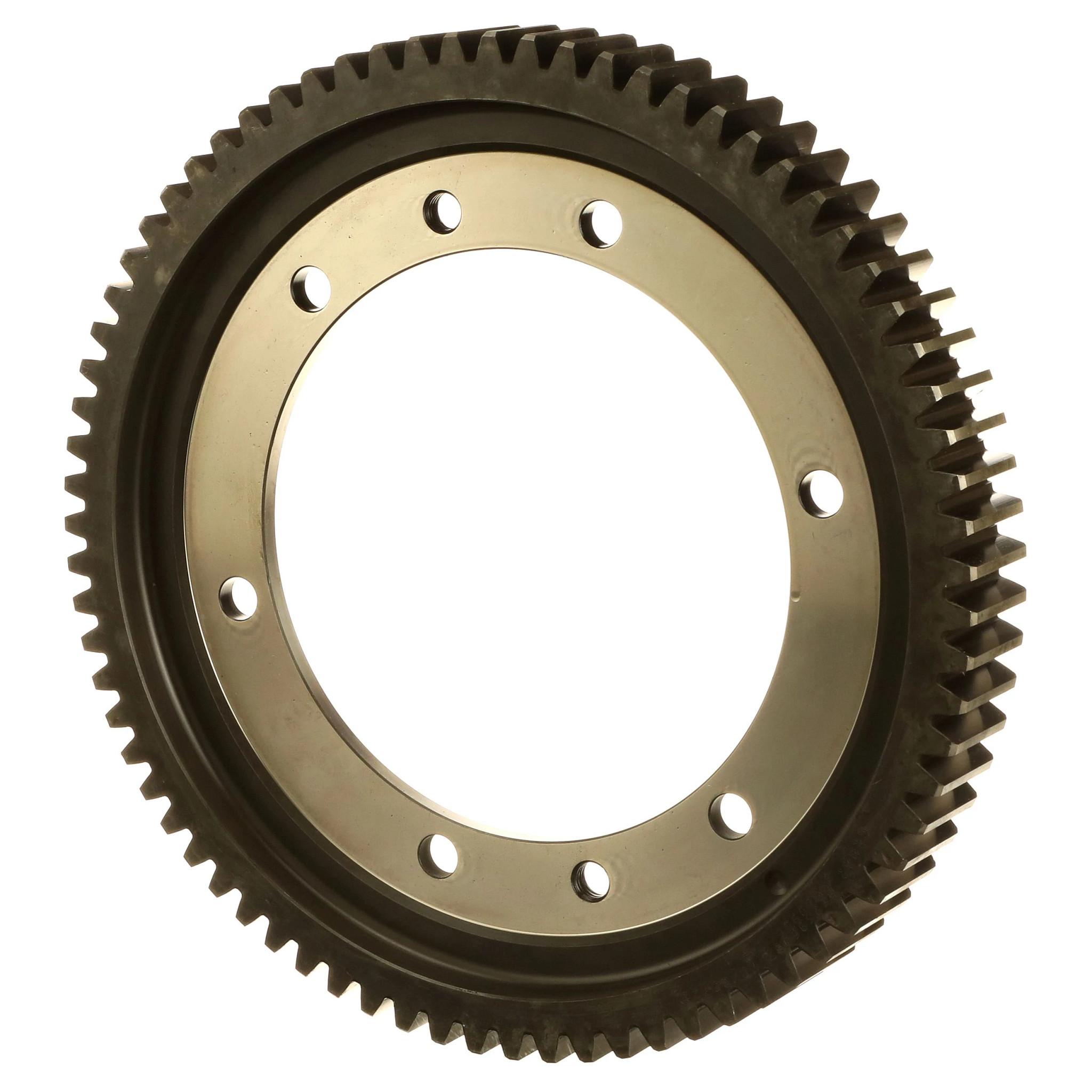

87239608

Description

GEAR; Upper


Alts

Select

Ref.

9

Qty

1

Availability

Part #

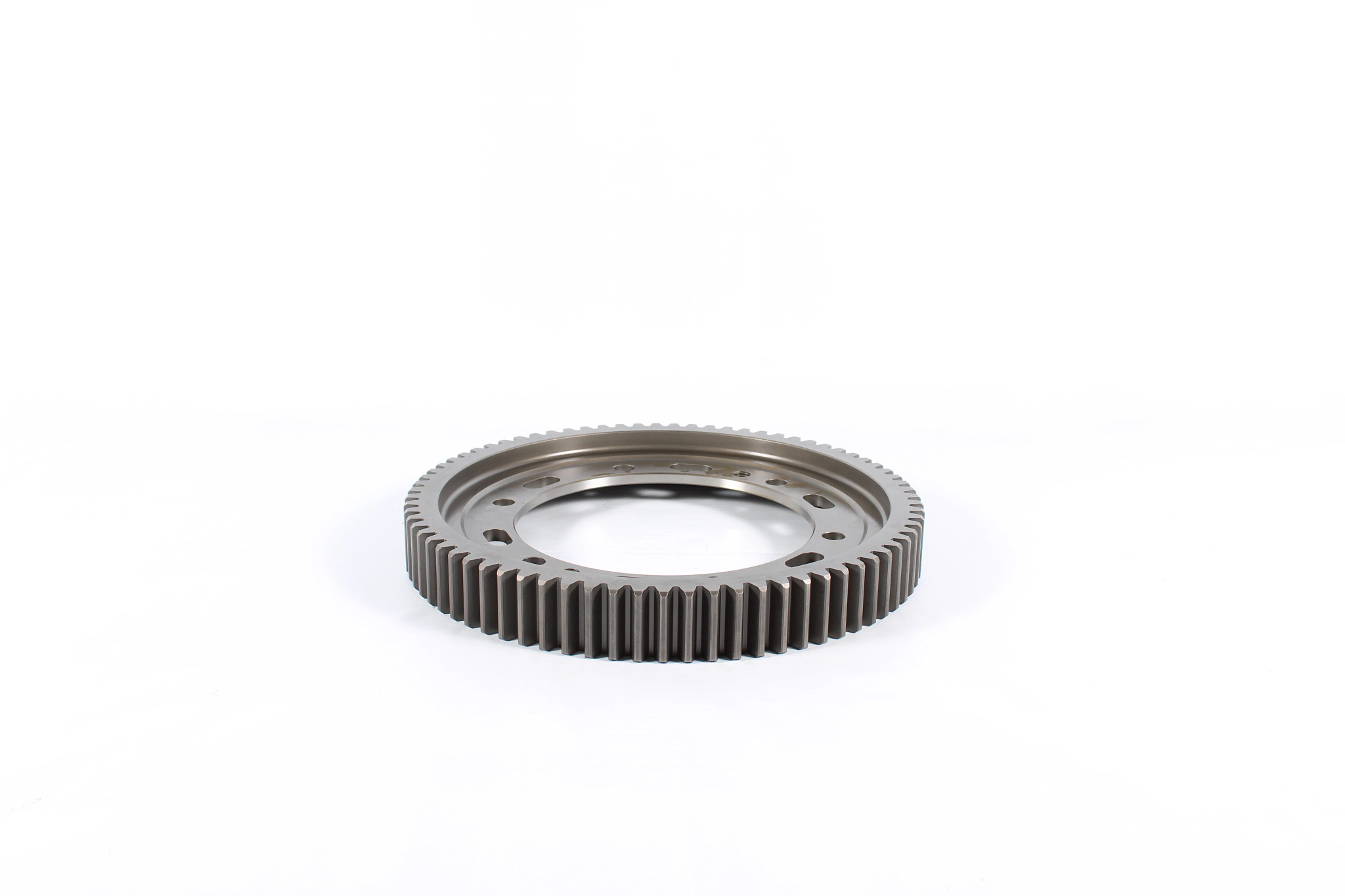

51428305FP

Description

GEAR; FLEETPRO, DEPOT


Alts

Select

Ref.

10

Qty

1

Availability

Part #

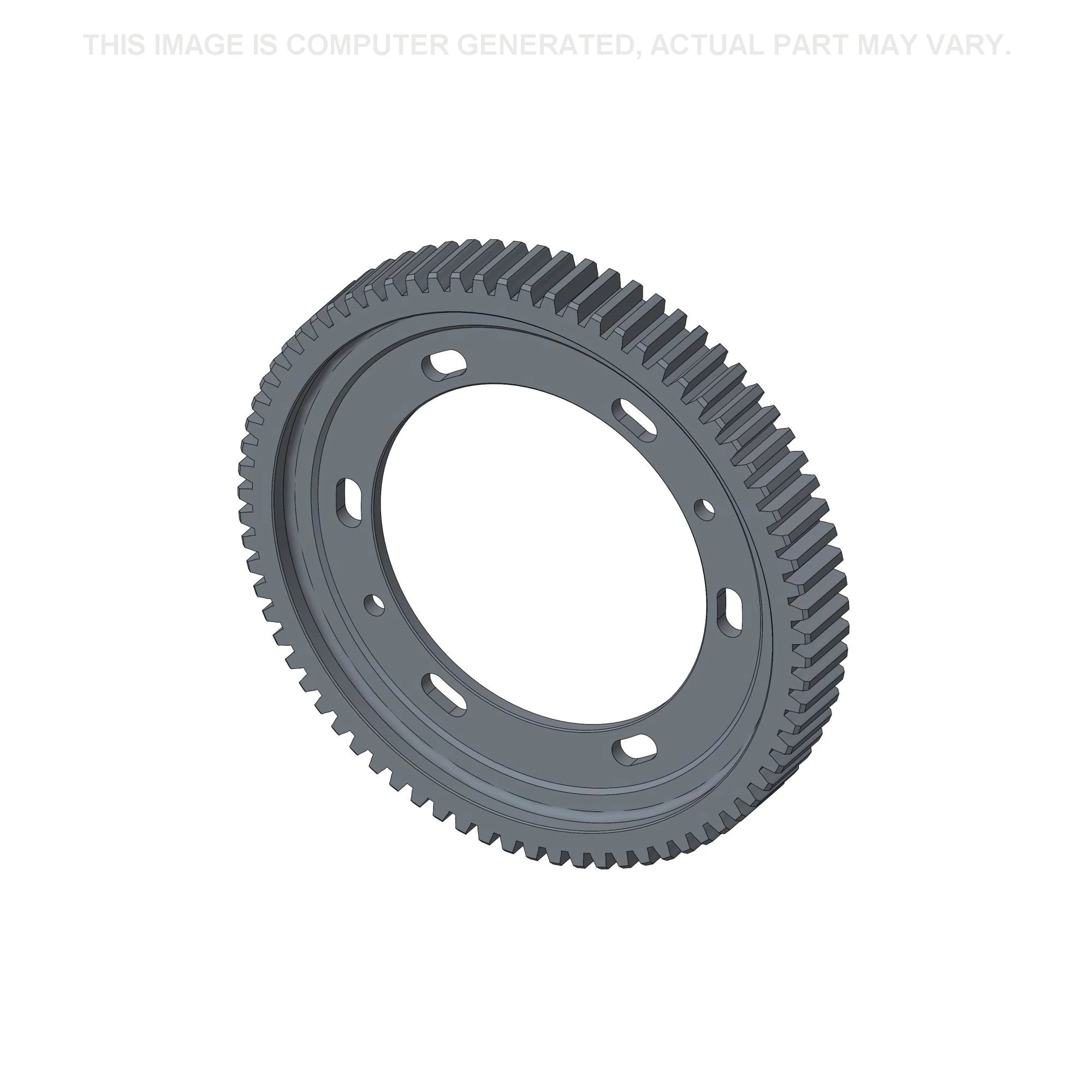

87239615

Description

GEAR; Lower


Alts

Select

Ref.

10

Qty

1

Availability

Part #

51428298FP

Description

GEAR; FLEETPRO, DEPOT


Alts

Select

Ref.

11

Qty

12

Availability

Part #

00131382

Description

WASHER;


Alts

Select

Ref.

12

Qty

12

Availability

Part #

FP116035

Description

BOLT;


Alts

Select

Ref.

13

Qty

2

Availability

Part #

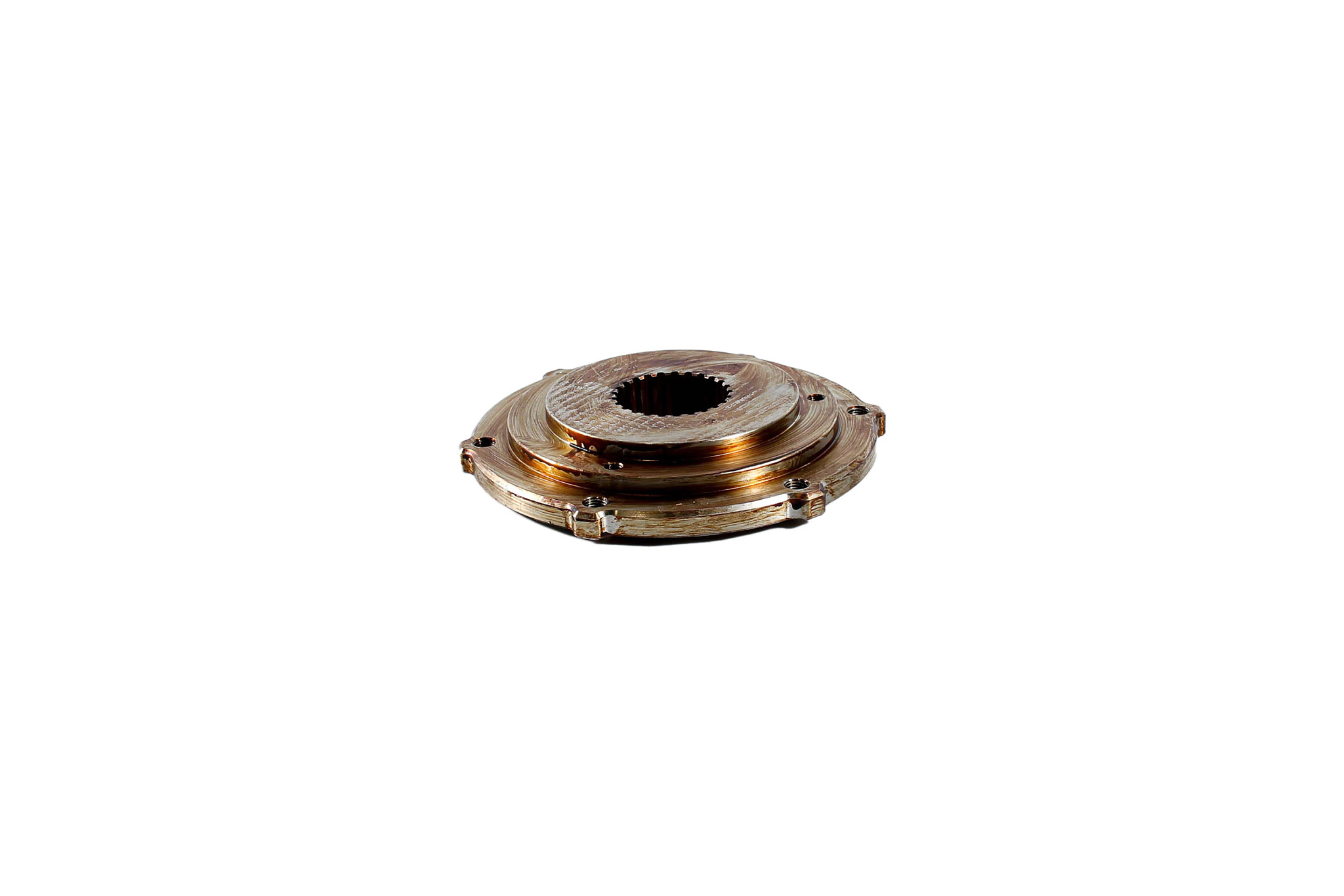

87254870

Description

HUB 25T;


Alts

Select

Ref.

14

Qty

4

Availability

Part #

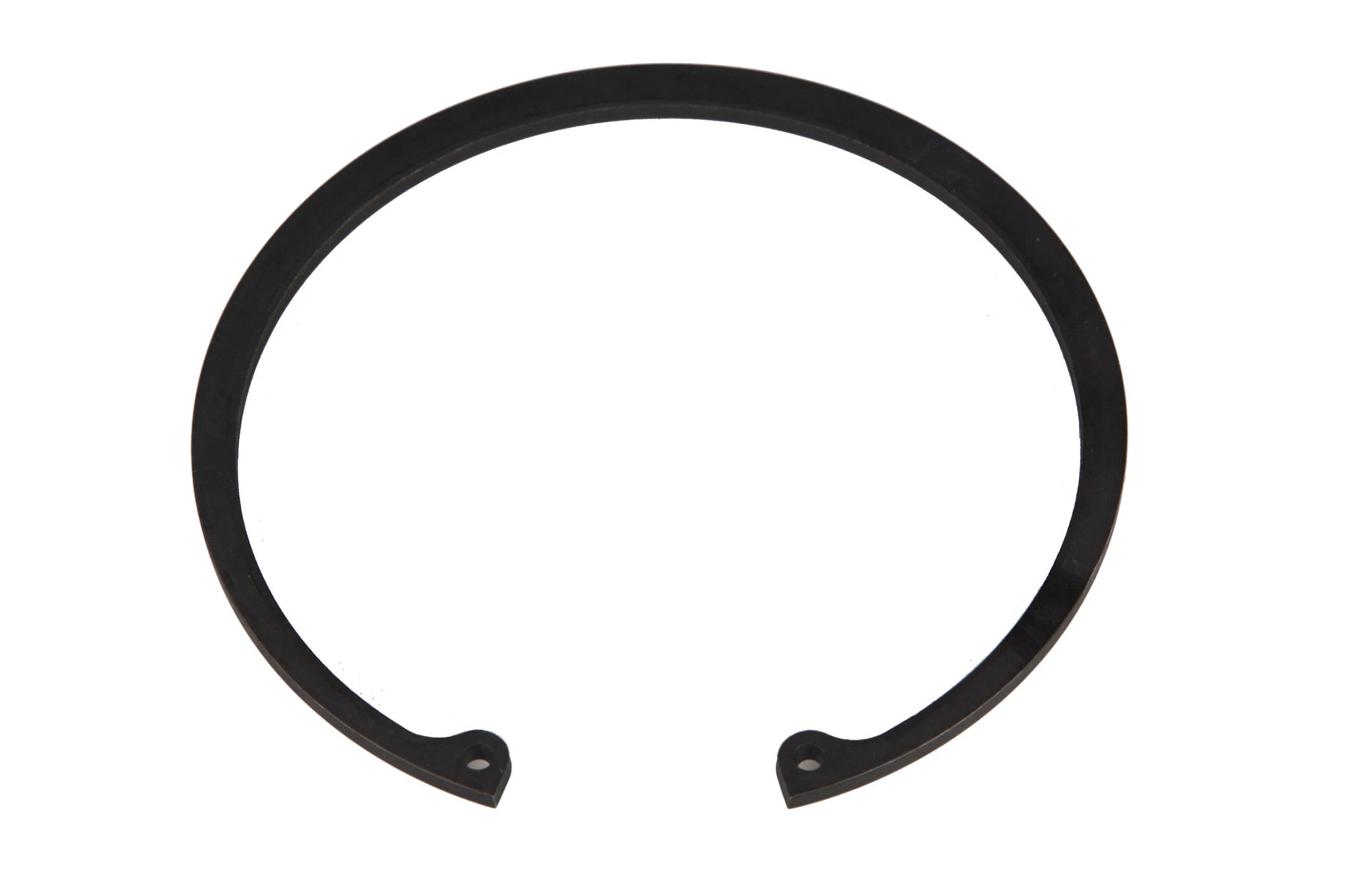

CI150000

Description

CIRCLIP;


Alts

Select

Ref.

15

Qty

4

Availability

Part #

00144104

Description

BEARING ASSY;


Alts

Select

Ref.

16

Qty

4

Availability

Part #

00100816

Description

OIL SEAL;


Alts

Select

Ref.

17

Qty

2

Availability

Part #

87239604

Description

DRIVE SHAFT;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

51427883FP

Description

HUB; FLEETPRO, DEPOT


Alts

Select

Ref.

18

Qty

1

Availability

Part #

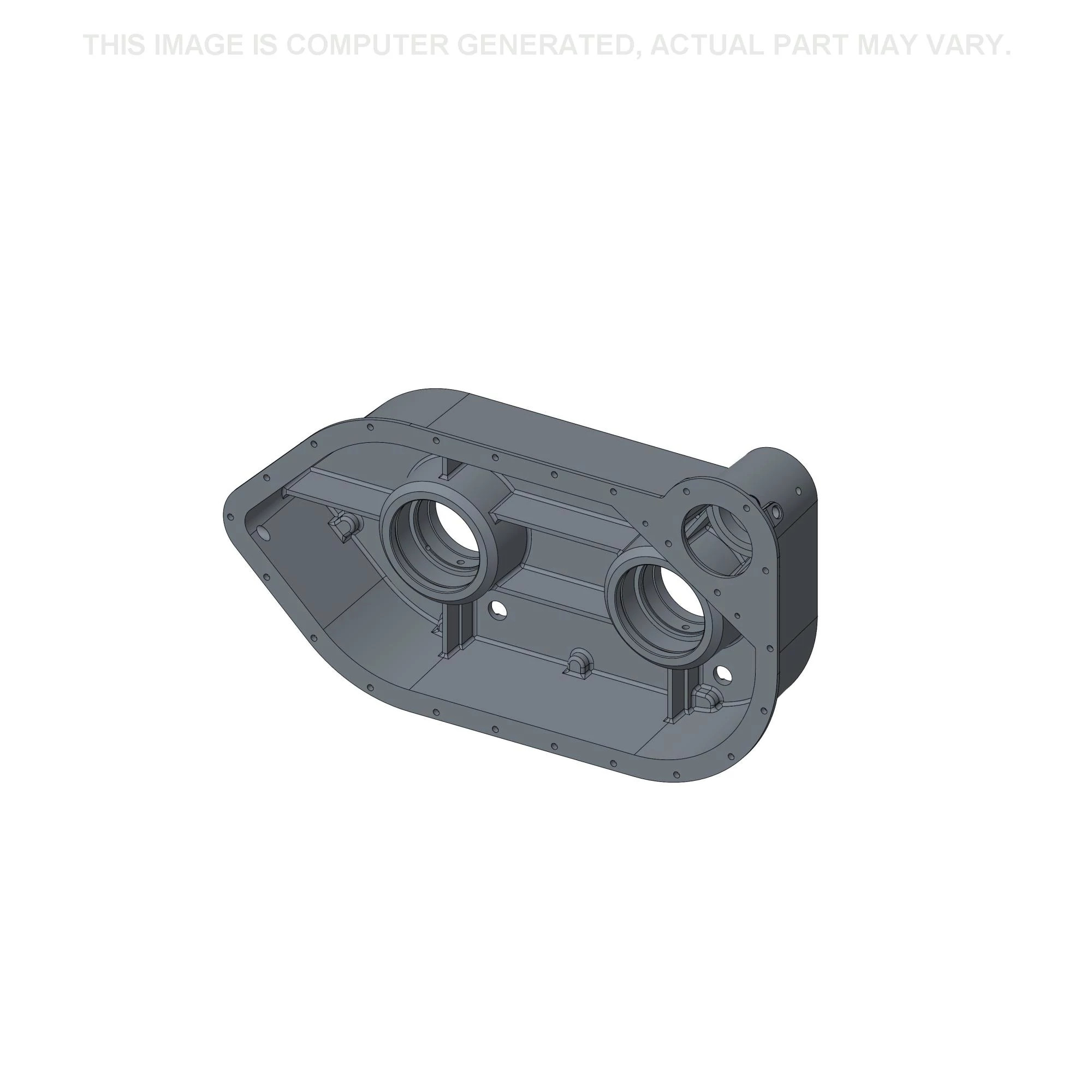

87238452

Description

GEARBOX;


Alts

Select

Ref.

19

Qty

1

Availability

Part #

00133193

Description

WASHER;


Alts

Select

Ref.

20

Qty

1

Availability

Part #

00400106

Description

HYD CONNECTOR;


Alts

Select

Ref.

21

Qty

1

Availability

Part #

00407924

Description

FILLER CAP;


Alts

Select

Ref.

22

Qty

4

Availability

Part #

00152220

Description

PLUG;


Alts

Select

Ref.

23

Qty

2

Availability

Part #

00400138

Description

HYD CONNECTOR;


Alts

Select

Ref.

24

Qty

2

Availability

Part #

00152827

Description

LUBE NIPPLE;


Alts

Select

Ref.

25

Qty

2

Availability

Part #

00605620

Description

PLUG;


Alts

Select

Ref.

26

Qty

16

Availability

Part #

FA112045

Description

BOLT;


Alts

Select

Ref.

27

Qty

16

Availability

Part #

NA112000

Description

NUT;


Alts

Select

Ref.

28

Qty

1

Availability

Part #

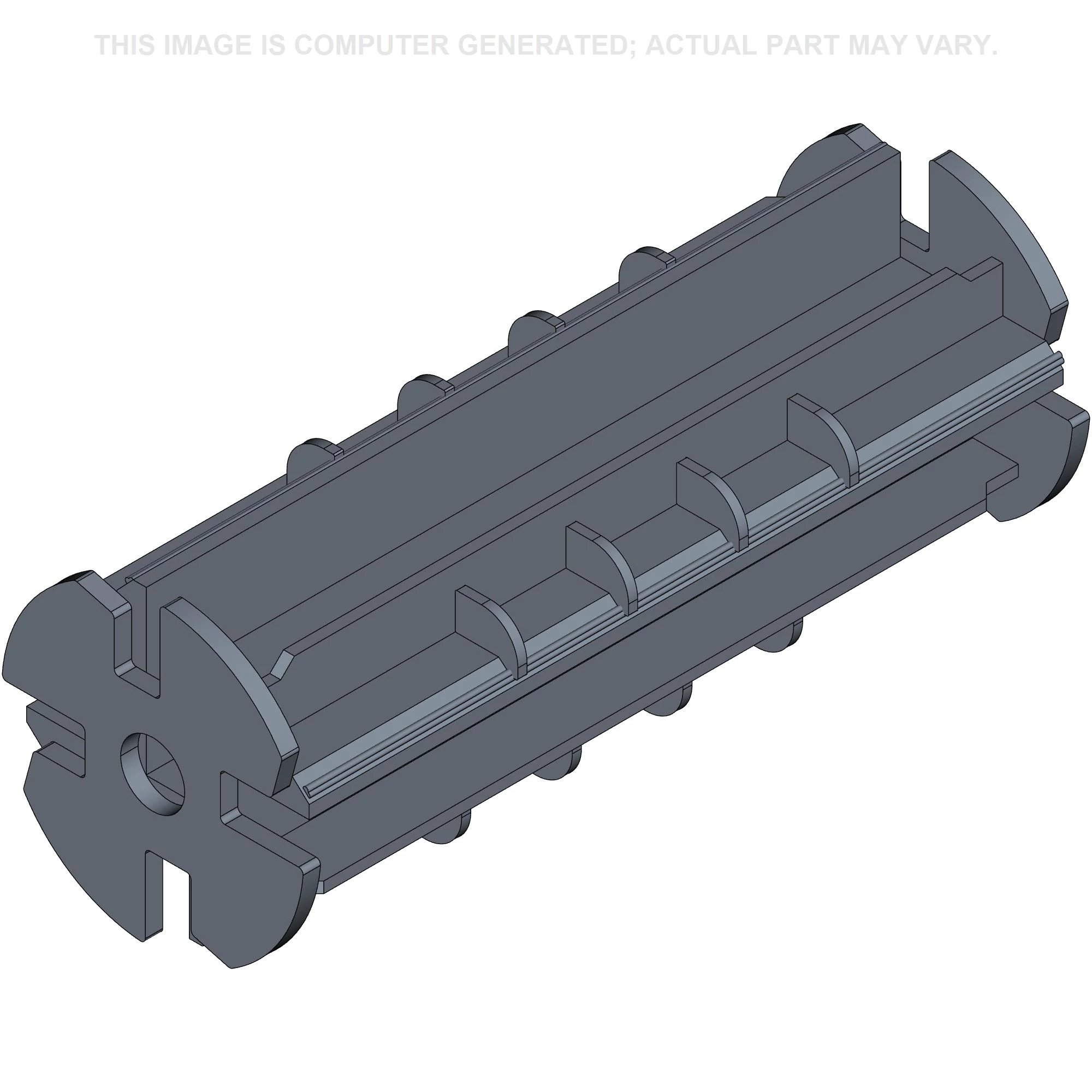

48038851

Description

DRUM; Lower - 4 blade; (SN Break) From PRCY8800HGPA02921


Alts

Select

Ref.

28

Qty

1

Availability

Part #

87251378

Description

DRUM; Lower - 3 blade


Alts

Select

Ref.

28

Qty

1

Availability

Part #

87252078

Description

DRUM; Lower - 4 blade


Alts

Select

Ref.

29

Qty

1

Availability

Part #

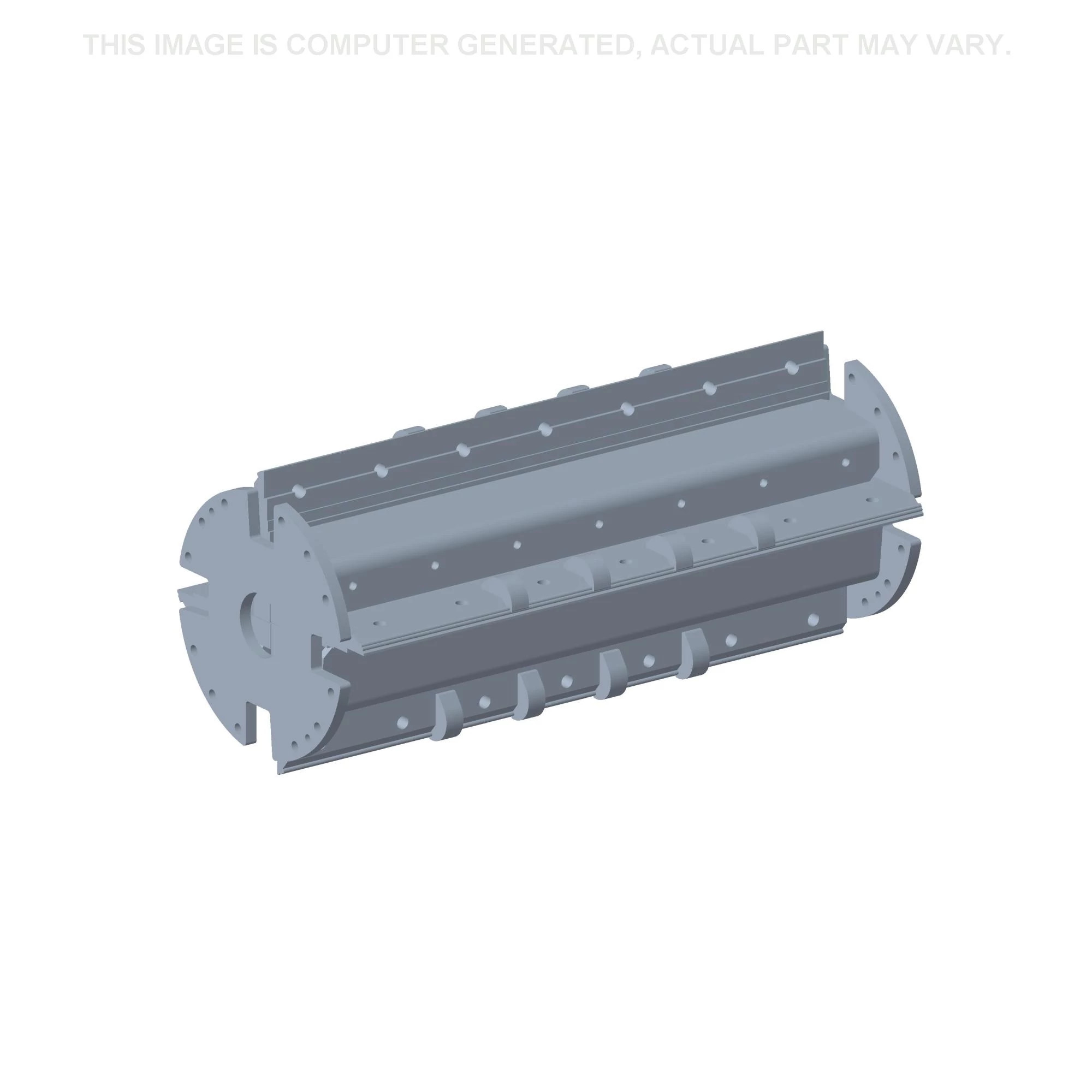

48038830

Description

DRUM; Upper - 4 blade; (SN Break) From PRCY8800HGPA02921


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87251376

Description

DRUM; Upper - 3 blade


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87252076

Description

DRUM; Upper - 4 blade


Alts

Select

Ref.

30

Qty

AR

Availability

Part #

87251636

Description

CLAMP Bolt On, 7 Hole, 73mm W x 840mm L;


Alts

Select

Ref.

31

Qty

AR

Availability

Part #

0087214899

Description

KNIFE; Only OLA Market


Alts

Select

Ref.

31

Qty

AR

Availability

Part #

87214899BR

Description

KNIFE 847mm L x 65mm W x 8mm Thk; Only BR Market


Alts

Select

Ref.

31

Qty

AR

Availability

Part #

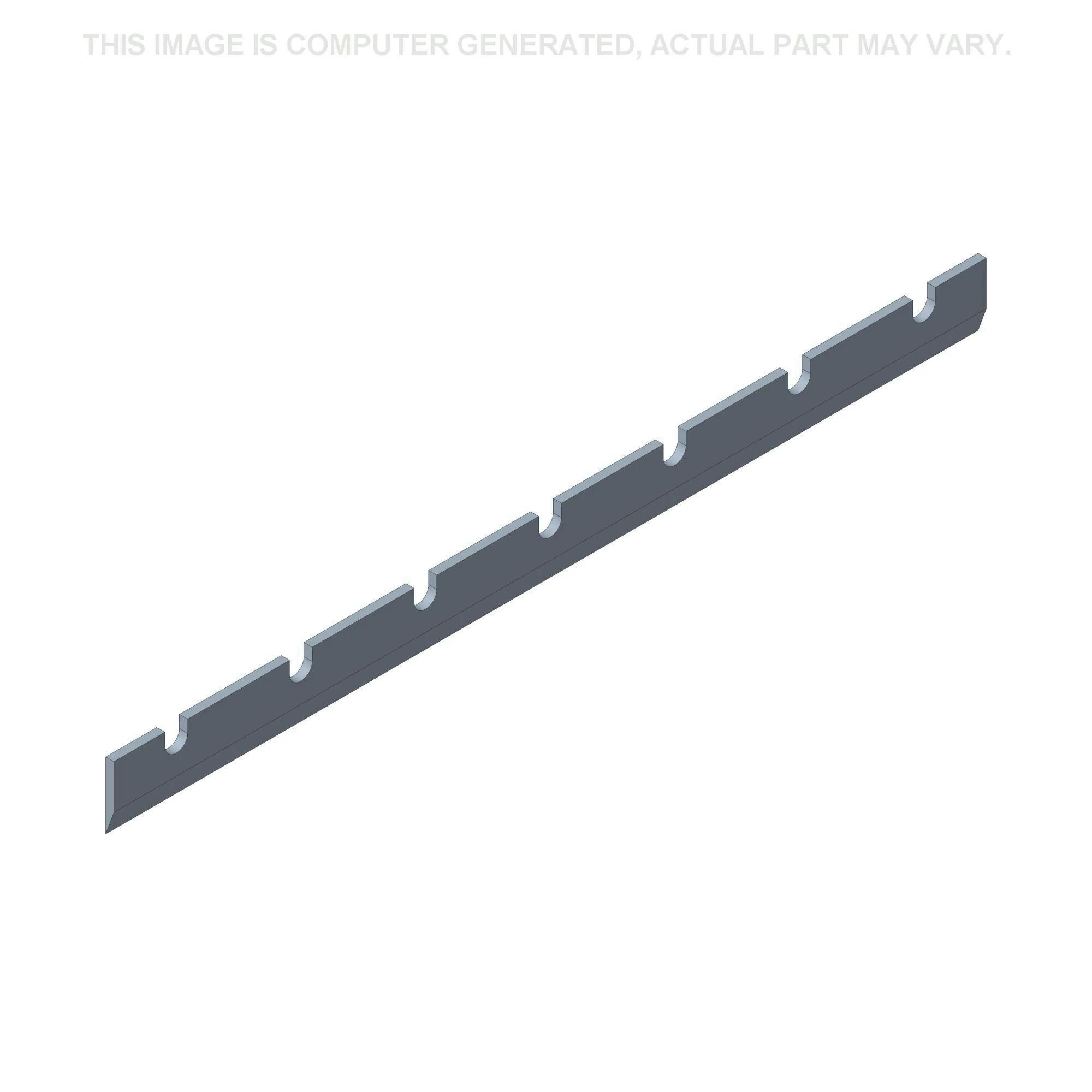

87214899

Description

BLADE; Others Markets (Except OLA & BR)


Alts

Select

Ref.

32

Qty

AR

Availability

Part #

FX116050

Description

BOLT;


Alts

Select

Ref.

33

Qty

AR

Availability

Part #

87251638

Description

CLAMP;


Alts

Select

Ref.

34

Qty

AR

Availability

Part #

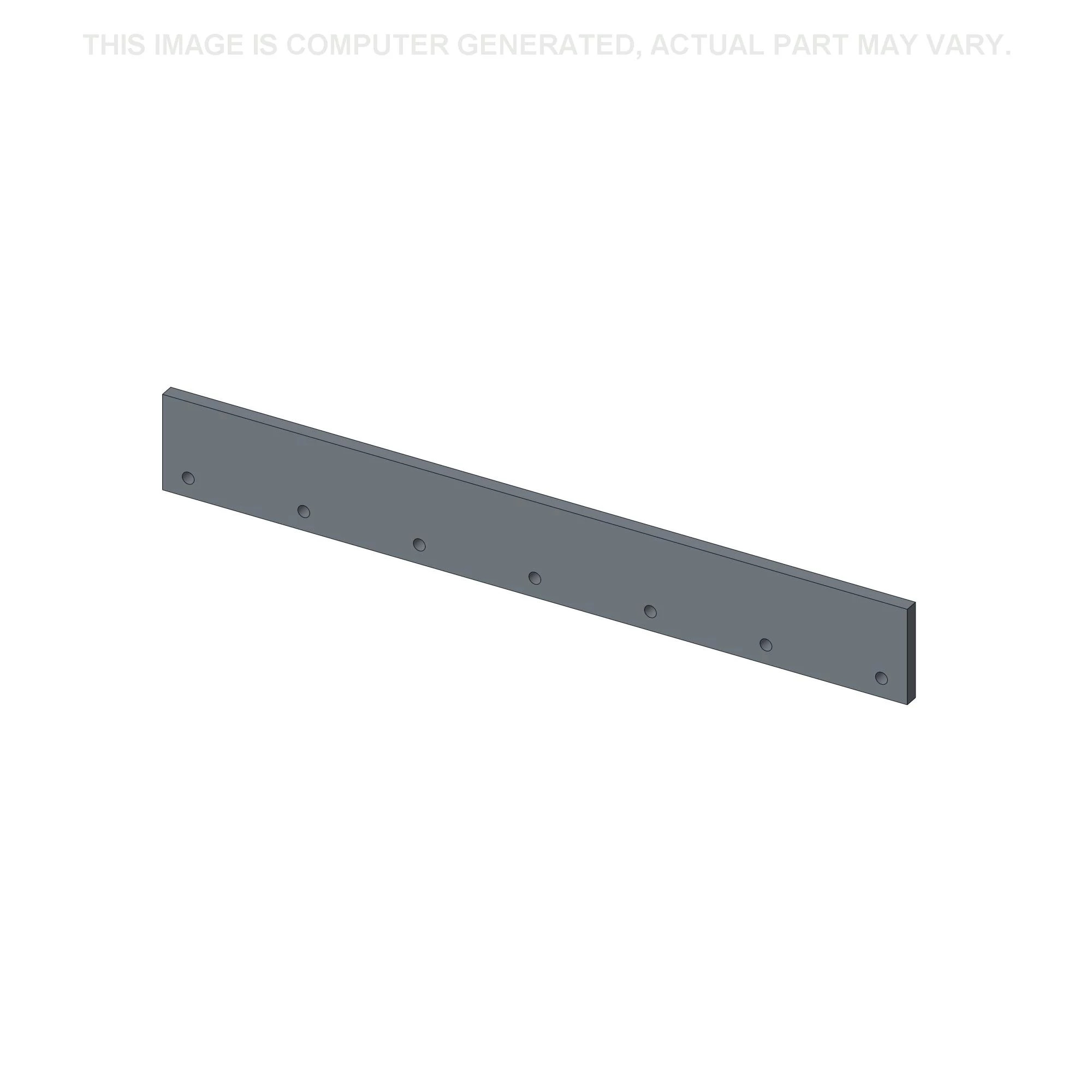

87251637

Description

FLAP 100mm W x 780mm L;


Alts

Select

Ref.

35

Qty

AR

Availability

Part #

FA112035

Description

BOLT;


Alts

Select

Ref.

36

Qty

2

Availability

Part #

87239618

Description

HUB;


Alts

Select

Ref.

37

Qty

32

Availability

Part #

00601584

Description

BOLT;


Alts

Select

Ref.

38

Qty

32

Availability

Part #

00605803

Description

NUT;


Alts

Select

Ref.

39

Qty

2

Availability

Part #

00100815

Description

OIL SEAL;


Alts

Select

Ref.

40

Qty

2

Availability

Part #

87239622

Description

SPLINED COUPLING;


Alts

Select

Ref.

41

Qty

2

Availability

Part #

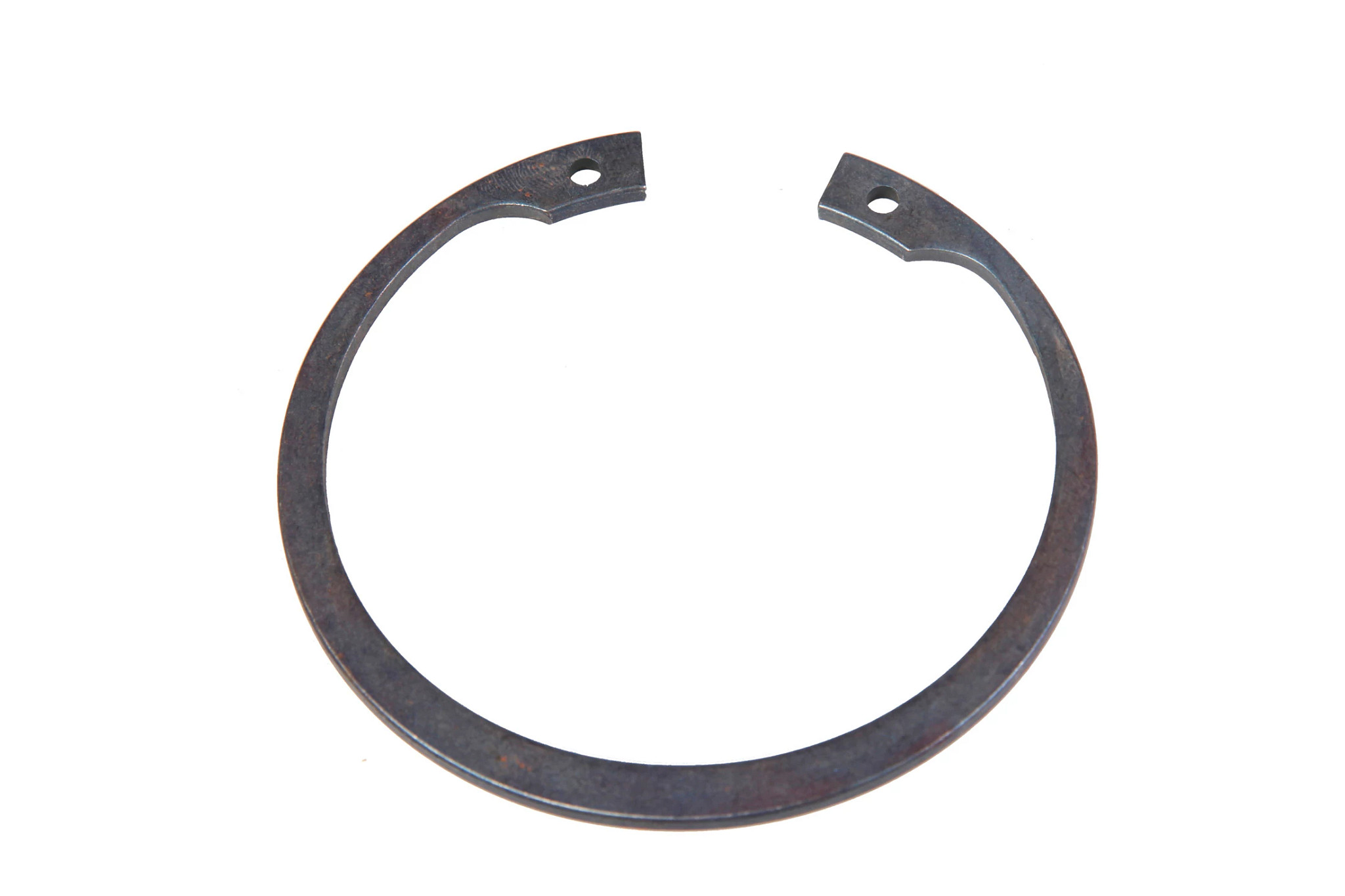

CE085000

Description

CIRCLIP;


Alts

Select

Ref.

42

Qty

6

Availability

Part #

FP112040

Description

BOLT;


Alts

Select

Ref.

43

Qty

AR

Availability

Part #

WB160000

Description

PRESSURE WASHER;


Alts

Select

Ref.

45

Qty

16

Availability

Part #

WA120000

Description

WASHER;


Alts

Select

Ref.

47

Qty

27

Availability

Part #

WA100000

Description

WASHER;


Alts

Select

Ref.

48

Qty

8

Availability

Part #

FA116050

Description

BOLT Hex, M16 x 60mm;


Alts

Select

Ref.

49

Qty

8

Availability

Part #

WA160000

Description

WASHER;


Alts

Select

Ref.

50

Qty

18

Availability

Part #

00135789

Description

WASHER;


Alts

Select

Ref.

51

Qty

18

Availability

Part #

FM112025

Description

BOLT;


Alts

Select

Ref.

52

Qty

4

Availability

Part #

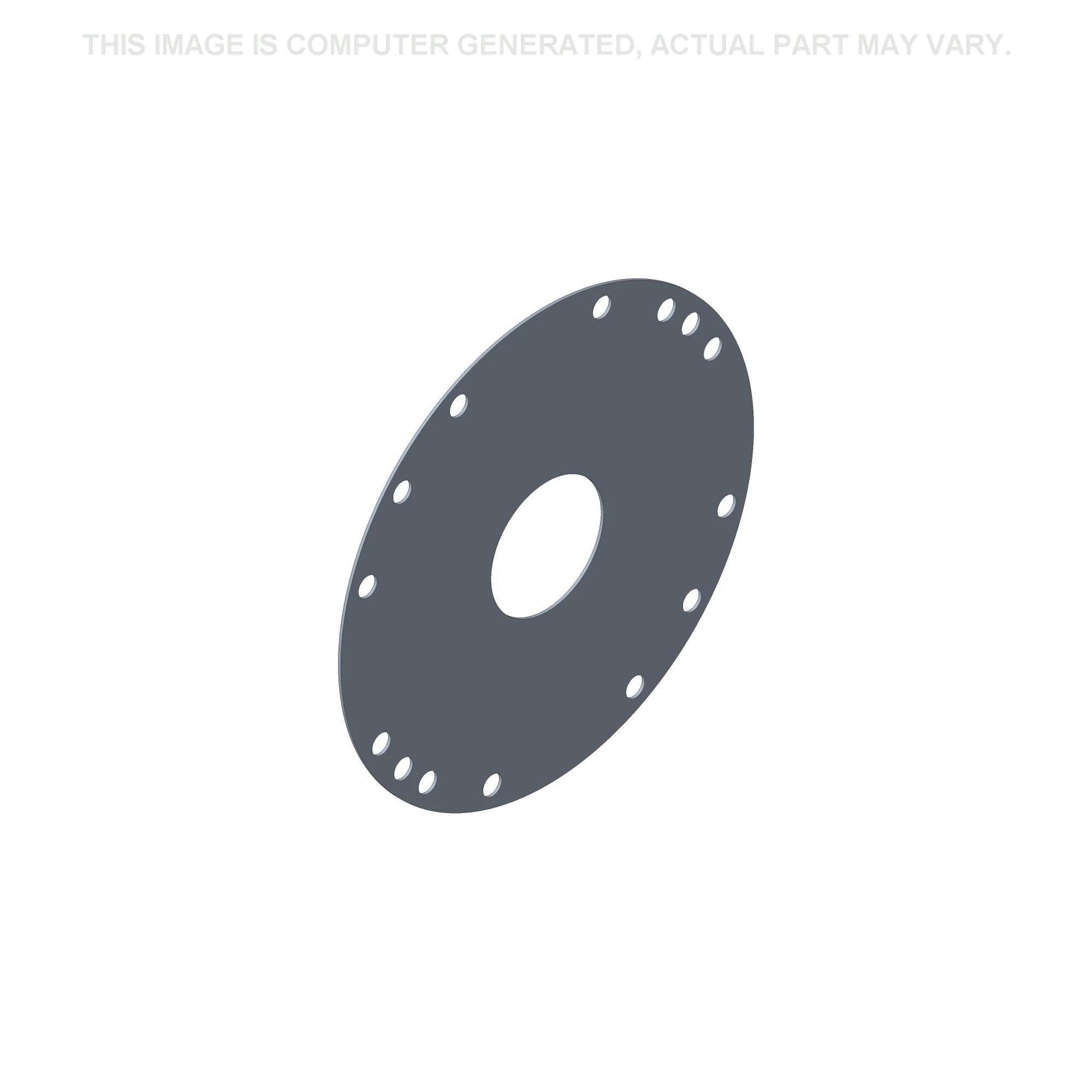

48104890

Description

FLANGE; (SN Break) Between PRCY8800HGPA02921 and PRCY8800VGPA02611


Alts
